Features

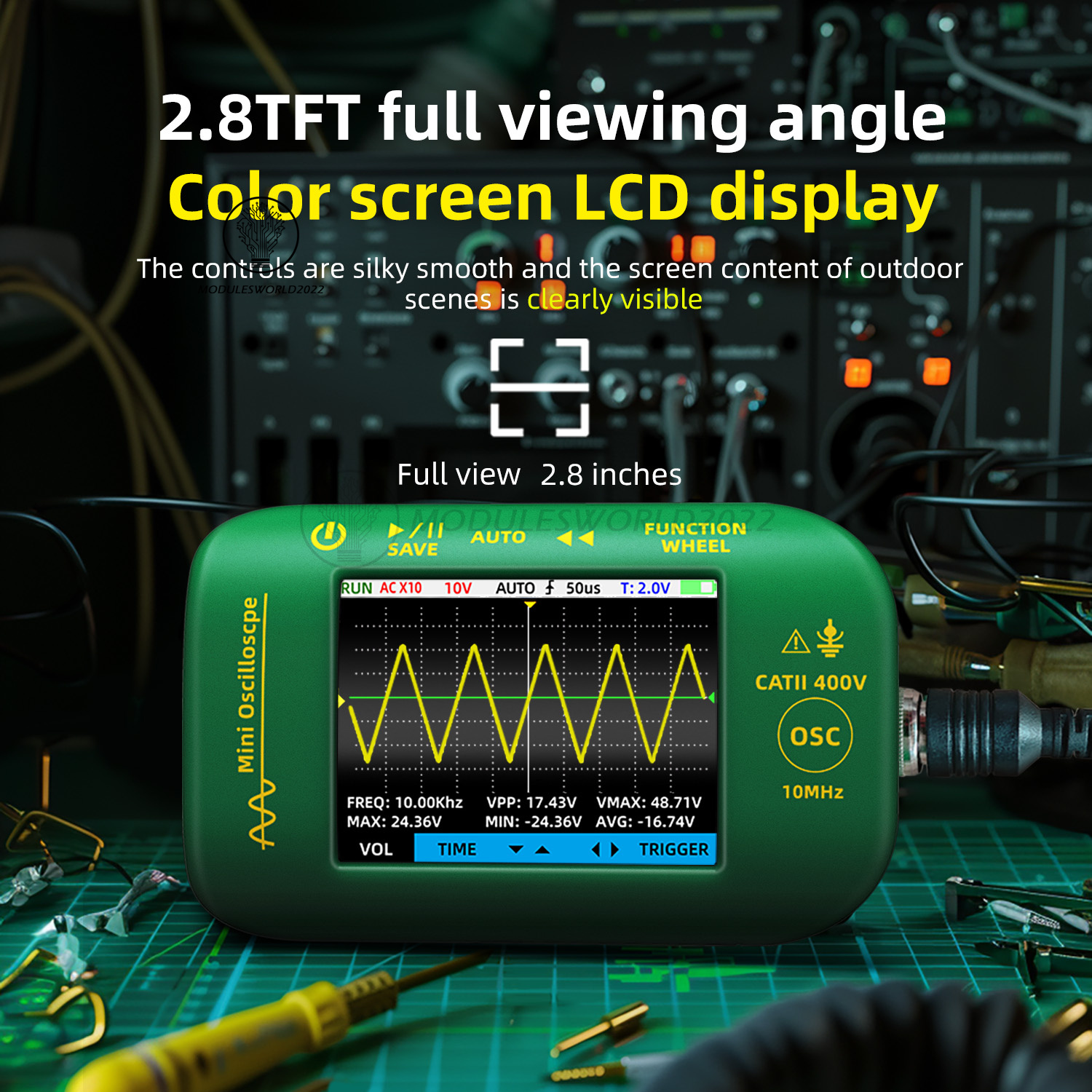

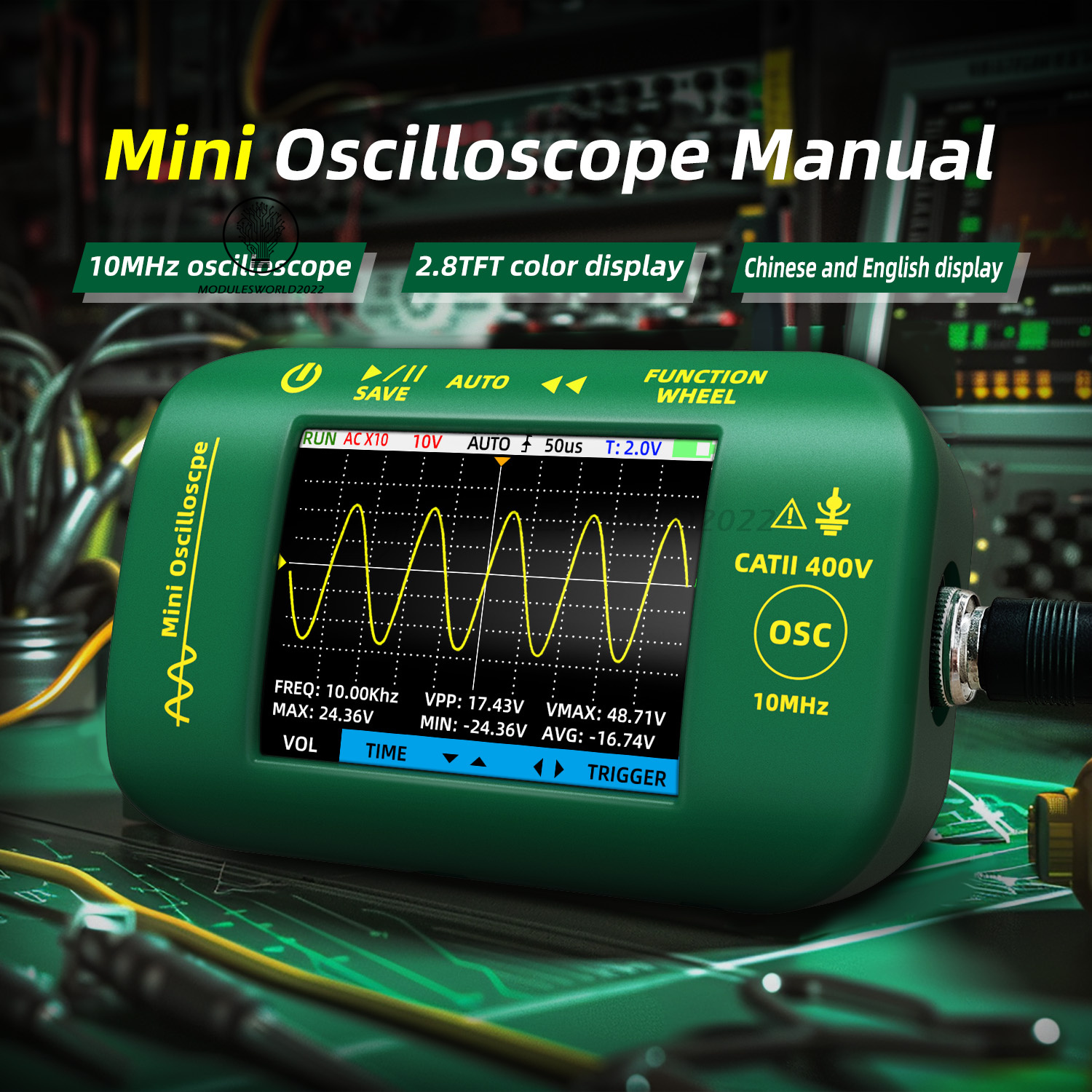

1.2.8 TFT full-view LCD color screen display: smooth and fluid control, outdoor scene screen content is clearly visible

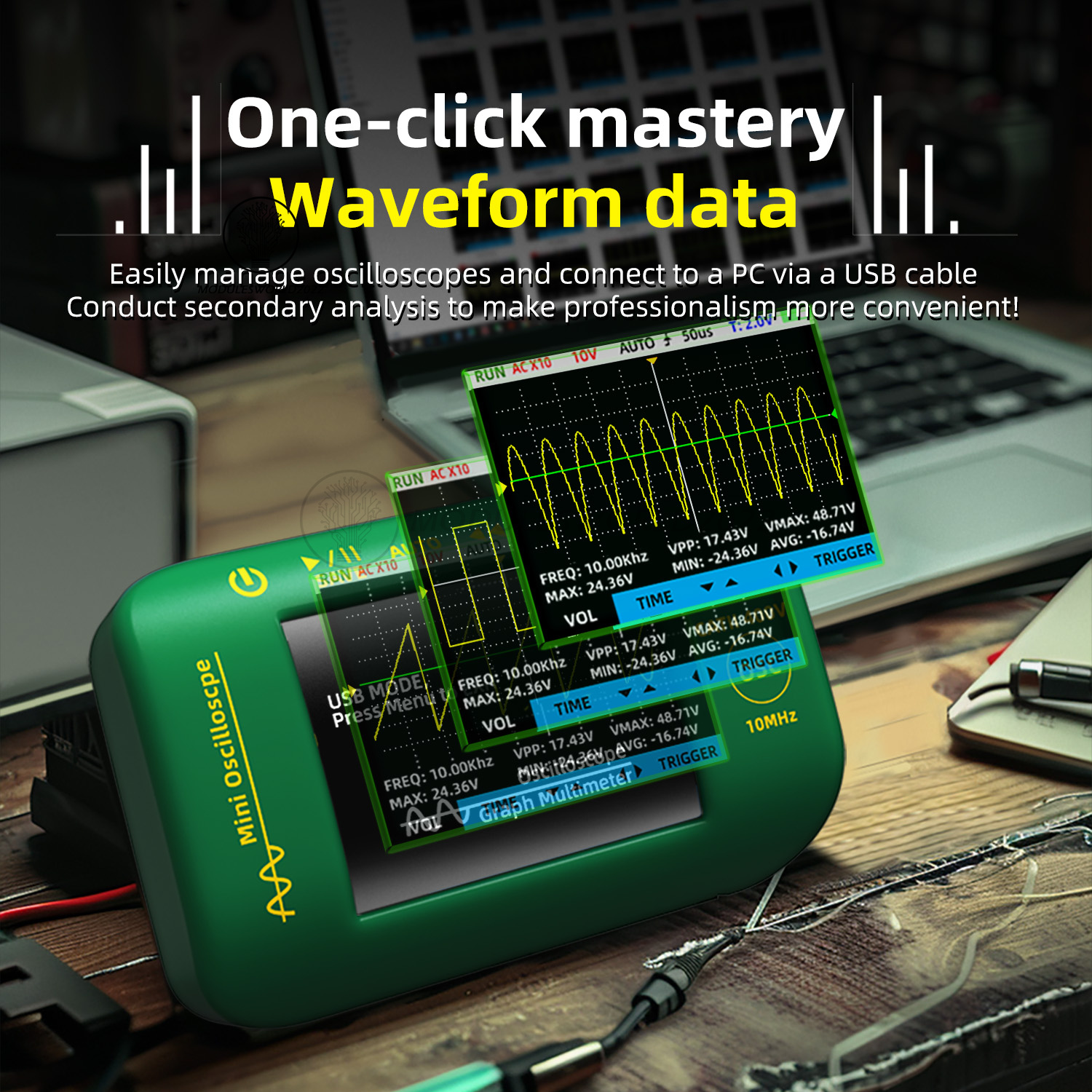

2.One key to master the waveform data: easy to manage the oscillometric image, can be connected to the computer via USB cable for secondary analysis, make the professional more convenient!
3. Intelligent chip measurement accuracy and speed: fast response / high accuracy / large range / wide range of built-in 1800mA lithium battery, maximum charging current 2A

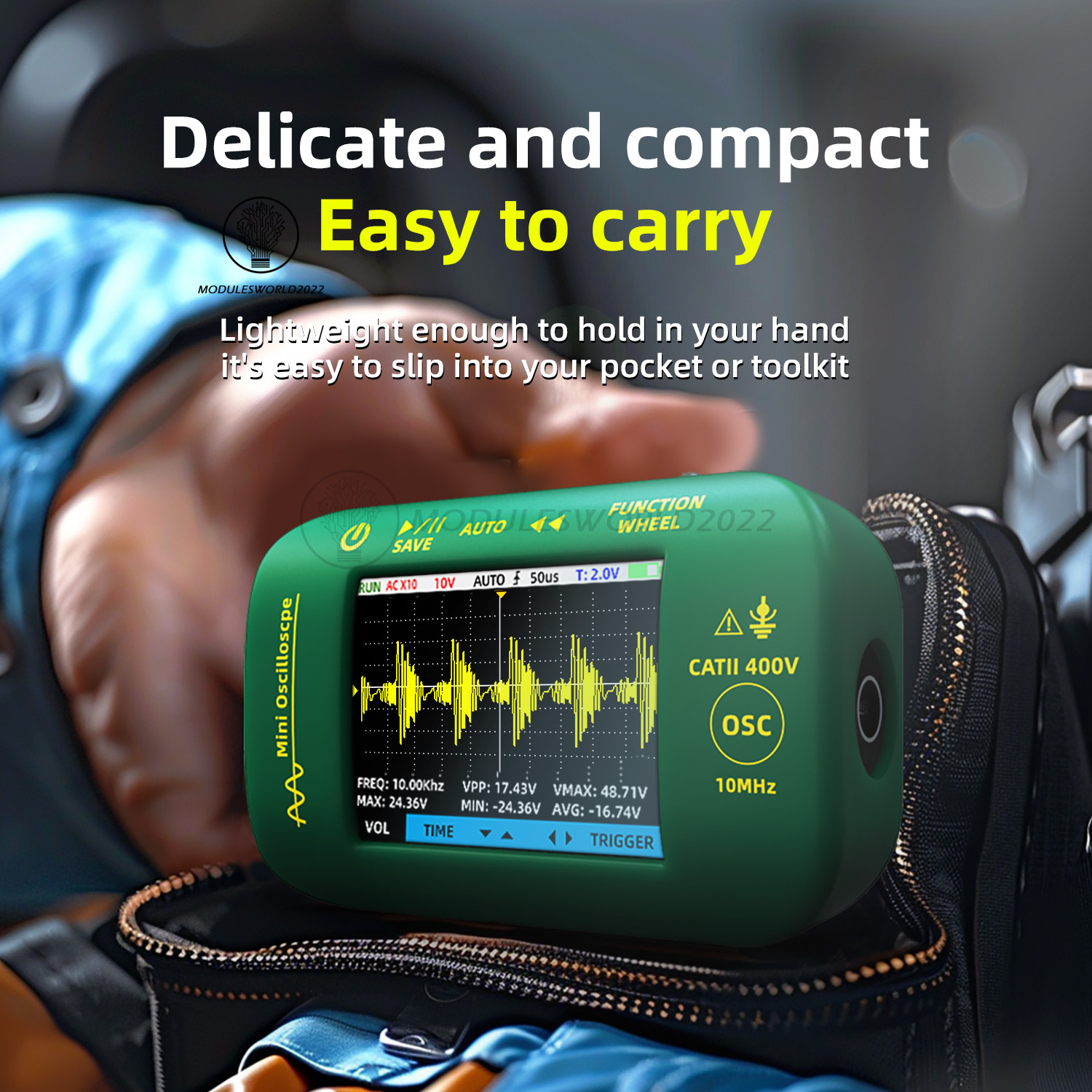

4. Exquisite and compact and convenient to carry: lightweight, a hand can grasp, easy to load into a pocket or toolkit from now on to say goodbye to the heavy and complicated equipment bound!

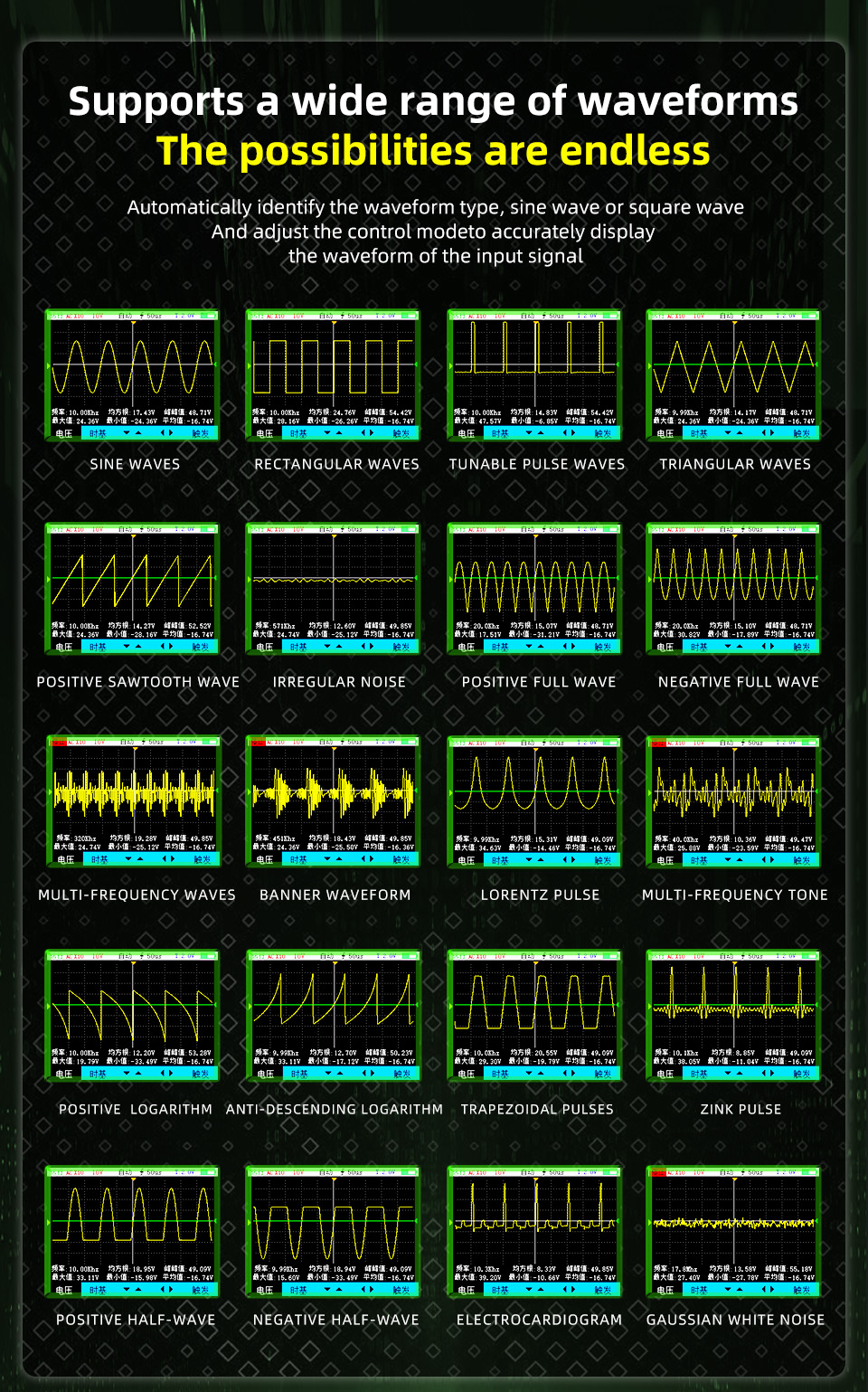

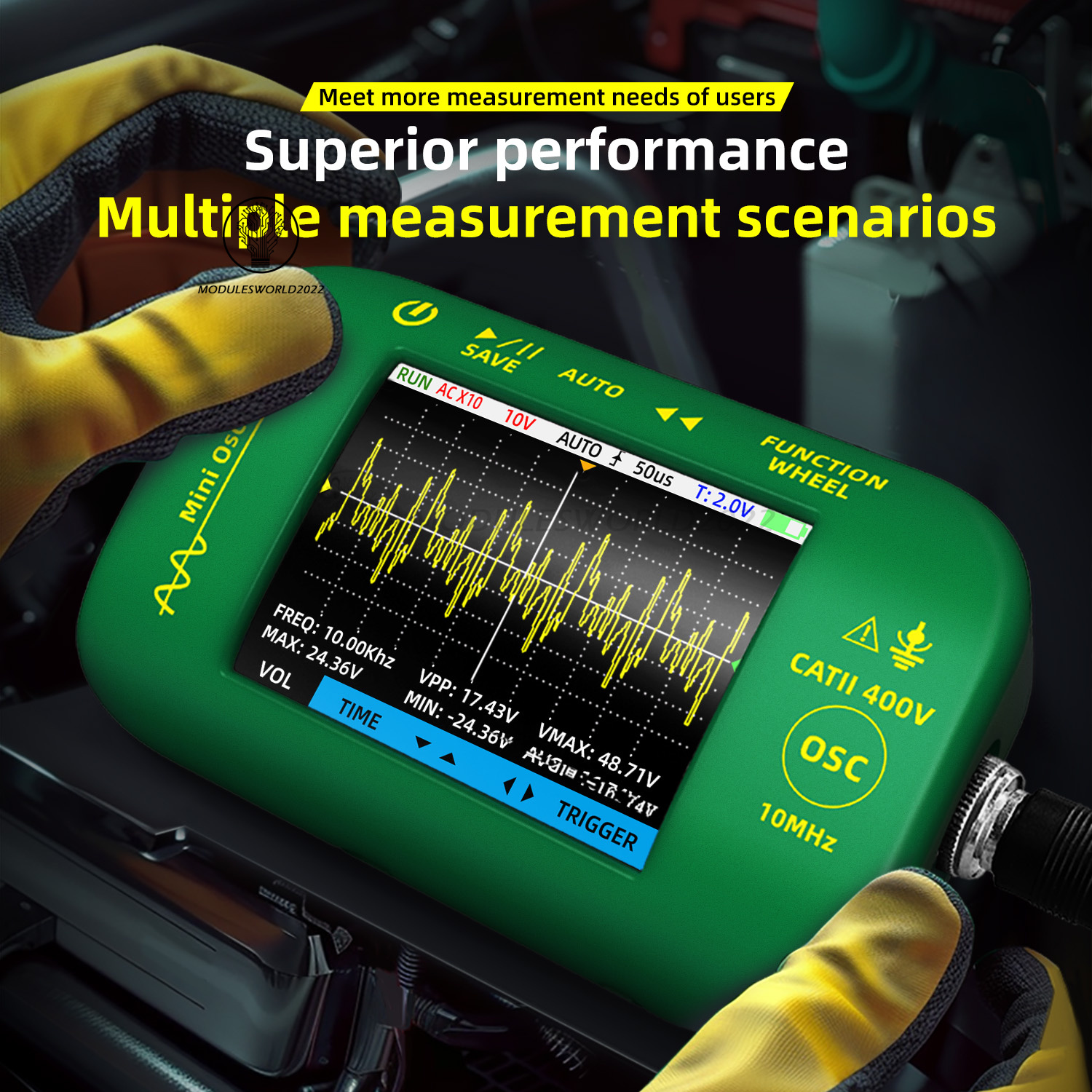

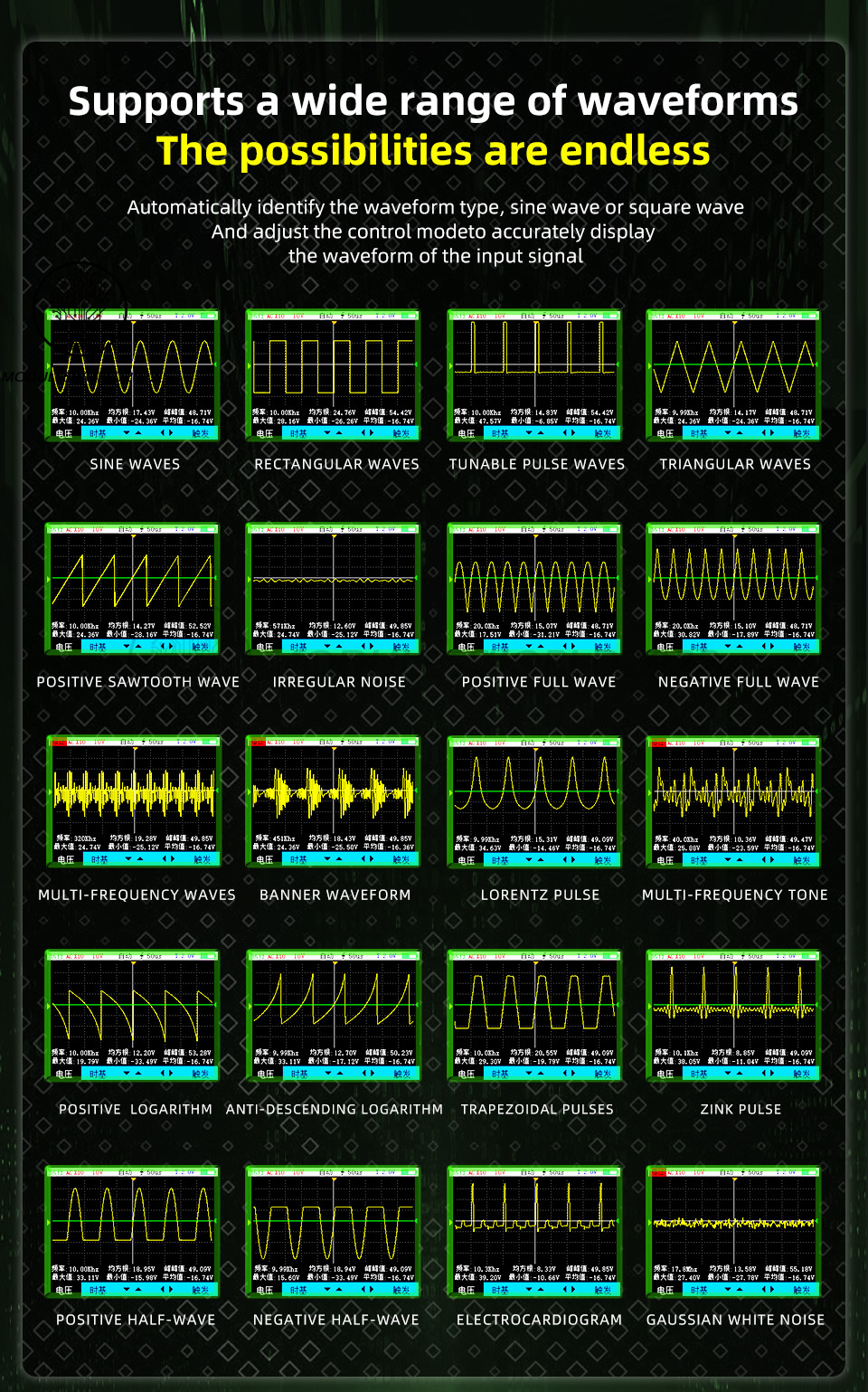

5. Diversified measurements, a wide range of applications: audio signal measurement, crystal waveform measurement, pulse signal measurement, power supply ripple measurement, switching power measurement
1.2.8 TFT full-view LCD color screen display: smooth and fluid control, outdoor scene screen content is clearly visible
2.One key to master the waveform data: easy to manage the oscillometric image, can be connected to the computer via USB cable for secondary analysis, make the professional more convenient!
3. Intelligent chip measurement accuracy and speed: fast response / high accuracy / large range / wide range of built-in 1800mA lithium battery, maximum charging current 2A
4. Exquisite and compact and convenient to carry: lightweight, a hand can grasp, easy to load into a pocket or toolkit from now on to say goodbye to the heavy and complicated equipment bound!
5. Diversified measurements, a wide range of applications: audio signal measurement, crystal waveform measurement, pulse signal measurement, power supply ripple measurement, switching power measurement

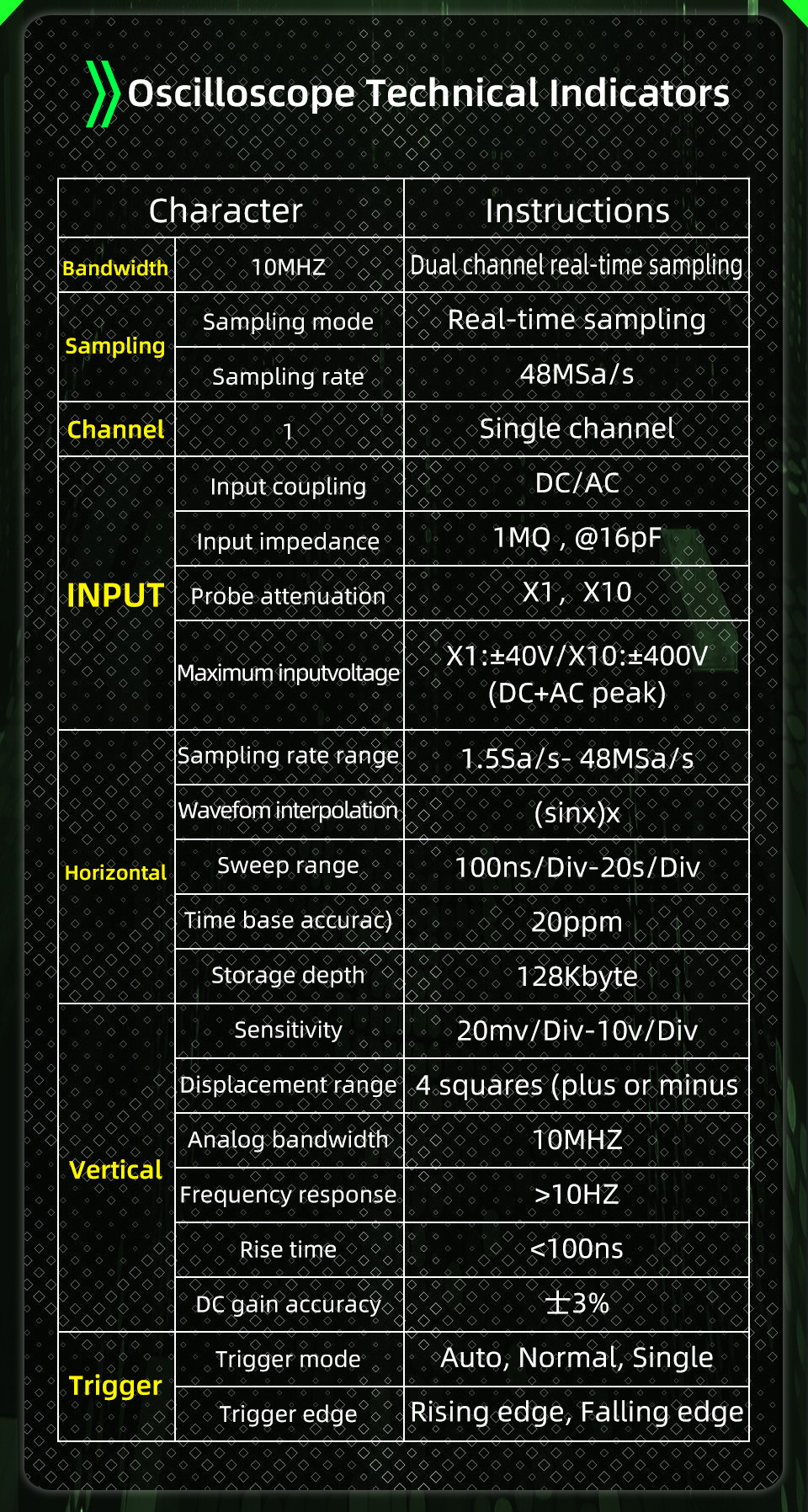

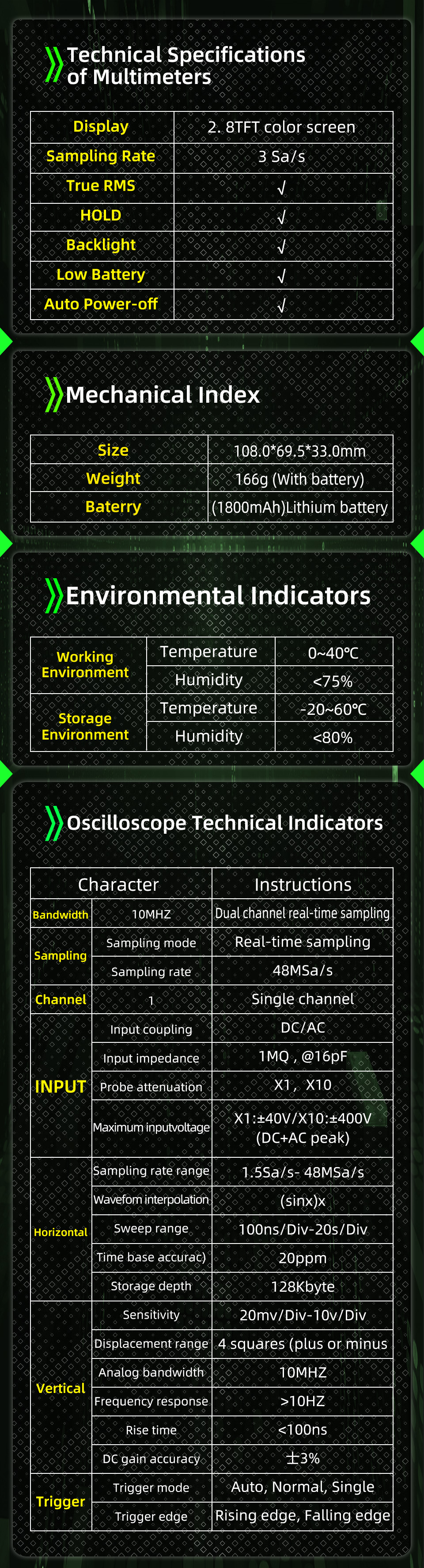

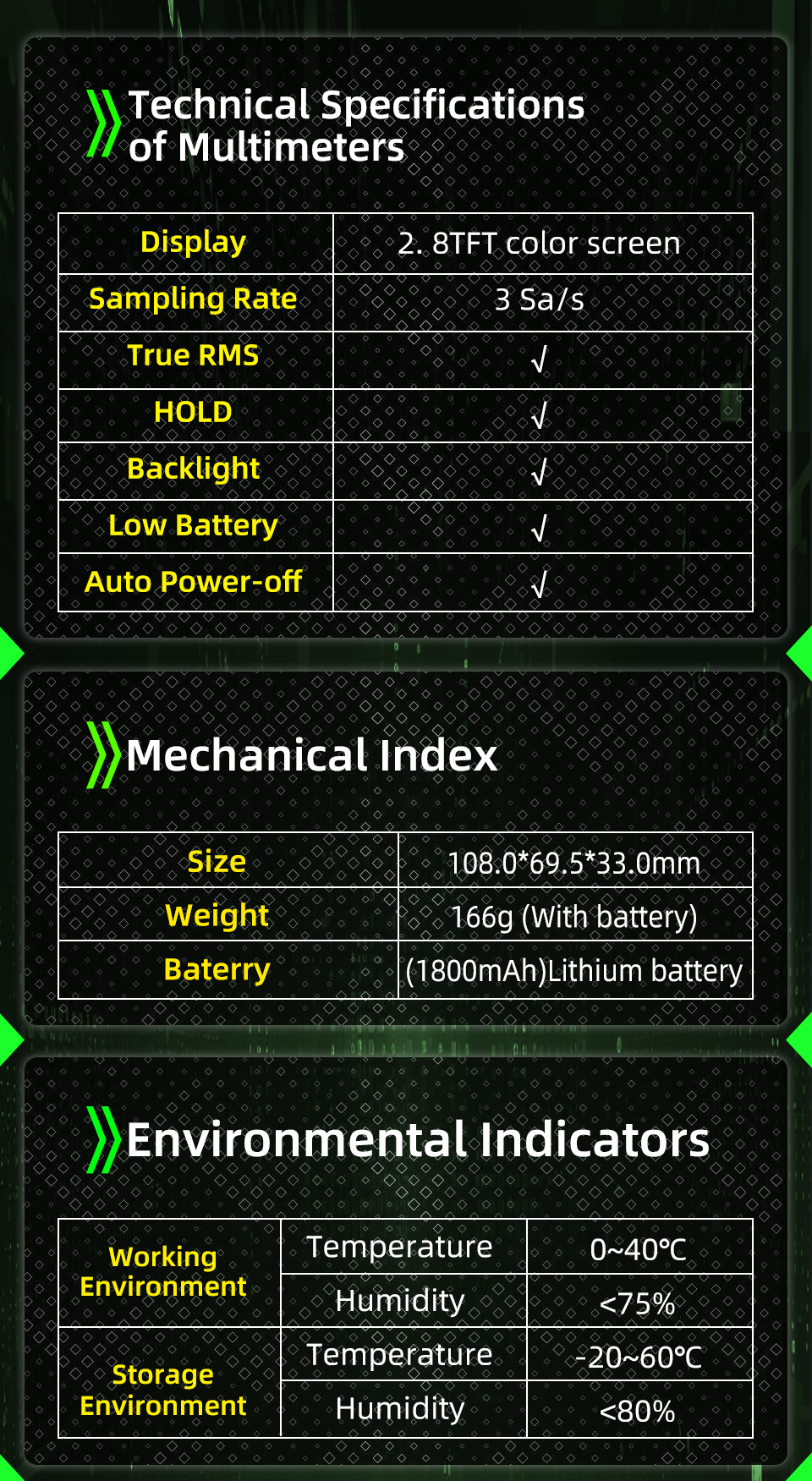

Specification
Bandwidth: 10MHz
Sampling: real-time sampling, 48MSa/s
Number of channels: single channel
Display: 2.8-inch TFT color screen
Sampling rate: 3 times/sec
Data hold: √
Pause: √
Screen backlight: √
Low Battery Alert: √
Auto power off: √
Power supply: Built-in 1800mA lithium battery
Interface: Type-C
Bandwidth: 10MHz
Sampling: real-time sampling, 48MSa/s
Number of channels: single channel
Display: 2.8-inch TFT color screen
Sampling rate: 3 times/sec
Data hold: √
Pause: √
Screen backlight: √
Low Battery Alert: √
Auto power off: √
Power supply: Built-in 1800mA lithium battery
Interface: Type-C

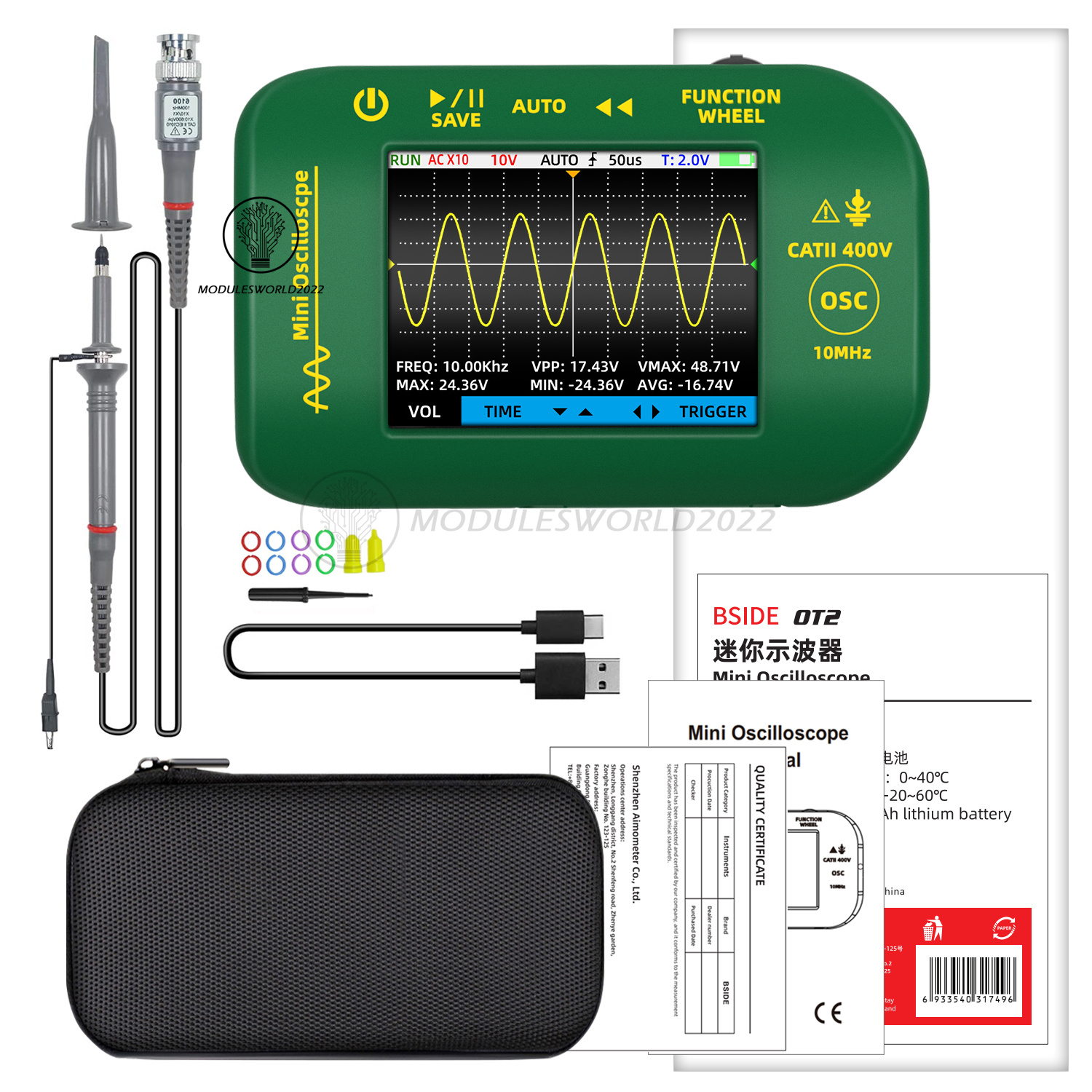

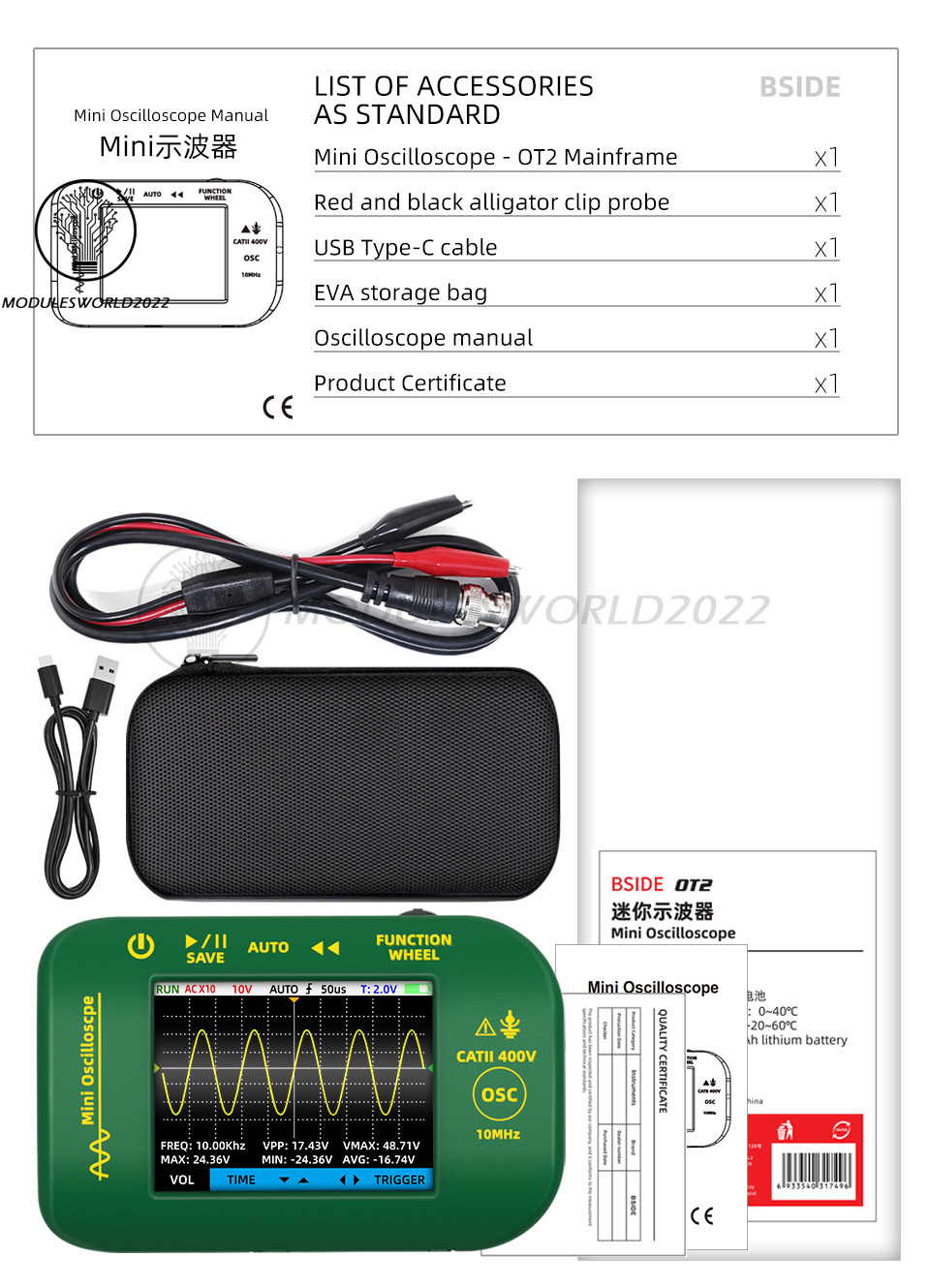

List
1 x Oscilloscope
1 x Instruction Manual
1 x Type-C USB cable
1 x Storage bag
1 x Probe
