Product Type: Piston Kit |
Replaces: 13101-HC4-000 13101HC4000 |
  • Bore: Standard |
  • Outside Diameter: 74 mm |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

OEM Grade Honda TRX300 TRX300FW Fourtrax 300 Piston Kit STD 74mm 13101HC4000

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Honda Piston: 13101-HC4-000 / 13101HC4000
• Honda Ring Set: 13011-HC4-306 / 13011HC4306
• Honda Wrist Pin: 13111-HC0-000 / 13111HC0000
• Honda Cylinder: 12100-HC4-000 / 12100HC4000

SPECIFICATIONS:
• Type: Piston Kit (Standard Bore)
• Standard Bore: 74mm (2.913")
• Stroke: 65.5mm
• Displacement: 282cc
• Piston Type: Cast
• Engine: Single-Cylinder 4-Stroke OHV Air-Cooled
• Horsepower: 20HP
• Weight: 2 lbs / Condition: New

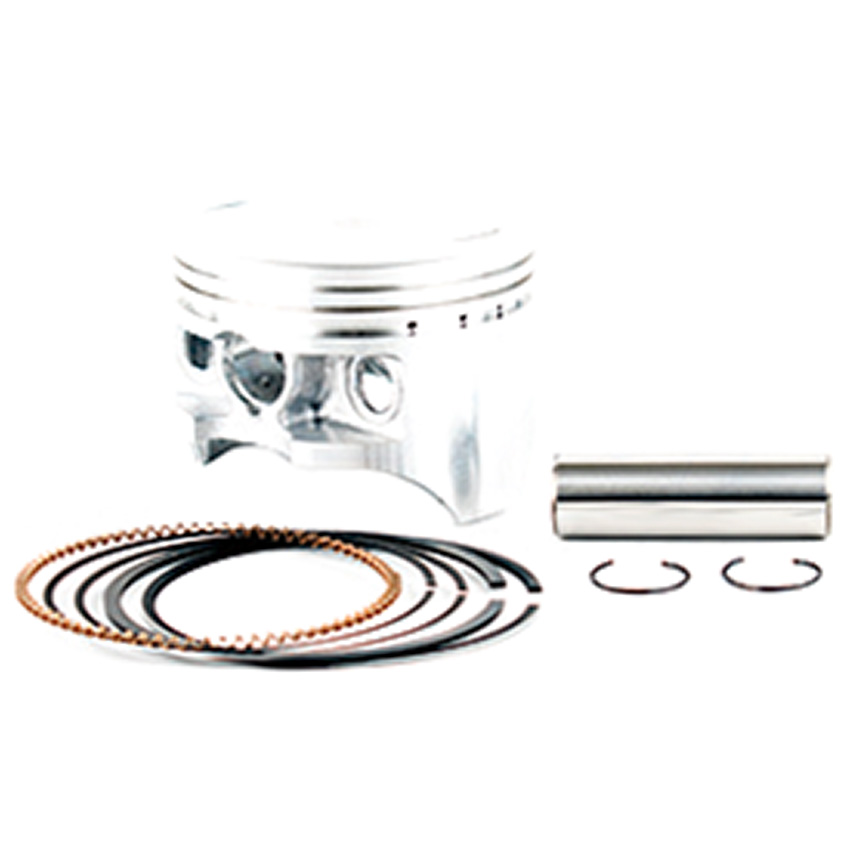

KIT CONTENTS (Single Cylinder):
• (1) Cast Piston — Standard Bore 74mm
• (1) Ring Set / (1) Wrist Pin / (2) Circlips
• Single cylinder engine — one kit completes rebuild

BORE SIZE CHART (Honda TRX300 Fourtrax 282cc):
• Standard: 74.00mm (50-223K) — THIS KIT
• 0.25mm Over: 74.25mm (50-223-04K)
• 0.50mm Over: 74.50mm (50-223-05K)
• 0.75mm Over: 74.75mm (50-223-06K)
• 1.00mm Over: 75.00mm (50-223-07K)

APPLICATIONS:
• Honda TRX300 Fourtrax 300 2x4 282cc OHV (1988-2000)
• Honda TRX300FW Fourtrax 300 4x4 282cc OHV (1988-2000)

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



HONDA TRX300 FOURTRAX 300 2WD — 282cc 4-Stroke OHV:
• Honda TRX300 Fourtrax 300 2x4 282cc Air-Cooled Single-Cylinder 4-Stroke OHV 20HP (1988-2000)

HONDA TRX300FW FOURTRAX 300 4x4 — 282cc 4-Stroke OHV:
• Honda TRX300FW Fourtrax 300 4x4 282cc Air-Cooled Single-Cylinder 4-Stroke OHV 20HP (1988-2000)

ENGINE SPECIFICATIONS:
• Engine: Honda 282cc Air-Cooled Single-Cylinder 4-Stroke OHV
• Bore: 74mm / Stroke: 65.5mm
• Horsepower: 20HP
• Fuel System: Carburetor
• Cooling: Air-Cooled
• Valve Train: OHV (Overhead Valve)

DOES NOT FIT:
• TRX300EX Sportrax 300 — uses different SOHC engine with piston 13101-HM3-670

NOTE — SINGLE CYLINDER KIT:
• Single cylinder engine — one kit completes rebuild
• Standard bore 74mm — no boring required
