Application:

for Chevrolet Camaro 1967-1976 All Engine
for Chevrolet Chevelle 1964-1973 All Engine
for Chevrolet El Camino 1964-1976 All Engine
for Chevrolet Laguna 1973-1976 All Engine
for Chevrolet Malibu 1964-1967 All Engine
for Chevrolet Malibu 1973-1976 All Engine
for Chevrolet Monte Carlo 1970-1976 All Engine
for GMC Sprint 1971-1976 All Engine
for Pontiac Firebird 1967-1970 All Engine
for Pontiac Firebird 1971-1976 All Engine Formula & Trans Am submodels
for Pontiac GTO 1964-1971 All Engine
Note: with 4 Turns Lock to Lock; with Power Steering Gear

Part Number:

276509, 27-6509

Specification:

Hose Port Type:copper nozzle
Steering Wheel Position:   LHD
Pitman Arm included: NO
gear ratio :15.87
Input Shaft Diameter:20.2MM/0.795 IN
Output Shaft Diameter:30MM/1.181 IN
Number of Mounting Holes:4
Input Shaft Spline Count:36
Input Shaft Type:  single Flat+ Glooved+spline
Pressure Port Thread Size:11/16-18
Return Port Thread Size:5/8-18
Total Turns Lock To Lock:4.2

Features:

1. The steering gear box is best solution for the steering problem (such as clunking while turning, shaking steering wheel, excessive free play in steering, leaking power steering fluid, etc. ), and restore steering wheel operation.
2. Made of high-quality materials, the steering gear box has excellent steering response, which ensures that you can more easily control the vehicle during driving and provide a smoother steering experience.
3. The steering gear box has excellent durability and reliability, which can withstand various road conditions and driving conditions to ensure its long-term stable operation.
4. Each unit features O-rings and lip seals to ensure leak-free, long-lasting performance.
5. Hydraulic testing measures for proper flow, leakage and performance to ensure exact fit and function.
6. Easy Installation, it can be installed without any modification.

Package Includes:

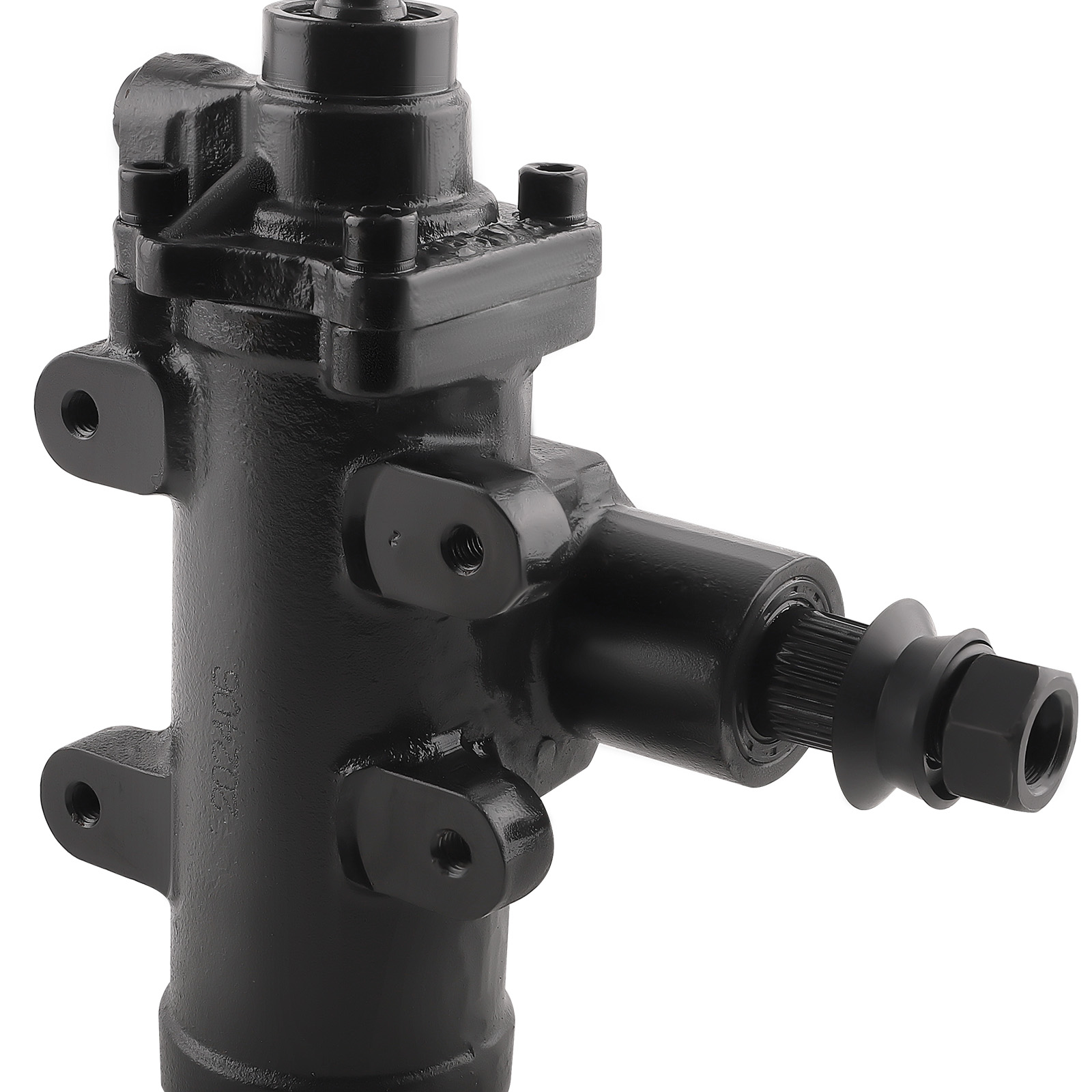

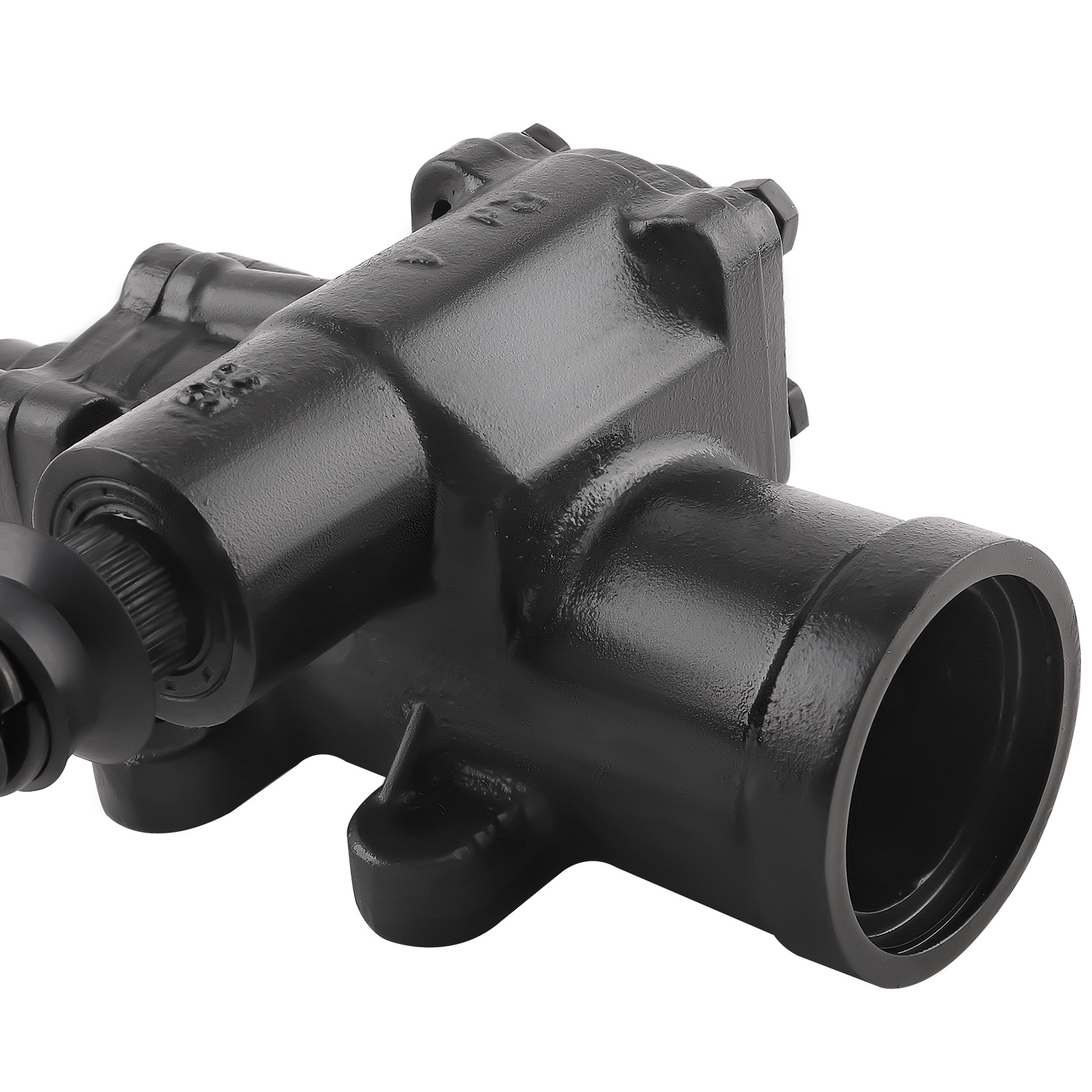

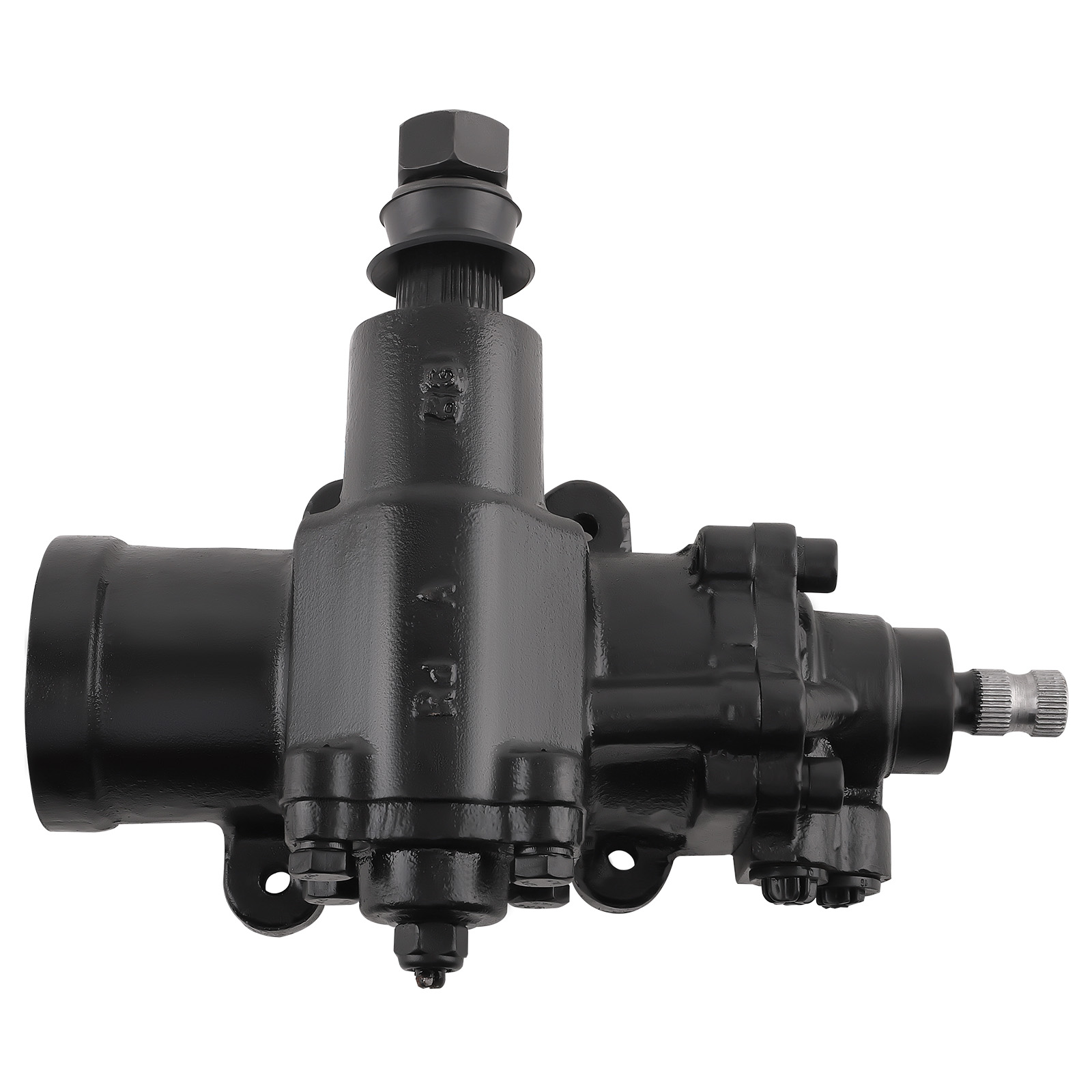

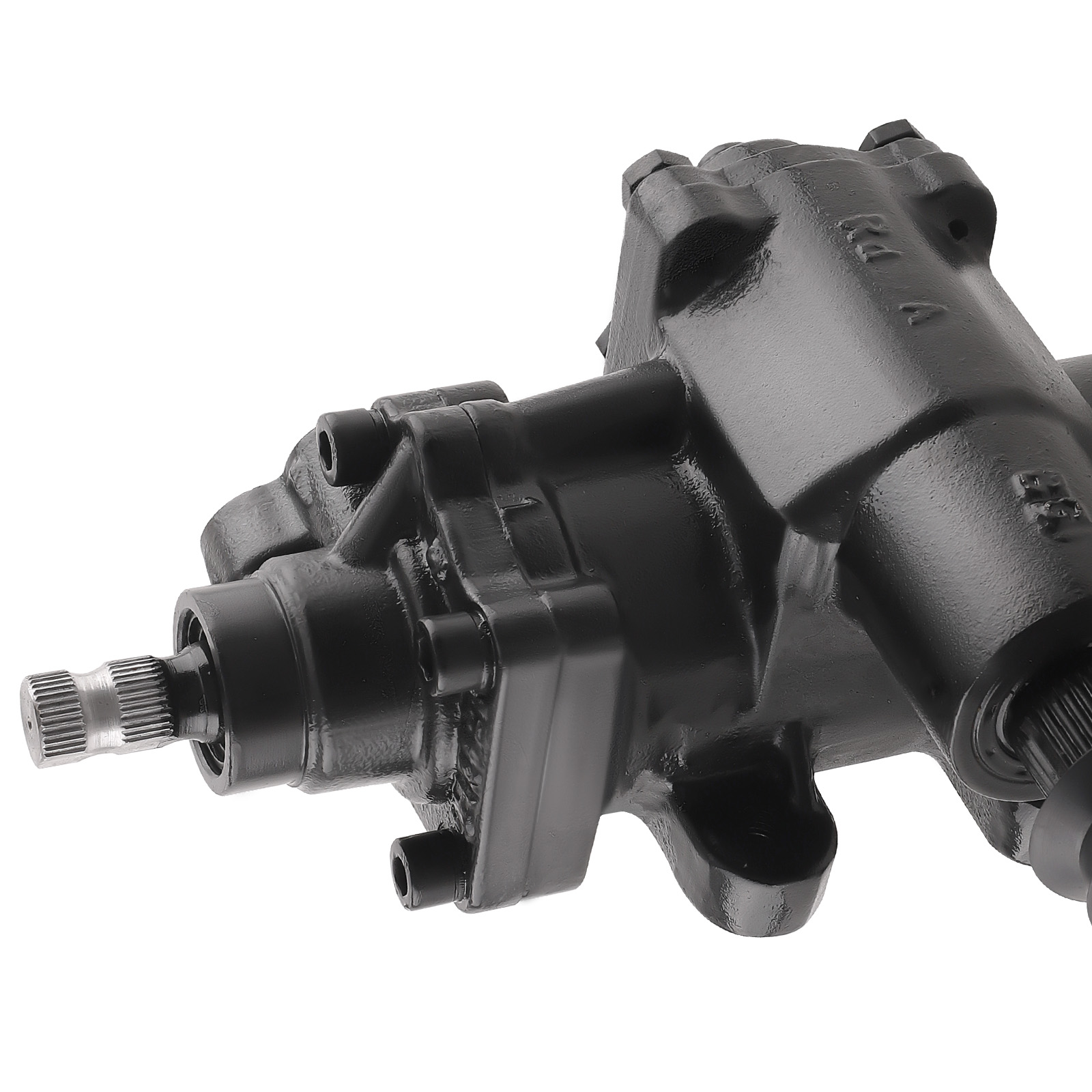

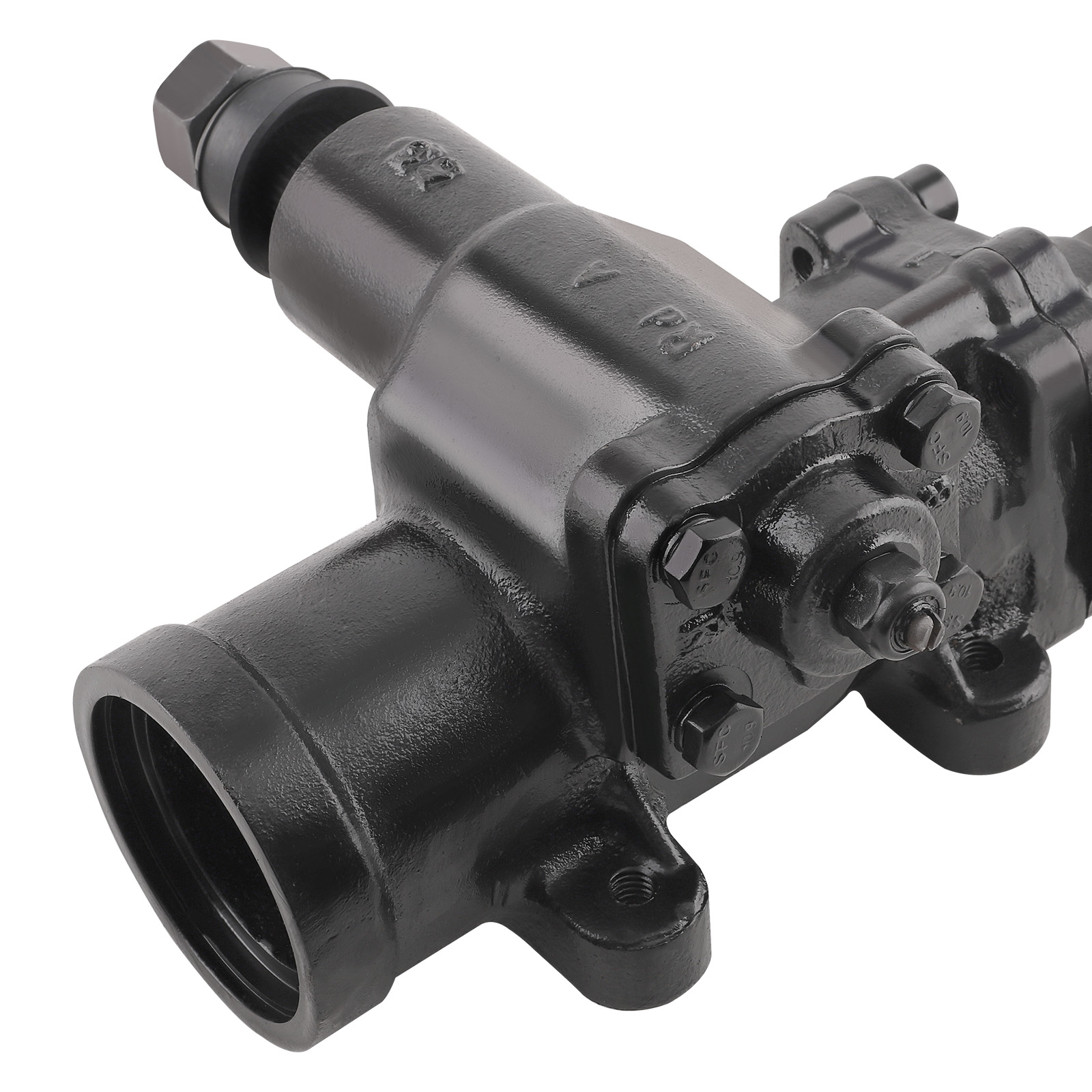

1 x Power Steering Gear Box (Showing as the picture)

Notes:

- These are aftermarket ones. Please double confim the compatibility as well as the part number before purchasing.

- Instruction is not included. Professional installation is recommended.

- Product appearance and finish may vary but fit and function remain the same
