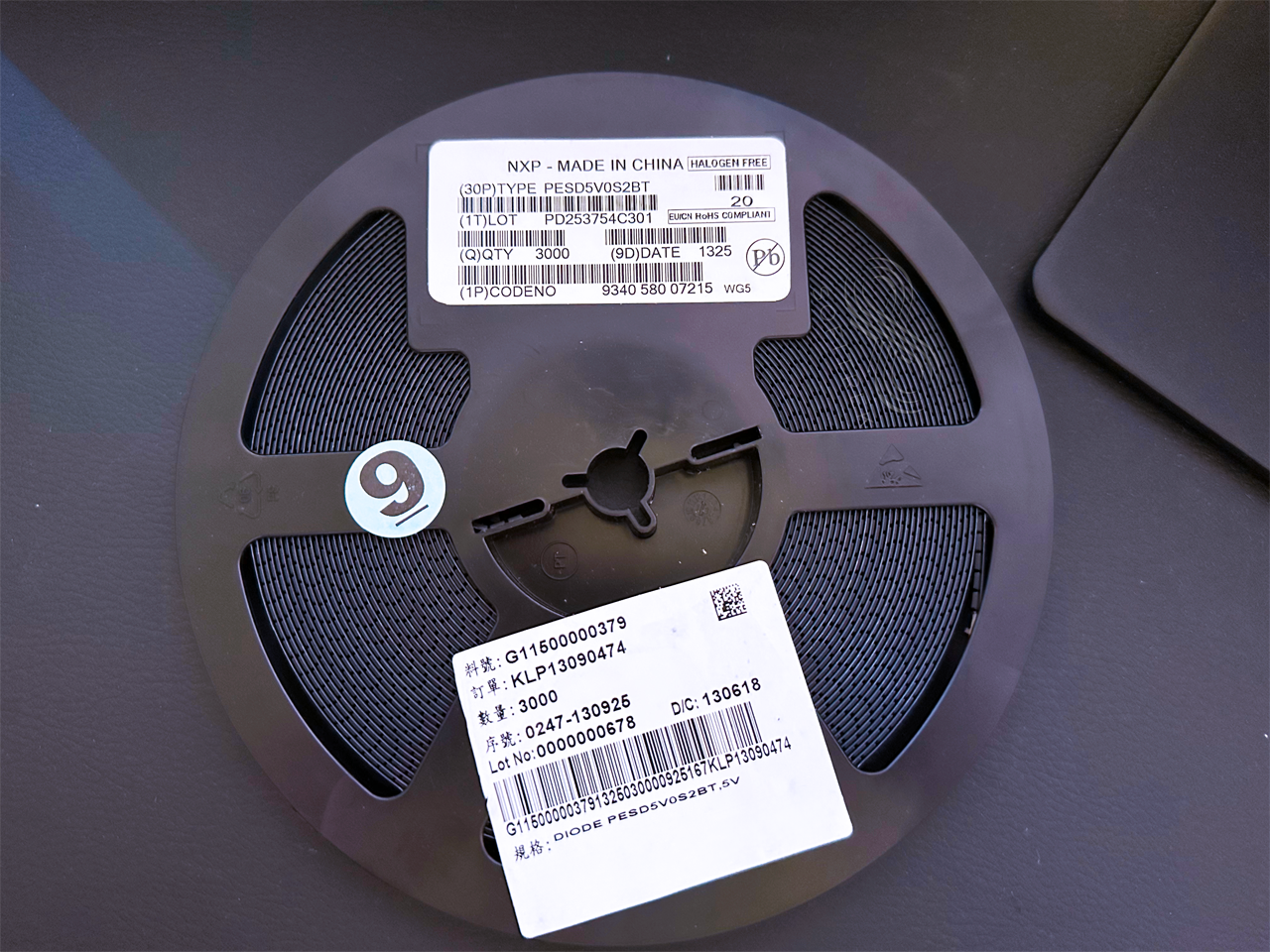

PESD5V0S2BT NXP SMD Bidirectional Double TVS Diodes Array 5V Ipp 12A 130W SOT-23

Ready to Ship

Ask a Question

30-Day Return

100Pcs PESD5V0S2BT NXP SMD Bidirectional Double TVS Diodes Array 5V Ipp 12A 130W SOT-23

Specification
Manufacturer NXP
Type Number PESD5V0S2BT
Marking Code WG5
Package TO-236AB (SOT23)
Reverse Standoff Voltage 5 V
Diode Capacitance Typ 35 pF
Diode Capacitance Max 45 pF
Rated Peak Pulse Power 130 W
Rated Peak Pulse Current 12 A
Junction Temperature Max 150 °C
Ambient Temperature Max 150 °C
Storage Temperature Min -65 °C
Storage Temperature Max 150 °C
ESD Protection Voltage IEC 61000-4-2 30 kV
ESD Protection Voltage MIL-STD-883 10 kV
Low Clamping Voltage 14 V
Breakdown Voltage Min 5.5 V
Breakdown Voltage Max 9.5 V
Reverse Leakage Current Typ 5 nA
Reverse Leakage Current Max 100 nA
Clamping Voltage Typ 10 V
Clamping Voltage Max 14 V
Differential Resistance Max 50 Ω

Shipping Policy

Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind.

Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing.

Note: This method is less recommended due to the potential for delays.

Return Policy

We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue.

Packaging

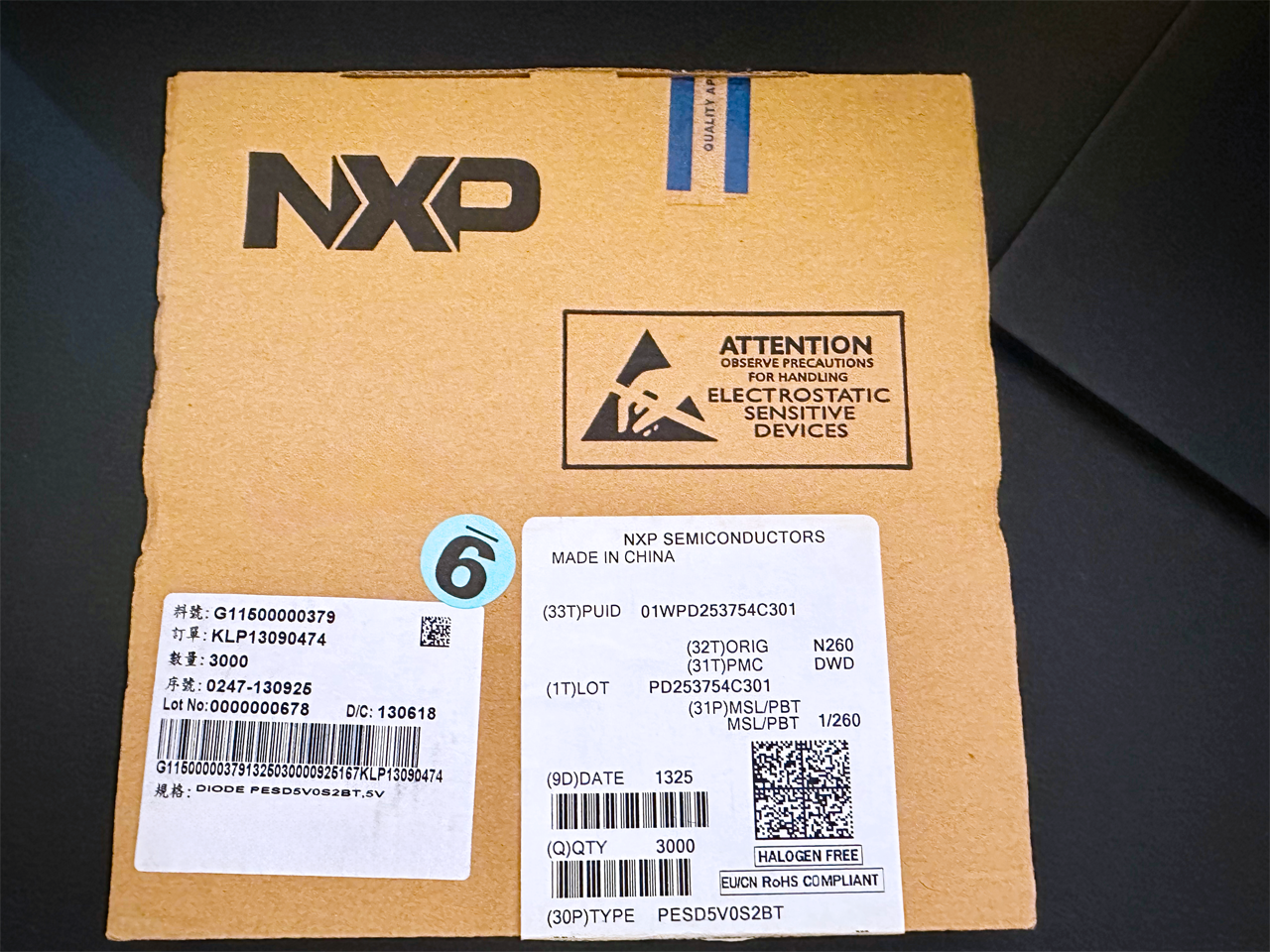

Our items are packaged according to their needs—some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences.
