Magnetic Stirring
Heating Mantle/Sleeves 380°C
1. Introduction
Designing by European techniques, with its advance technology, stable performance, novel structure and good using effect, this equipment is widely used for in heating in labs of colleges, petrochemical industries, medicine, and environment protection institutions etc.
2. Characteristics

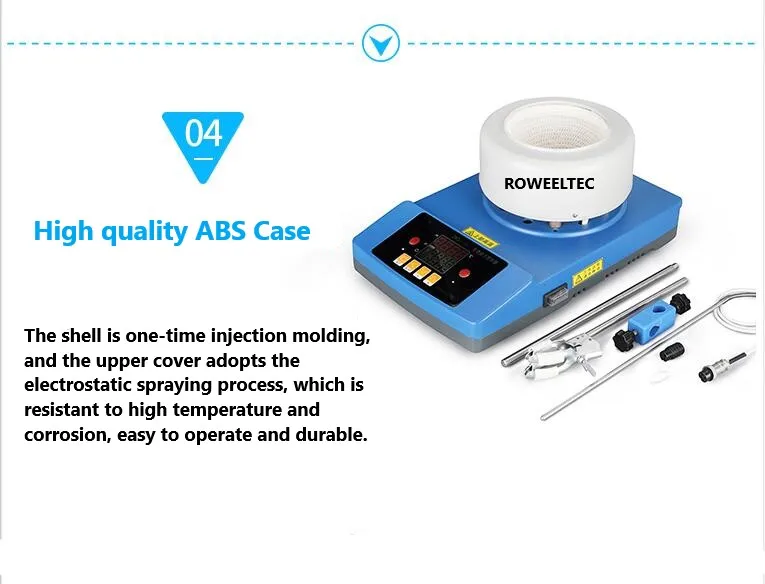

- Cold rolling sheet stretching and spraying exterior.

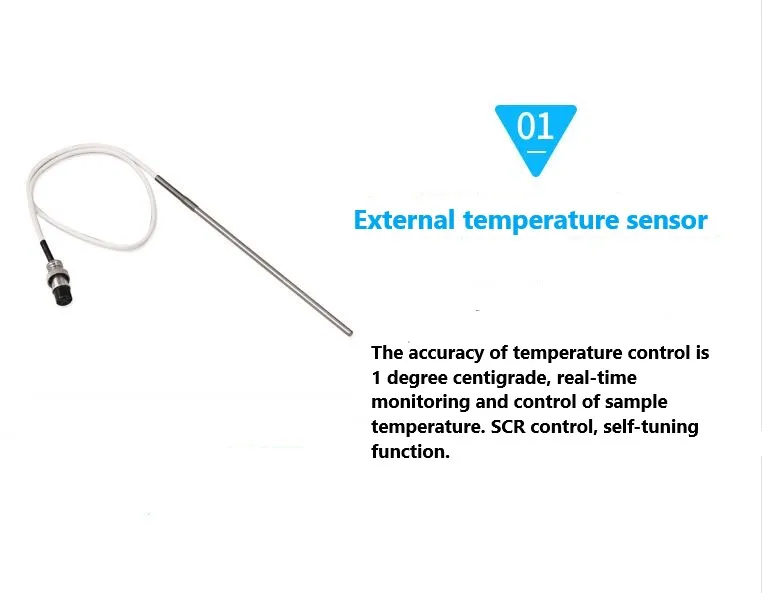

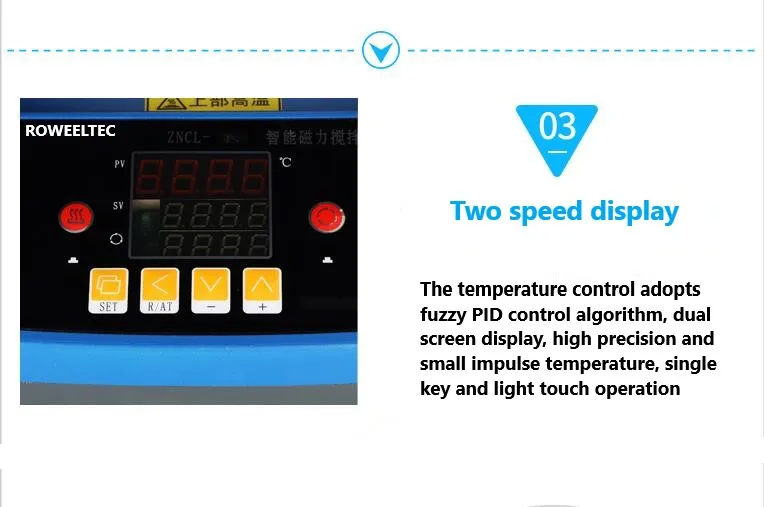

- Use advanced digital temperature control system can precisely control the temperature of the heated liquid, easy to use, high precision, temperature display intuitive.

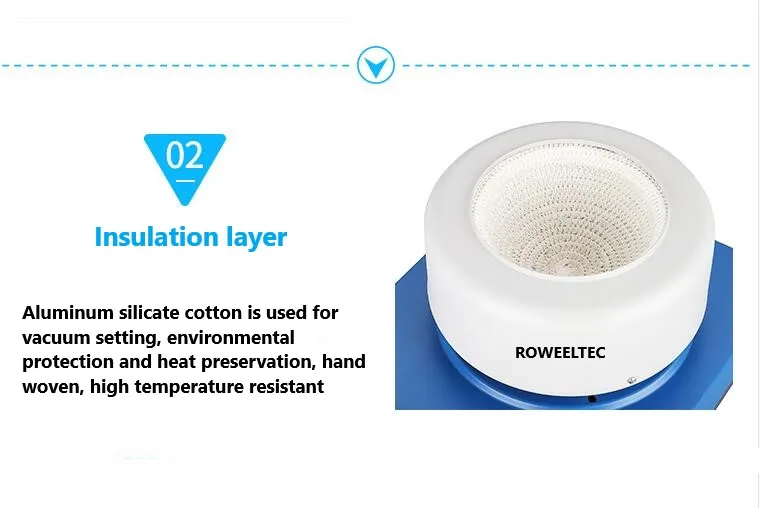

- Using high quality nickel-chrome heating resistance wire sealed in high temperature insulation layer. Woven into half the ball in heating sets, with characteristics of large heating area, fast warm-up, high temperature evenness, no open flame and so on.
3. Working condition
Ambient temperature: 5~40°C;
Ambient humidity: ≤90%;
Voltage: 220±22v / 50±1Hz
Power: 130W--3000W
Power Plug: NA/AU/EU standard plug
4.Main technical parameters
| Model |
ZNCL-TS |
||||||||
| Capacity (ml) |
100 |
250 |
500 |
1000 |
2000 |
3000 |
5000 |
||
| Voltage(v) |
220V |
||||||||
| Max. use tem. |
380°C |
||||||||
| Tem. Range |
Ambient tem.~ 380°C |
||||||||
| Sensor |
accuracy ±1°C |
||||||||
| Working mode |
continuous |
||||||||
| Power(W) |
130 |
216 |
220 |
530 |
650 |
730 |
|||
