BZBGEAR BG-AMP2X50 2-Channel 50W Mixer Class D Amplifier with 5 Inputs and Stereo/Bridge Mode Output Setup

The BG-AMP2X50 is a compact class-D amplifier with 5-Inputs. Additionally it features switchable stereo or bridge output with complete EQ adjustments and intuitive working status display. Easily integrate this unit in various analog to digital applications when used in collaboration environments, lecture halls, conference rooms, class rooms, healthcare facilities and control centers.

Manufacturer: BZBGEAR
SKU: BG-AMP2X50
Condition: New
Warranty: 1 Year

Features

  • Efficient 2x50 watts of power from the Texas Instruments amp chip
  • 5 audio inputs: 2x L/R Stereo, 1x Mic (Mic/48V/Line), 1x SPDIF and 1x Coaxial
  • Switchable Stereo / Bridge output (2x50W@8ohms / 1x100W@4ohms)
  • 6 EQ modes for choose: Normal, Pop, Classic, Metal, Jazz and Rock
  • Audio loop out supports cascade with another amplifier
  • Intuitive LCD screen for device status
  • Mic input supports audio mix with any of the L/R, SPDIF and Coaxial input
  • Multiple control modes: Push Buttons, IR, RS232 and TCP/IP
  • Easy volume adjustment via a rotary knob
  • Easy installation with 1U rack-mounting ears
  • No fan design, no noise
  • With over-temp protection circuit
  • Supports audio delay up to 256ms (Optional)

Specifications


Technical
Power output 2x50W@8ohms, 1x100W@4ohms
SNR 85dB
THD+N 1%@1KHz 50W@8ohms, 1%@1KHz 100W@4ohms
Frequency response 100Hz to 20KHz (±3 dB)
Impedance 2-8 ohms
Input Impedance >10KO
Max Input Voltage swing 5.6V
Input Channel Separation 90dB
Efficiency 90%
ESD Protection Human body model — ±15kV (air-gap discharge) & ±8kV (contact discharge)
I/O
Inputs 1x IR Ext. (IR signal receiving, 3.5mm stereo earphone jack) 1x L/R (Analog audio input, 3.5mm stereo earphone jack) 2x RCA (Analog audio input, Left/Right channel) 1x MIC (Microphone input, 3.5mm stereo earphone jack) 1x Coaxial (Digital audio input, SPDIF) 1x Optical (Digital audio input, SPDIF) 1x RJ45 (IP Control / LAN Serving) 1x 9-pin D-sub (RS232 serial port)
Outputs 1x Loop (Analog audio loop out, 3.5mm stereo earphone jack) 1x 4-Way Sprint Terminal
General
Housing Metal Enclosure
Dimensions 255mm [W] x 163mm [D] x 44mm [H] (Without the 8mm Rubber Feet)
Net Weight 1.4KG
Power Supply Input: AC100 - 240V 50/60Hz Output: DC 30V/5A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) 130W
Operation Temperature -4 - 176°F / -20 - 80°C
Storage temperature -40 - 212°F / -40 - 100°C
Relative Humidity 20 - 90% RH (no condensation)

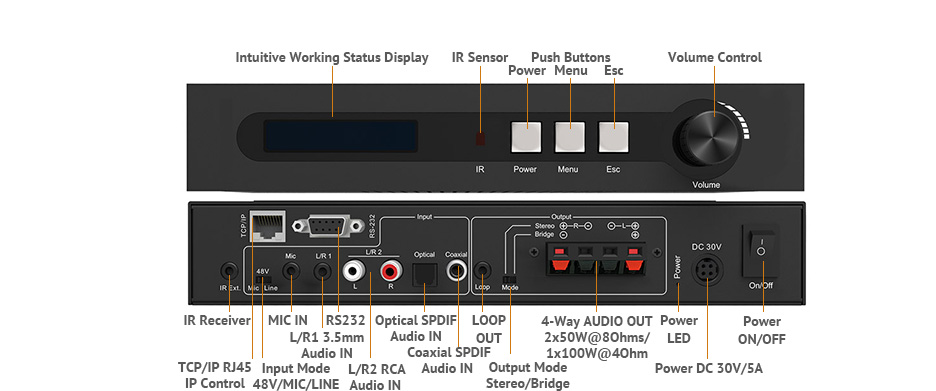

Device interface

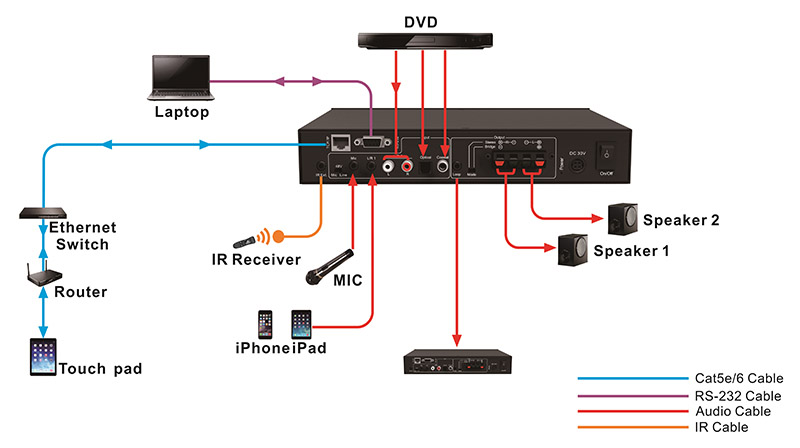

Diagram
