*Type: Forged 4340 aircraft chrome moly quality steel for racing

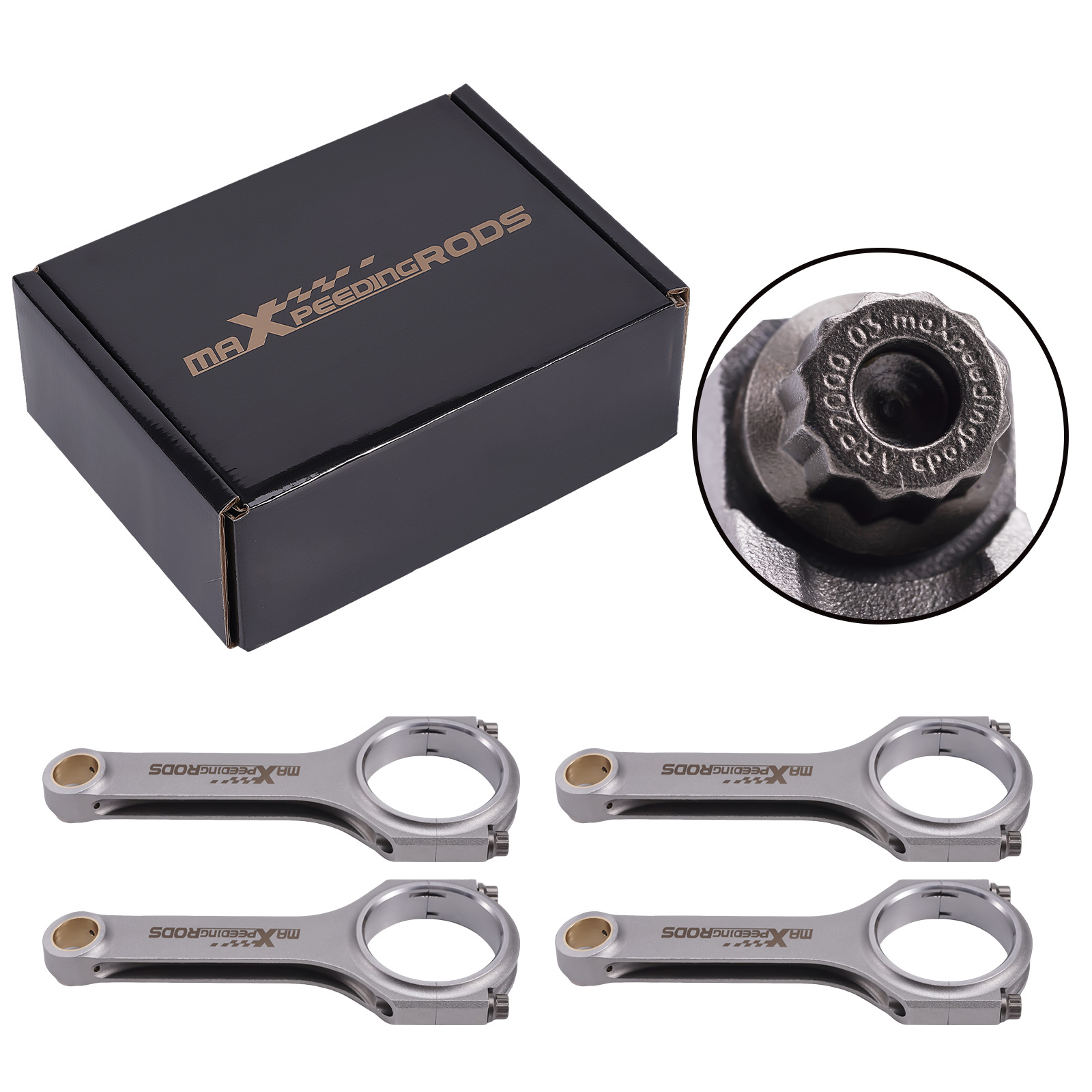

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Center to center length:144.3mm/5.681"
Big end diameter:53.6mm/2.11"
Small end diameter:22mm/0.866"(tapered small end)
Big end width:20.8mm/0.819"
Small end width:20.8mm/0.819"
Feature
1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For CA domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 4-7 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.But if any question , pls contact us via eBay.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
We will ship your order in one business day once the payment is cleared.
Tracking number will be uploaded to eBay within 24 hours after shipment.
Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .
We accept 30 days return/refund guarantee
If the item you received is faulty, damaged or incorrect, or any further problems, please contact our customer service on eBay within 30 days from item received.
For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.
WHY CHOOSE US

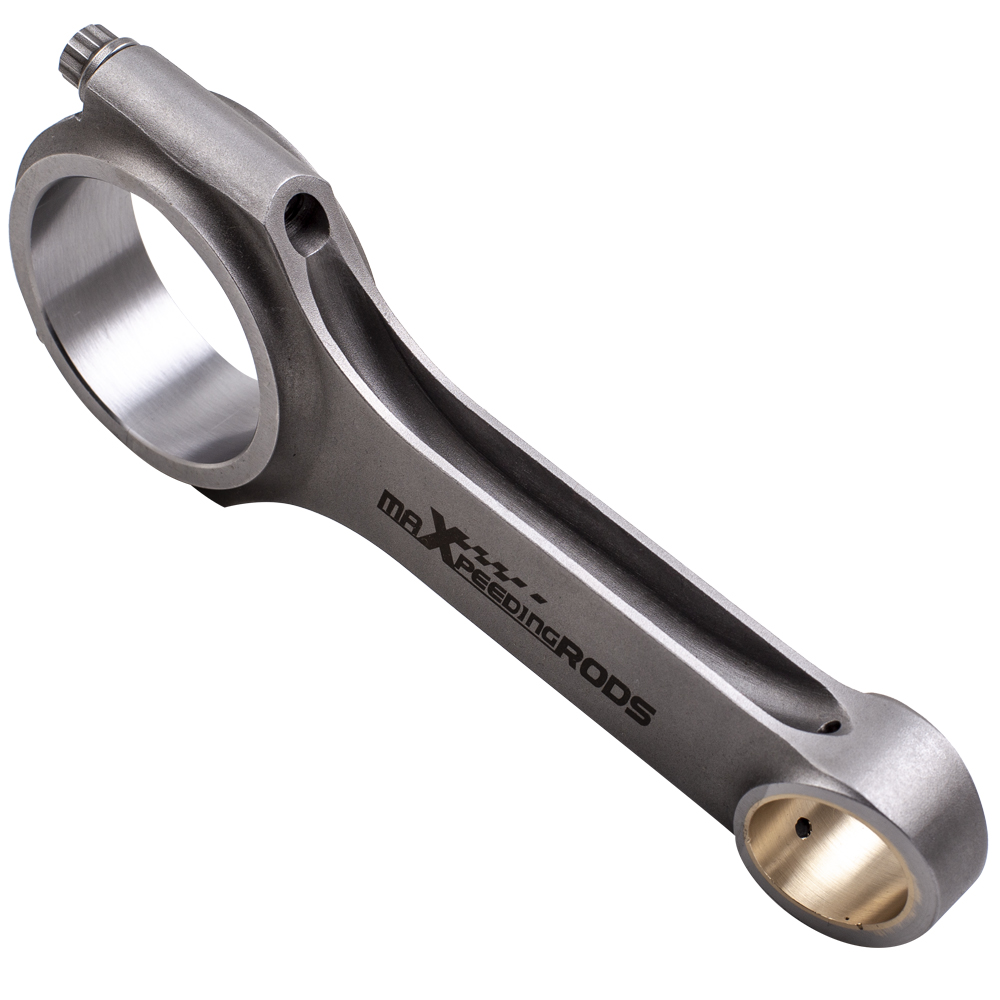

Forged 4340 H-Beam Connecting Rod Rods For BMW N20B20 N26B20 2.0T ARP 5.681"
Application
for BMW N20B20 2.0T / N26B20 (US only)
Details fitment:
N20B20
115 kW version
2013-2016 E89 Z4 sDrive18i
2013-present F25 X3 sDrive18i
135 kW version
2011–2015 E84 X1 xDrive/sDrive20i
2011–present F25 X3 xDrive20i
2012–2015 F30 320i
2013–2016 F34 320i GT
2011–2016 F10 520i
2013-2016 F10 520Li
2011–2016 E89 Z4 sDrive20i
2014–present F22 220i
2015-2017 Brilliance Huasong 7 MPV
160 kW version
2012–2017 F20 125i
2013–2016 F10 525Li
2015-2017 Brilliance Huasong 7 MPV
170 kW version
2014–2017 F22 225i
180 kW version
2011–2016 E89 Z4 sDrive28i
2011–2015 E84 X1 xDrive/sDrive28i
2012–present F25 X3 xDrive28i
2011–2016 F30 328i
2011–2016 F10 528i
2013–2016 F34 328i GT
2014–2016 F22 228i
2014–2017 F26 X4 xDrive20i
N26B20
2012-2016 F30 328i / 328iX (USA only)
2012-2016 F22 228i / 228iX (USA only)
--
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Center to center length:144.3mm/5.681"
Big end diameter:53.6mm/2.11"
Small end diameter:22mm/0.866"(tapered small end)
Big end width:20.8mm/0.819"
Small end width:20.8mm/0.819"
Feature
1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
