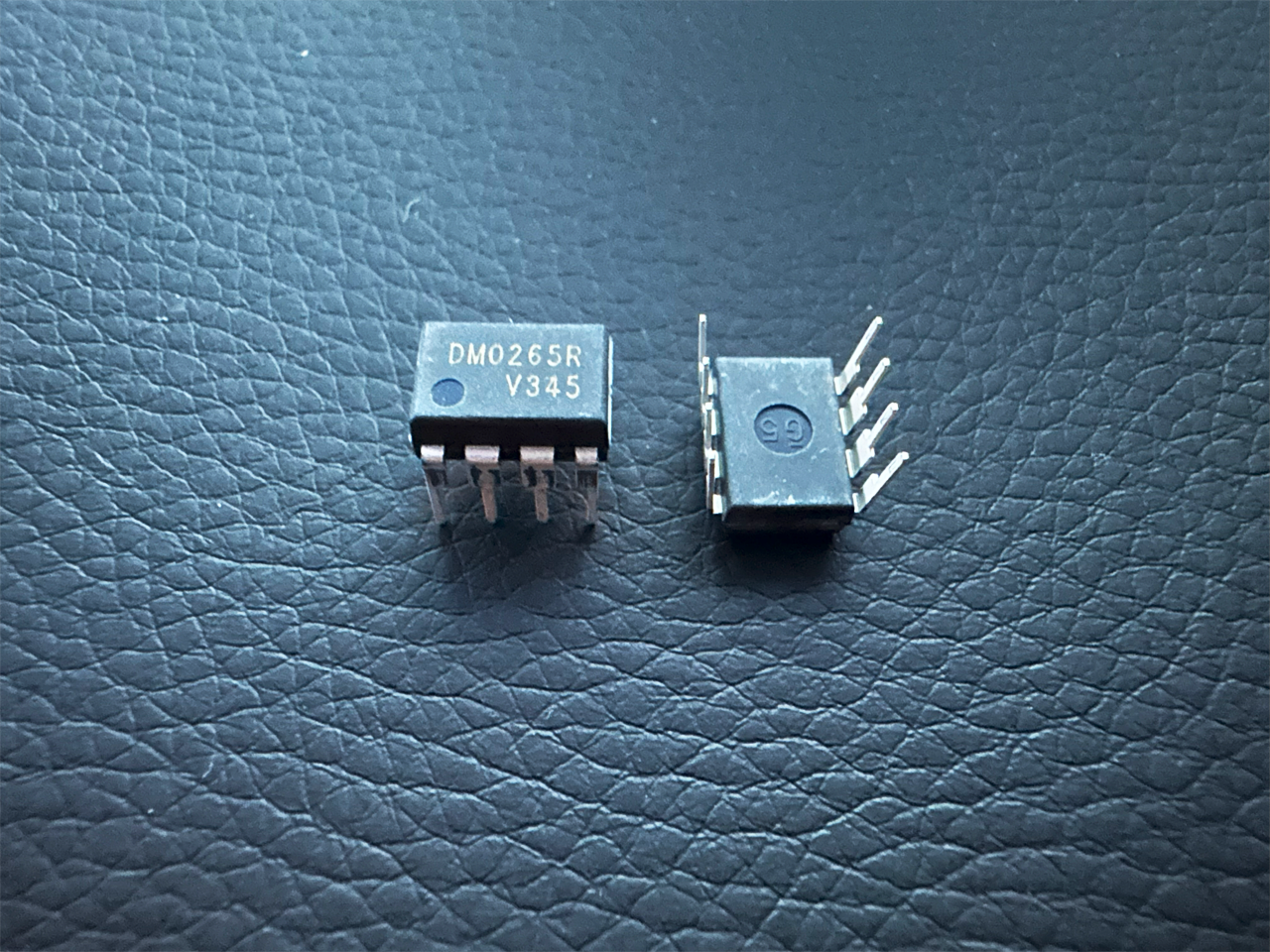

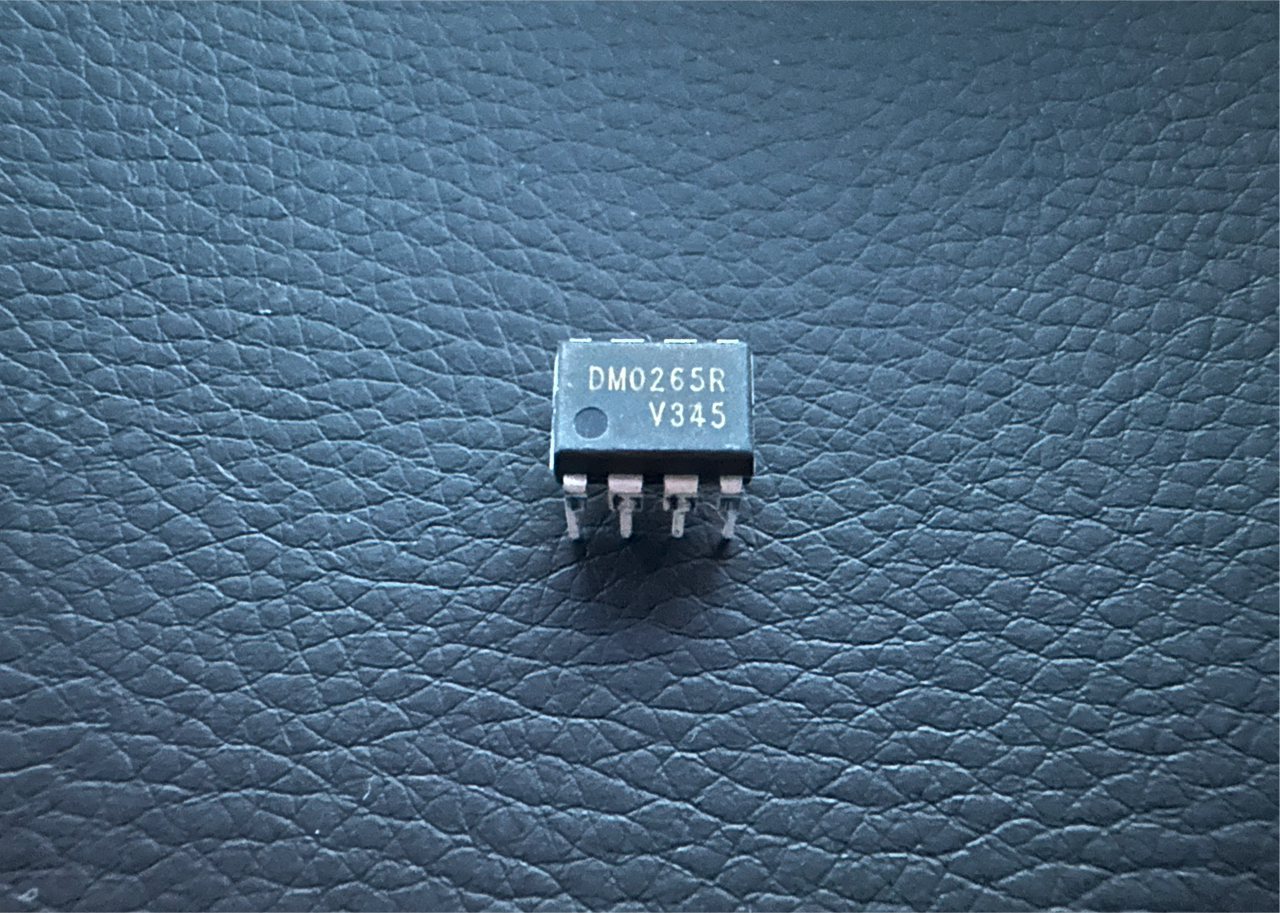

1X FSDM0265RN Fairchild Power Switch (FPS) 650V 67kHz Switching Freq-Max 8DIP

Ready to Ship

Ask a Question

30-Day Return

1Pcs FSDM0265RN Fairchild Power Switch (FPS) 650V 67kHz Switching Freq-Max 8DIP

Specification
Input Voltage-Nom 14 V
Input Voltage-Max 20 V
Input Voltage-Min 9 V
Output Current-Max 8 A
Switcher Configuration SINGLE
Switching Frequency-Max 73 kHz
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Number of Functions 1
Temperature Grade COMMERCIAL EXTENDED
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Number of Terminals 8
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
Length 9.415 mm
Seated Height-Max 5.08 mm
Manufacturer FAIRCHILD SEMICONDUCTOR CORP
Package Description DIP, DIP8,.3
Pin Count 8
