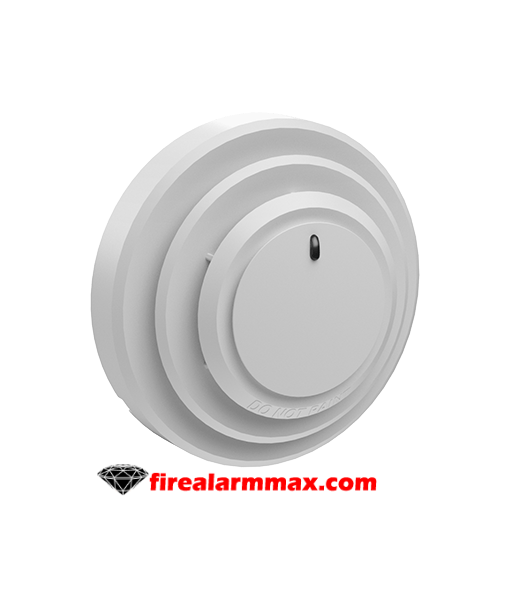

Potter PAD300-PD Smoke Detector

Features
Low profile, less th an 2 inches with the base
Wide selectable sensitivity range of 1.1 to 3.5%/foot
The detector communicates sensitivity to the control panel
UL listed smoke calibration and sensitivity
Optional locking tab to prevent unwanted removal
Simple DIP switch address setting, no programming tool required
Magnetic test switch
LED alarm indicator
The product includes a 5-year warranty
UUKL Listed for Smoke Control
UL268 7th edition compliant

Description

The Photoelectric Smoke Detector i s a listed Analog Addressable smoke detector compatible with fire alarm control panels. That utilizes the Potter Addressable Device (PAD) protocol. The Smoke Detector i s a low profile smoke detector with a wide sensitivity range. The detector and base ar e made of durable plastic in an off-white color to blend in with the ceiling.
It has a sensitivity range of 1.1 to 3.5 % per foot and i s UL-listed. It features drift compensation and has a built-in dirty detector warning. The smoke Detector and the control panel communicate over a proven. And robust digital communication path and the system analyzes the information at the particular device.
The total polling speed i s less th an five (5) seconds, well under the UL requirements.
The detector i s compatible with any of the PAD300 series detector bases and simply twists on. It i s addressed using DIP switches in the rear of the detector. And can b e easily programmed in the field without special tools.
