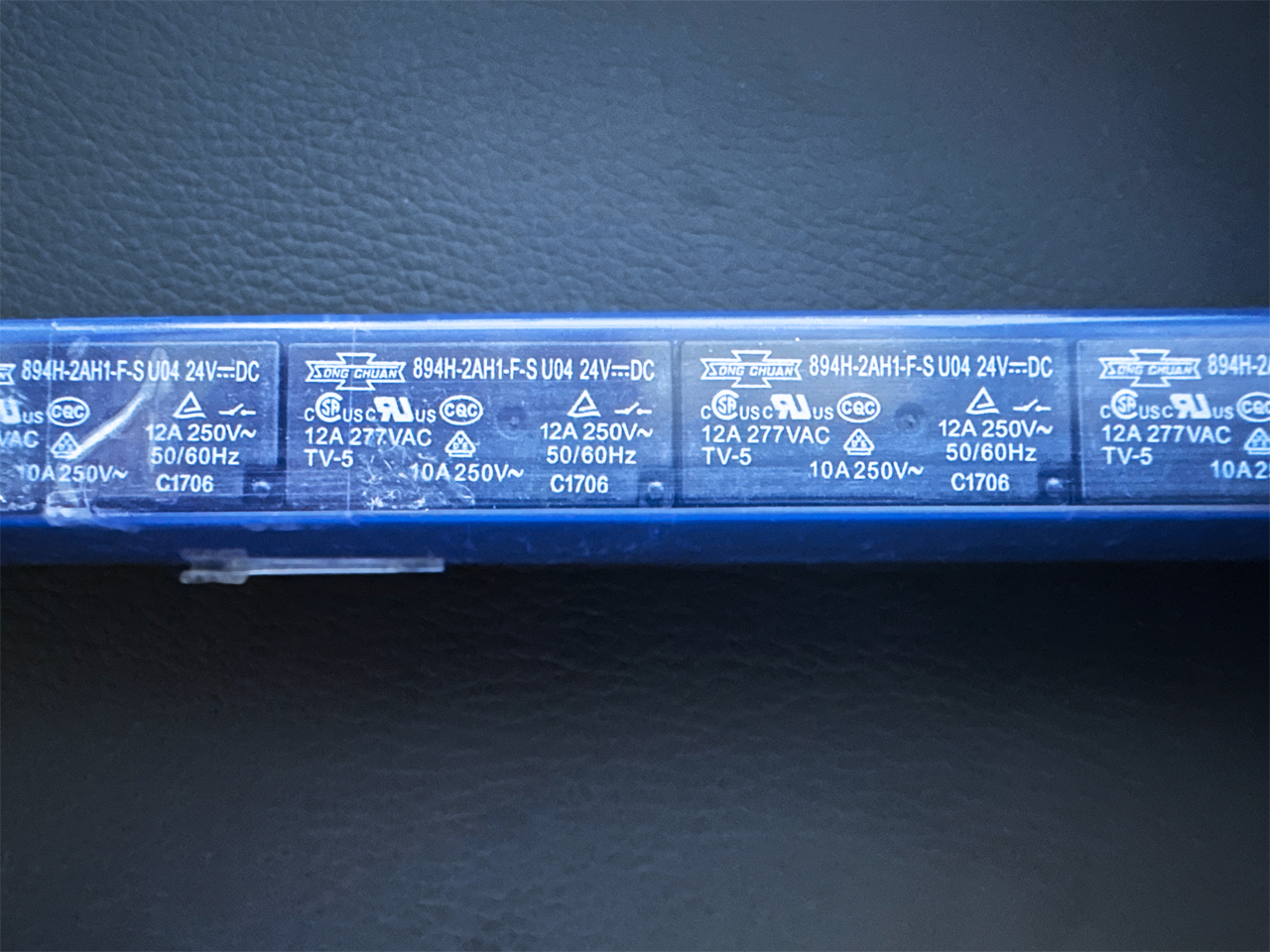

1X 894H-2AH1-F-S 24VDC SONG CHUAN Miniature PCB Power Relay 24VDC DPNO 12A

Ready to Ship

Ask a Question

30-Day Return

1Pcs 894H-2AH1-F-S 24VDC SONG CHUAN Miniature PCB Power Relay 24VDC DPNO 12A

Sofitrek Product Disclaimer
Nature of Goods:
All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers.
Non-Affiliation:
Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity.
Exclusion of Manufacturer's Warranty:
Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose.
Firmware and Software:
Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors.
Limitation of Liability:
Sofitrek shall not be held liable for any form of damages—direct, indirect, incidental, consequential, or otherwise—arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use.
Compliance and Responsibility:
The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software.

By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety.
Specification
Model 894H-2AH1-F-S
Voltage 24VDC
Contact Form DPNO
Contact Gap 1.5mm
Rated Voltage 24V
Rated Current 32.4mA
Coil Resistance 740Ω
Max. Continuous Voltage at 70°C 150% of rated voltage
Pick Up Voltage (Max) at 23°C 85% of rated voltage
Drop Out Voltage (Min) at 23°C 5% of rated voltage
Power Consumption at Rated Voltage approx. 0.8W
Contact Material AgNi / AgSnO alloy
Contact Resistance 100mΩ Max.
Operate Time 20ms Max.
Release Time 15ms Max.
Insulation Resistance 1000MΩ Min. (DC 500V)
Dielectric Strength (Between Open Contact) AC 2500V, 50/60Hz 1 min.
Dielectric Strength (Between Contact Circuits) AC 2500V, 50/60Hz 1 min.
Dielectric Strength (Between Contact and Coil) AC 5000V, 50/60Hz 1 min.
Vibration Resistance (Operating Extremes) 10~55Hz, amplitude 1.5 mm
Vibration Resistance (Damage Limits) 10~55Hz, amplitude 1.5 mm
Shock Resistance (Operating Extremes) 10G
Shock Resistance (Damage Limits) 100G
Life Expectancy (Mechanical) 3,000,000 operations (frequency 18,000 operations/hr)
Life Expectancy (Electrical) 30,000 operations (frequency 360 operations/hr)
Operating Ambient Temperature -40~+70°C (no freezing)
Weight Approx. 17 g
Certification (TUV) R 50008226
Certification (CSA / CUS) 1223057
Certification (UL / CUL) E88991
Certification (VDE) 40007827
Safety Approval Rating (UL/CUL - CSA/CUS) 12A 277VAC, 1/3HP 125VAC, 3/4HP 250VAC (NO), TV-5 (NO)
Safety Approval Rating (VDE) 10A 250VAC T55
Safety Approval Rating (TUV) 12A 250VAC

Shipping Policy

Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind.

Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing.

Note: This method is less recommended due to the potential for delays.

Return Policy

We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue.

Packaging

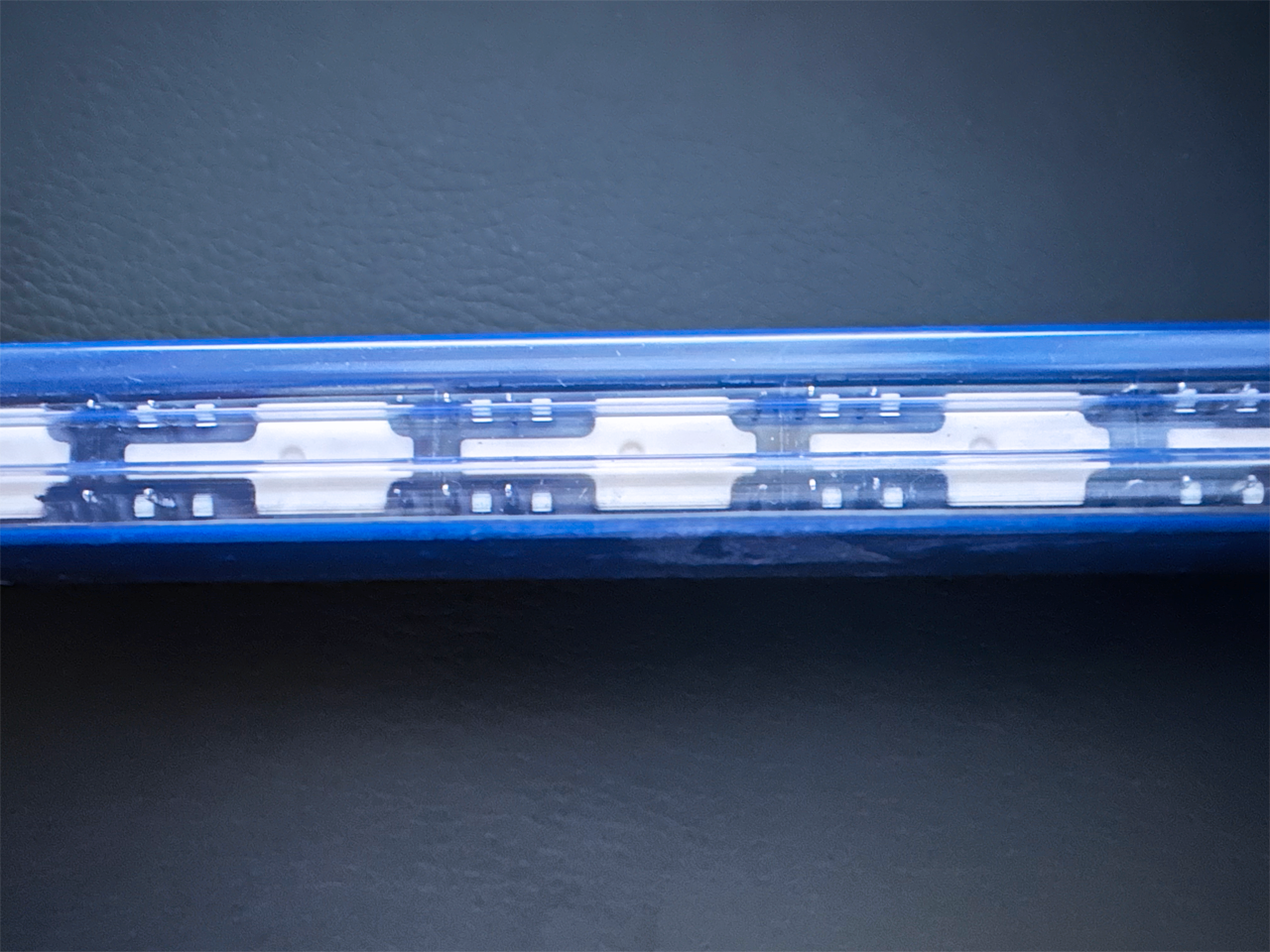

Our items are packaged according to their needs—some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences.
