Product Details
Product Features:

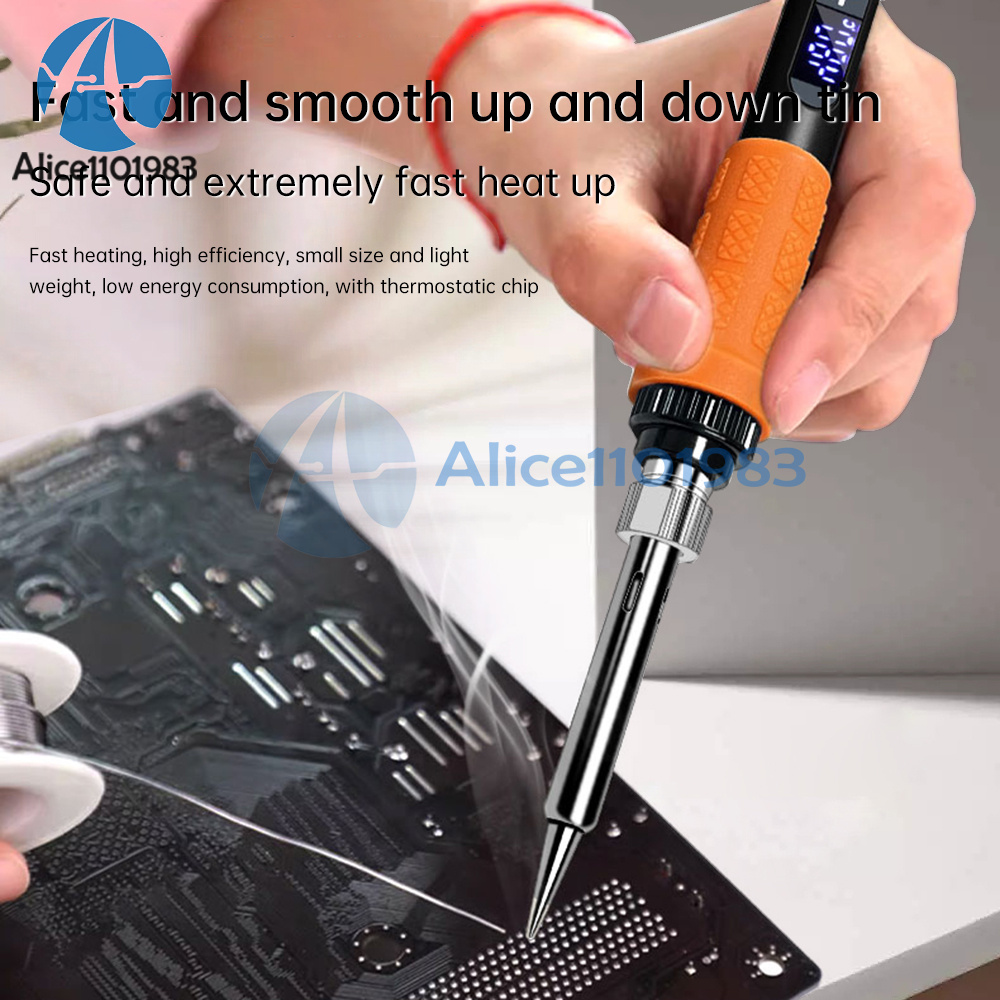

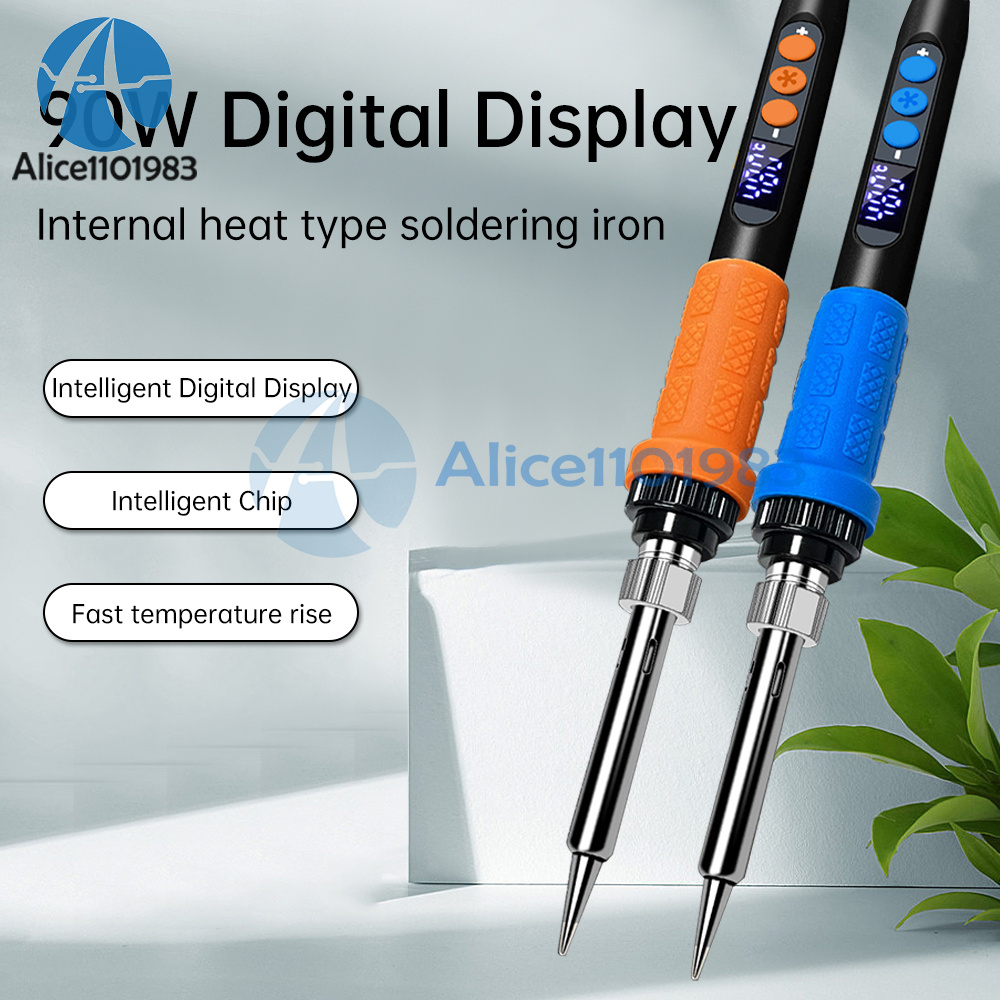

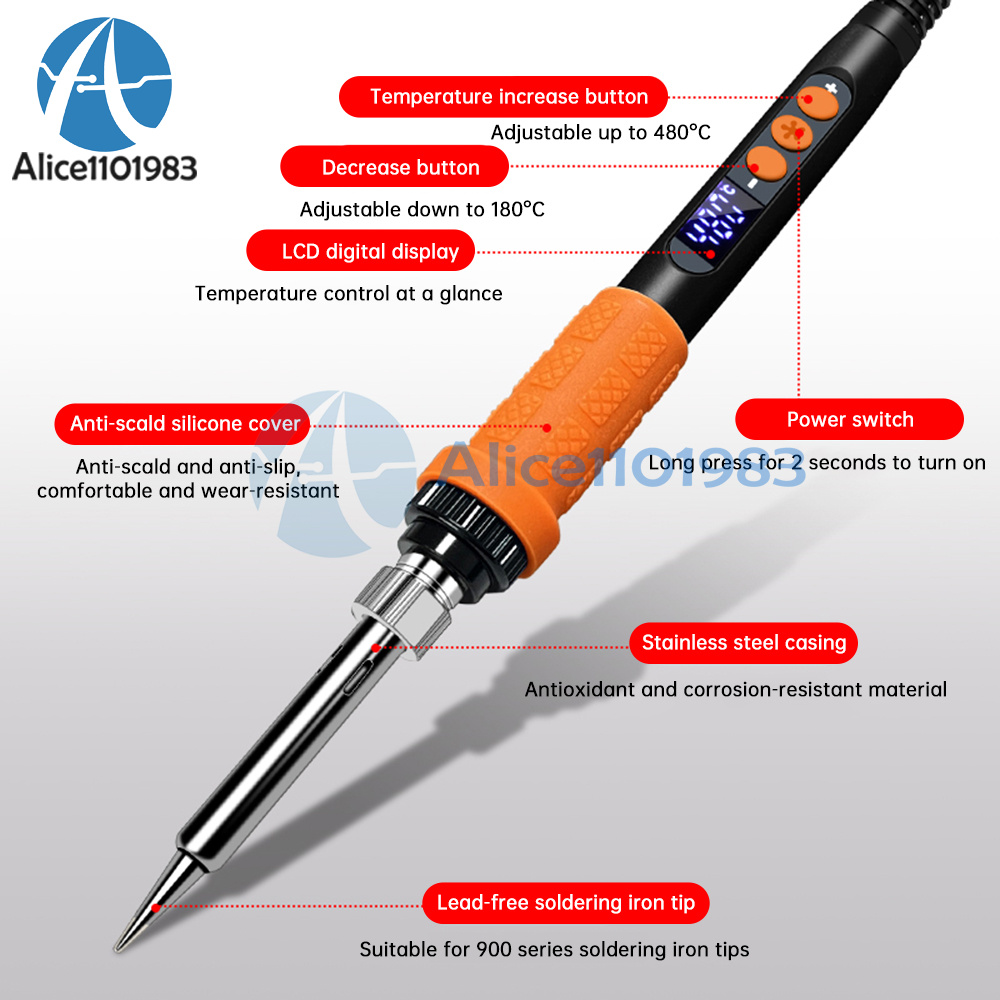

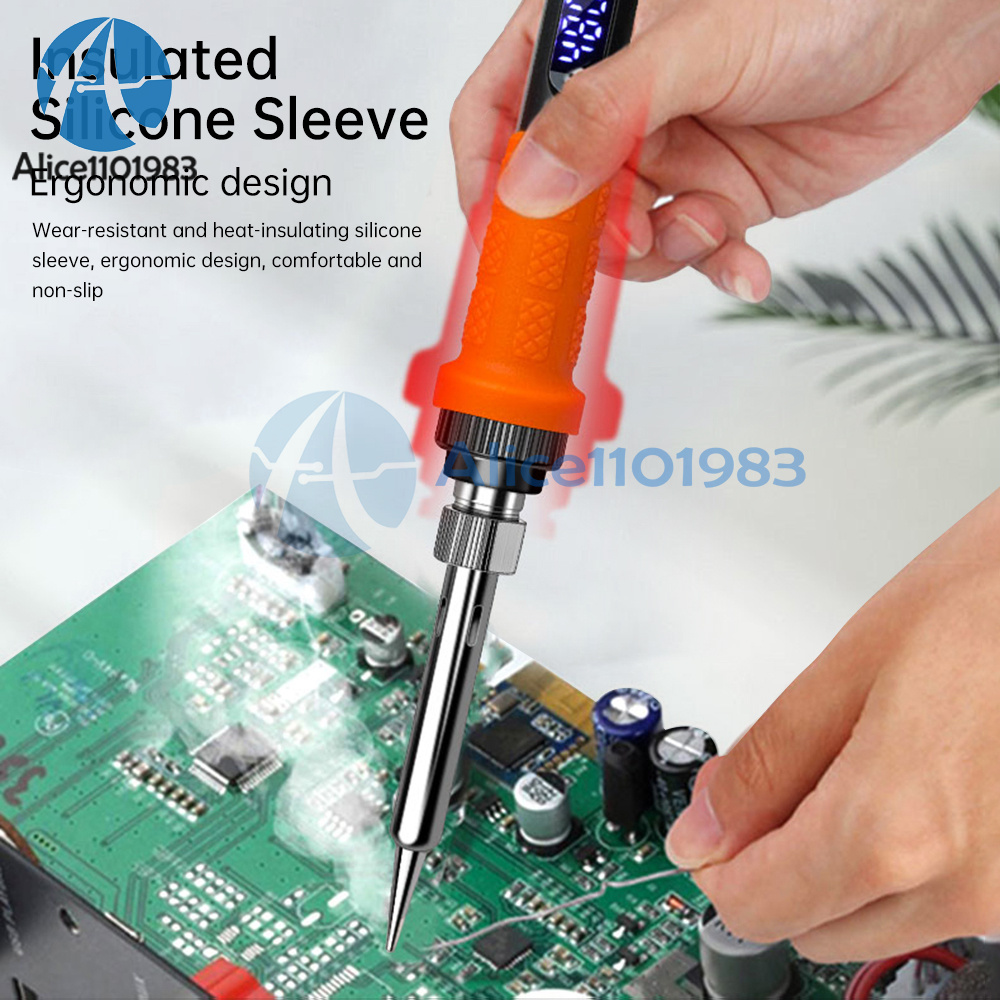

1.90W high power, can make the soldering iron in 6 seconds to quickly warm up, fast tin, tin smooth, built-in thermostat chip, heat stability, with anti-scald protective cover
2. The iron can be precisely adjusted temperature, temperature range flexibility, up to 180 ℃ -480 ℃
3. Clear digital display: LED high-definition LCD screen display, more clearly display the temperature status, temperature gear at any time control

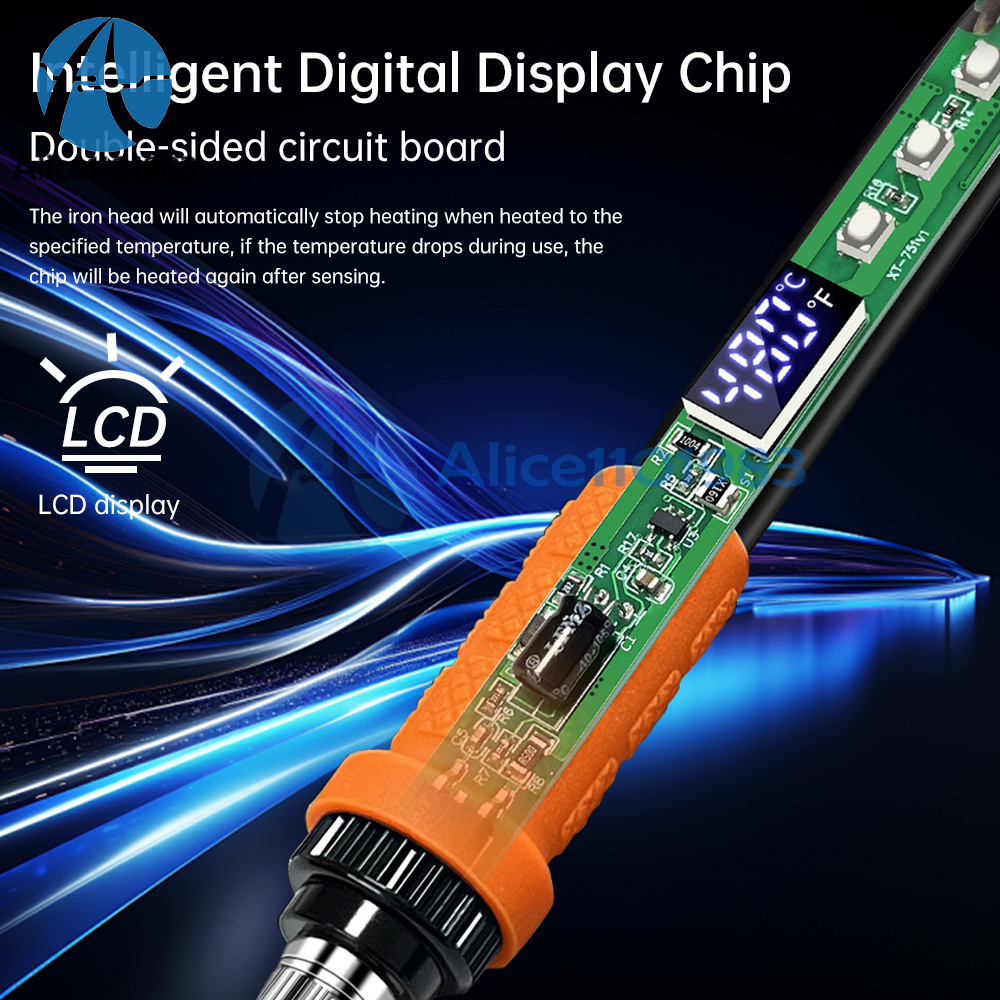

4. The use of thickened double-sided circuit board, heating to the specified temperature automatically stops heating, the use of the process of temperature drop in the chip induction will be heated again
5. Wide range of use: widely used in circuit board welding, home appliance repair, perfect for beginners, welders, basic household equipment, welding engineer training and so on.
1.90W high power, can make the soldering iron in 6 seconds to quickly warm up, fast tin, tin smooth, built-in thermostat chip, heat stability, with anti-scald protective cover
2. The iron can be precisely adjusted temperature, temperature range flexibility, up to 180 ℃ -480 ℃
3. Clear digital display: LED high-definition LCD screen display, more clearly display the temperature status, temperature gear at any time control
4. The use of thickened double-sided circuit board, heating to the specified temperature automatically stops heating, the use of the process of temperature drop in the chip induction will be heated again
5. Wide range of use: widely used in circuit board welding, home appliance repair, perfect for beginners, welders, basic household equipment, welding engineer training and so on.
Product features
1. The soldering iron working voltage adaptive AC220V
2. Power-on display “OFF” means off, press the “*” key for 2 seconds to power on.

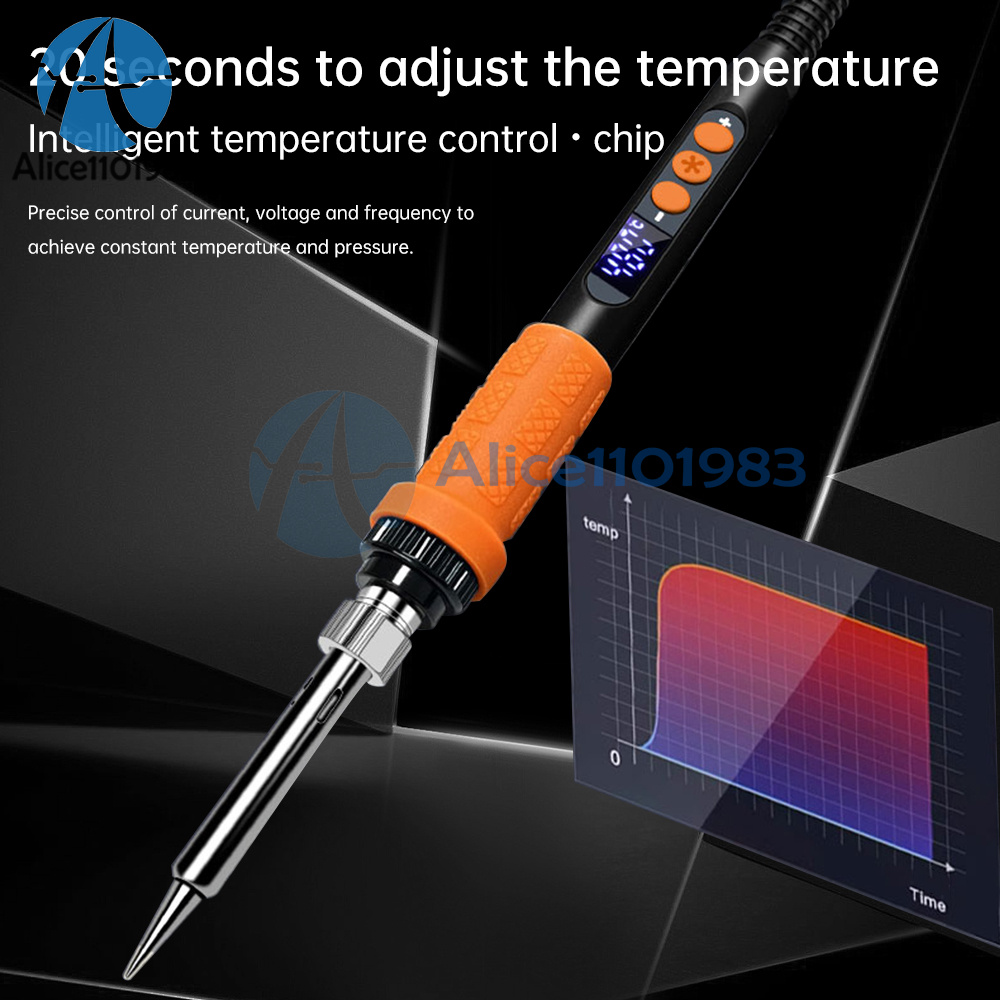

3. After power on, press “+” or long press “a” to adjust the temperature, the adjustment range of 180 ℃ - 480 ℃.
4. Press “+” and “a” key at the same time to enter the temperature compensation adjustment, the adjustment range is earth 100 ℃/+180 F. The value is positive when the temperature increases, the negative value when the temperature decreases.
5. Quickly press the “*” key twice to switch the temperature unit.

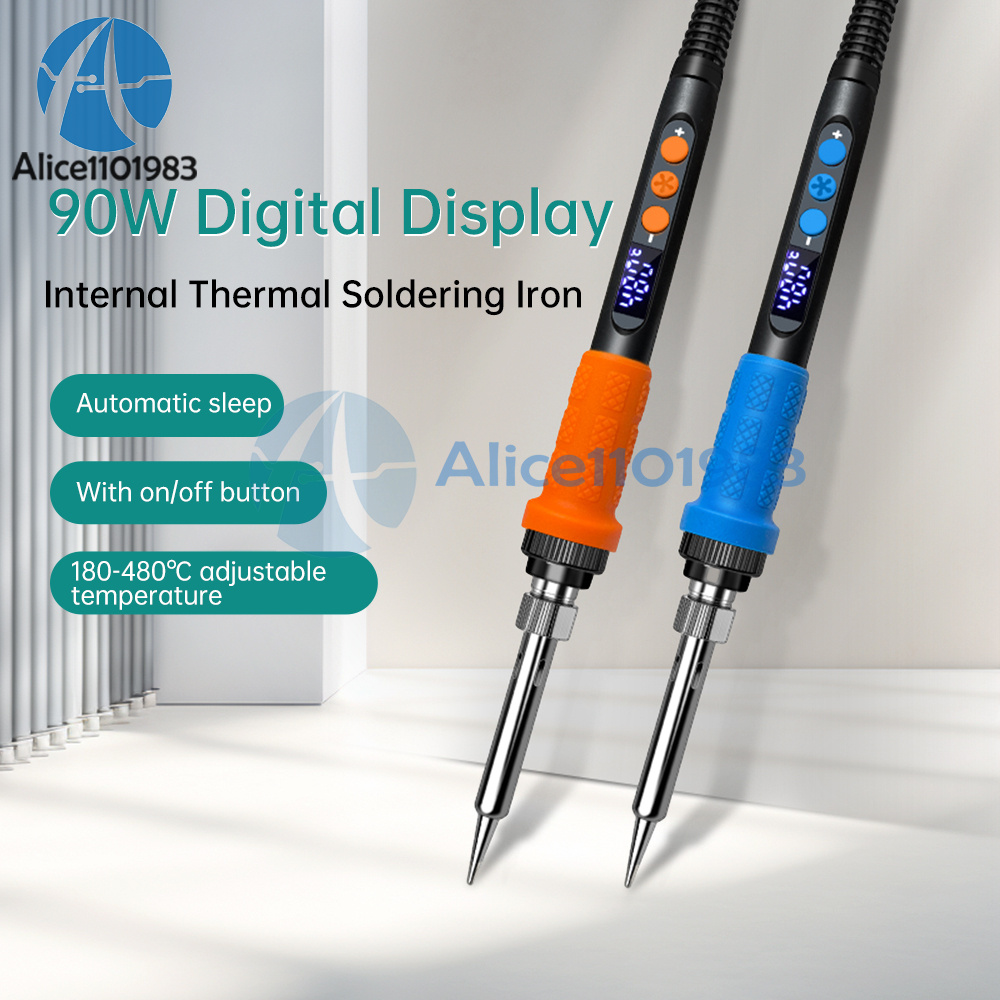

6. Press “+” and “a” at the same time under the shutdown state to show the status of the hibernation switch, press the “+” key to open the hibernation function, press the “a” key to close the hibernation function. Press “+” key to turn on the hibernation function, and press “I” key to turn off the hibernation function. After the hibernation function is turned on, the handle without vibration operation for more than 10 minutes into the hibernation state, the iron does not heat up, display “----” and hibernation symbols, and then after 5 minutes there is still no operation will be shut down. When vibration is detected in the dormant state, it will resume normal operation immediately.
1. The soldering iron working voltage adaptive AC220V
2. Power-on display “OFF” means off, press the “*” key for 2 seconds to power on.
3. After power on, press “+” or long press “a” to adjust the temperature, the adjustment range of 180 ℃ - 480 ℃.
4. Press “+” and “a” key at the same time to enter the temperature compensation adjustment, the adjustment range is earth 100 ℃/+180 F. The value is positive when the temperature increases, the negative value when the temperature decreases.
5. Quickly press the “*” key twice to switch the temperature unit.
6. Press “+” and “a” at the same time under the shutdown state to show the status of the hibernation switch, press the “+” key to open the hibernation function, press the “a” key to close the hibernation function. Press “+” key to turn on the hibernation function, and press “I” key to turn off the hibernation function. After the hibernation function is turned on, the handle without vibration operation for more than 10 minutes into the hibernation state, the iron does not heat up, display “----” and hibernation symbols, and then after 5 minutes there is still no operation will be shut down. When vibration is detected in the dormant state, it will resume normal operation immediately.
Fault Code Description
E-1: Heating core resistance is too low or circuit failure.
H-E: Heating core disconnected
E-3: Power supply voltage too high (over 270V)
E-4: Power supply voltage is too low
E-1: Heating core resistance is too low or circuit failure.
H-E: Heating core disconnected
E-3: Power supply voltage too high (over 270V)
E-4: Power supply voltage is too low

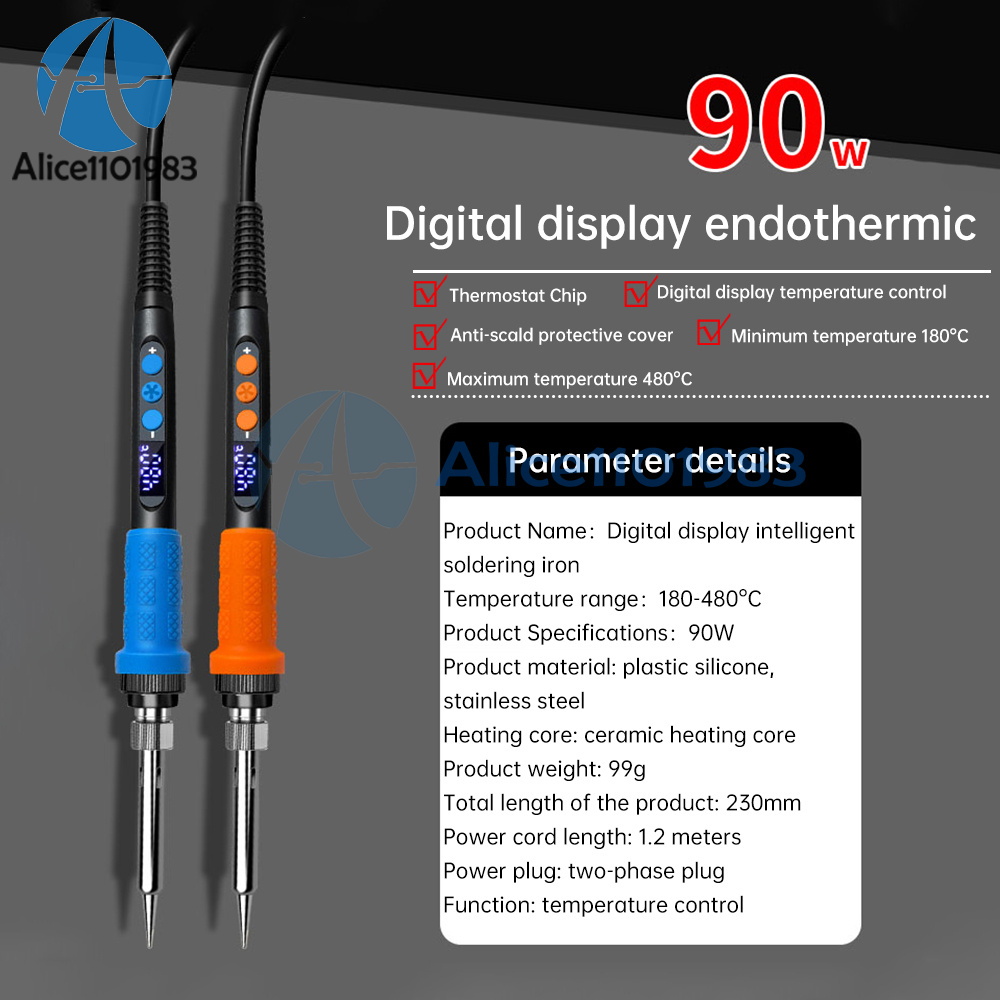

Product Parameters:
Model: digital display intelligent soldering iron
Rated power: 90W
Temperature range: 180 ℃ -480 ℃

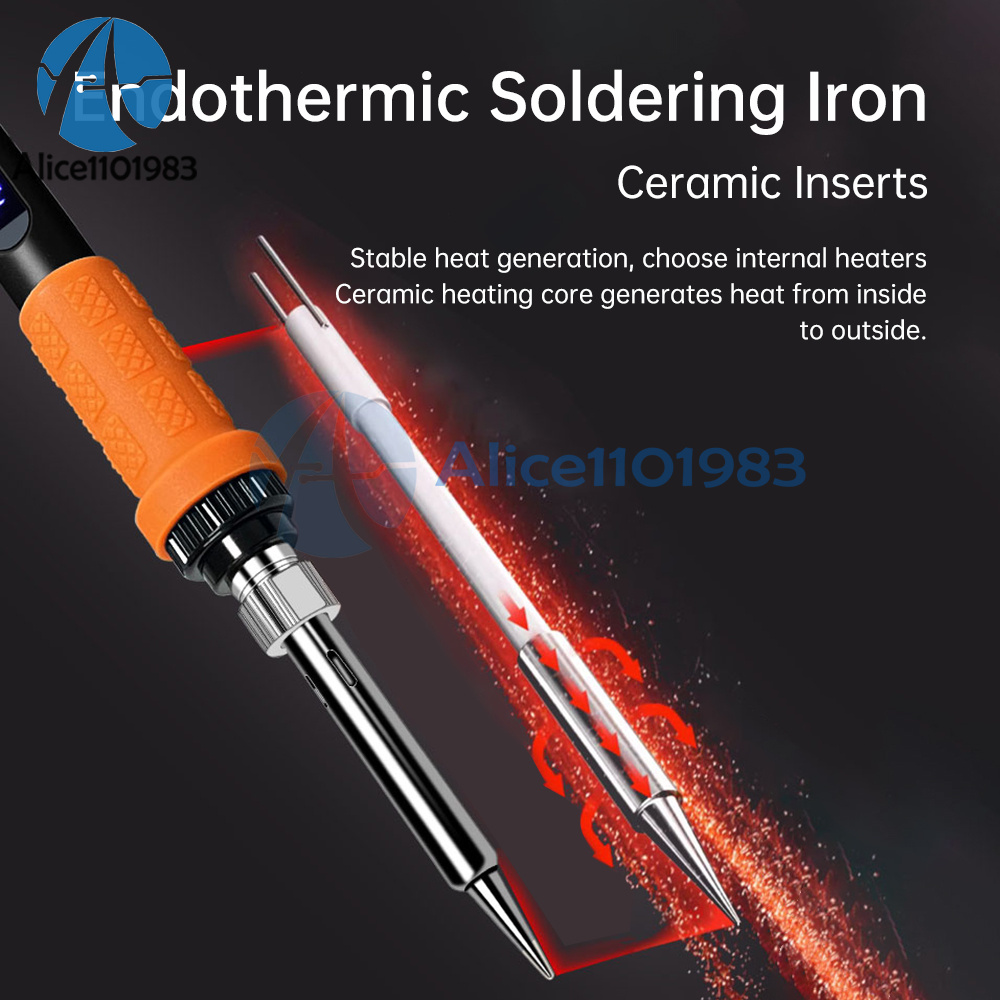

Heating mode: ceramic heating core
Soldering iron wire length: 120mm
Product length: about 230mm
Power plug: 2 plugs
Soldering time: about 6 seconds
Function:℃/℉ switching
Voltage:AC220V
Display:LED high definition liquid crystal screen
Function:Temperature adjustment
Model: digital display intelligent soldering iron
Rated power: 90W
Temperature range: 180 ℃ -480 ℃
Heating mode: ceramic heating core
Soldering iron wire length: 120mm
Product length: about 230mm
Power plug: 2 plugs
Soldering time: about 6 seconds
Function:℃/℉ switching
Voltage:AC220V
Display:LED high definition liquid crystal screen
Function:Temperature adjustment

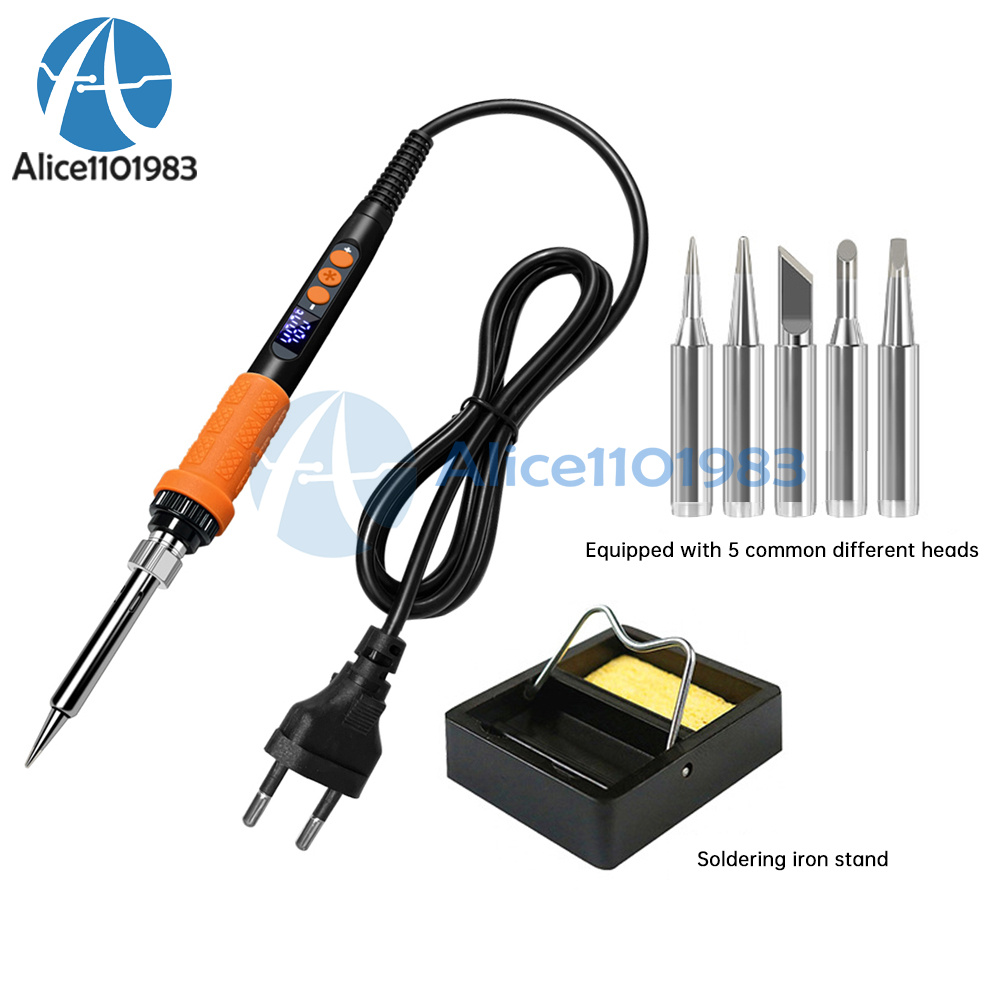

Package Included:
Soldering iron*1
Accessory kit *1
Soldering iron*1
Accessory kit *1
