Details
Note: The product does not have amplifier function.
Features
1.Use high quality material, durable, with color screen digital tube display.
2.Support radio function, support a variety of music formats, such as MP3 / WMA / WAV / APE lossless format music.
3.Support Bluetooth function, Bluetooth version 5.0, support 5-10 meters distance infrared remote control operation.
4. 2 voltage options, DC 5V or 12V can be selected according to the actual use requirements.
5.Support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control to pick up the function, a wide range of applications.
1.Use high quality material, durable, with color screen digital tube display.
2.Support radio function, support a variety of music formats, such as MP3 / WMA / WAV / APE lossless format music.
3.Support Bluetooth function, Bluetooth version 5.0, support 5-10 meters distance infrared remote control operation.
4. 2 voltage options, DC 5V or 12V can be selected according to the actual use requirements.
5.Support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control to pick up the function, a wide range of applications.
Specification
Main control IC: AC6926
Bluetooth IC: AC6926
Bluetooth version: 5.0 version
Voltage: DC 5V or 12V (optional)
Music format: MP3 / WMA / WAV / APE lossless format
Receiving FM frequency: 87.5-107.5 MHZ
Support function: Support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / Remote Control / DC 5V or 12V (optional)

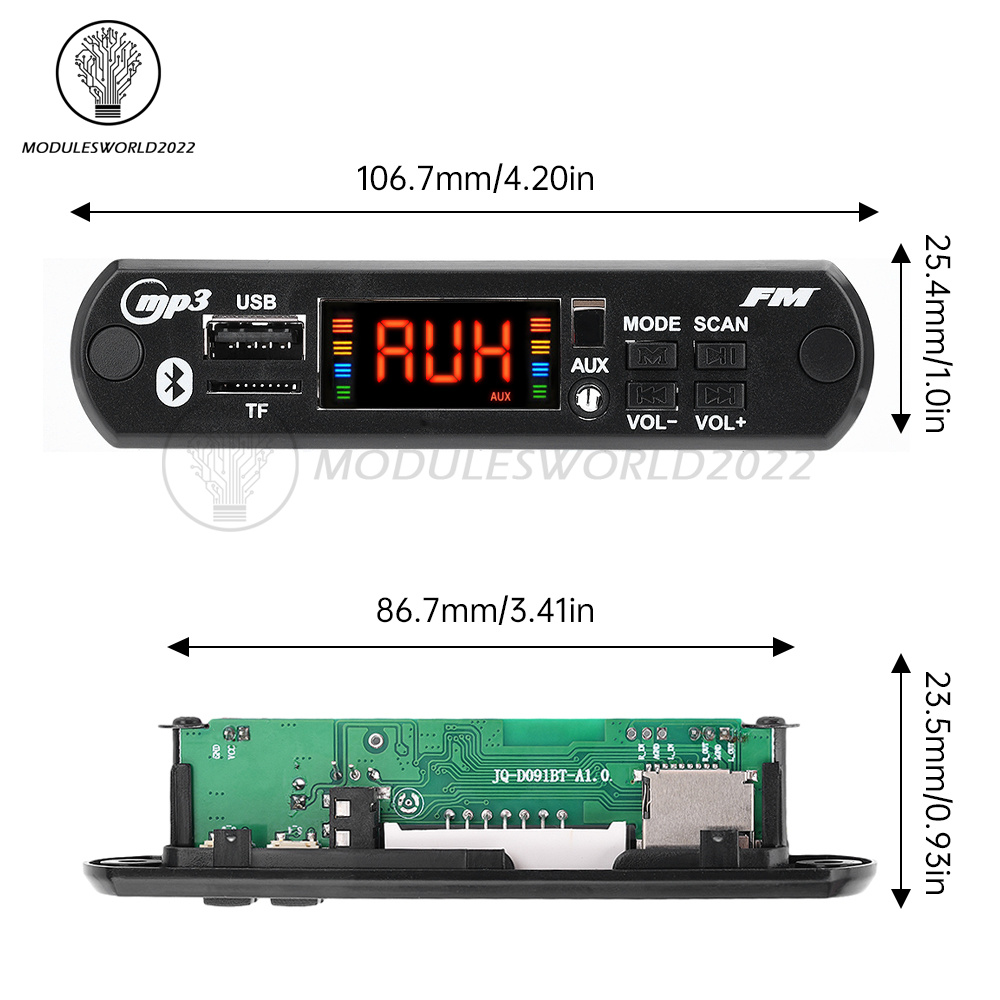

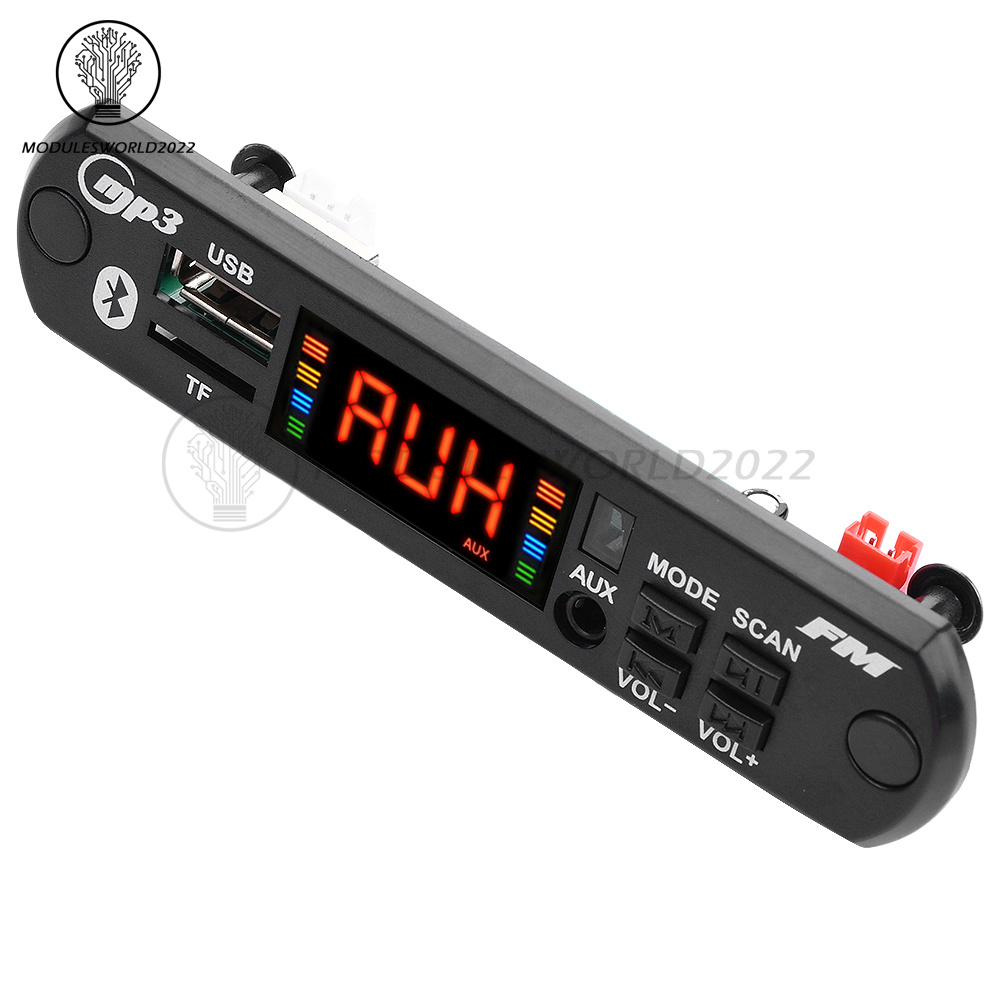

Panel size: 107 * 25 MM, two corners of the panel and the screw hole position, and then cover the surface of the cover, the depth of the board is 23 MM
Main control IC: AC6926
Bluetooth IC: AC6926
Bluetooth version: 5.0 version
Voltage: DC 5V or 12V (optional)
Music format: MP3 / WMA / WAV / APE lossless format
Receiving FM frequency: 87.5-107.5 MHZ
Support function: Support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / Remote Control / DC 5V or 12V (optional)
Panel size: 107 * 25 MM, two corners of the panel and the screw hole position, and then cover the surface of the cover, the depth of the board is 23 MM
I. Main Function
1, Dual decoding support MP3 / WMA / WAV / FLAC / APE lossless format music;
2, support for Bluetooth function, Bluetooth version 5.0;
3, with color screen digital tube display.
4, support for MMC / SD / MMA and other cards, support for USB interface (U disk);
5, Power failure memory function;
6, support 5-10 meters distance infrared remote control operation;
7, support for external audio input LINE IN;
8, support for radio FM, retrieval band (87.5MHZ-108.0MHZ);
9, key: four buttons multi-directional control, VOL- / AUTO / VOL + / MODE;
1, Dual decoding support MP3 / WMA / WAV / FLAC / APE lossless format music;
2, support for Bluetooth function, Bluetooth version 5.0;
3, with color screen digital tube display.
4, support for MMC / SD / MMA and other cards, support for USB interface (U disk);
5, Power failure memory function;
6, support 5-10 meters distance infrared remote control operation;
7, support for external audio input LINE IN;
8, support for radio FM, retrieval band (87.5MHZ-108.0MHZ);
9, key: four buttons multi-directional control, VOL- / AUTO / VOL + / MODE;

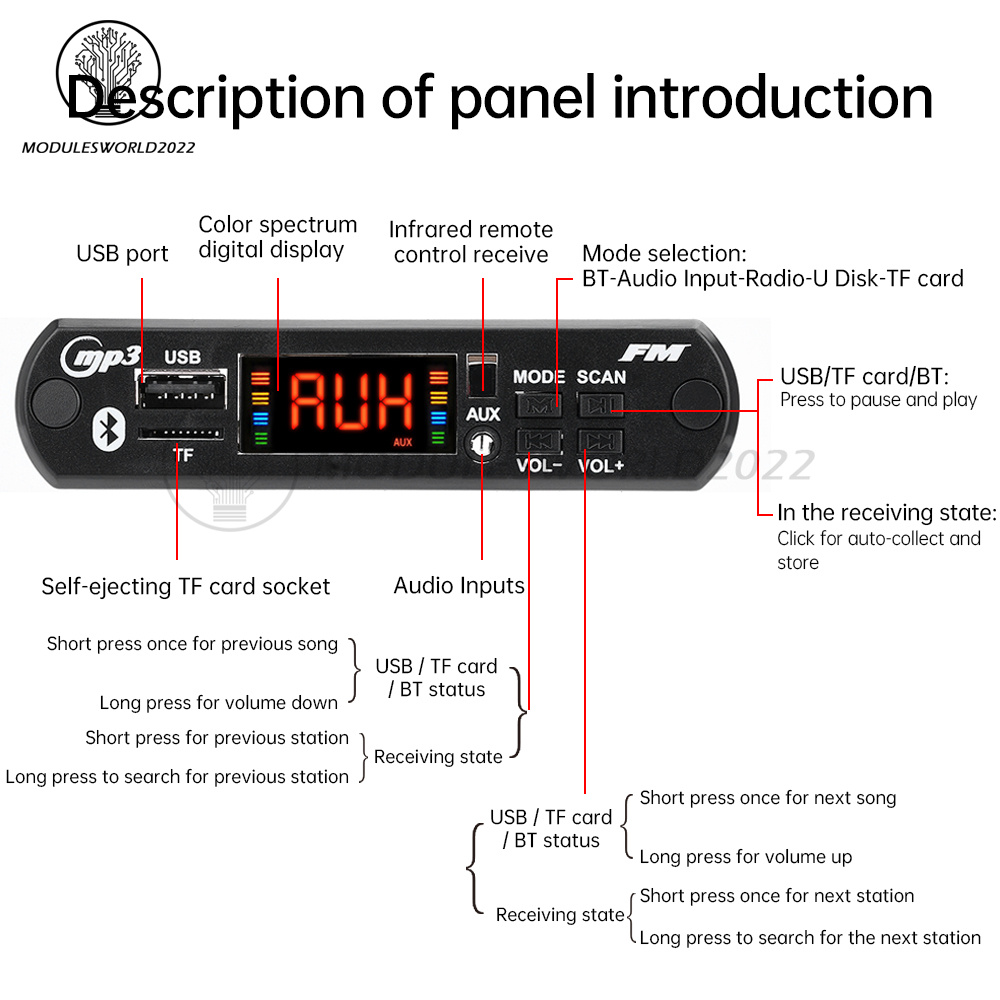

Second, key operation details
1、VOL-button(previous song/volume down): in the MP3 state VOL- short press for the previous song, long press for the volume down; in the FM state short press for the upward adjustment of a station number; in the bluetooth function short press for the bluetooth previous song, long press for the volume down.
2, AUTO button (play/pause): in the MP3 state AUTO short press to play/pause; in the FM state short press to automatically receive and store the station, long press no function; in the Bluetooth function short press to play/pause.
3, VOL + button (next song / volume up): in the MP3 state VOL + short press for the next song, long press for the volume up; in the FM state short press for down a station number; in the bluetooth function short press for the bluetooth next song, long press for the volume down.
4, MODE button: switch between USB / TF / FM / LINE IN / Bluetooth function in turn.
1、VOL-button(previous song/volume down): in the MP3 state VOL- short press for the previous song, long press for the volume down; in the FM state short press for the upward adjustment of a station number; in the bluetooth function short press for the bluetooth previous song, long press for the volume down.
2, AUTO button (play/pause): in the MP3 state AUTO short press to play/pause; in the FM state short press to automatically receive and store the station, long press no function; in the Bluetooth function short press to play/pause.
3, VOL + button (next song / volume up): in the MP3 state VOL + short press for the next song, long press for the volume up; in the FM state short press for down a station number; in the bluetooth function short press for the bluetooth next song, long press for the volume down.
4, MODE button: switch between USB / TF / FM / LINE IN / Bluetooth function in turn.

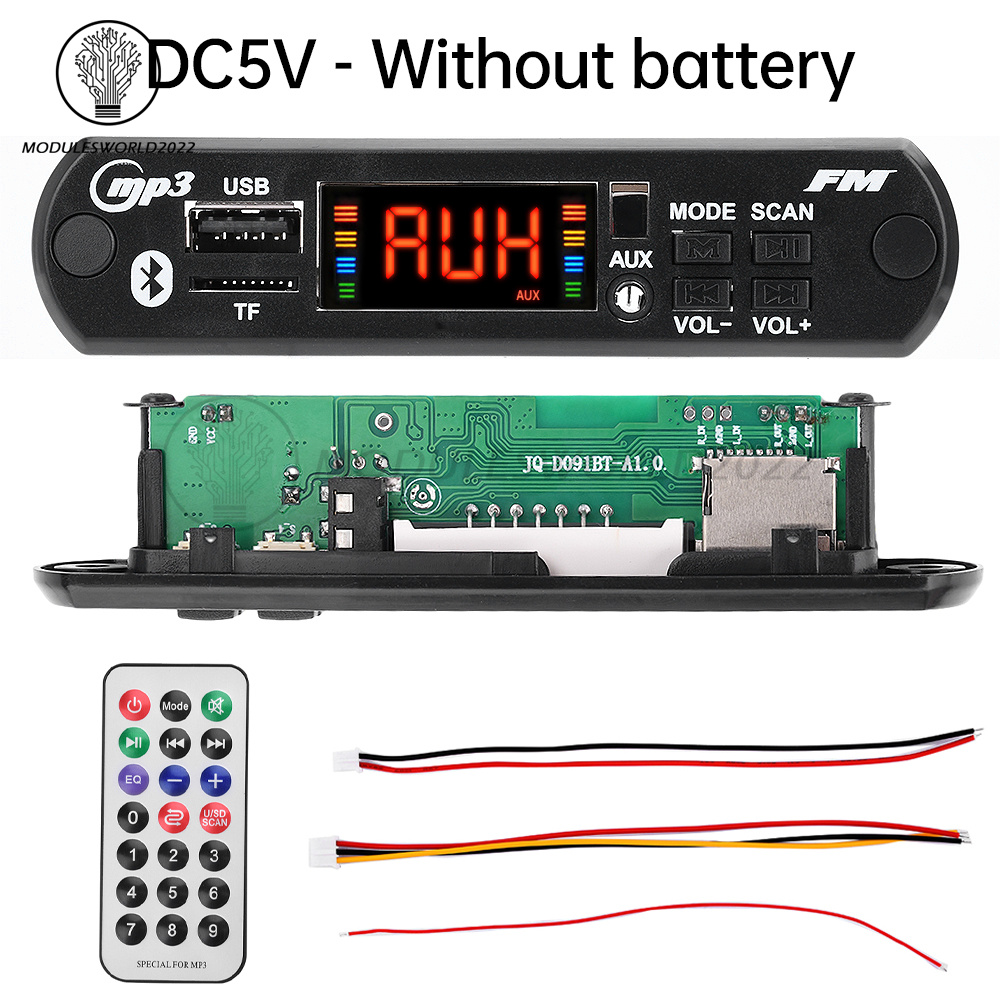

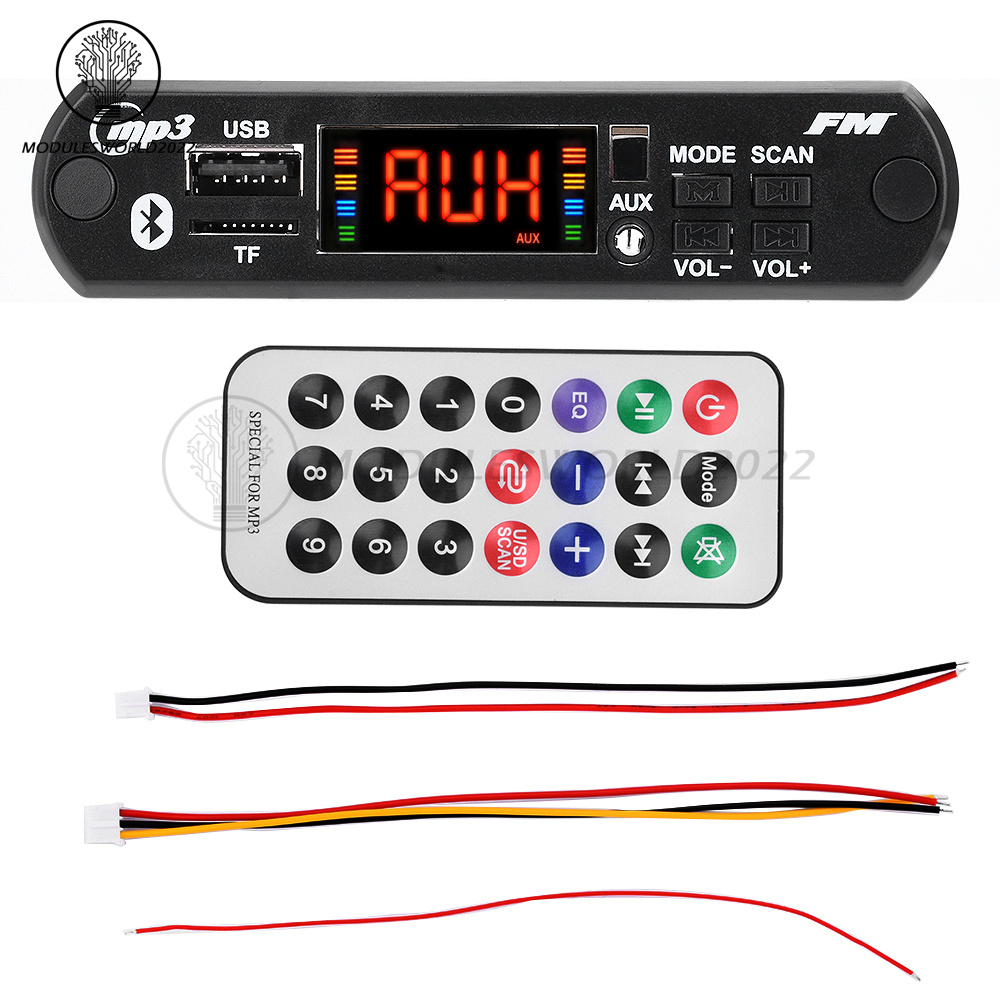

List
1 x Decoder Board
1 x Remote Control
3 x Connection Cable
1 x Decoder Board
1 x Remote Control
3 x Connection Cable
