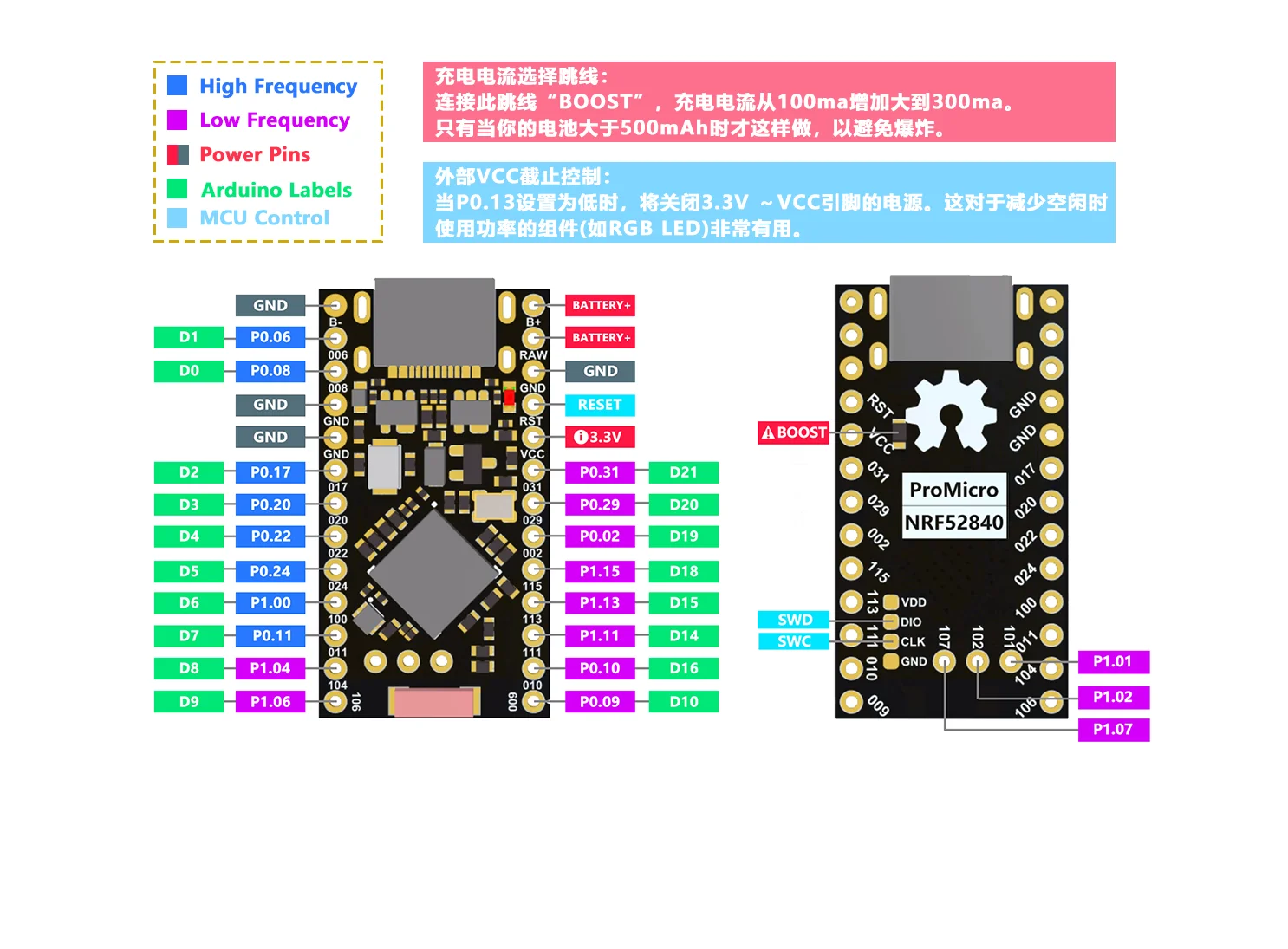

Introduction: NRF52840 is a ProMicro alternative development board that is compatible with for Nice! Nano. Its pins are the same as ProMicro, which means it can be used with for almost any ProMicro keyboard. The NRF5280 development board has a 3.7V lithium battery interface and a software switch that can cut off the power of the LED. When turned off, the standby power consumption can reach 1mA.
nRF52840 is a high-performance, low-power wireless SoC chip launched. It supports multiple wireless protocols, including Bluetooth 5, Thread, Zigbee, ANT, and 2.4GHz. The nRF52840 chip uses an ARM -M4F processor, clocked at 64MHz, with built-in 1MB of flash memory and 256KB of RAM.
It also has a of peripherals, including ADC, PWM, SPI, I2C, UART, USB and GPIO, etc. In addition, nRF52840 also supports a of security functions, such as encryption, SHA-256 hashing and True Random Number Generator (TRNG).

Product Parameters:
Powerful wireless capabilities: Bluetooth 5.0
onboard antennaPowerful CPU: nRF52840 chip uses ARM -M4F processor, clocked at 64MHz, built-in 1MB flash memory and 256KB RAM
Battery charging chip: supports lithium battery charging and discharging
Power consumption: standby power consumption can reach 1mA
for Promicro NRF52840
Material: PC,Metal
colour: Black

Package Contents:
1 x NRF52840 Development Board







Package includes:

NRF52840 Development Board For Nice!Nano V2.0 Bluetooth Charging Management DIY
