2. Small size design, BTL output, high power 80w.
3.2 kinds of inputs can be selected, single-ended input, can also be balanced (differential) input.
4. Board with heat sink, chip with heat sink work more stable.
5. Through reasonable circuit design and PCB layout, widely used in audio, home theater, drones and other fields.
Operating voltage: DC 5V-24V
Output power: 80W

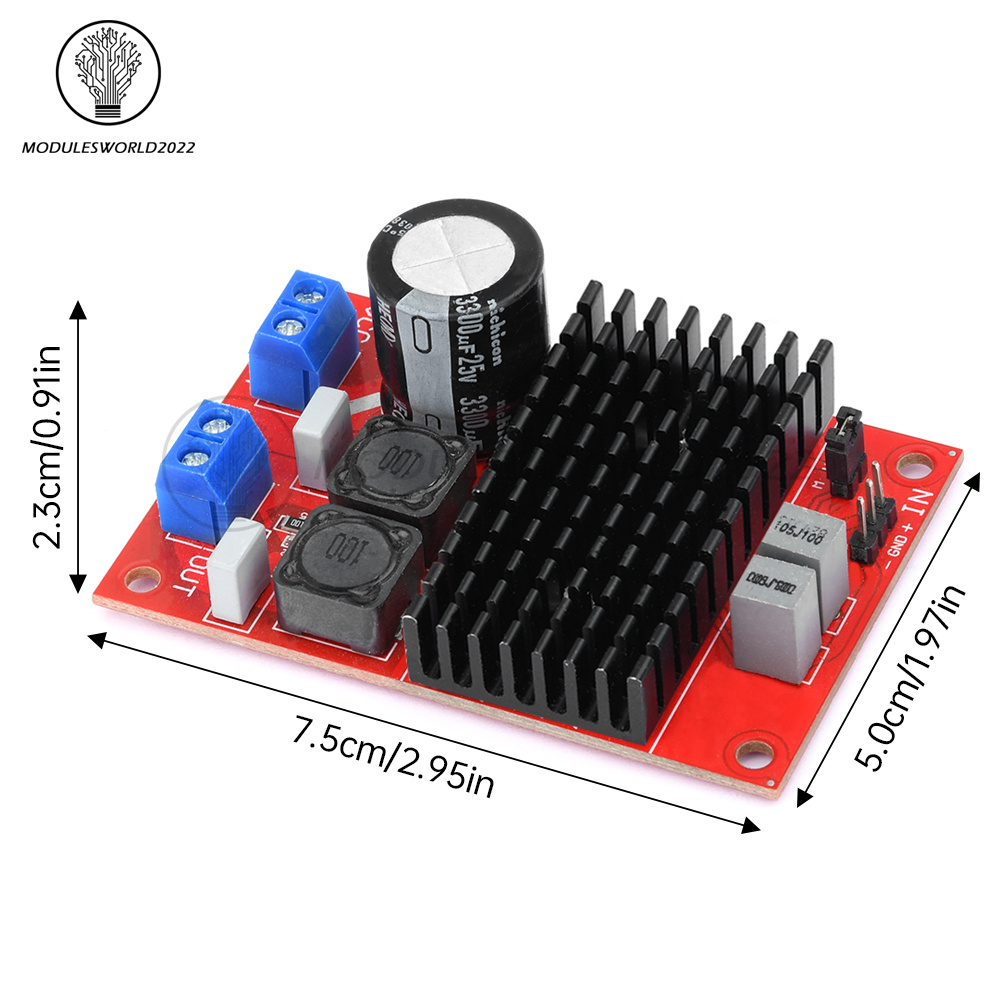

Board size: 75mm*50mm
Board overall height: about 25mm

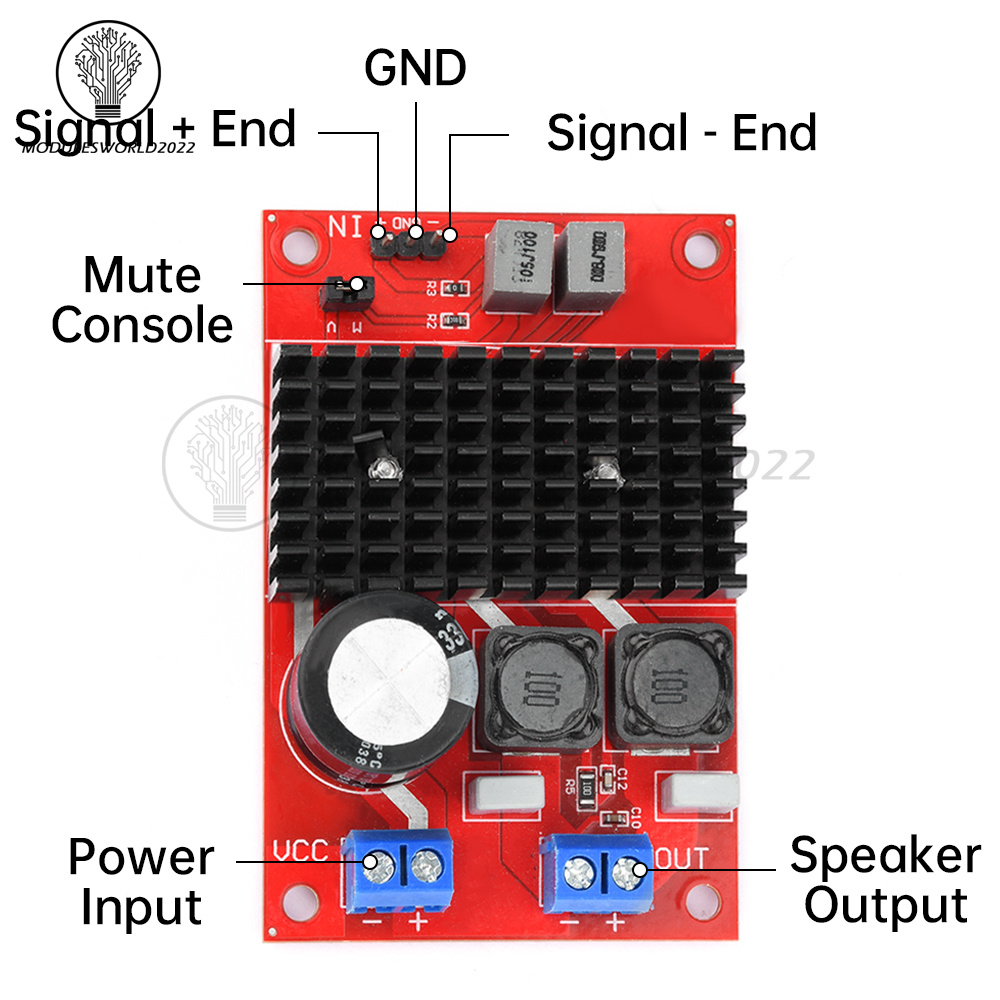

M for the mute control terminal, low level mute, high level work (control voltage can be from 3v-24v), there is a distribution of short-circuit cap, delivery default is the working state, the need for mute control, the short-circuit cap off, external control on the line.

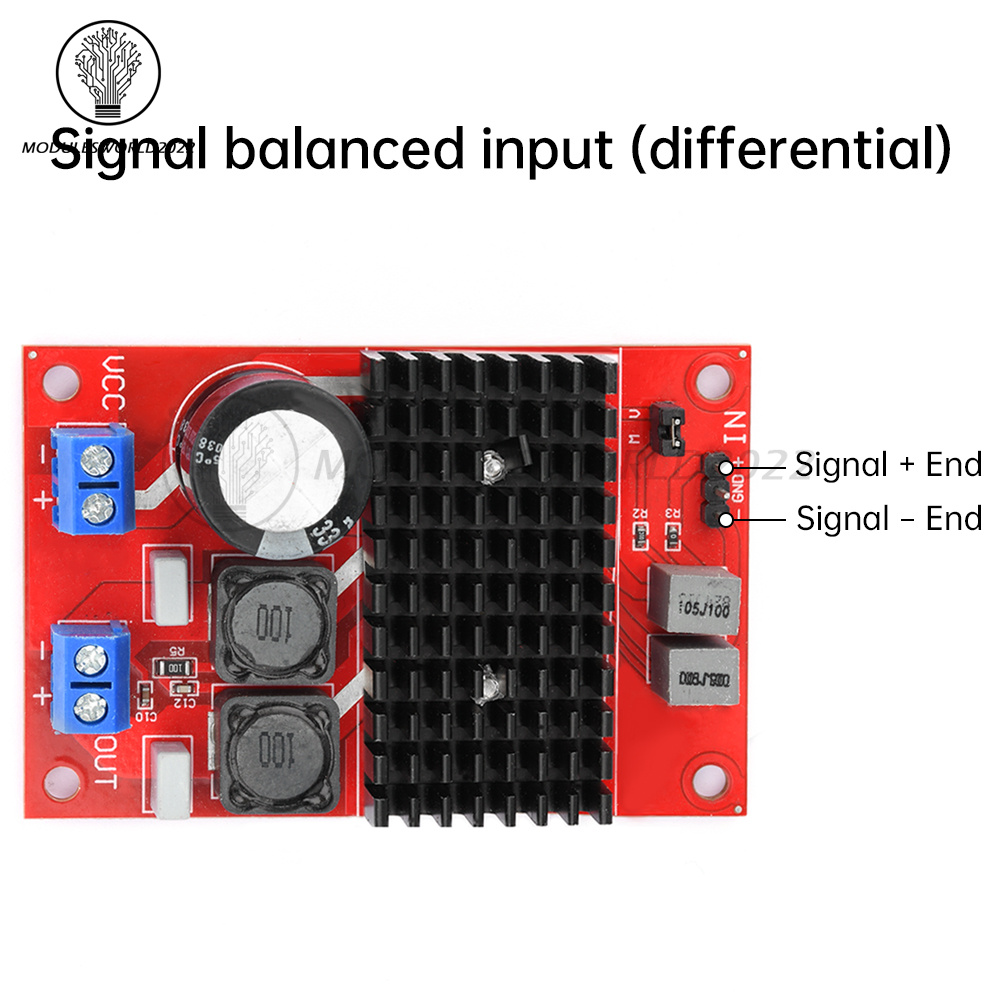

1: signal balanced input (differential): signal +, signal -.

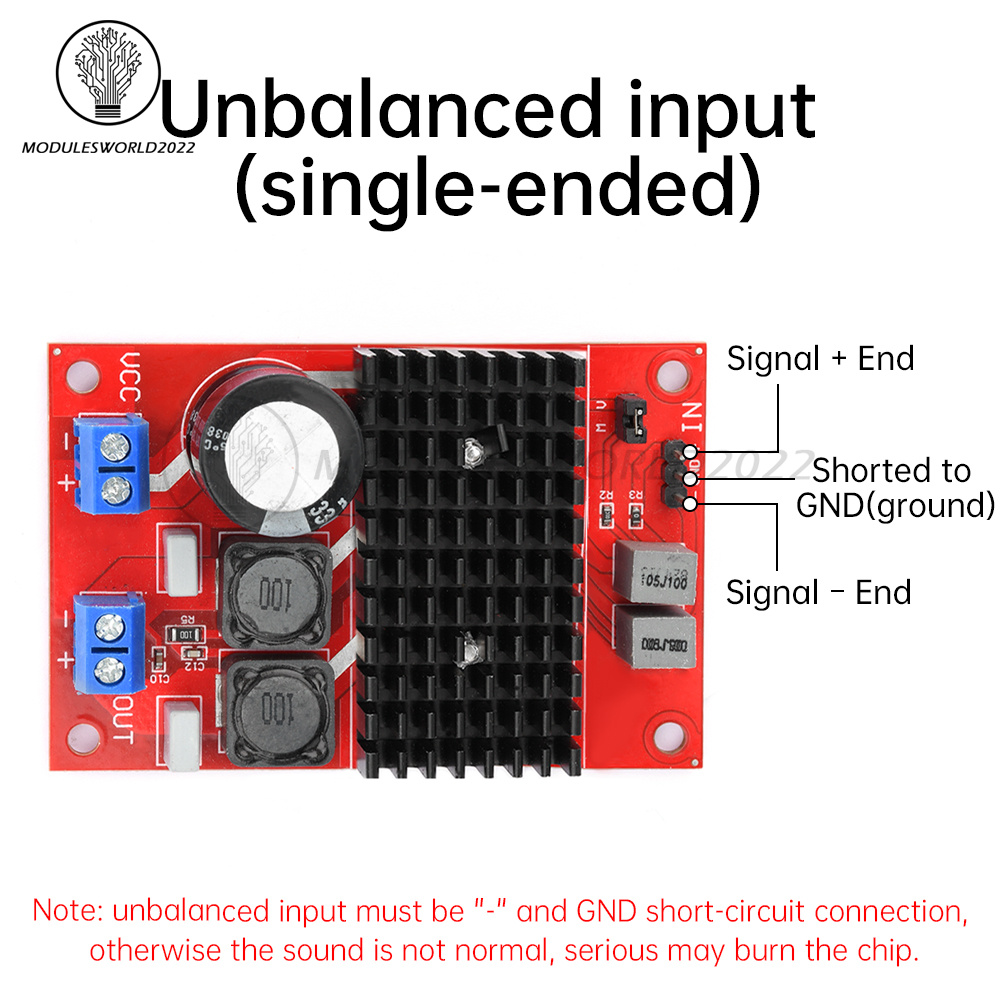

2: Unbalanced input (single-ended): the - end is shorted to GND (ground), and the signal is input from the + end.
Note: unbalanced input must be "-" and GND short-circuit connection, otherwise the sound is not normal, serious chip may be burned.
1 x Amplifier Board
Copyright©2018 datacaciques
Store Categories
Product View
Details
2. Small size design, BTL output, high power 80w.
3.2 kinds of inputs can be selected, single-ended input, can also be balanced (differential) input.
4. Board with heat sink, chip with heat sink work more stable.
5. Through reasonable circuit design and PCB layout, widely used in audio, home theater, drones and other fields.
Operating voltage: DC 5V-24V
Output power: 80W
Board size: 75mm*50mm
Board overall height: about 25mm
M for the mute control terminal, low level mute, high level work (control voltage can be from 3v-24v), there is a distribution of short-circuit cap, delivery default is the working state, the need for mute control, the short-circuit cap off, external control on the line.
1: signal balanced input (differential): signal +, signal -.
2: Unbalanced input (single-ended): the - end is shorted to GND (ground), and the signal is input from the + end.
Note: unbalanced input must be "-" and GND short-circuit connection, otherwise the sound is not normal, serious chip may be burned.
1 x Amplifier Board
