Product Type: Starter |
Replaces: 428000-2741 4280002741 21163-2129 21163-2152 |
  • Starter Type: DD |
  • Volts: 12 |
  • Teeth On Drive: 9 |
  • Rotation: Counterclockwise |
  • Kw: 0.8 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

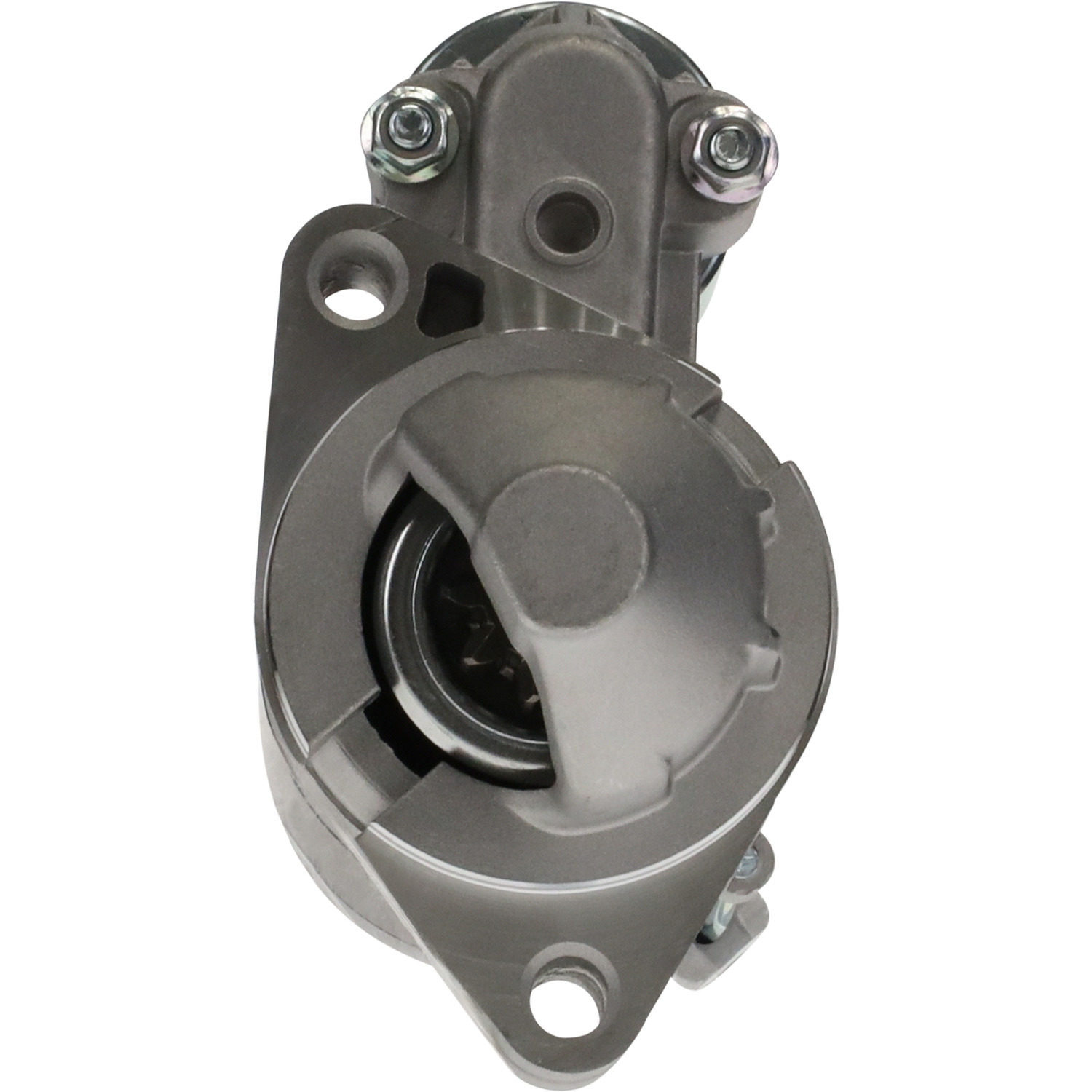

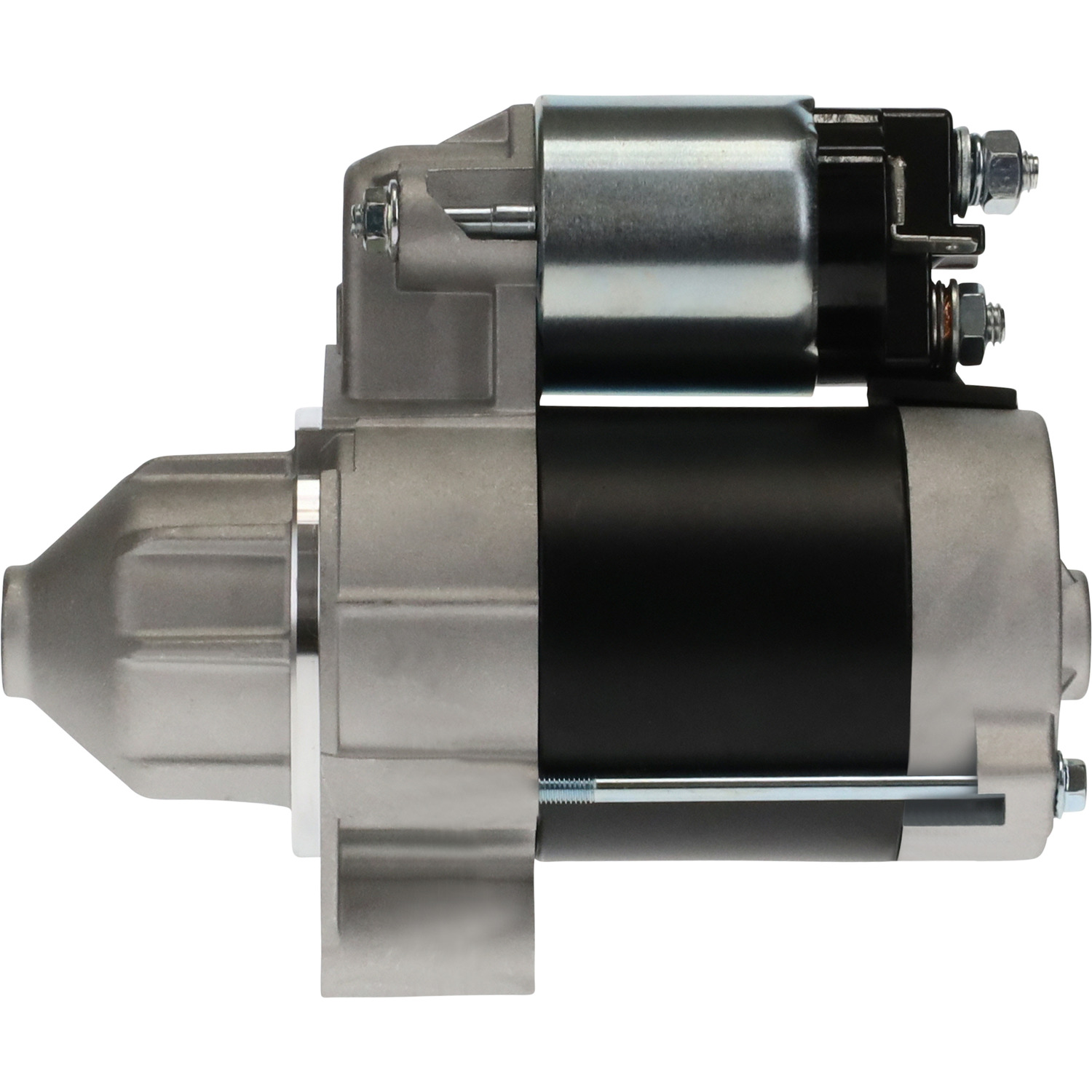

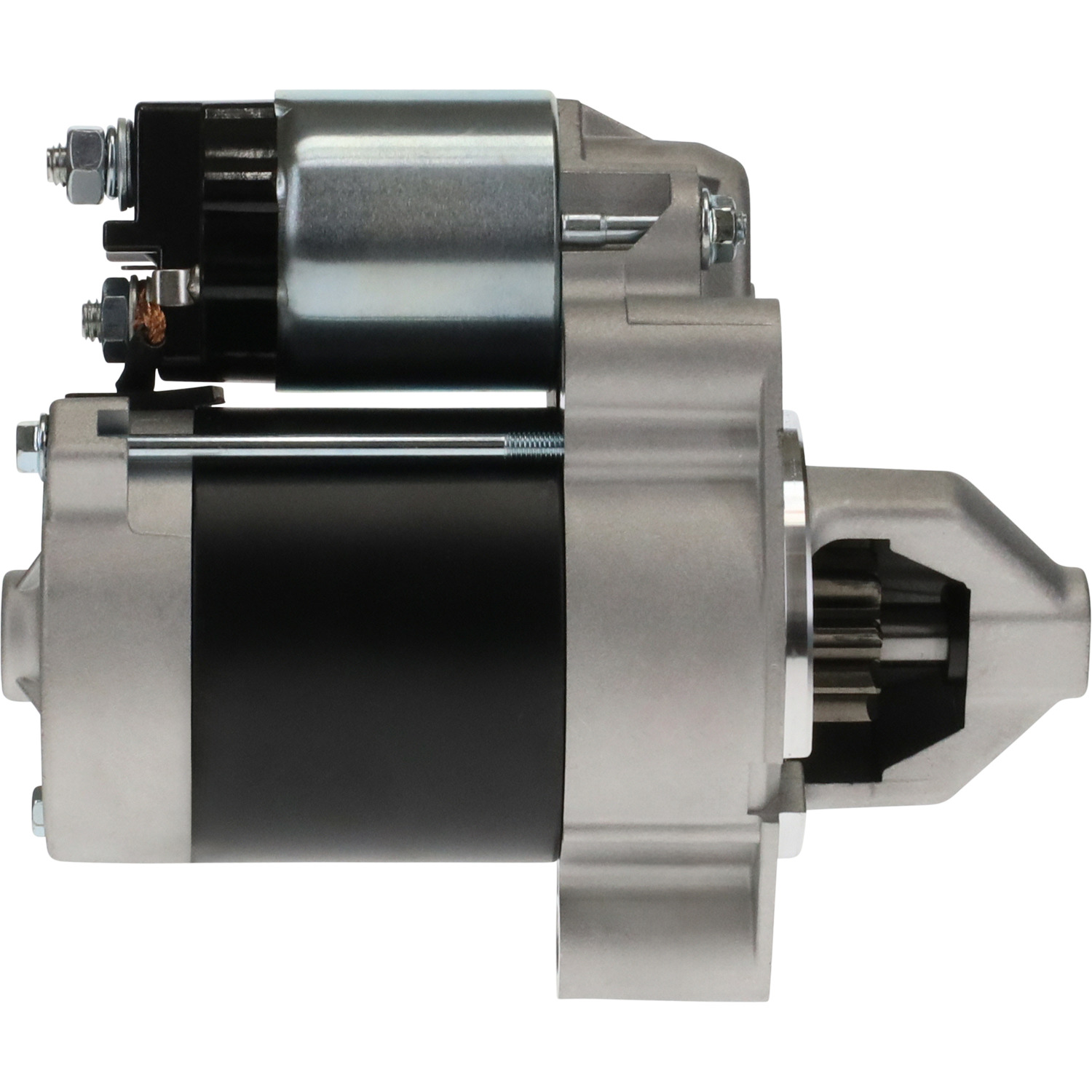

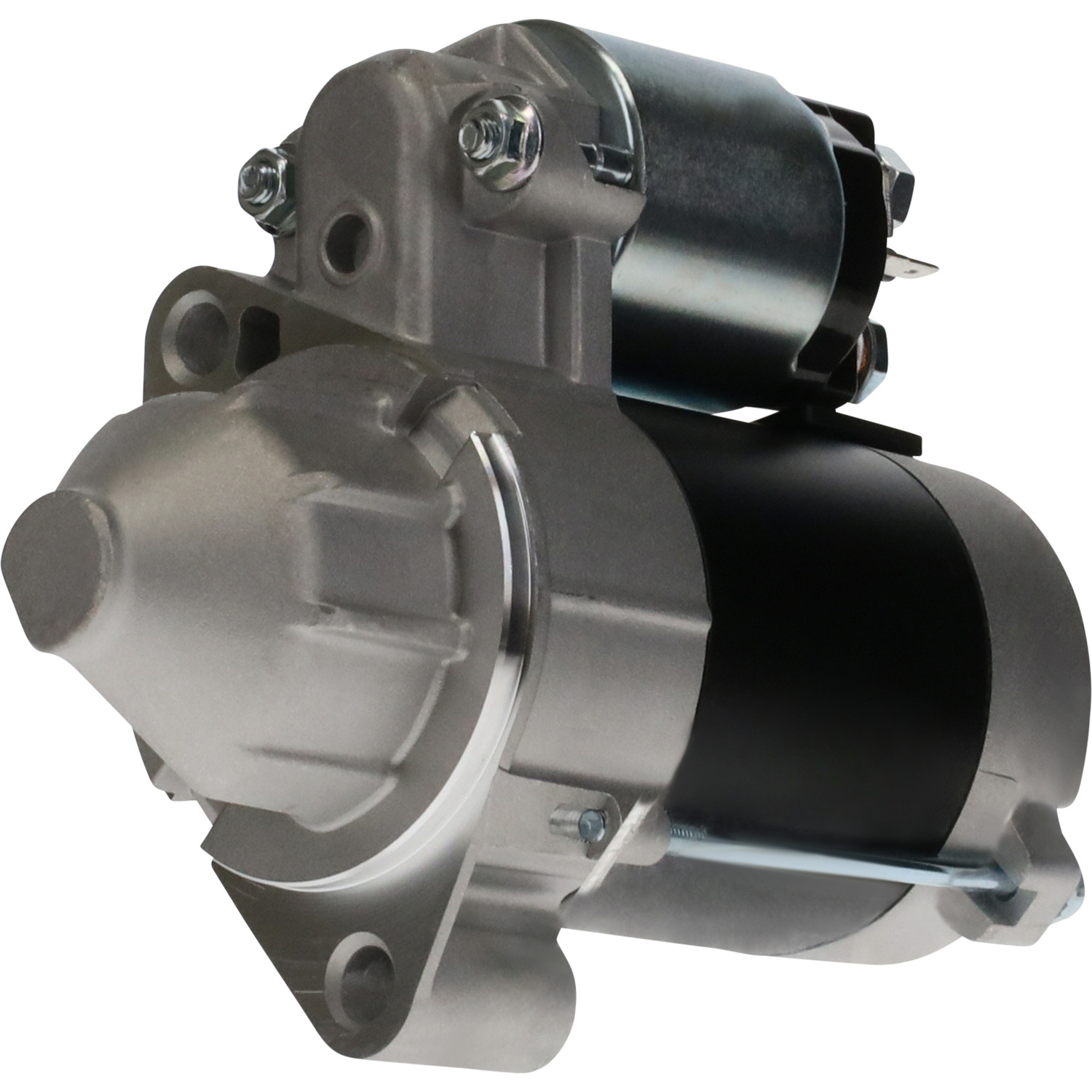

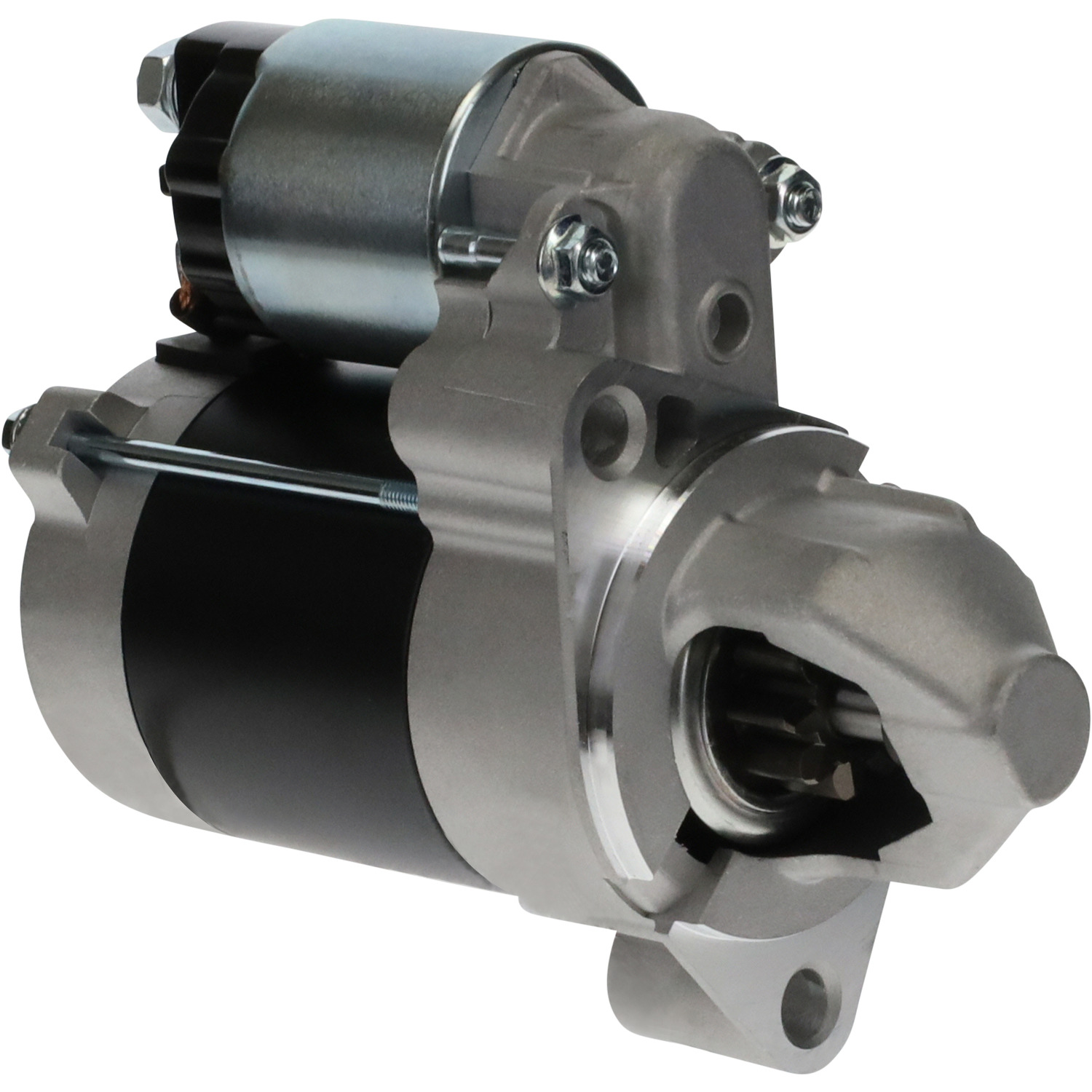

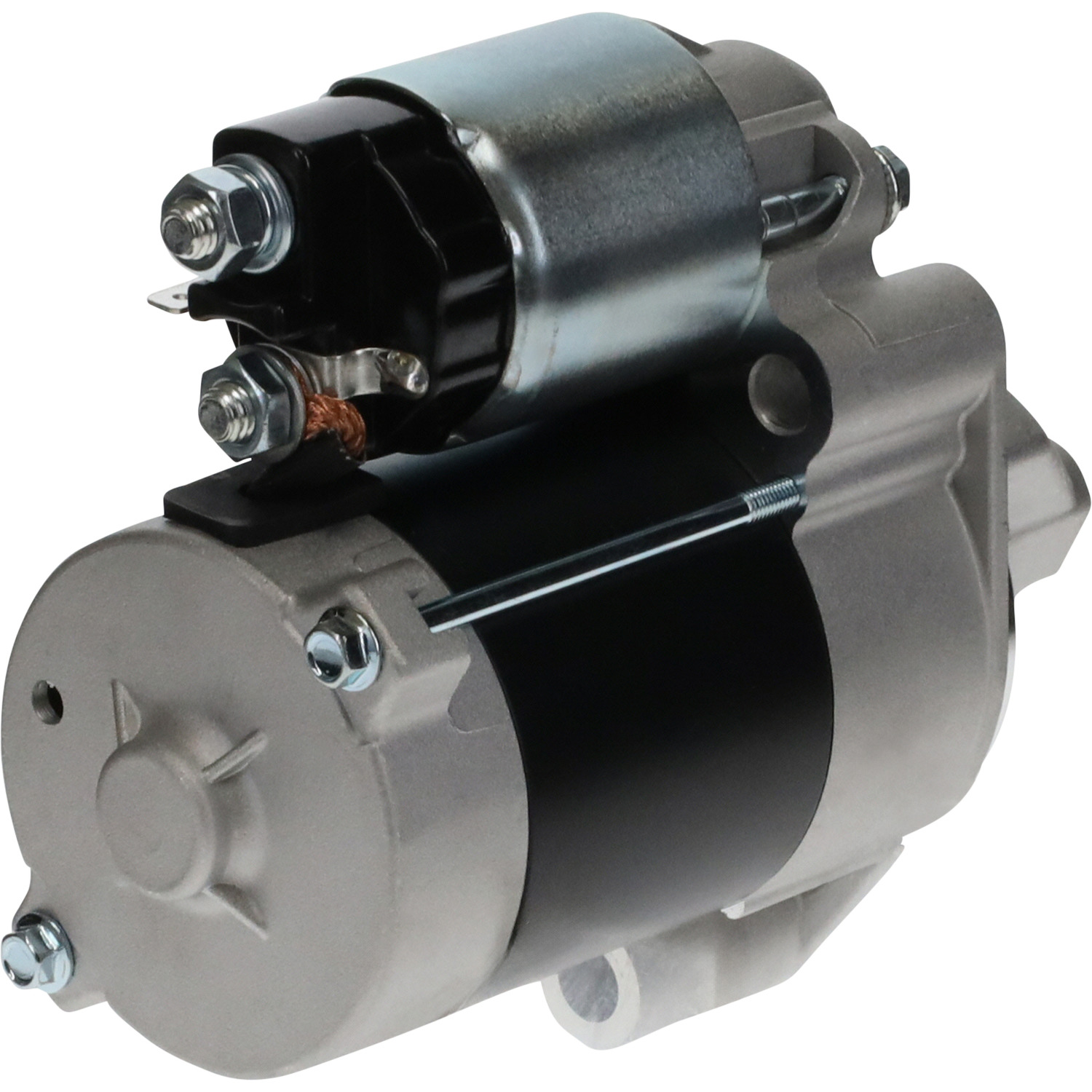

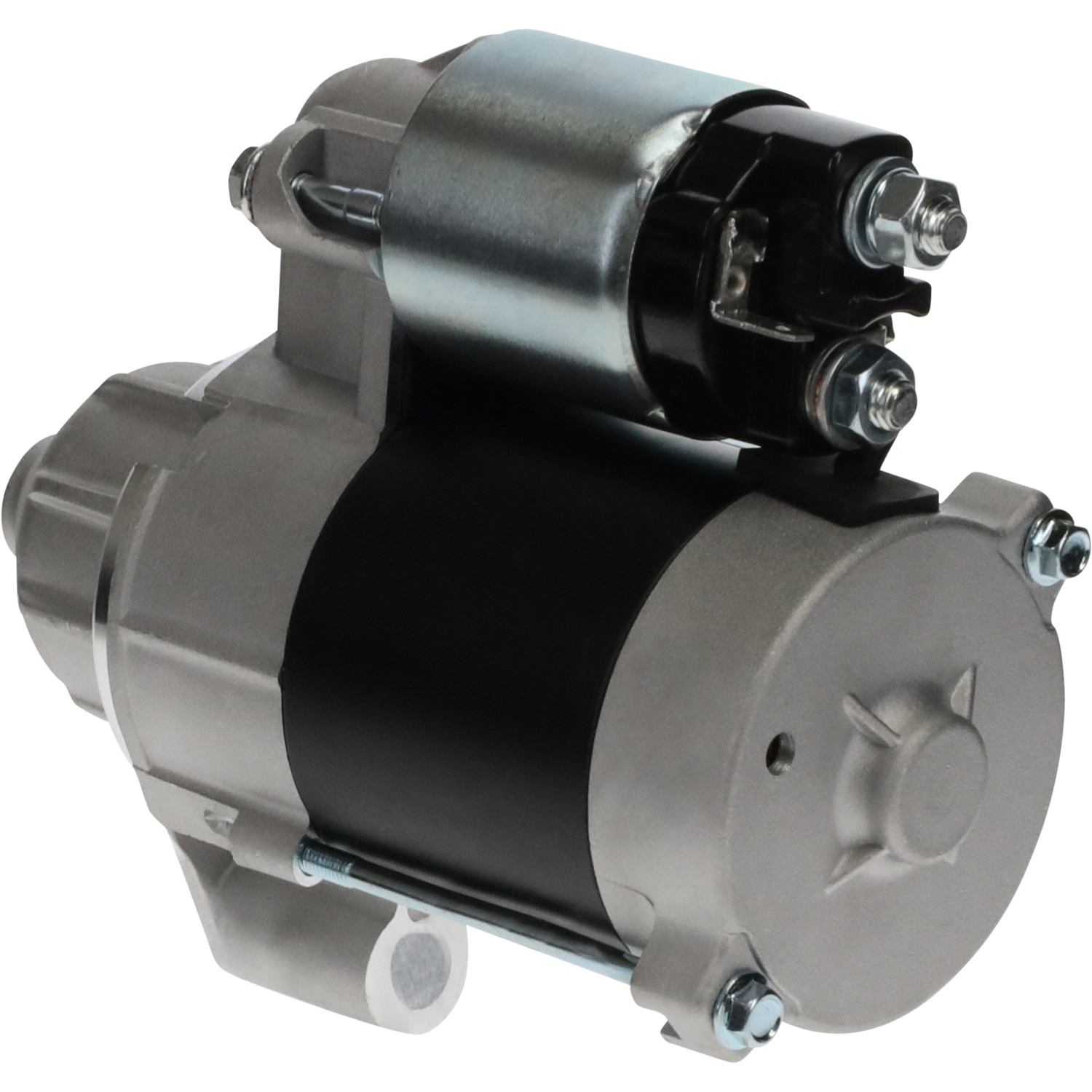

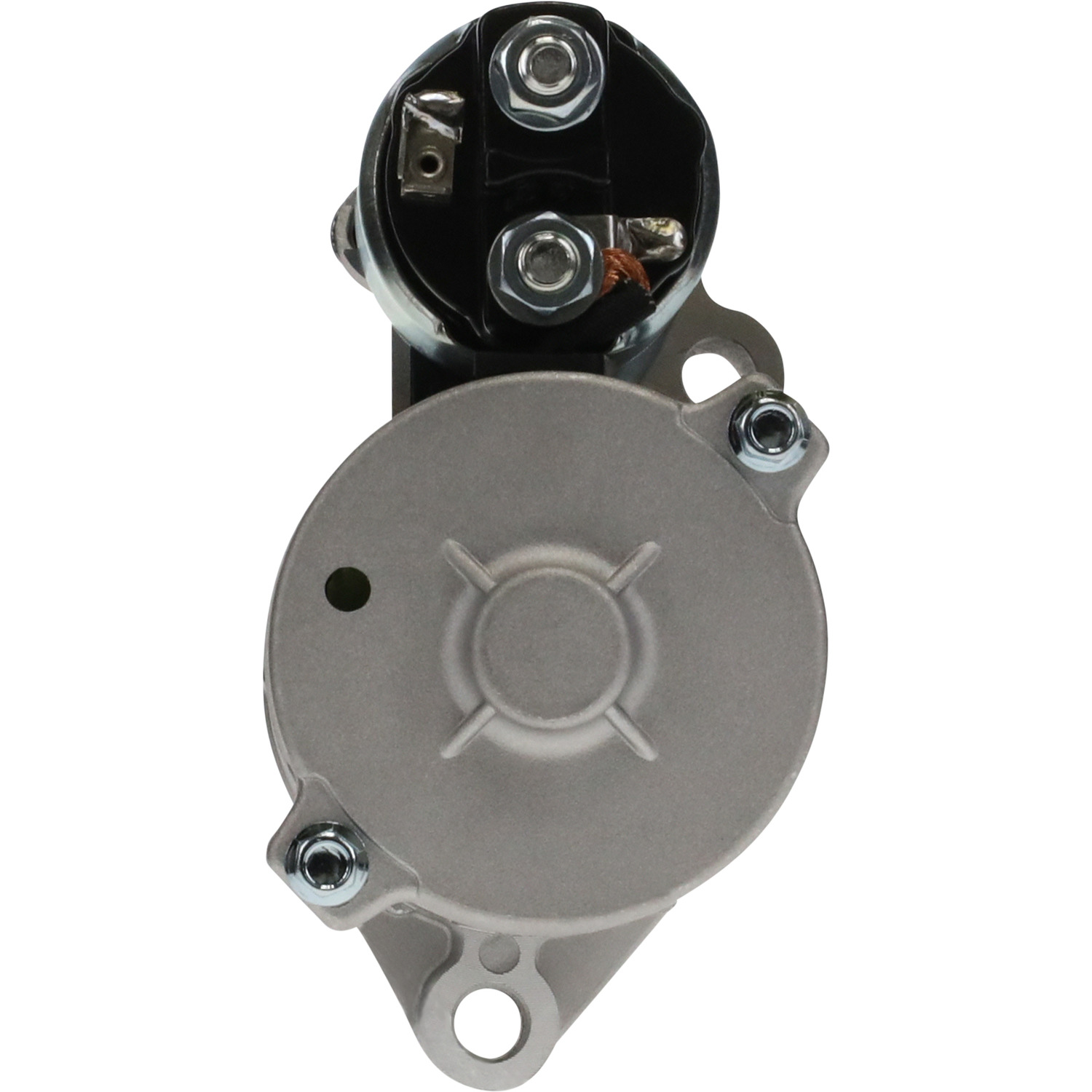

OEM Grade 12V DD Starter Kawasaki FD731V 26HP John Deere Z840A Z820A 21163-2129

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Kawasaki: 21163-2129 / 211632129
• Kawasaki: 21163-2152 / 211632152
• Kawasaki: 21163-2125 / 211632125
• Denso: 428000-2741 / 4280002741
• Denso: 428000-2740 / 4280002740
• John Deere: MIA11272

SPECIFICATIONS:
• Unit Type: Denso DD (Direct Drive) Starter
• Voltage: 12V
• Power: 0.8kW
• Rotation: CCW (Counterclockwise)
• Tooth Count: 9
• Gear OD: 29mm / 1.142in
• Mounting Ear 1: 10mm ID Unthreaded
• Mounting Ear 2: 10mm ID Unthreaded
• Weight: 7.2 lbs / 3.27 kg
• Condition: New

JOHN DEERE APPLICATIONS:
• Z-Trak Z840A / Z820A / Z810A w/FD731V 26HP Zero Turn Mowers
• X540 Garden Tractor w/FD731V 26HP (2006-2014)
• X520 Garden Tractor w/FD731V 26HP (2007-2013)

HUSTLER / SCAG / GRAVELY APPLICATIONS:
• Hustler Super-Z w/FD731V 26HP (60/66in Deck)
• Hustler FasTrak Z w/FD731V 26HP
• Scag Wildcat 48/52/61in w/FD731V 26HP (STWC-26KA-LC)
• Gravely Promaster 260Z w/FD731V 26HP

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



JOHN DEERE Z-TRAK ZERO TURN MOWERS:
• Z840A Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas - 48/54/60in 7-Iron PRO Deck
• Z820A Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas - 48/54/60in Deck
• Z810A Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas - 48/54in Deck

JOHN DEERE GARDEN TRACTORS:
• X540 Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas - 54in Edge Xtra Deck (2006-2014)
• X520 Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas - 48/54in Deck (2007-2013)

HUSTLER ZERO TURN MOWERS:
• Super-Z Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas - 60/66in XR-7 Deck
• FasTrak Z Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas

SCAG WILDCAT ZERO TURN MOWERS:
• Wildcat 48in Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas (STWC48V-26KA-LC)
• Wildcat 52in Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas (STWC52V-26KA-LC)
• Wildcat 61in Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas (STWC61V-26KA-LC)

GRAVELY ZERO TURN MOWERS:
• Promaster 260Z Kawasaki FD731V 2-Cyl 675cc 26HP V-Twin Liquid-Cooled Gas

KAWASAKI FD731V ENGINE SPECIFICATIONS:
• 4-Stroke Vertical Shaft V-Twin OHV Liquid-Cooled Gas Engine
• 2-Cylinder 675cc (41.2ci) 26HP @ 3600 RPM
• Bore x Stroke: 75.2mm x 76.0mm / Compression Ratio: 8.5:1
• Mikuni BW26 Carburetor / Electronic Ignition / NGK BPR2ES Spark Plugs
