Product Type: Hydraulic Motor |
Replaces: 11.216.207 11.212.725 11216207 11212725 |
  • Rotation: Counterclockwise |
  • Shaft Outside Diameter: 15 mm |
  • Shaft Specifications: 6.5 mm Slotted |
  • Volts: 24 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

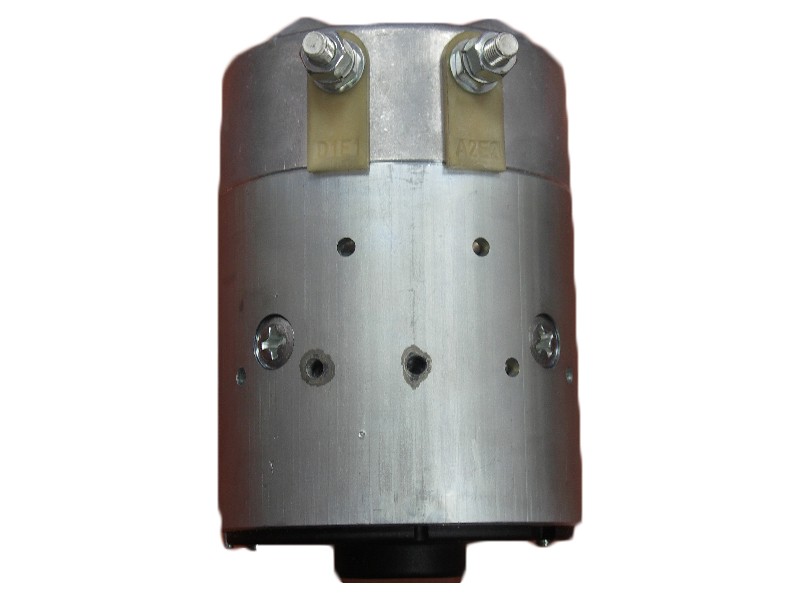

Hydraulic Pump Motor 24V Haldex Barnes 2200972 Iskra 11.212.106 CCW 2.95HP

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Iskra: 11.212.106 / 11212106
• Iskra: 11.212.722 / 11212722
• Iskra: 11.212.725 / 11212725
• Iskra: 11.216.207 / 11216207
• MAHLE: AMJ5193, AMJ5719, IM0138
• Iskra Tech: AMJ4603, AMJ4681
• Iskra Sales: IM0007 / IM-0007
• JS Barnes: 220-0972 / 2200972
• JS Barnes: 39200455
• Western: W-8963 / W8963
• Western: W-8263 / W8263
• Reference: 26042K01, 82-6886, 638622095, 16908629

SPECIFICATIONS:
• Type: Hydraulic Pump Motor (DC)
• Unit Type: Iskra
• Voltage: 24V DC
• Power Output: 2.2kW / 2.95HP
• Speed: 2300 RPM
• Rotation: Counterclockwise (CCW)
• Outer Diameter: 4.528 in / 115mm
• Overall Length: 6.772 in / 172mm
• Shaft Outside Diameter: 15mm (0.591 in)
• Shaft Type: 6.5mm Slotted
• Terminal 1 Size: 5/16-24
• Terminal 2 Size: 5/16-24
• Bearing Type: Double Ball Bearings
• Mounting: Through Bolts at 3:00 & 9:00
• Weight: 16 lbs
• Condition: New

HALDEX / BARNES / SAVERY APPLICATIONS:
• Haldex Hydraulic Liftgate Power Units — 24V DC (All Years)
• Haldex Hydraulic Pump & Winch Systems — 24V CCW (All Years)
• JS Barnes / Haldex-Barnes Hydraulic Power Units (All Years)
• Savery Hydraulic Power Units & Liftgate Systems (All Years)
• Industrial & Commercial Truck Liftgate Applications (All Years)
• Material Handling & Construction Hydraulic Equipment (All Years)

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



HALDEX HYDRAULIC SYSTEMS:
• Haldex Hydraulic Liftgate Power Units — 24V DC Electric Motor Drive (All Years)
• Haldex Hydraulic Pump Systems — CCW Rotation, 2.2kW / 2.95HP Output (All Years)
• Haldex Hydraulic Winch Motor Systems — 24V Double Ball Bearing (All Years)

BARNES HYDRAULIC PUMP APPLICATIONS:
• JS Barnes / Haldex-Barnes Hydraulic Power Units — 24V DC, 2300RPM (All Years)
• Barnes Gear Pump Systems — 15mm Slotted Shaft, CCW Rotation (All Years)

SAVERY HYDRAULIC APPLICATIONS:
• Savery Hydraulic Power Units — 24V Electric Motor Drive (All Years)
• Savery Liftgate Pump Systems — CCW, 2.2kW Output (All Years)

ADDITIONAL APPLICATIONS:
• Industrial Hydraulic Liftgate Systems — 24V DC Motor Powered (All Years)
• Commercial Truck Liftgate Power Units — 24V Electric Pump Motor (All Years)
• Material Handling Hydraulic Equipment — 24V CCW Motor Drive (All Years)
