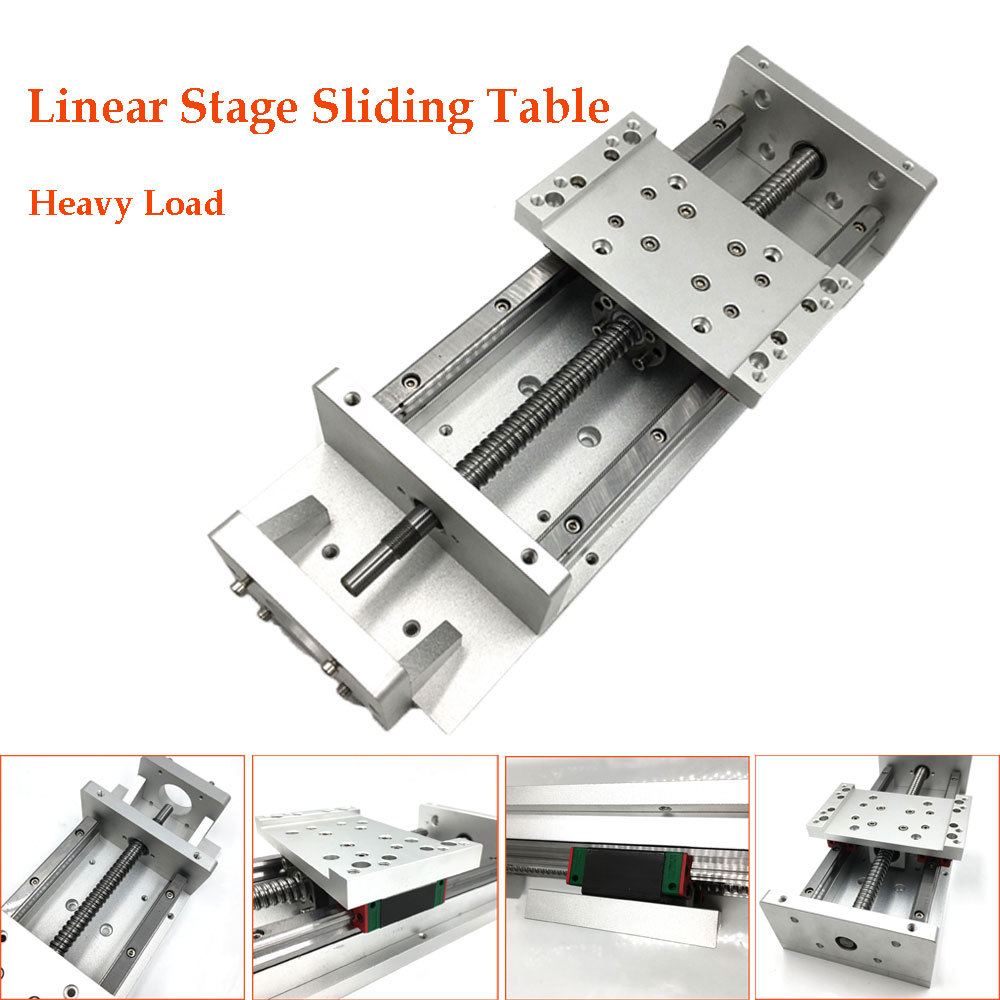

Linear Rail Sliding Table Cross Slide Module SFU1605 XYZ Axis
Package included :
1 x Electric Sliding Table (length is effective stroke)
Features :
4. Ball screw type: 1605 (diameter 16mm, lead 5mm )
5. Ball screw accuracy: C7
6. Repeat positioning accuracy: ± 0.02mm
7.Material: Aviation Aluminum 6061
8. can be equipped with manual ,hand wheel, electric: 57 stepper motor, 86 motor, servo motor (customer needs different flexible configuration)
Questions & Answers :
Q1: 100mm 200mm 300mm 500mm are these travel lenths? or the total length of the slider?
Answer: Travel lengths.
Q2: Do you ship it assembled or all the pieces separatelly for us to assemble it? we prefer it separatelly.
Answer: we ship it assembled.
Q3: Does this include the stepper motor?
Answer: Does not include nema engine.
Q4: Is there a CAD model available?
Answer: You can email seller for it.
Q5: Would it includes coupling?
Answer: No, if you need this part, you can email us for it.
Q6: What size is the stepper motor mount. Is the motor included as shown in the pictures?
Answer: 57*57mm or 86*86mm, default ship 57*57mm motor base . The motor is not included.
Q7: Can i mount Nema34 (86*86mm)motor ?
Answer : Yes, you can contact the seller , they will send you the Nema34 motor base .
|
