Accessory Type : Battery Accessories
Origin : Mainland China
Certification : CE,FCC,RoHS
Applicable Battery : 3.2V Lifepo4/3.7V Li-ion Battery
BMS Type : High Current Relay Smart BMS

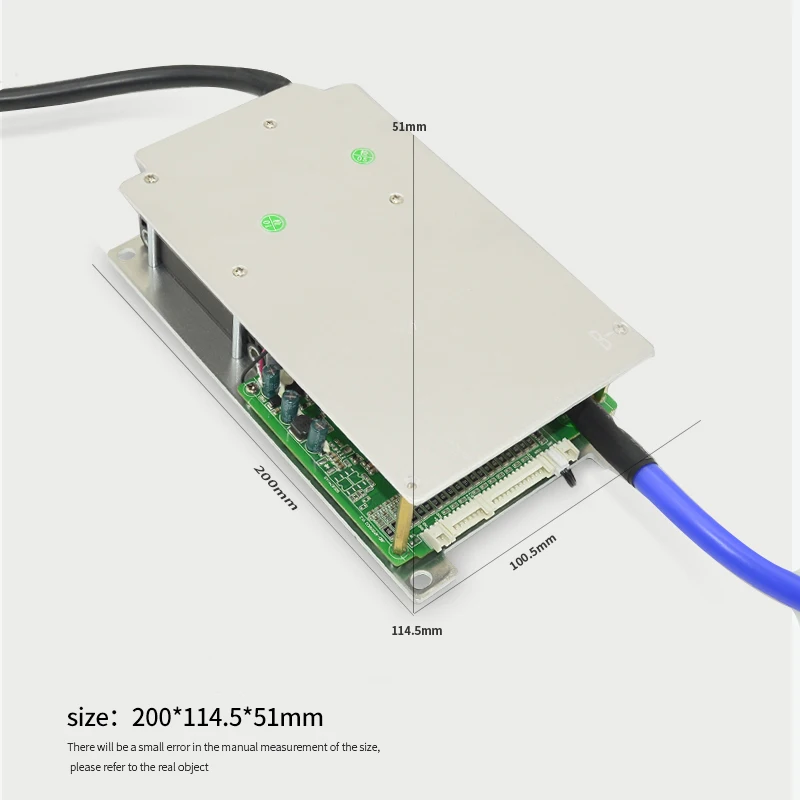

Size : 200*115*51mm
Number of Strings : 7-21S
Continuous Current : 200A
Working Voltage : 24V/36V/48V/60V/72V
Bluetooth Function : Built-in Bluetooth Module
Balance Function : Common port with Balance
Balance Wires : Yes and Free
Communication Function : UART RS485 CAN
Balance Model : Dle/Charge/Discharge Equalization
Balance Current : 70-230mA
Six Protection Functions : Yes
Temperature Sensor : 1 internal,2 external
Application Field : Power Battery,E-Bike,E-Motorcycle,etc
Product Introduction:
The smart bms can automatically identify lithium battery strings from 7S to 24S,bms built-in BT module,with UART/RS485/CAN communication,with balance function and temp sensor.Work voltage 24v/36v/48v/60v/72v,high current bms continuous current 200A,peak current 600A continue 1seconds.Can set and monitor datas in APP and PC,support LCD dislay.(please note:smart bms accessories need buy separately if need)
Product Information:
Applicable Battery Type:3.7v Li-ion/3.2v LiFePo4 Battery.
Smart BMS can support 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S.
continuous current in 200A,peak current in 600A for 1s.Balance current in 70-230mA.

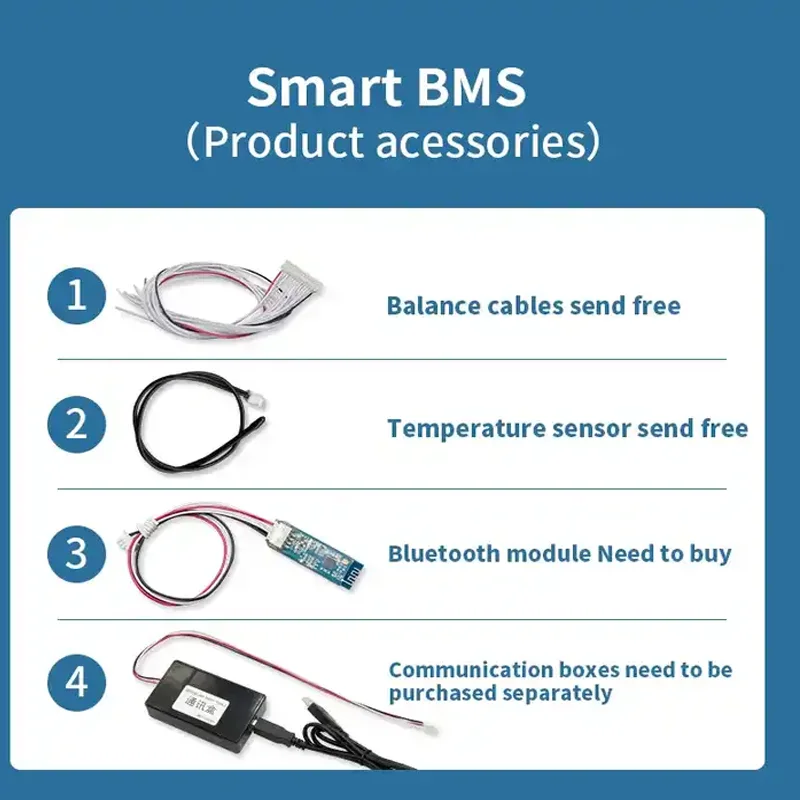

Package included:BMS*Free BT Module*Balance Wires.
Function Introduction:

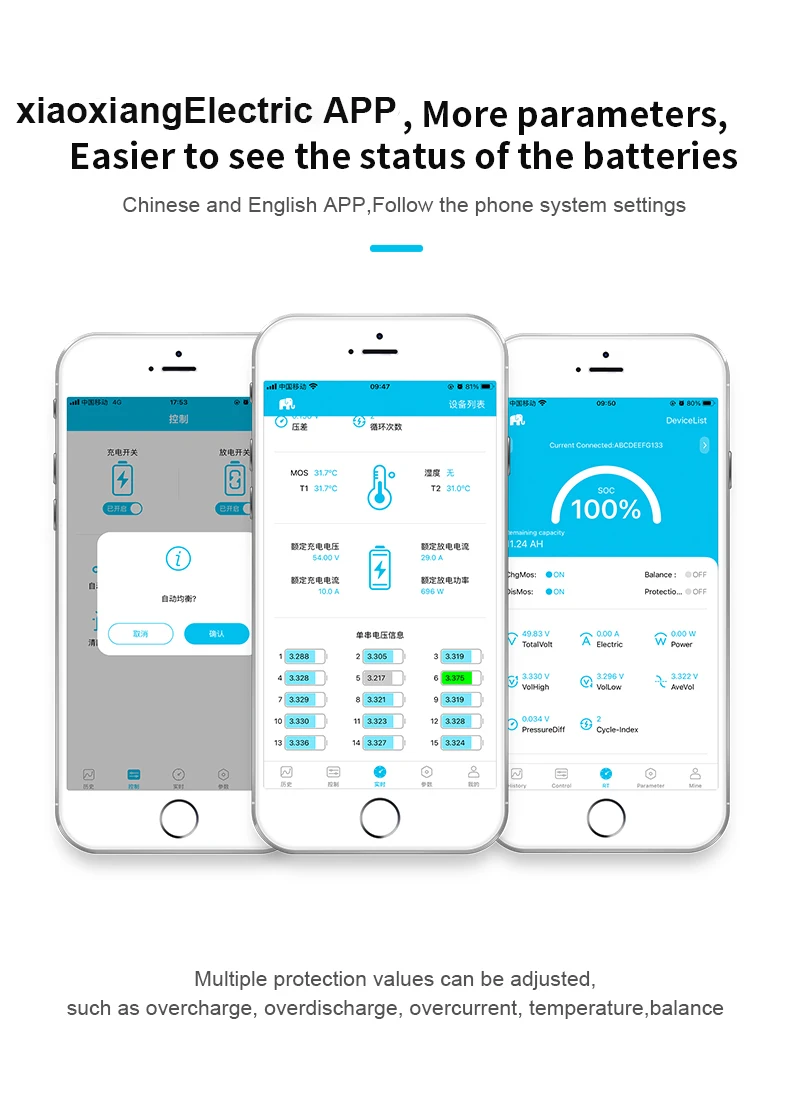

(1)BT-APP in Phone
Support Both IOS and Android version,can monitor and change the parameters(need to be within the specified range)

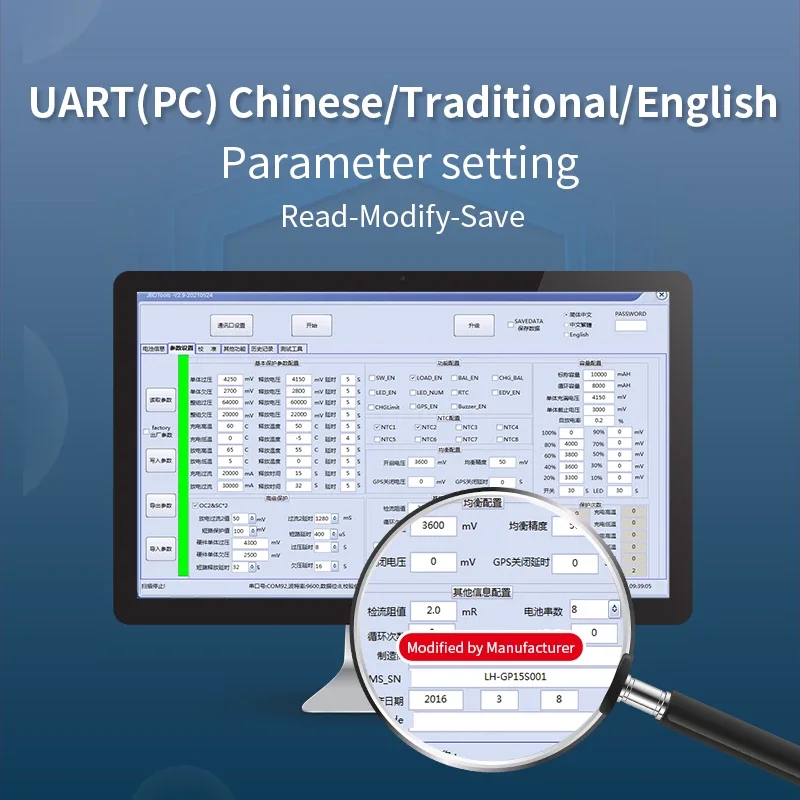

(2)UART or RS485-JBD PC Tool Box
Monitor and Set parameters,ask for service for PC Tool Software Documents and PC tool Manual.
(3)UART or RS485 LCD Display-Can monitor parameters on LCD displayer.
Attention:
(1)UART and BT is the same ports,can't be used at the same time
(2)All smart bms has BT and UART function
(3)UART/RS485 PC Tool accessories need buy separately
(4)APP manual/bms specification/wiring diagram: please contact customer service.
Key word:
jbd smart bms 16S 200,bms lifepo4 16S 200a,smart bms 24s 200a for lithium ion pack,72v bms,48v bms
lifepo4 bms 60v,36v li ion bms,relay smart bms jbd,200a smart bms,high current bms,smart bms with relay.
