Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.


240×280 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
|

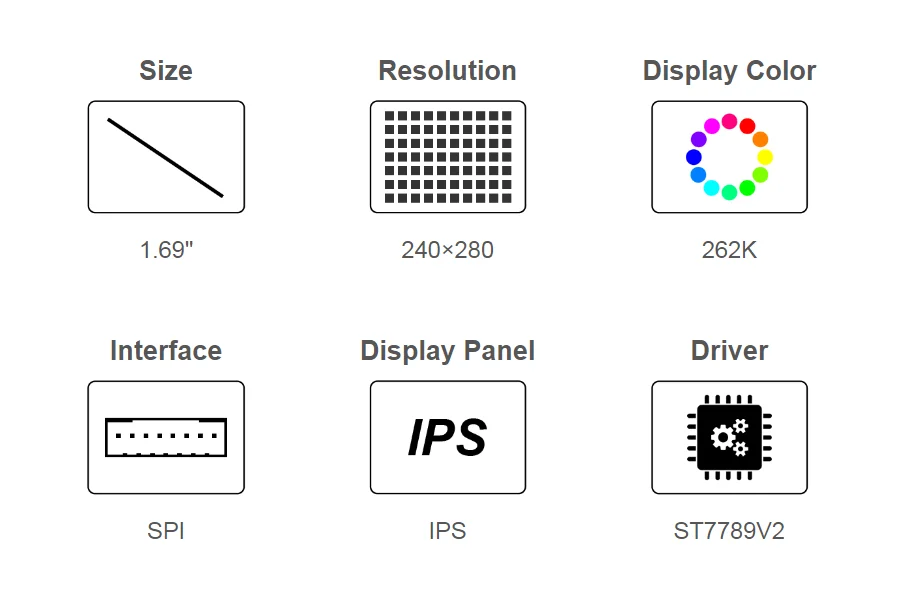

OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
240 × 280 pixels |
|
COMMUNICATION INTERFACE |
4-wire SPI |

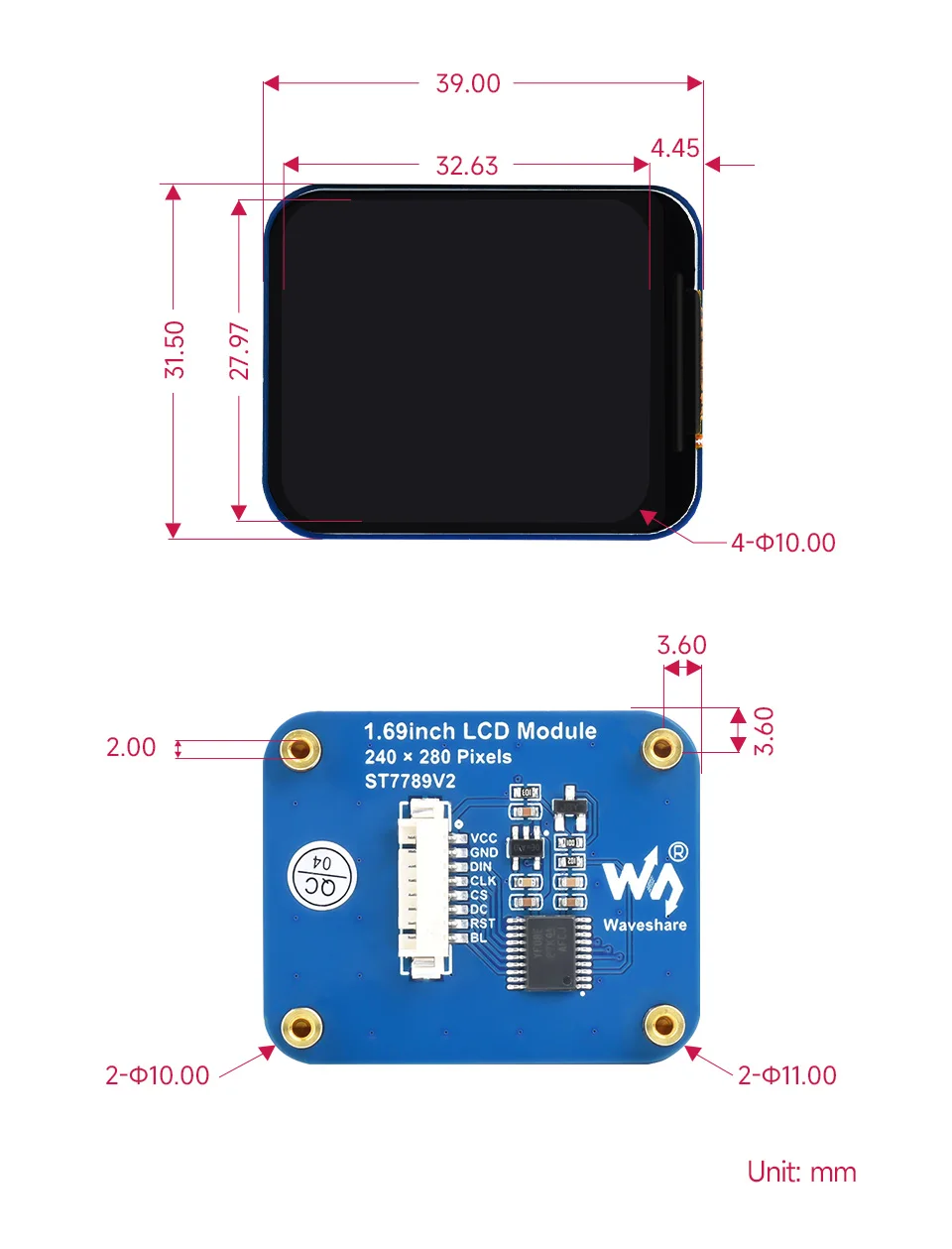

DISPLAY SIZE |
27.97 × 32.63mm |
|
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.11655 × 0.11655mm |
|
DRIVER |
ST7789V2 |
MODULE SIZE |
31.50 × 39.00mm |

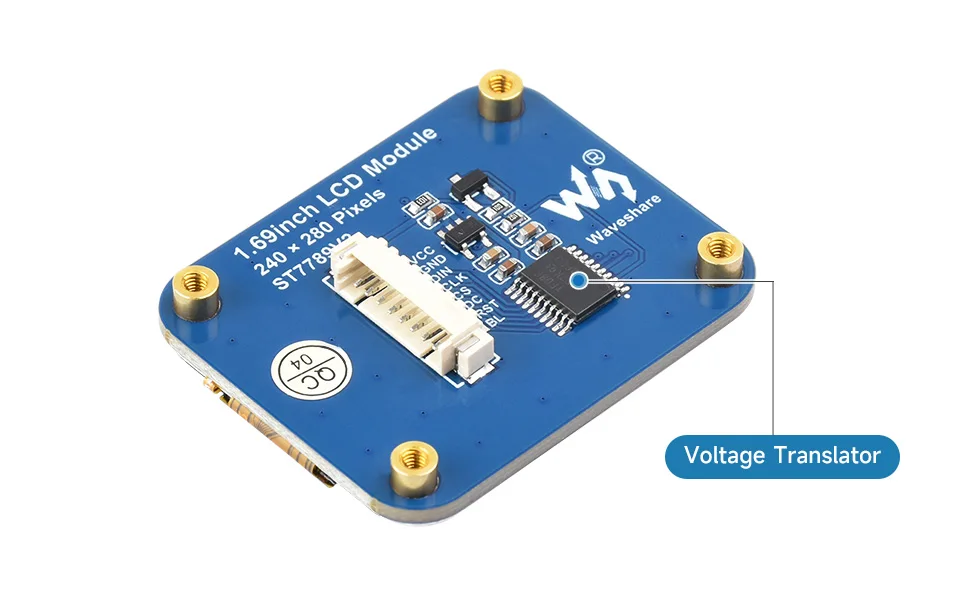

Compatible With 3.3V / 5V Power Input

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

|

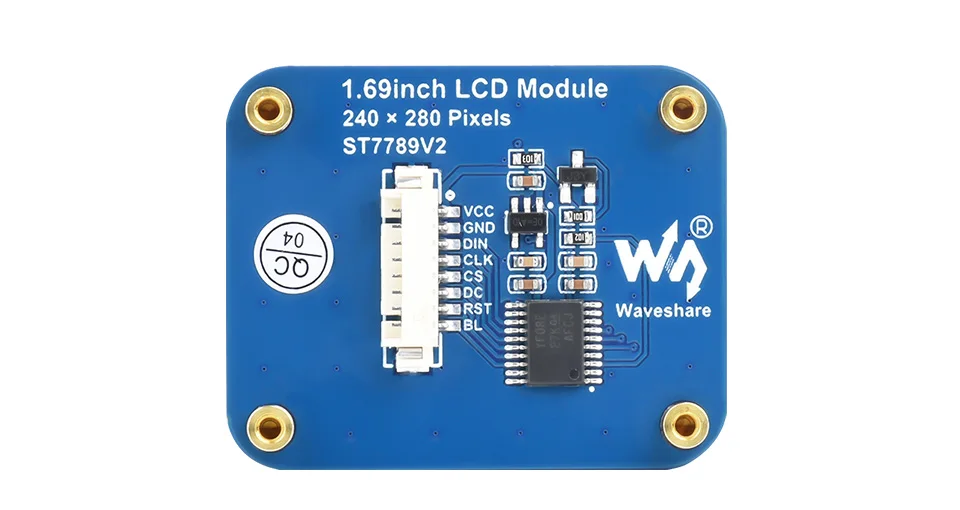

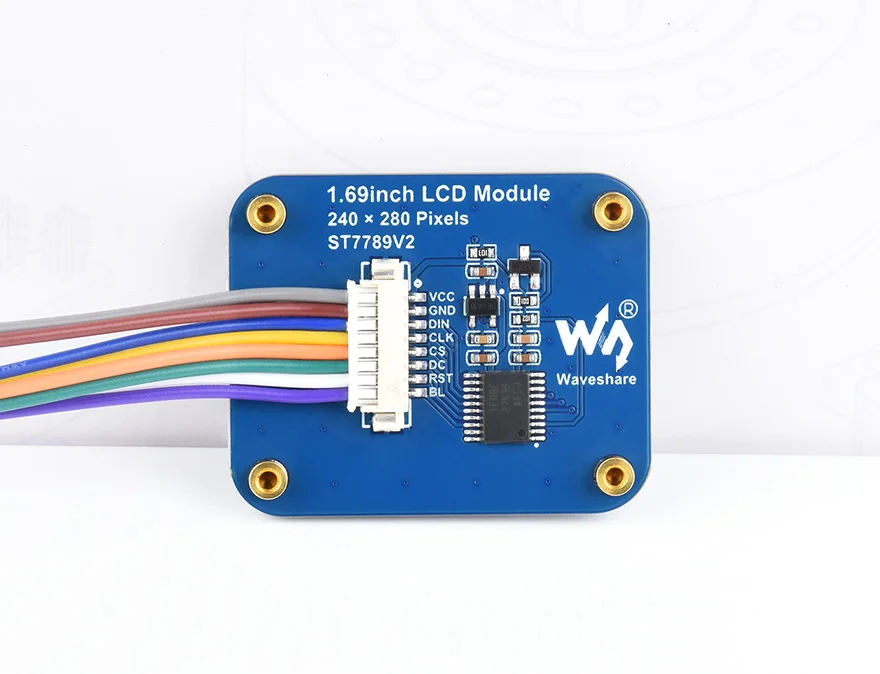

VCC |
Power (3.3V / 5V input) |
|
GND |
Ground |
|
DIN |
SPI data input |
|
CLK |
SPI clock input |
|
CS |
Chip selection, low active |
|
DC |
Data/Command selection (high for data, low for command) |
|
RST |
Reset, low active |
|
BL |
Backlight |

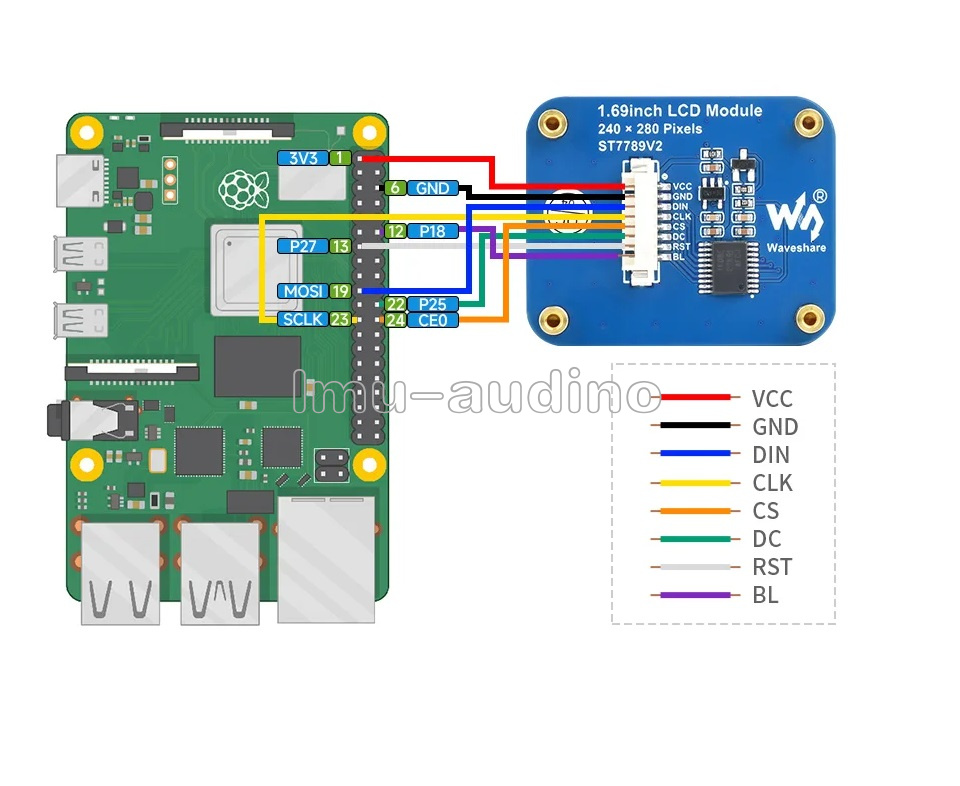

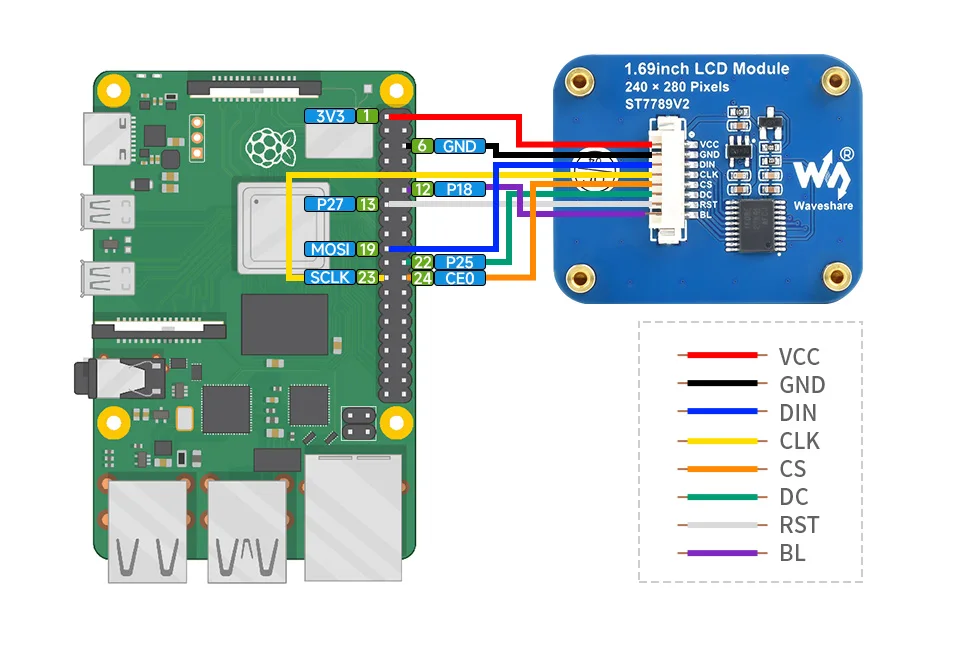

Connecting with Raspberry Pi

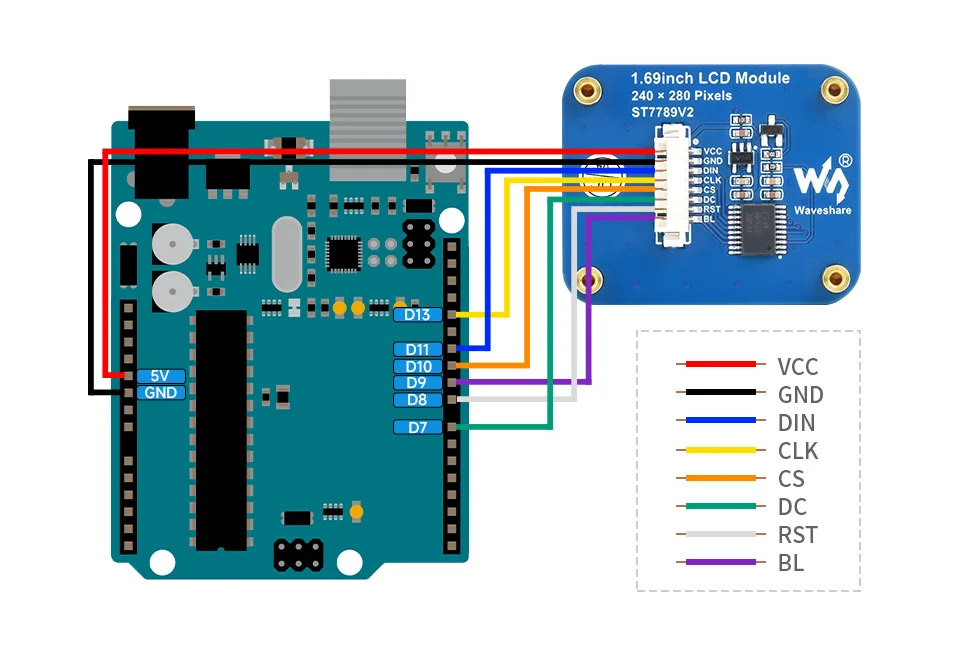

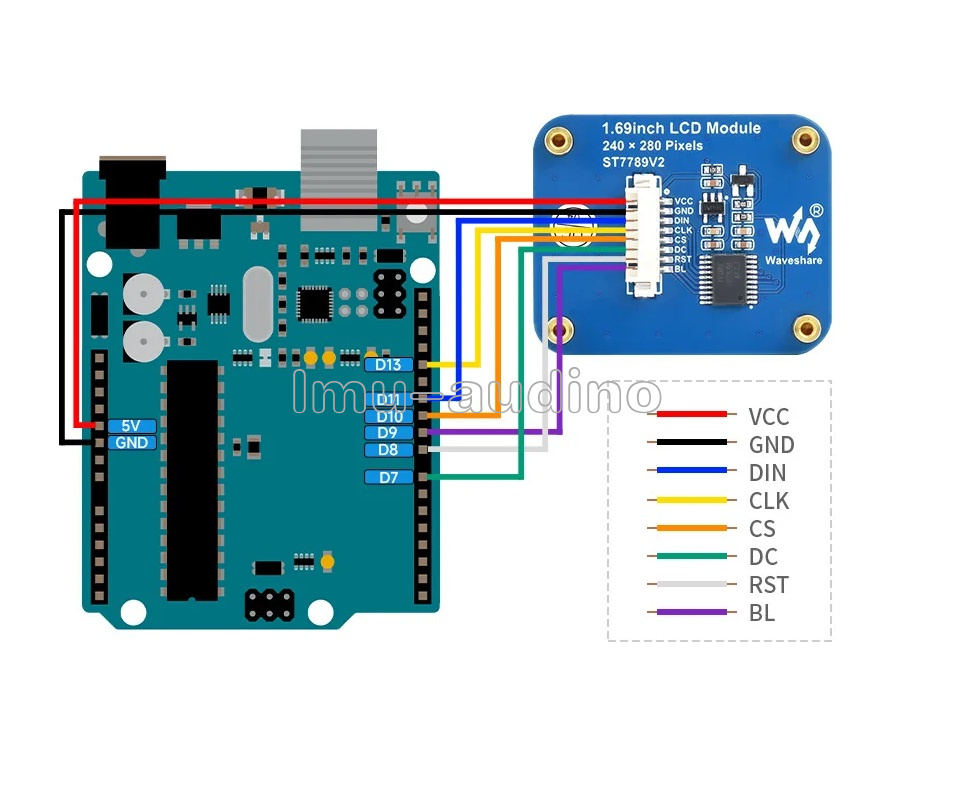

Connecting with Arduino board

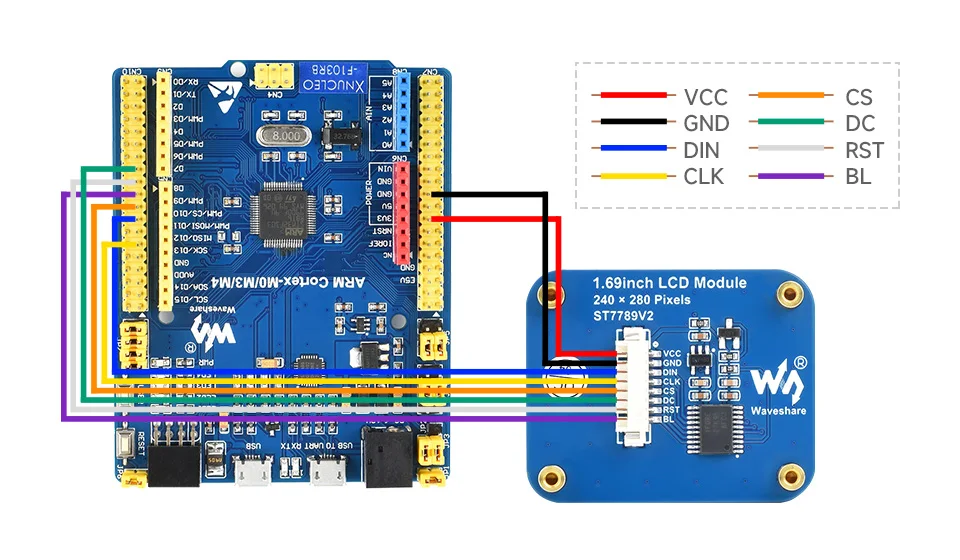

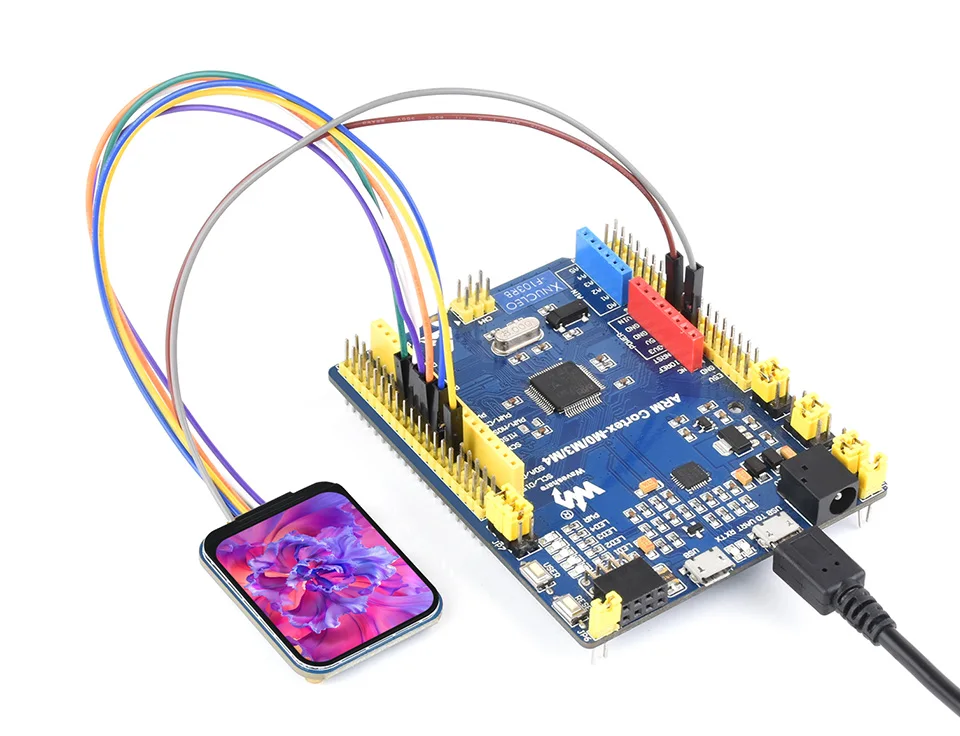

Connecting with STM32

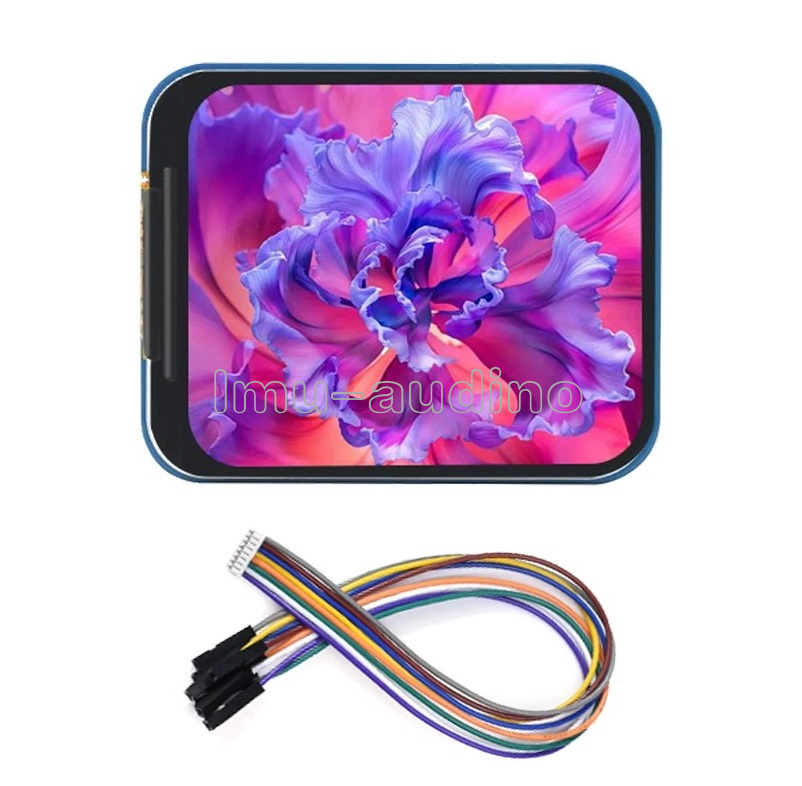

Packing List

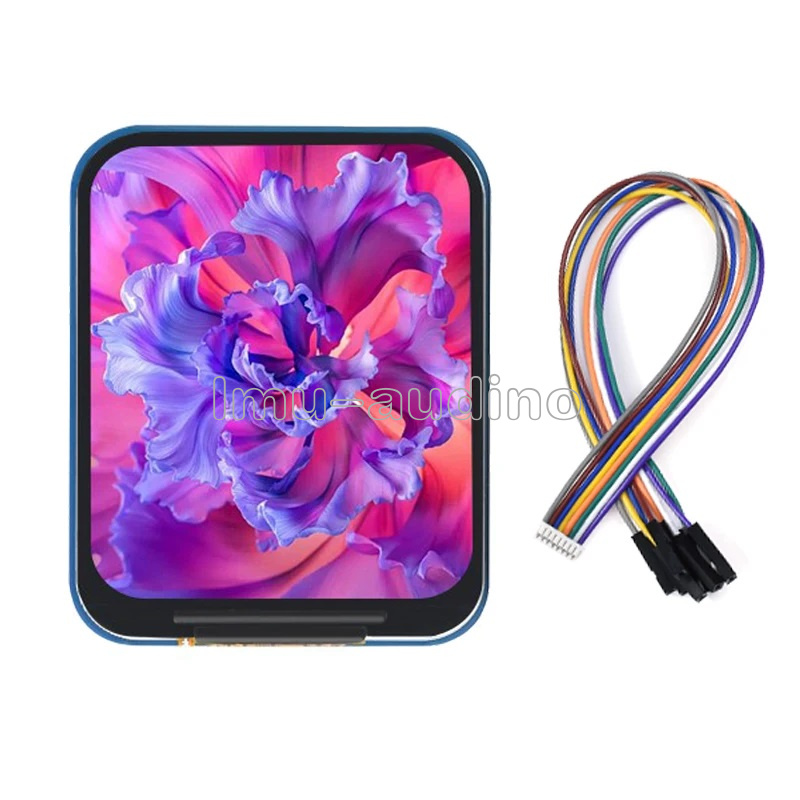

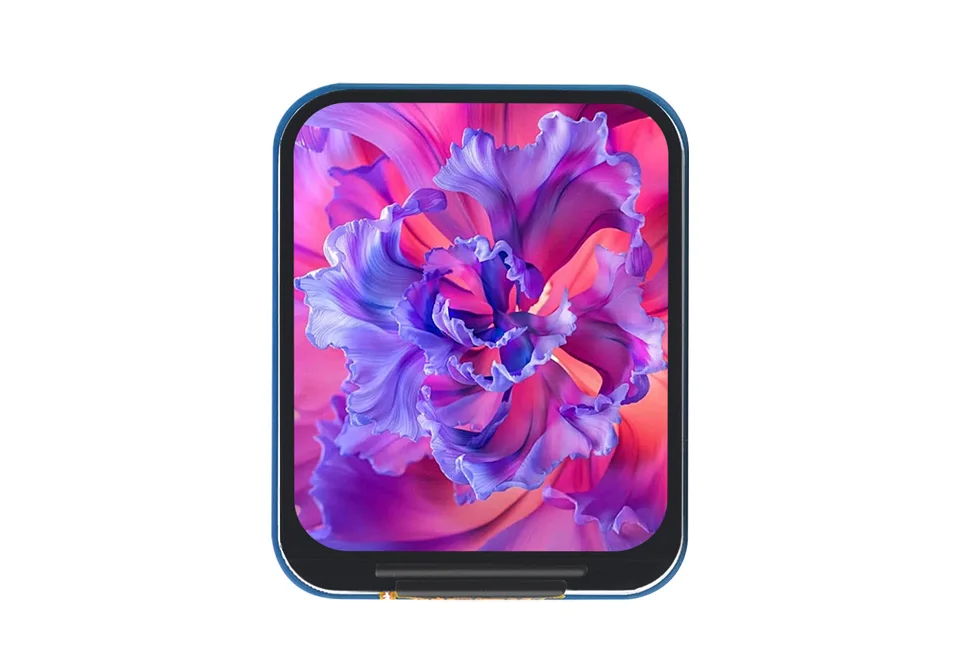

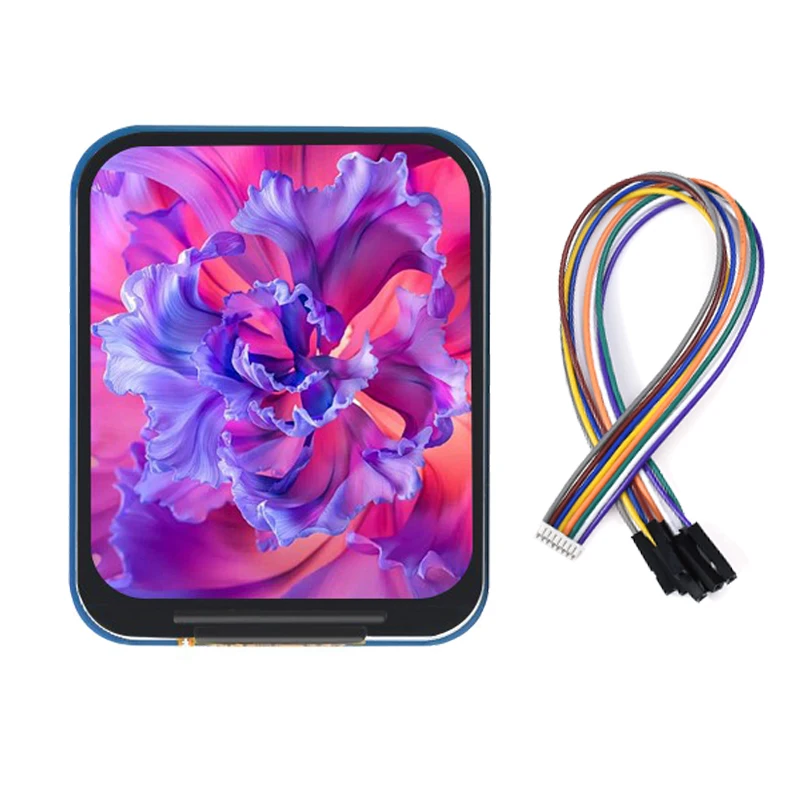

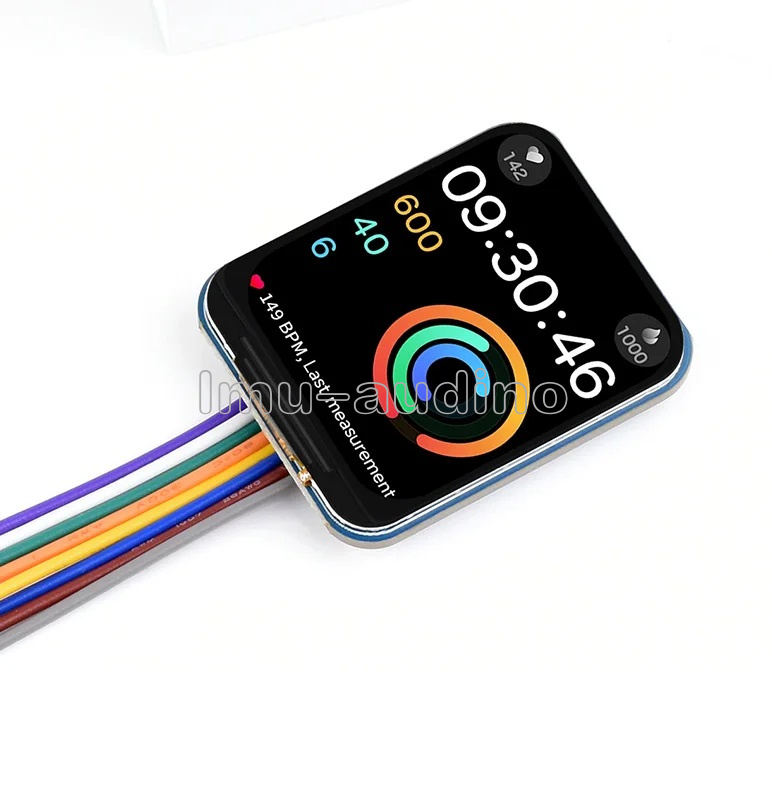

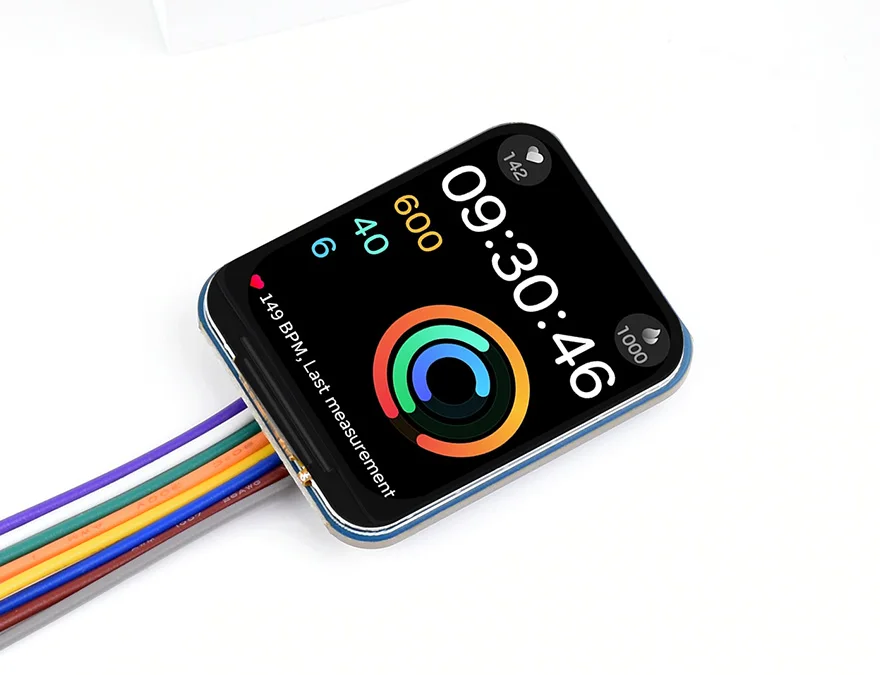

1 x 1.69 Inch IPS LCD Module
1 x GH1.25 20cm 8Pin Cable
