2. With protection mechanism, over-voltage, short-circuit, overheat and under-voltage protection.
3.TPA3251 technology allows the device to maintain ultra-low distortion over the entire audio frequency band while displaying high-definition sound quality.

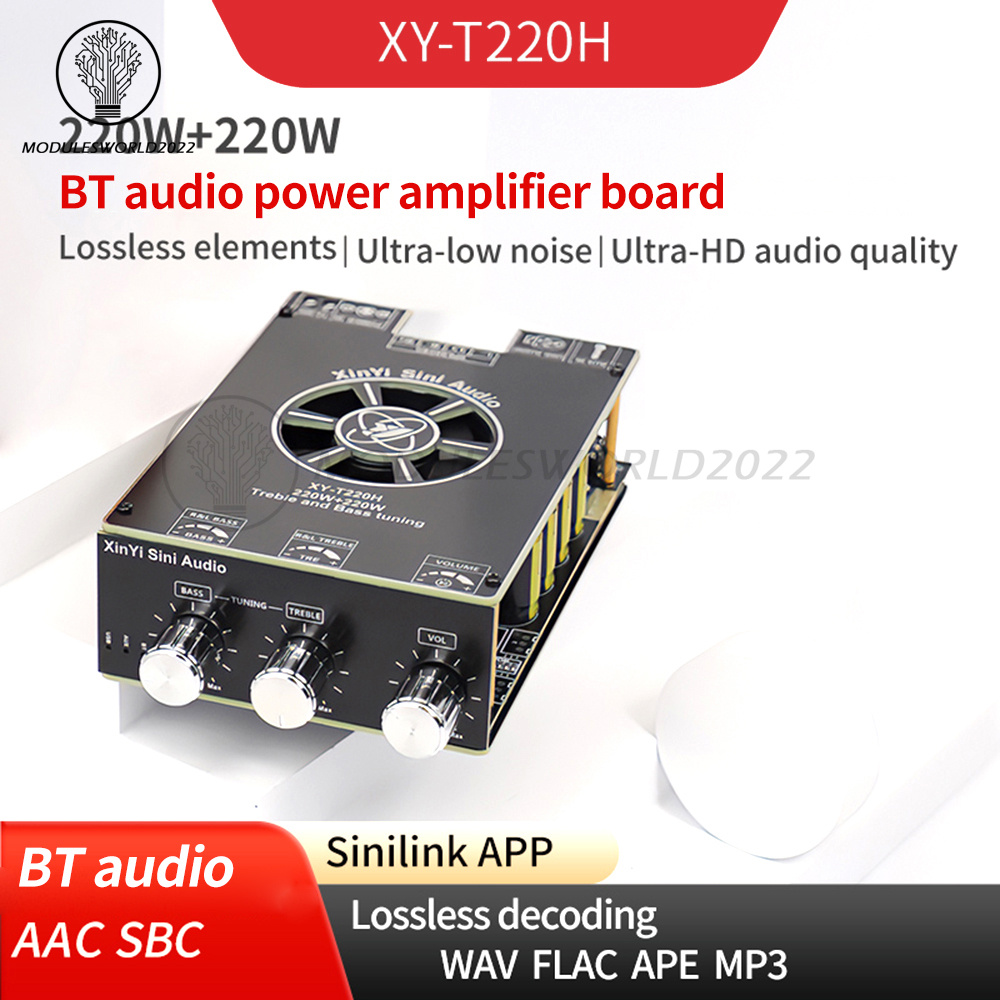

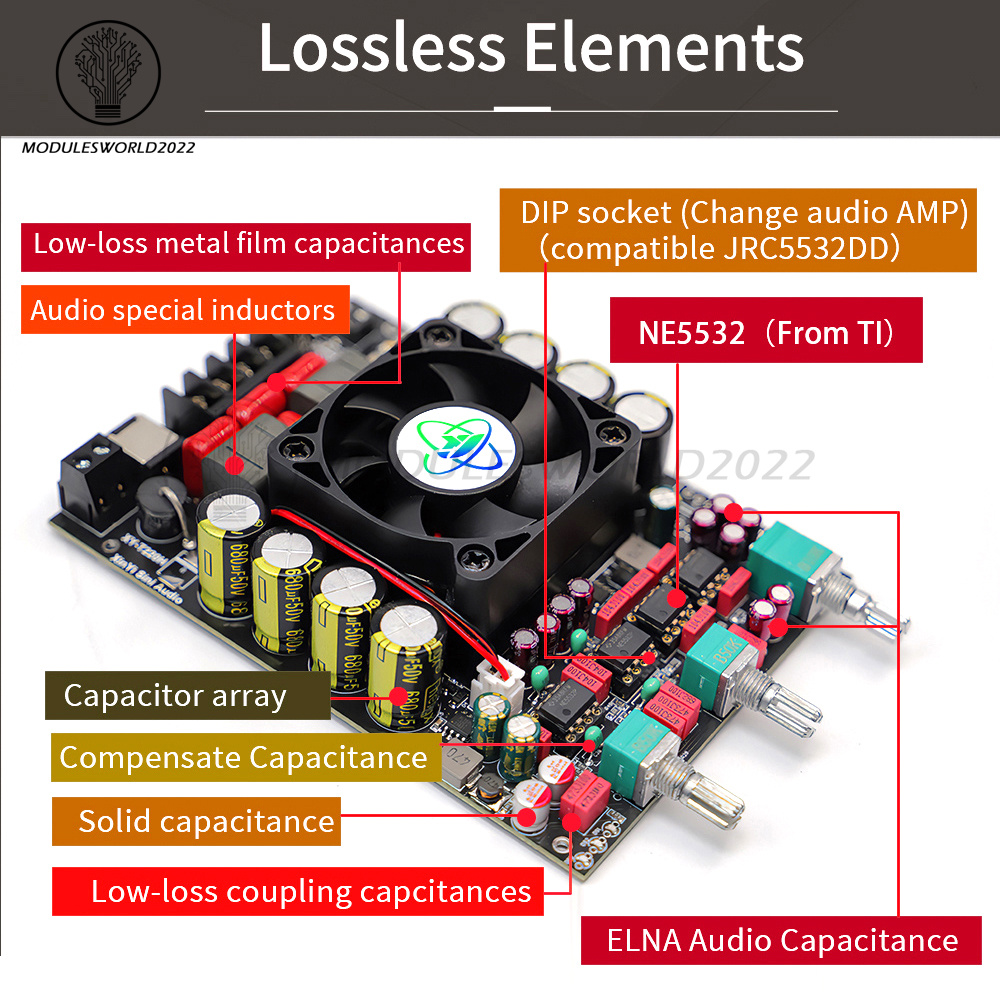

4.High power, 220W+220W audiophile grade high power bluetooth amplifier, audiophile grade lossless components, ultra-low noise, HD sound quality.
5. Gold-plated socket, good conductivity, high reliability, long service life.

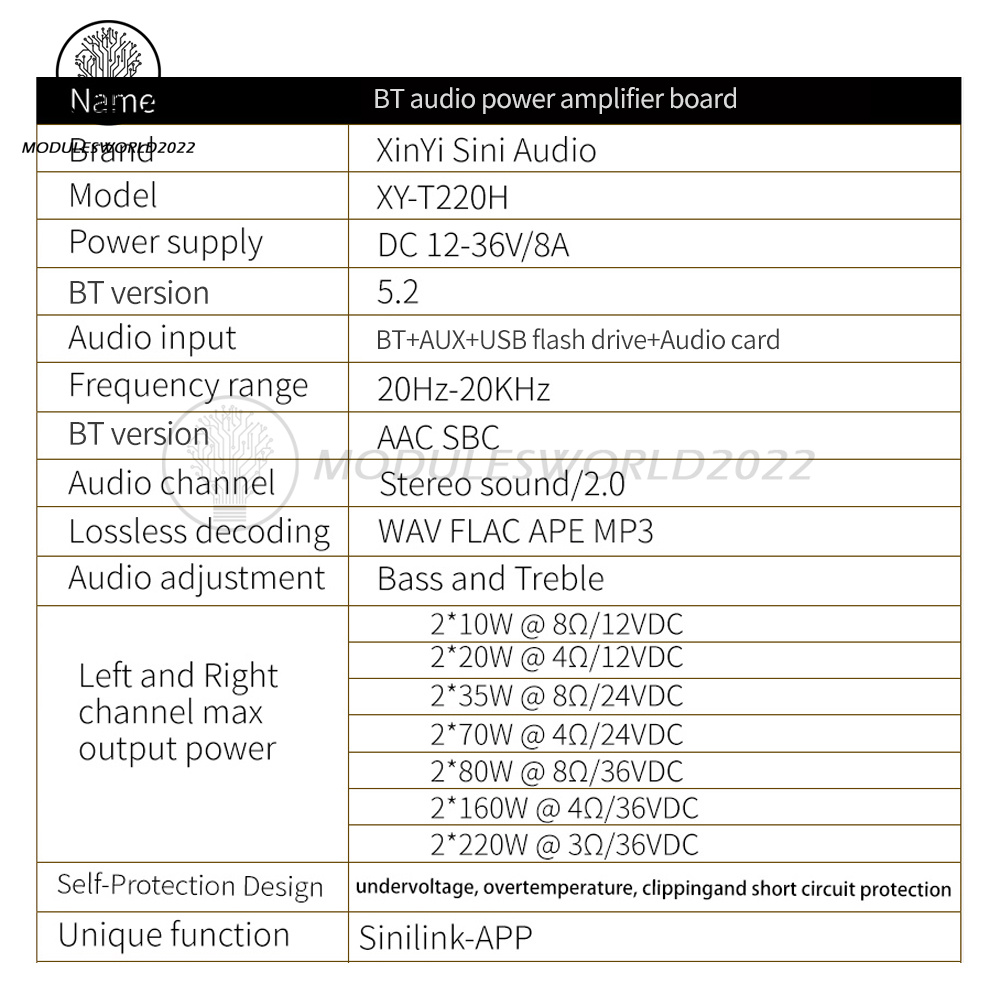

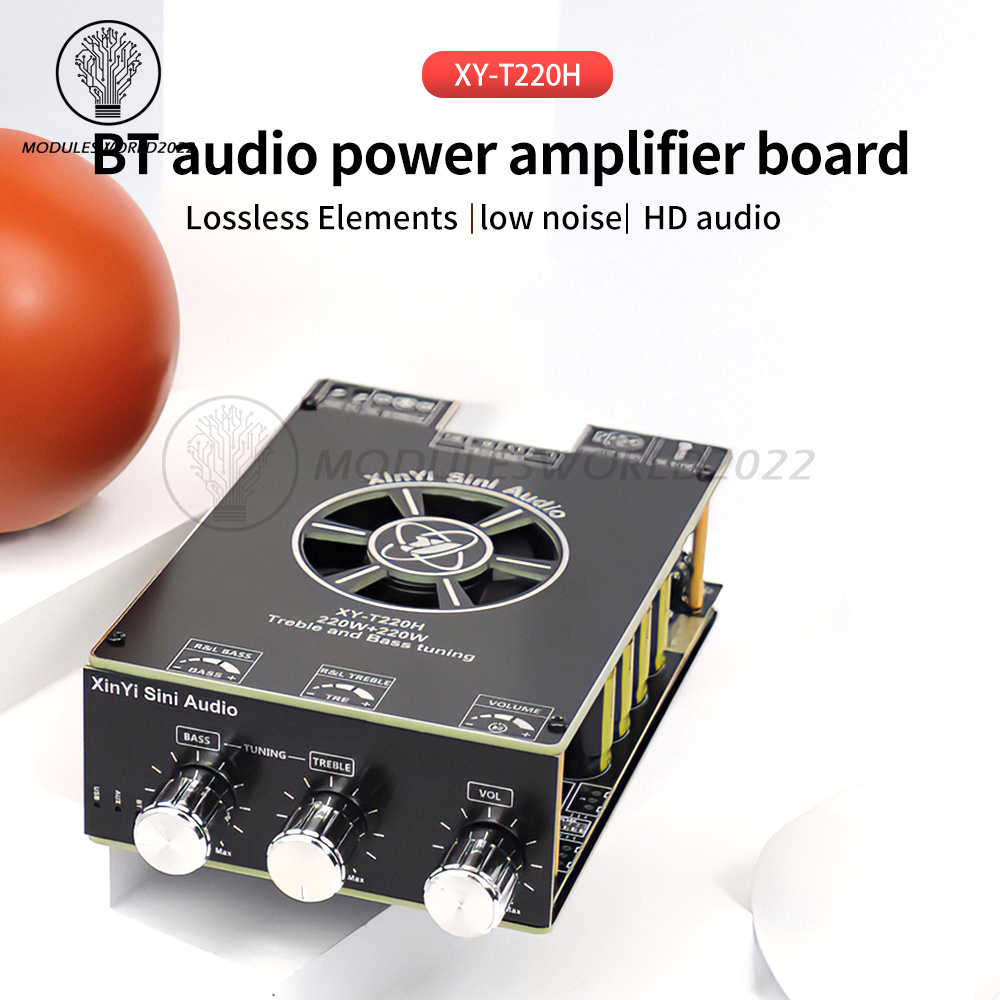

Product Model: XY-T220H
Power supply: DC 12-36V/8A

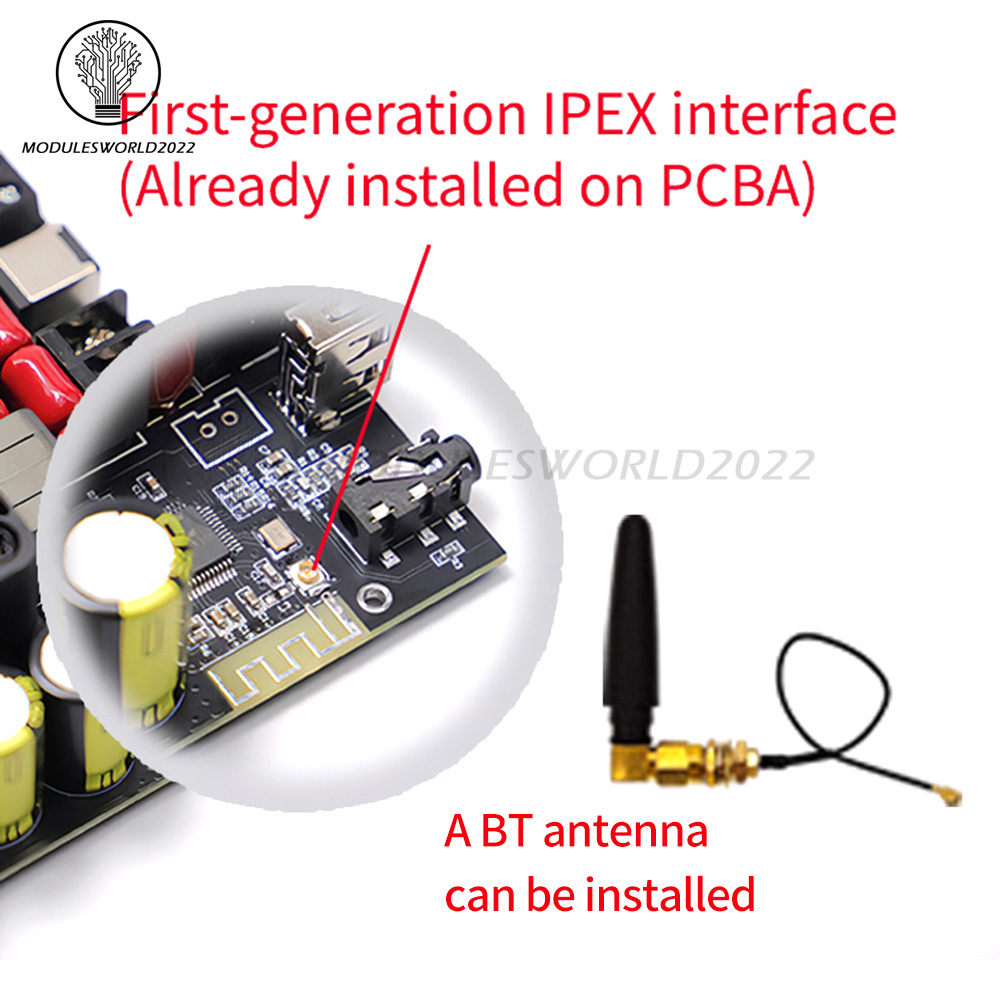

Bluetooth version: 5.2

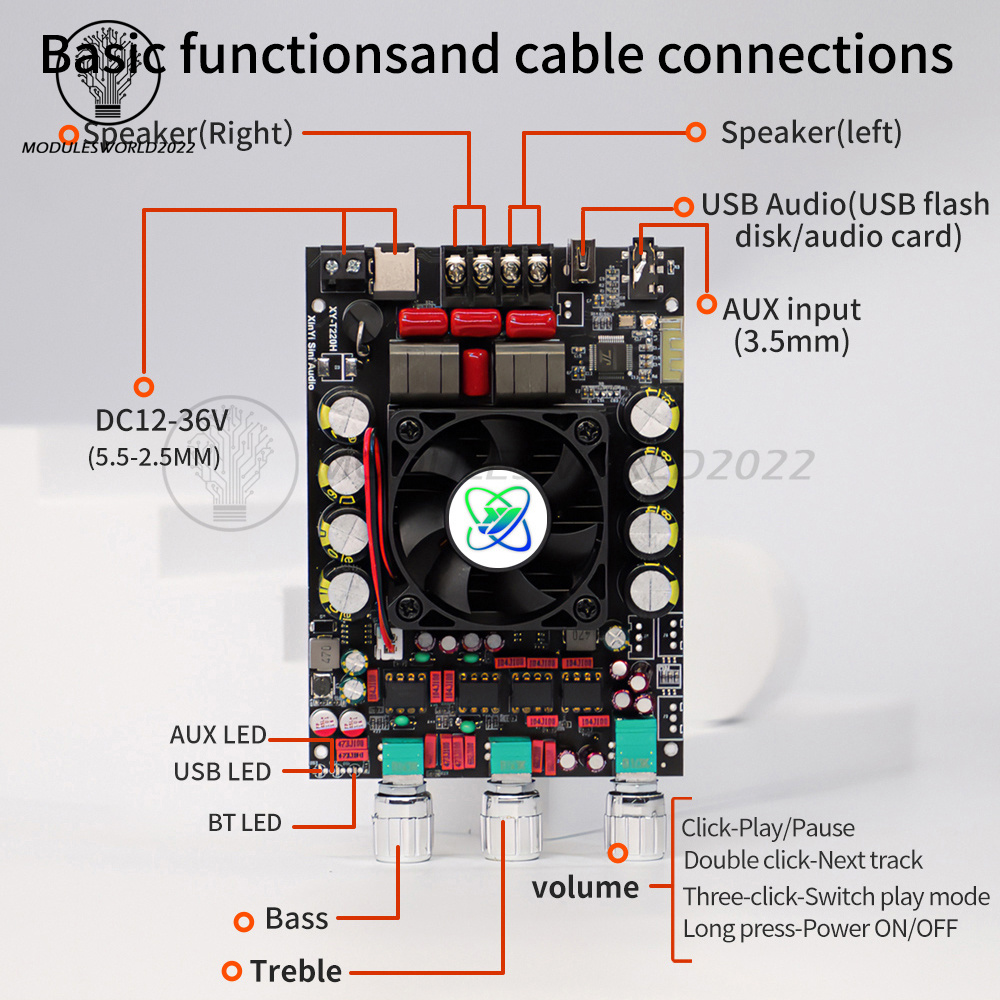

Audio input: Bluetooth + AUX + U disk + USB sound card
Bluetooth audio decoding: AAC SBC
Frequency range: 20Hz-20KHz
Audio Adjustment: High and low sound independent adjustment
U disk decoding: WAV FLAC APE MP3
Audio Output: Stereo/2.0
Left and right channel output power:
2*10W @ 8Ω/12VDC
2*20W @ 4Ω/12VDC
2*35W @ 8Ω/24VDC
2*70W @ 4Ω/24VDC
2*80W @ 8Ω/36VDC
2*160W @ 4Ω/36VDC
2*220W @ 3Ω/36VDC
Protection mechanism: over-voltage, short-circuit, overheating, under-voltage and other protection

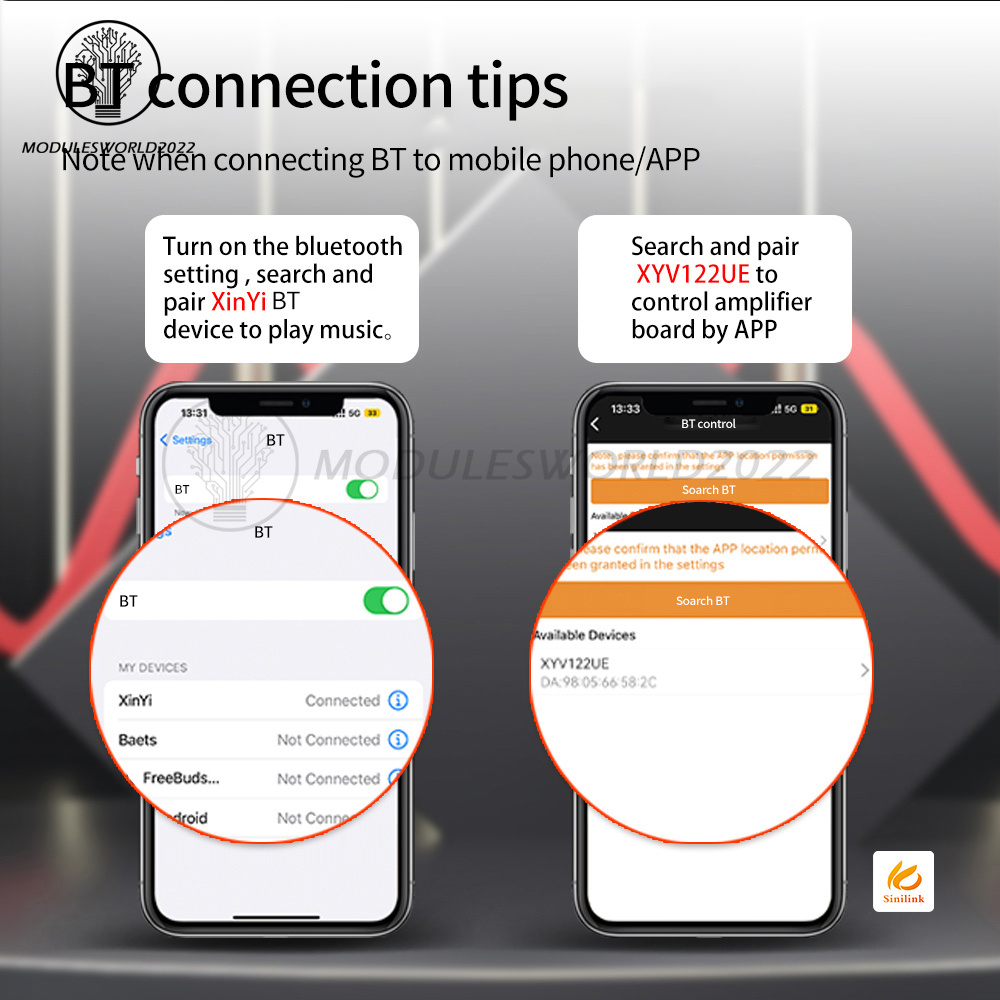

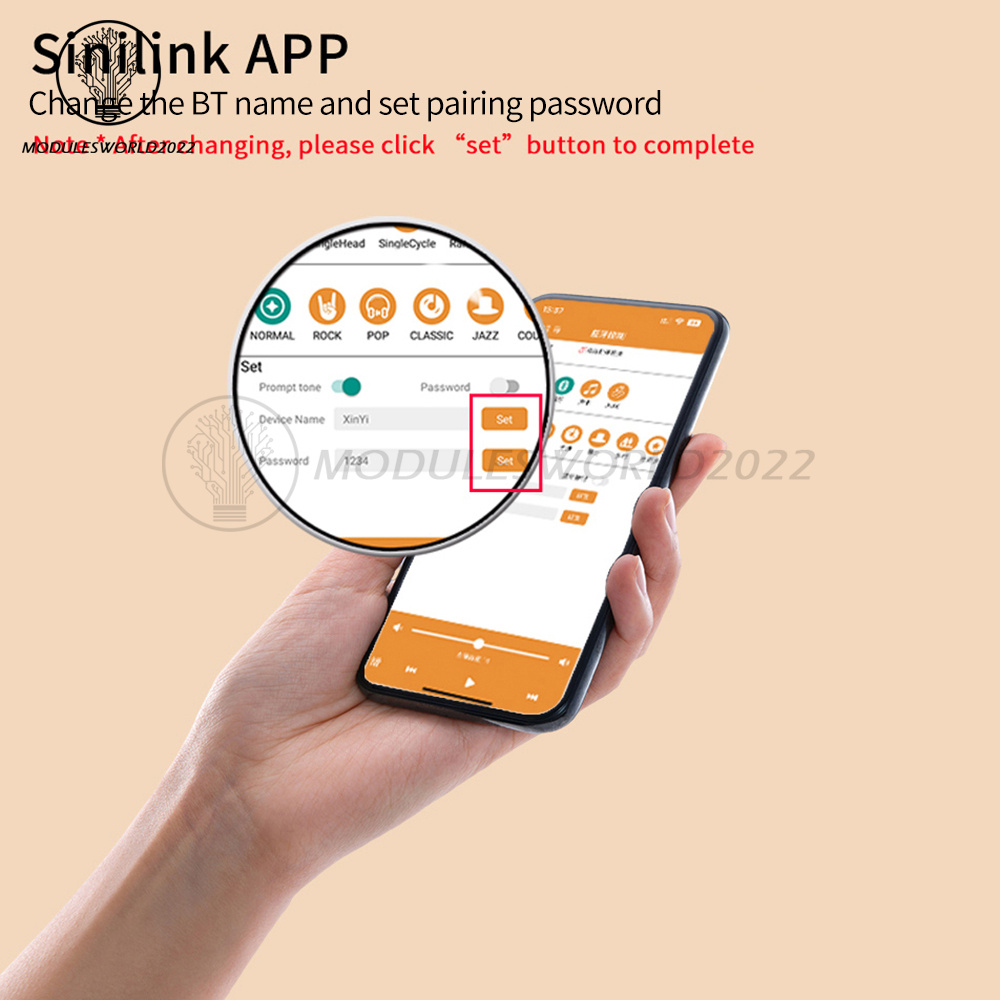

Remote control function: support Sinilink-APP

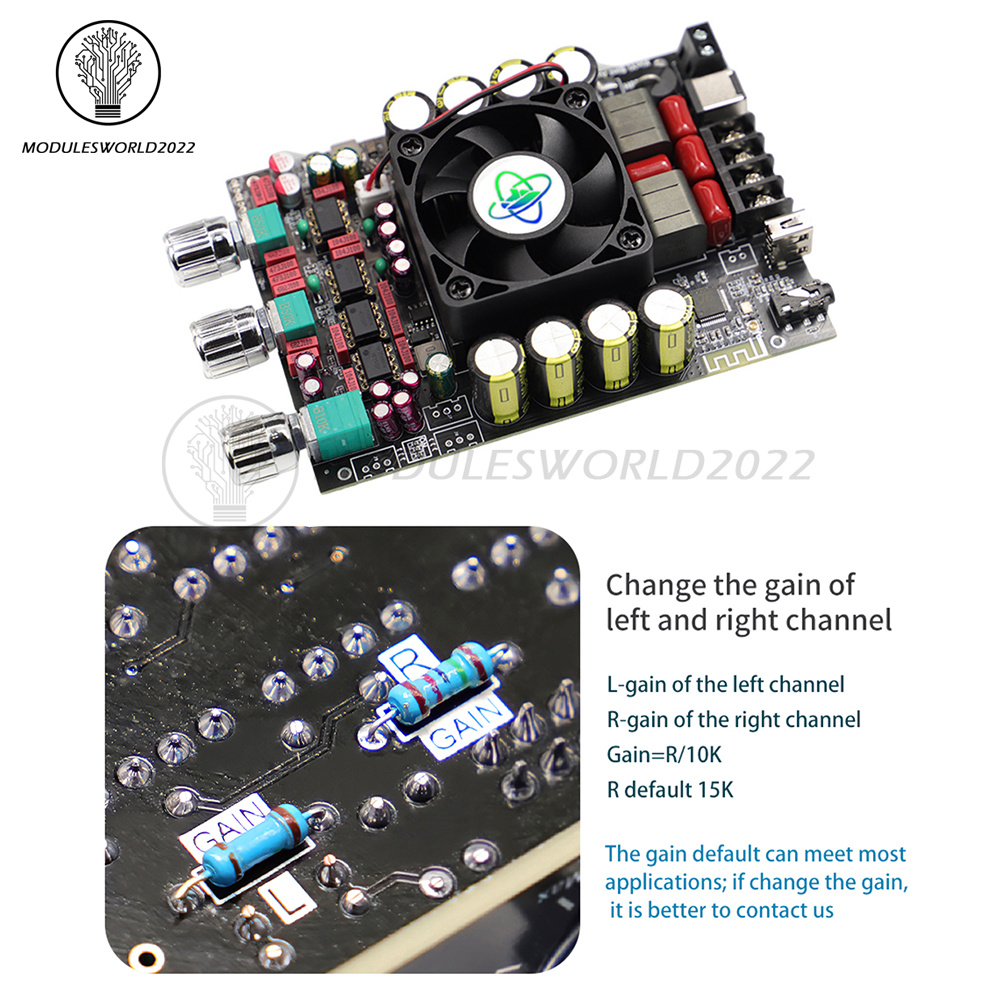

Left and right channel gain adjustment: L left channel gain setting, R right channel gain setting, gain = R/10K, R factory default 15K
Product size: 125mm*88mm*35mm

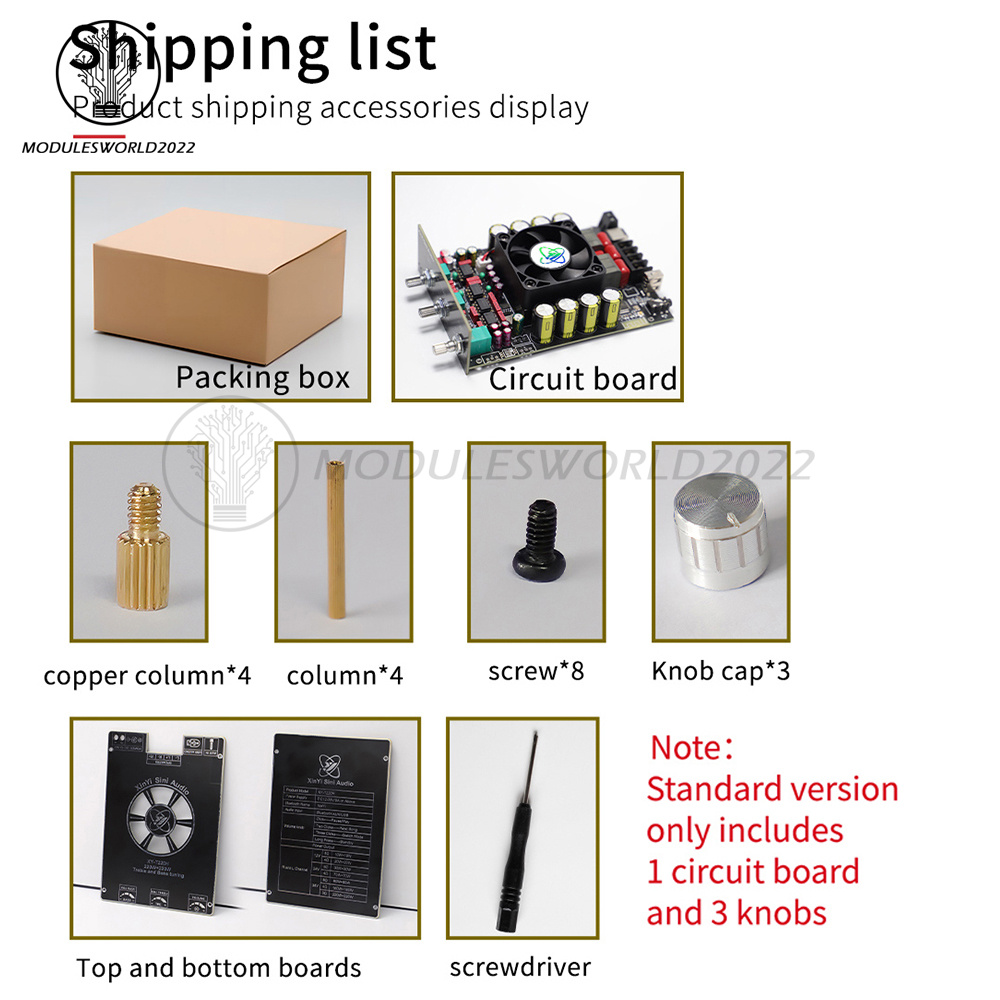

1 x Amplifier board motherboard
3 x Knob Caps
1 x Case (with screw accessories optional)
