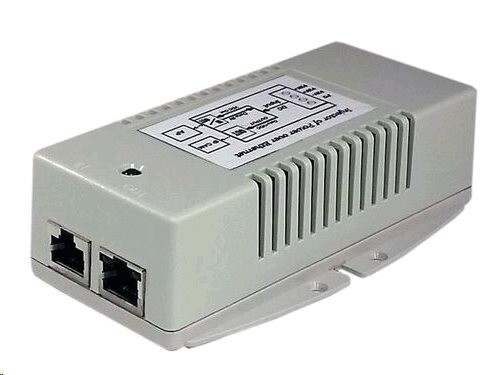

Tycon Power TP-DCDC-1248DX2-HP
DESCRIPTION
Brand New Tycon Power TP-DCDC-1248DX2-HP
The TP-DCDC-1248DX2-HP is unique high power PoE injectors with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the units is handled by the injector so no PoE switch is required.
They have two inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.
The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.
Features:
- Input Voltage 12VDC
- Dual 802.3af/at outputs
- High Power Output to 42W
- Surge Protected to 15kV
- Dual DC Inputs for Connecting 2 Power Sources
- 10/100 Data Compatibility, Shielded Connectors
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- Industrial Temperature Range, DIN Rail Mountable
Parameters:
| Name: | Value: |
| Product code: | TP-DCDC-1248DX2-HP |
| DC Input Voltage: | +/- 10VDC – 16VDC |
| DC Input Connector: | Screw Type Compression Wire Terminal (12 AWG Max) |
| DC Output Voltage (+/-2.5%): | 56V (Passive) |
| PoE Type: | Active PoE 802.3af/at (Mode B, 2 Pair) |
| Operating Temperature: | -30 to +60°C (-22 to +140°F) |
| PoE Output Voltage (+/- 2.5%): | 56V |
| Max Output Current : | 0.38A X 2 |
| Max Output Power: | 42W |
| Self Consumption Power: | 2W |
| Min Efficiency: | 80% |
| Weight: | 255g |
| Dimensions (LxWxH): | 125 x 75 x 38mm |
