Product Type: Trim Motor |
Replaces: 18-2445 182445 |
  • Rotation: Reversible |
  • Volts: 12 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

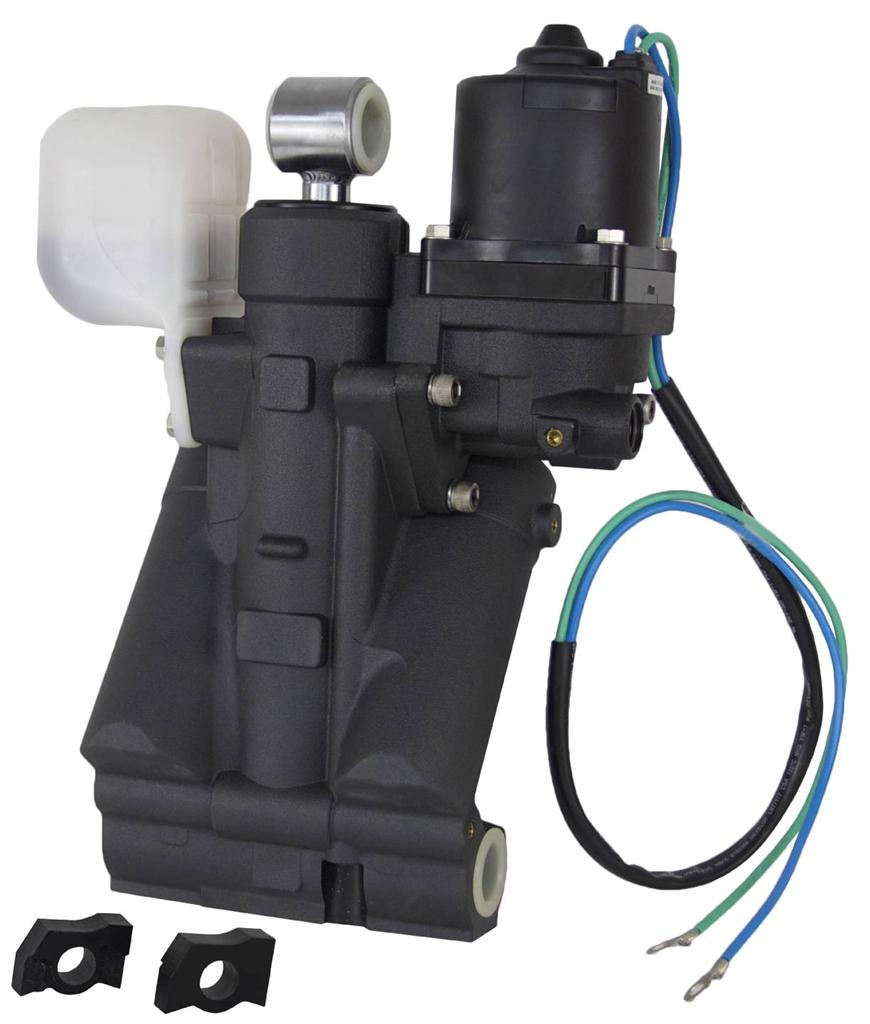

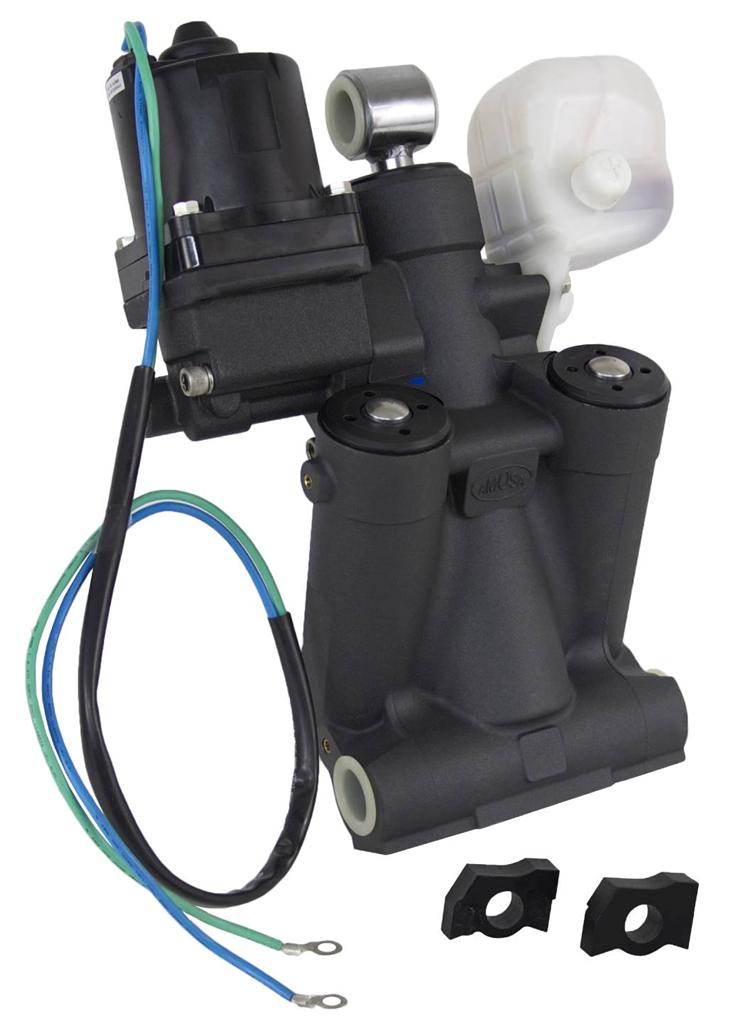

Tilt Trim Pump Assembly Johnson Evinrude 40 60 70 90 115 HP 0438528 0434396

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• OMC/BRP: 0438528 / 438528
• OMC/BRP: 0434395 / 434395 (superseded by 0438528)
• OMC/BRP: 5005428 (supersedes 0438528)
• OMC/BRP: 0434396 / 434396
• OMC/BRP: 0438534 / 438534
• OMC/BRP: 0434397 / 434397
• OMC/BRP: 5006421
• OMC/BRP: 0433460 / 0435260

SPECIFICATIONS:
• Type: Complete Tilt Trim Hydraulic Pump Assembly
• System: 3 Ram (SHOWA/Fastrac)
• Voltage: 12V
• Rotation: Reversible
• Motor OD: 76mm (2.992 in)
• Motor Length: 103mm (4.055 in)
• Shaft OD: 8mm (0.315 in)
• Shaft: 2.6mm Drive Tang
• Current Type: DC
• Includes: Left/Right Receiving Pads, Installation Instructions
• Condition: New

JOHNSON/EVINRUDE APPLICATIONS:
• Johnson/Evinrude 40-70HP 2-Stroke (1999-2001)
• Johnson/Evinrude 75HP 2-Stroke (2000-2005)
• Johnson/Evinrude 90HP 2-Stroke (1998-2006)
• Johnson/Evinrude 100-105HP 2-Stroke (1998-2005)
• Johnson/Evinrude 115HP 2-Stroke (1998-2009)
• Johnson/Evinrude 130HP 2-Stroke (2009)

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



JOHNSON OUTBOARD — 3 RAM TILT SYSTEM:
• 40HP 2-Stroke Outboard (1999-2001)
• 60HP 2-Stroke Outboard (1999-2001)
• 70HP 2-Stroke Outboard (1999-2001)
• 75HP 2-Stroke Outboard (2000-2005)
• 90HP 2-Stroke Outboard (1998-2006)
• 100HP 2-Stroke Outboard (1998-2001)
• 105HP 2-Stroke Outboard (1998-2001)
• 115HP 2-Stroke Outboard (1998-2009)
• 130HP 2-Stroke Outboard (2009)

EVINRUDE OUTBOARD — 3 RAM TILT SYSTEM:
• 75HP 2-Stroke Outboard (2000-2005)
• 90HP 2-Stroke Outboard (1998-2006)
• 100HP 2-Stroke Outboard (1998-2005)
• 105HP 2-Stroke Outboard (1998-2001)
• 115HP 2-Stroke Outboard (1998-2009)
• 130HP 2-Stroke Outboard (2009)

NOTES:
• Complete 3-ram hydraulic pump assembly with receiving pads
• SHOWA/Fastrac style tilt trim system
• Includes detailed installation instructions
• Fits Johnson, Evinrude, and OMC branded outboard motors
