Description:
Accessory Type : Battery Accessories
Brand Name : ANTBMS
Origin : Mainland China
Model Number : 7-30S
Battery Type : Li-ion,Lifepo4,LTO
Applications : 3.2v 3.7V lithium battery rated
Voltage : 12V,24V,36V,48V,60V,72V...
Temp. Sensor : YES
Bluetooth : Built-in
Certification : CE,FCC,RoHS
Over charge protection : YES
Over discharge voltage : YES
Short circuit protection : YES
Balance function : YES
GPS function : according to Cusotmer need
CAN communication : according to Cusotmer need
RS485 function : according to Cusotmer need
Accessory : Wire cable is free
Brand Promise：Non-human damage、3 year warranty，Provide after-sales technical support.

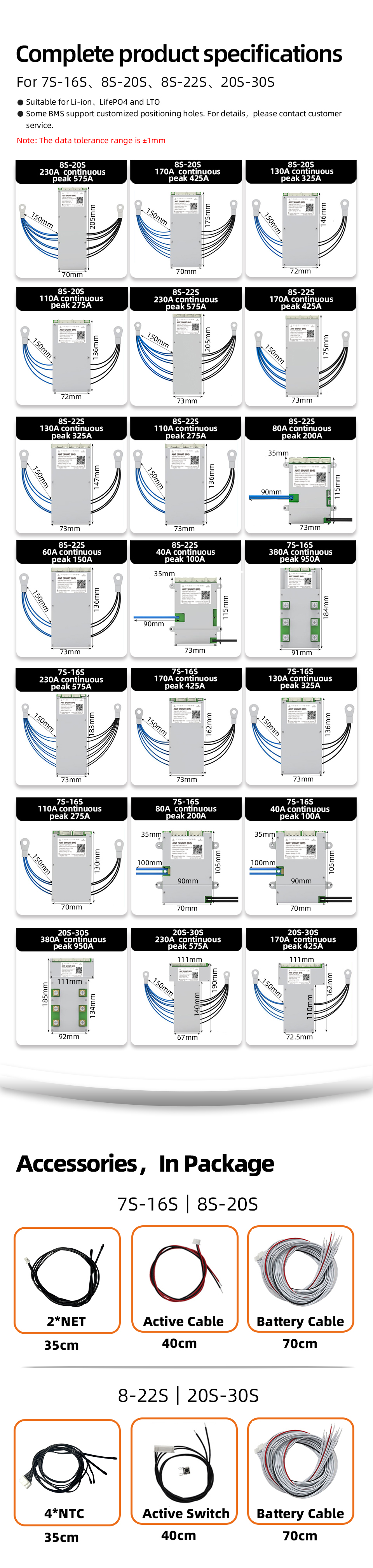

Package：
☆ BMS【Bluetooth Built-in】
☆ Temperature sensor：35cm
☆ Battery Cable：70cm
☆ Active Switch：40cm / Active Cable：40cm

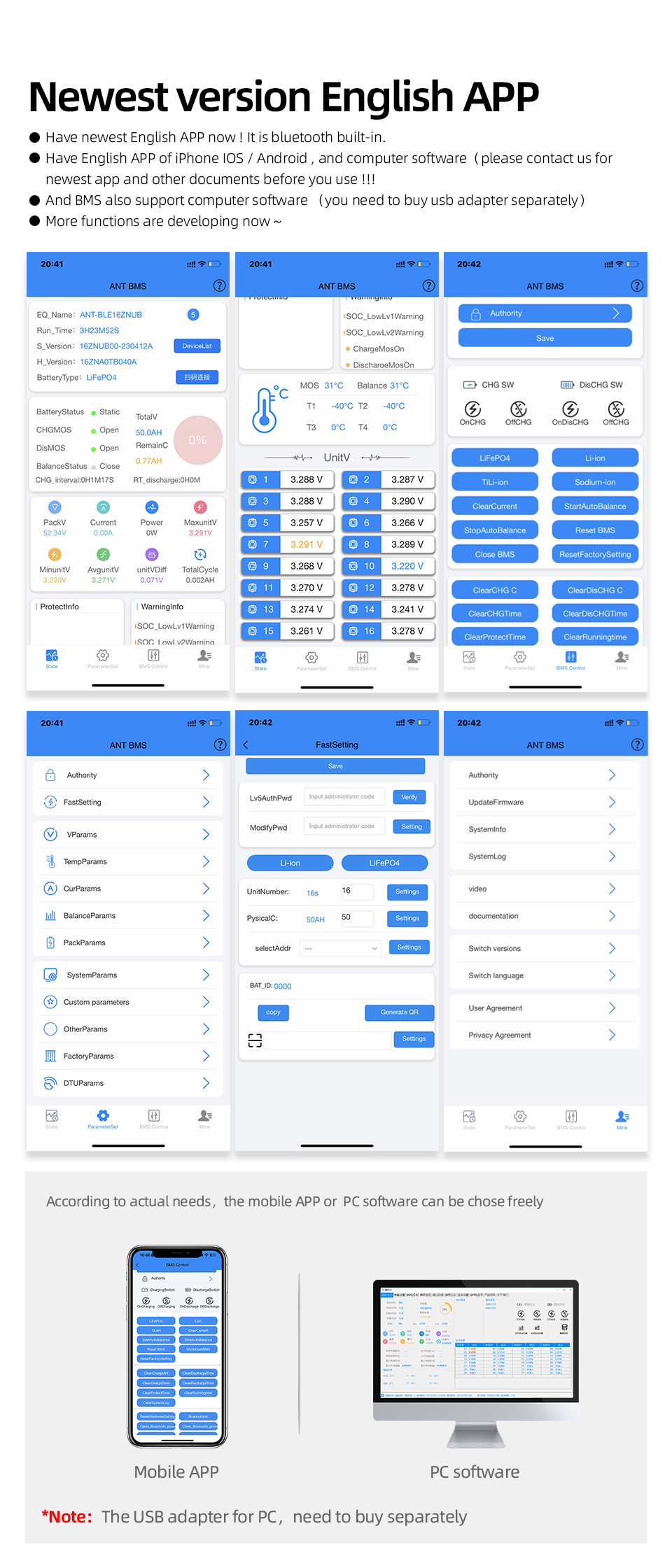

Open the mobile phone Bluetooth connection BMS
☆ Download link-IOS : Search (ANT BMS) in the APP STORE
☆ Download link-Andriod : Search (ANT BMS) in the Google STORE
NOTE：

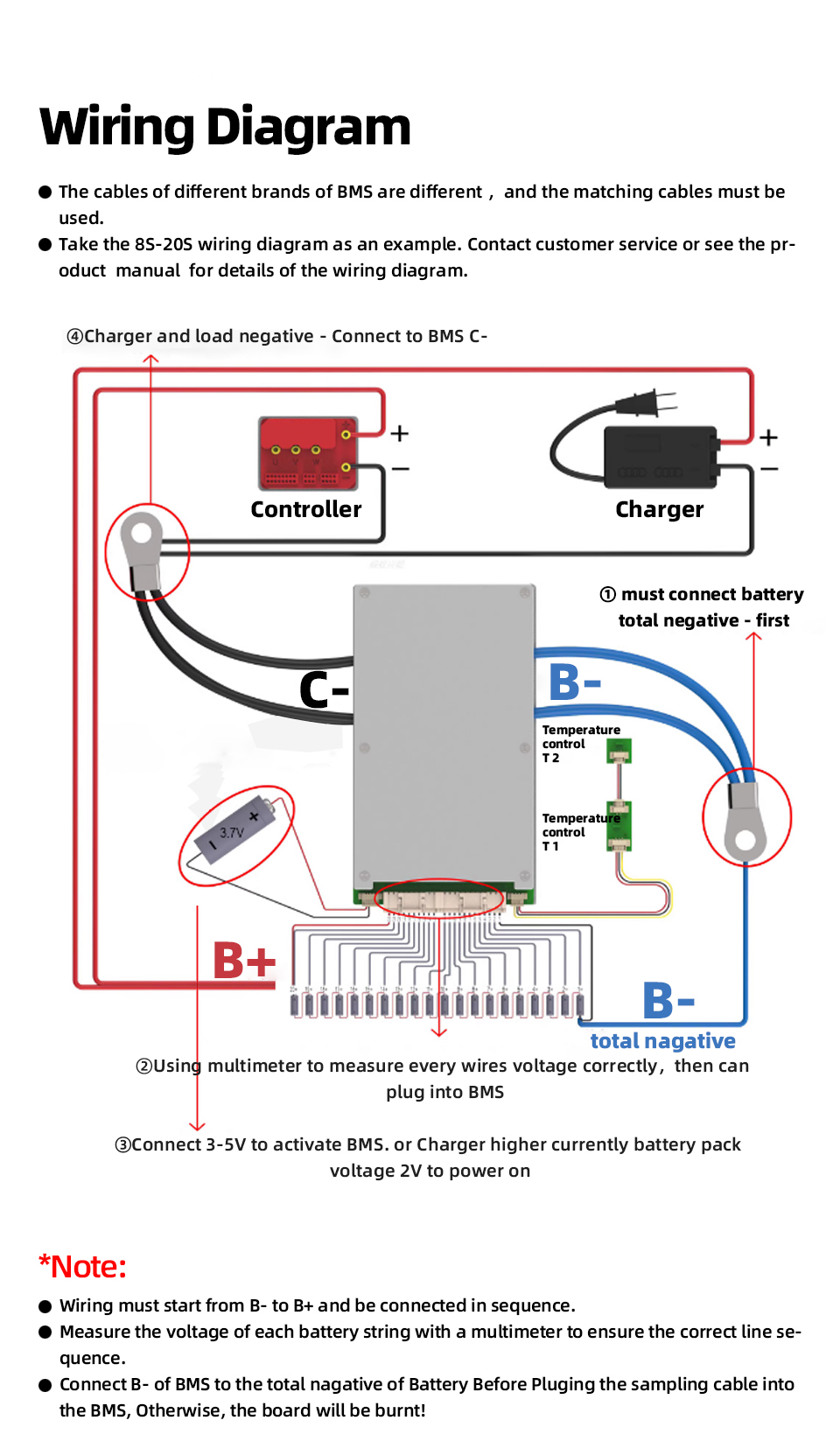

☆ Strictly forbidden to reversely connect the B- and C- cables of the BMS, forbidden to confuse wiring
☆ Wiring must start from B- to B+ and be connected in sequence
☆ Measure the voltage of each battery string with a multimeter to ensure the correct line sequence
☆ Connect B- of BMS to the total negative of Battery Before Pluging the sampling cable into the BMS, Otherwise, the board will be burnt
☆ Please operate in strict accordance with the instruction manual and the guidance of customer service personnel when installing the BMS. If the BMS does not work or is damaged due to misoperation without following the instructions and customer service instructions, customer need to pay for repair or replacement.
