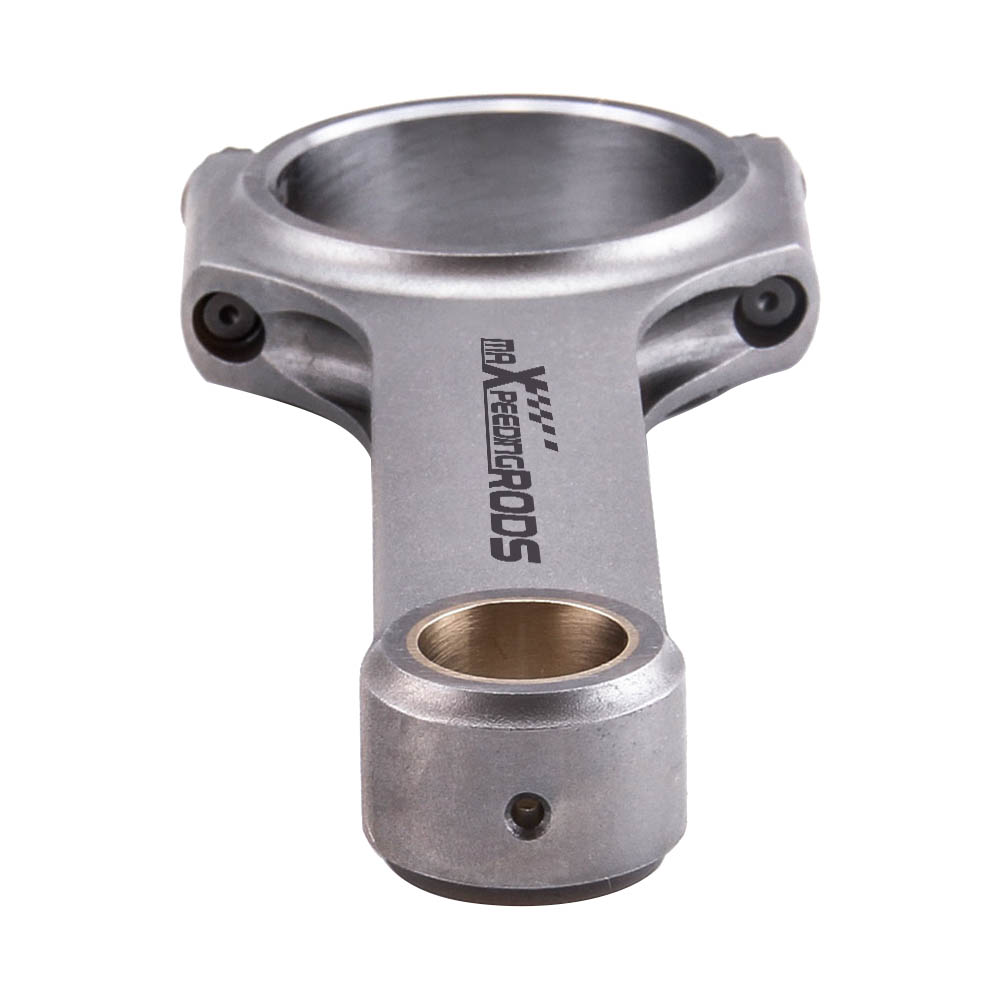

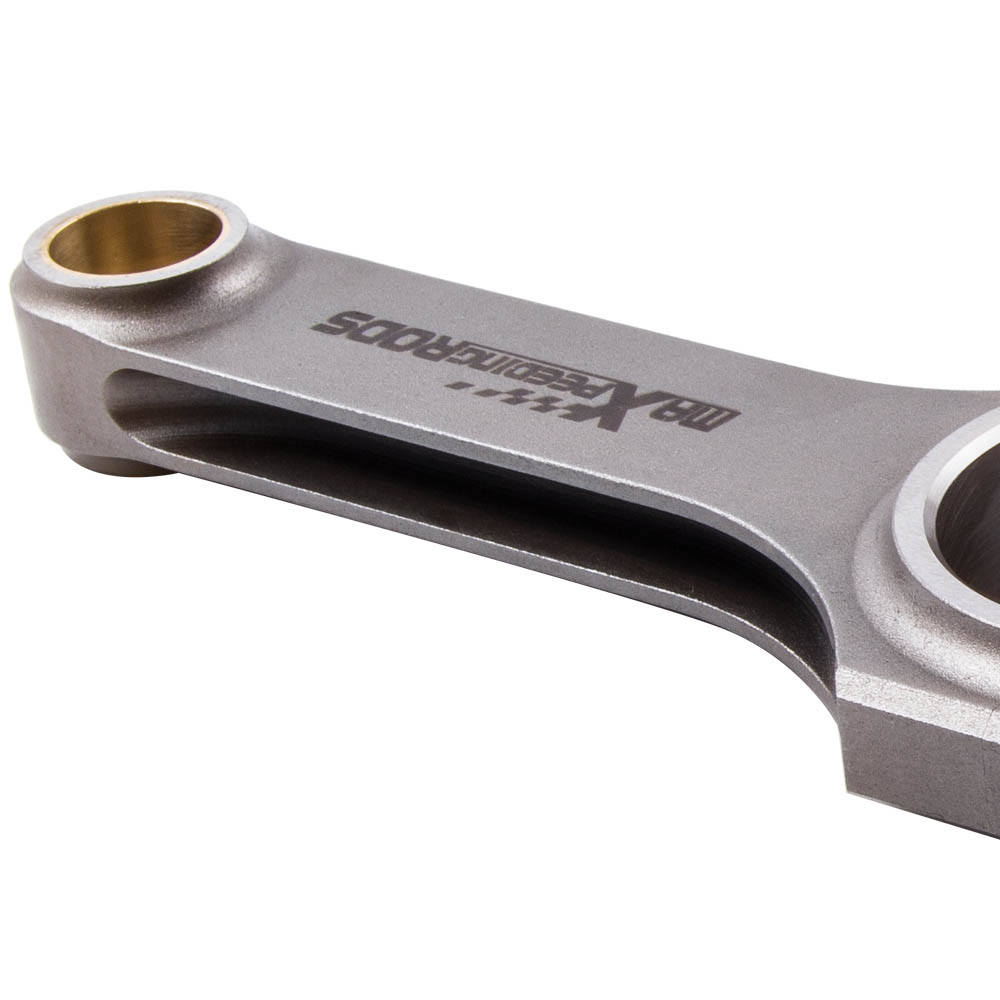

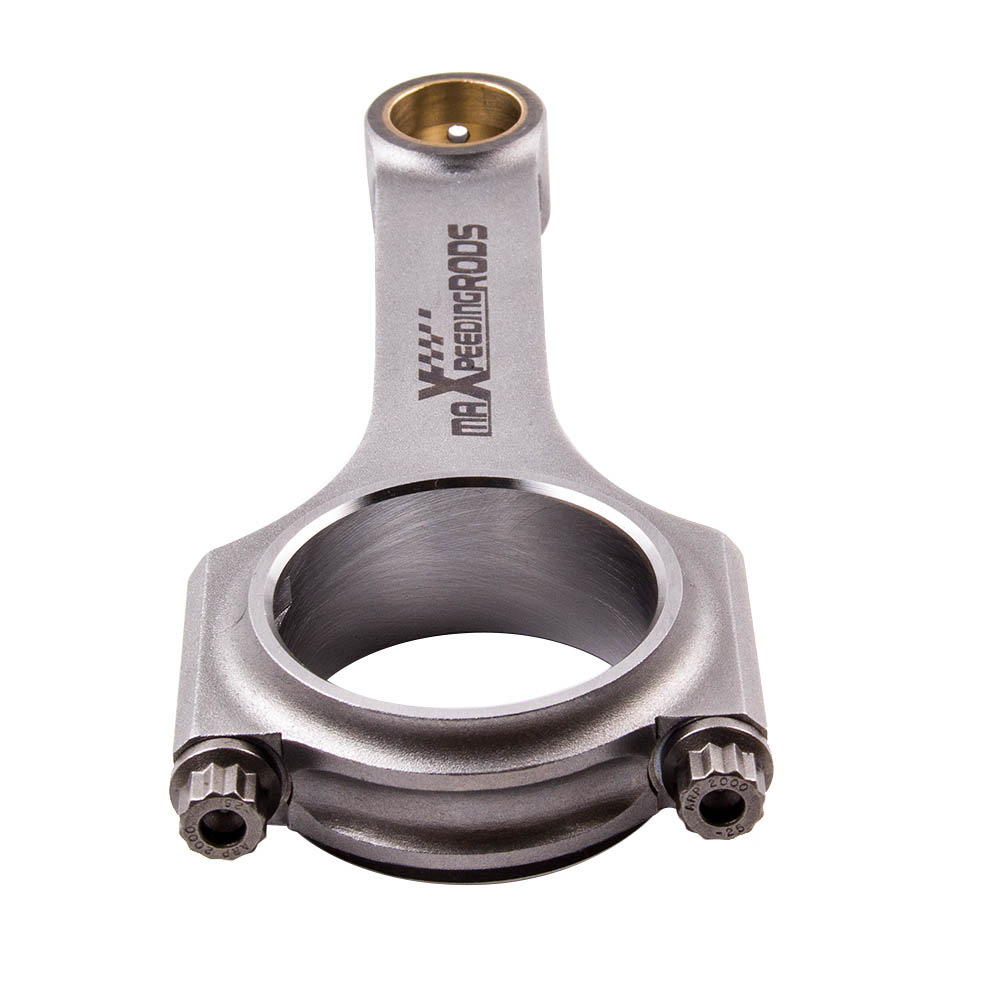

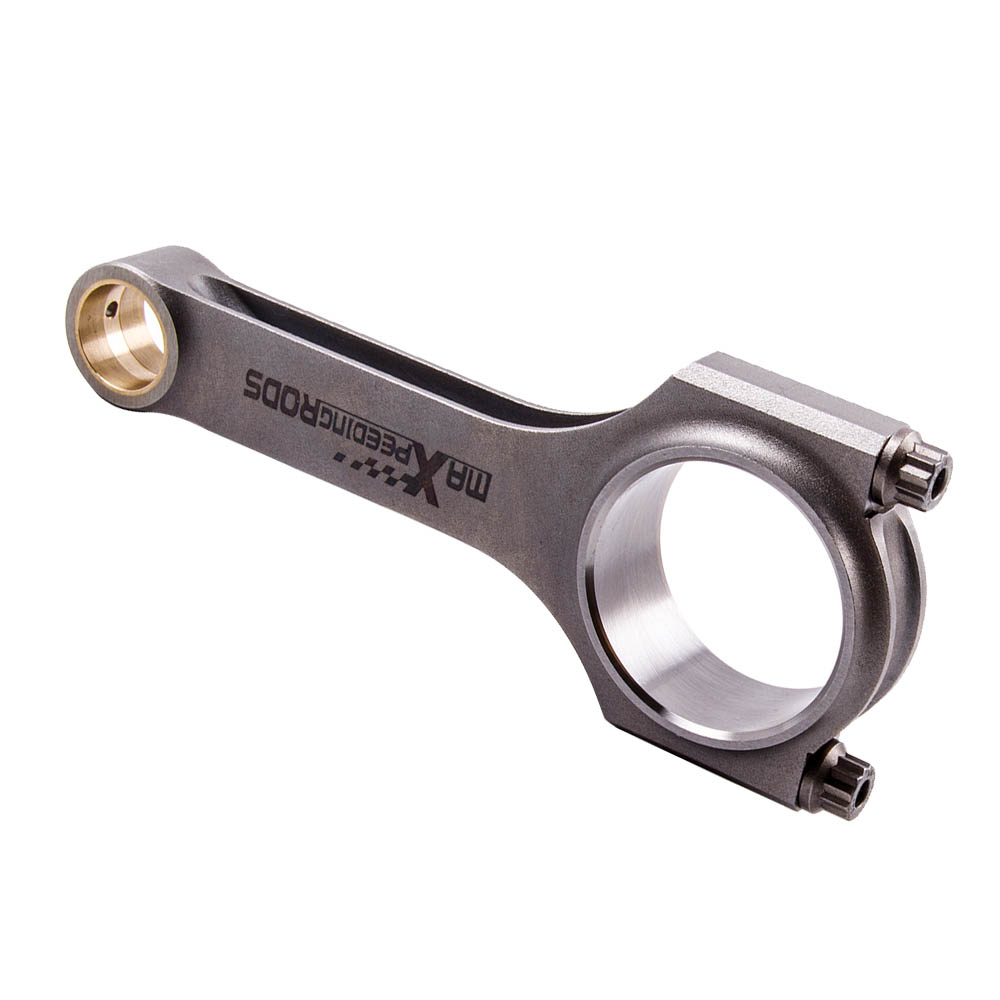

4 Pieces H-beam Connecting Rods Conrods for Alfa Romeo GTA 1600 Sprint 5.8268"

Description







Application

For Alfa Romeo Giulia Sprint 1600 GTA 1.6L





Specification

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including ARP 2000 5/16" bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: 2 years warranty for any manufacturing defect







Dimensions

Center to center length: 148mm
Big end diameter: 53.7mm
Small end diameter: XX
Big end width: XX
Small end width: XX





Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin





Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
