CWT 650W 80 Plus Gold SFX Micro ATX PSU Modular Mini Slim Power Supply

The Channel Well Technology power supplies are the No1 choice when it comes to fully modular power supplies delivering consistent 80 plus Gold efficient power to your PC.

Built using the highest quality components offering quiet and reliable power, with 80 PLUS Gold efficiency. A single 8pin EPS 12V cable and two PCIe connectors, this SFX power supply has the connections needed to power todays demanding PC hardware. Japanese industrial-grade 105 Degree Celsius-rated capacitor deliver a superb electrical performance.

This PSU is specifically made to meet the needs of Mini-ITX system builders. This small unit delivers an excellent performance in a 650 watt. Fully modular cables make PC builds easy as you connect only the cables your build requires. The included SFX-to-ATX bracket this PSU is compatible with cases ranging from Mini-ITX all the way up to E-ATX systems.

Key Features

• SFX Form Factor - The CSN650M delivers the high-quality performance you expect from Channel Well Technology in a Mini-ITX compatible form factor. This is a reliable, high-quality PSU thats compatible with smaller cases and any accompanying components, the reduction in size does not mean a reduction in the quality.
• SFX-To-ATX Bracket - Made for Mini-ITX builds this PSU can be used in any ATX case. The included SFX-To-ATX bracket you can instantly convert this from an SFX to an ATX PSU and this means that this unit can be used to power systems ranging from as small as Mini-ITX all the way to E-ATX Motherboards. The CSN650Ms almost universal case compatibility you can use this PSU in any system build.
• Modular Cable Configuration - A Modular cable management design lets you use only the cables you need. You get to save space and create a cleaner-looking build and improve airflow.
• 80 Plus Gold Certification - The CSN650M includes the extremely high-power efficiency of, on average 89.43 percent and a typical efficiency (50 percent load) at 90.91 percent means that the power supply earns the sought after 80 Plus Gold certification. Overall energy consumption, noise and temperatures are lower and less energy gets wasted during power conversion, the lower the operating costs will be for the user.
• Japanese 105 Degree Celsius-Rated Capacitor - Using Japanese industrial-grade capacitor, CSN650M power supplies offer the fixed power and long-term reliability.

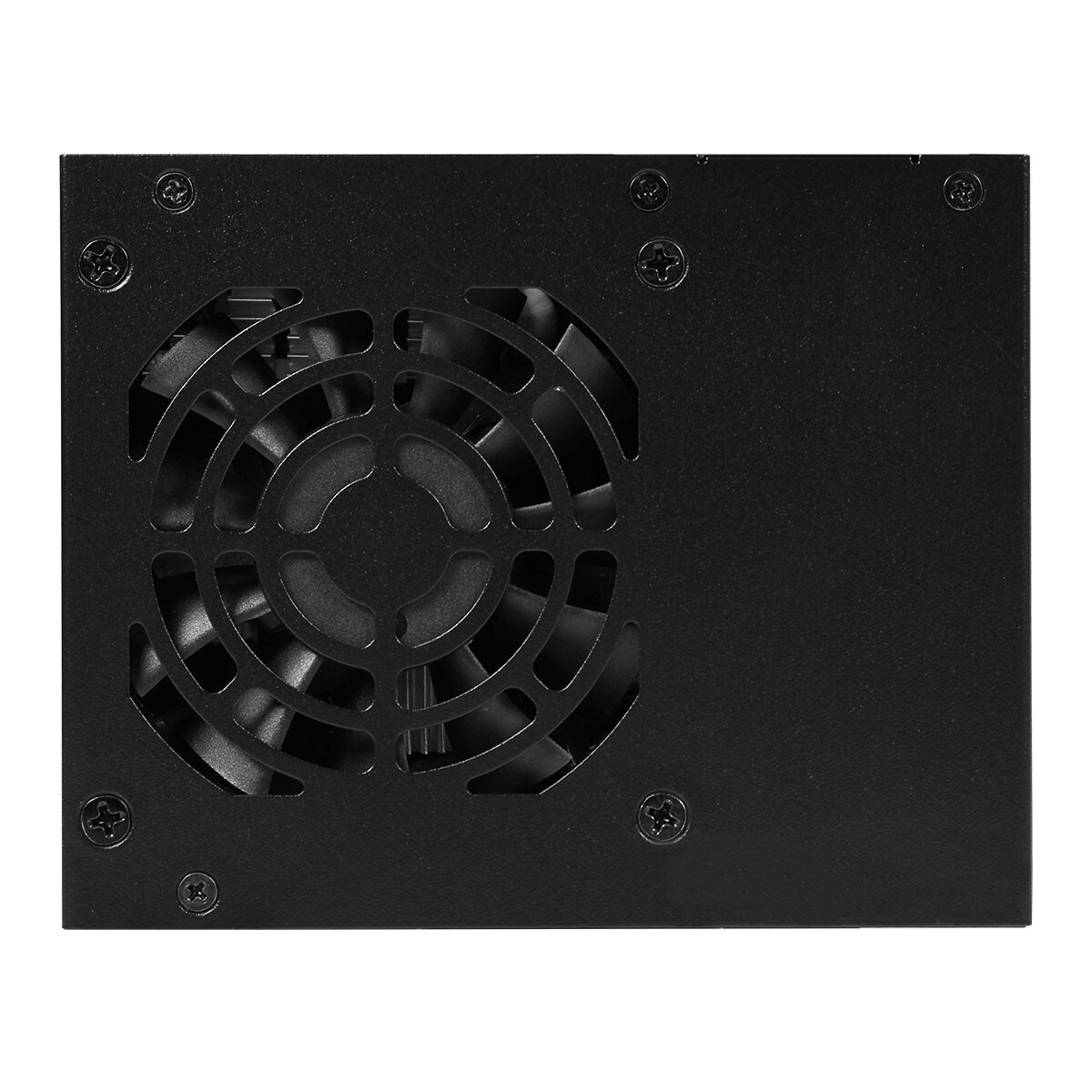

• 80mm Black Cooling Fan - A 80mm Black cooling fan which is extremely quiet. The small size fan, high efficiency and excellent heat dissipation, designed to find the balance between cooling the components keeping the overall noise down to an absolute minimum.
• Hardware Protection - A full line up top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection) & OTP (Over Temperature Protection).
• All Black Look - Black is the colour with black flat cables, black connectors and an all-black finish give your gaming PC a clean professional High-Tec look.
• Flat Black Cables - With flat black cables, PC builders can easily manage space creating a nice clean build with minimal fuss.
• Warranty - The CWT CSN650M PSU comes with 2-year warranty.

PSU Specifications


AC INPUT: 100-240 VAC 8A 47-63HZ
DC Output
+3.3V    +5V    +12V1    -12V    +5VSB
18A       15A      54A        0.3A    3A
Max    650W


Connectors


    20+4 Pin Main Connectors: 1 (Modular)
    4+4 Pin 12V Connectors: 1 (Modular)
    SATA Connectors: 6 (Modular)
    4-Pin Molex Connectors: 3 (Modular)
    6+2 Pin PCI-e Connectors: 2 (Modular)
    Floppy Drive Connectors: 1 (Modular)


Detailed Specifications

Dimensions: 125mm x 63mm x 100mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 8A
Input Frequency Range: 47-63HZ
PFC: Active PFC
Power Good Signal: 100-500ms
Hold Up Time: 10ms min. At 75 Percent of full load at 230/115VAC
Efficiency: 90%
MTBF: 100,000 Hours
Protection: OPP / SCP / UVP / OVP / OCP / OTP
Power: 650W
Operation Temperature: 0-40°C
Safety: CE / UKCA / FCC / cTUVus / TUV / CB / ErP
Cooling: 80mm Black Fan
Noise: 39dbA Max. 35dBA Full Load
80 Plus Certified: Yes - 80 Plus Gold

General Specifications

Manufacturer Part Number: CSN650M
EAN Number: 5055492413277
Has Mains Plug: No
Colour: Black

What's In The Box: PSU
Modular Cables
Screws
ATX Mounting Bracket
Manual

Unit (Product) Dimensions (mm): 125mm x 63mm x 100mm (W x H x D)
Packaging Dimensions (mm): 245mm x 204mm x 90mm (W x H x D)
Net Weight (KGs): 0.94 KGs
Gross Weight (KGs): 1.68 KGs
