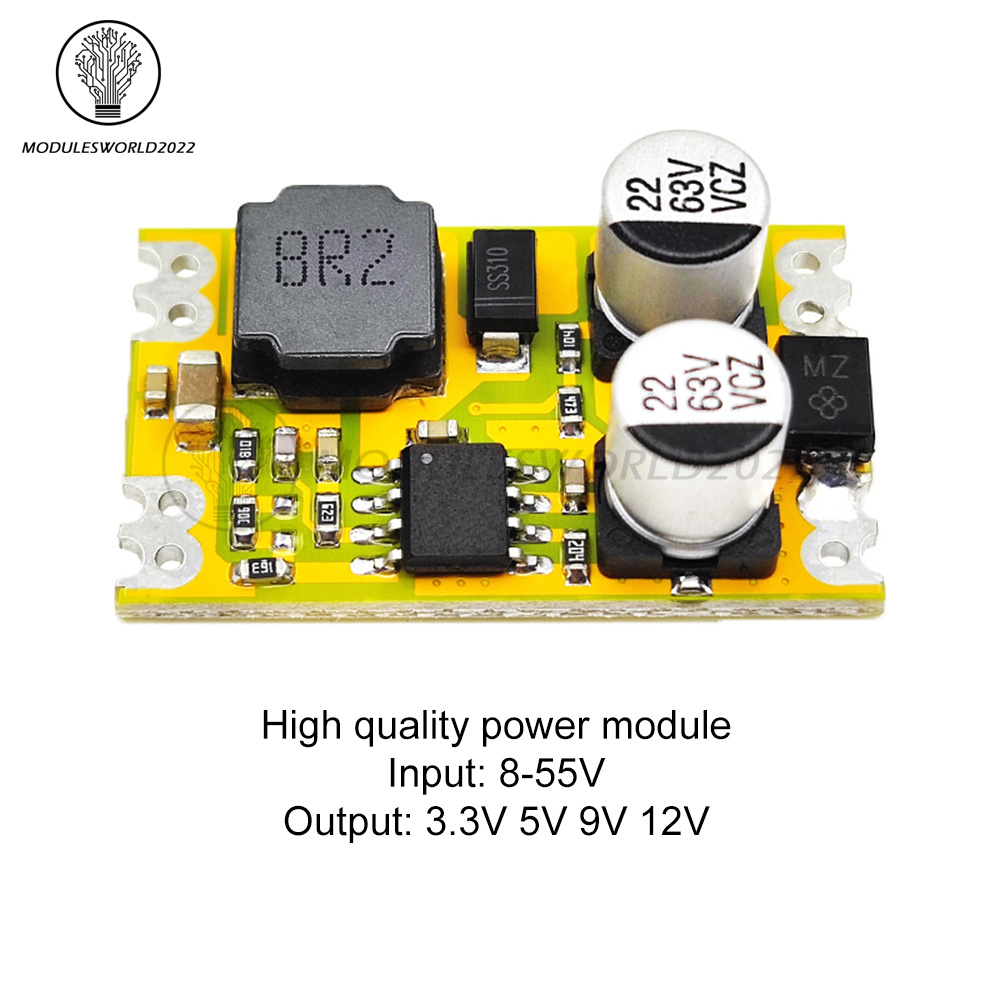

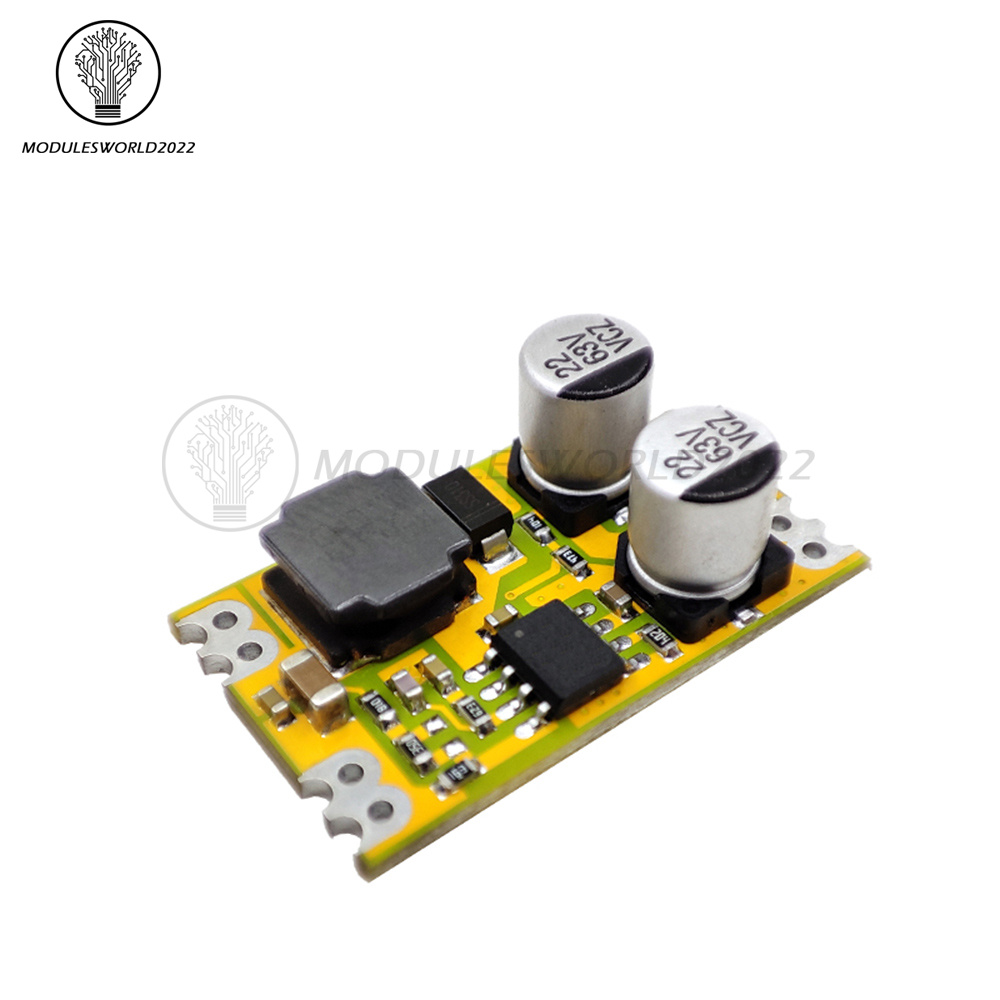

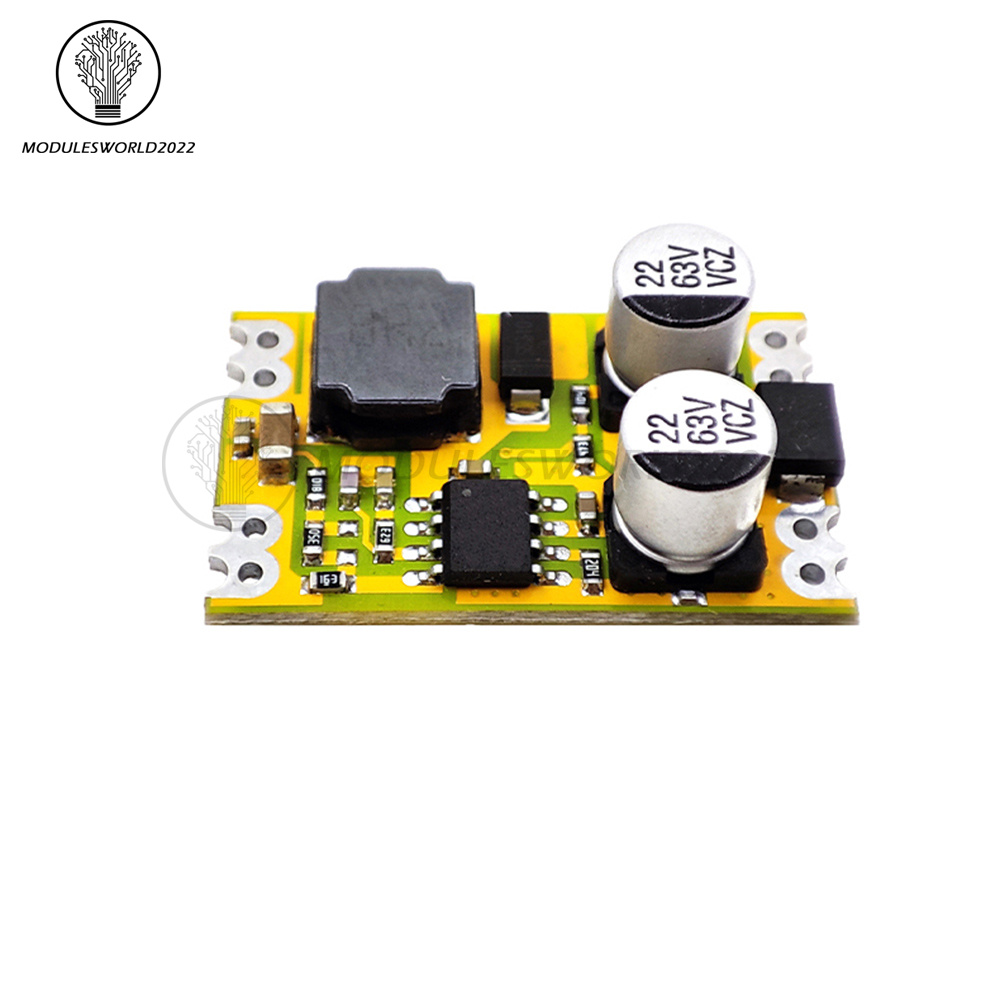

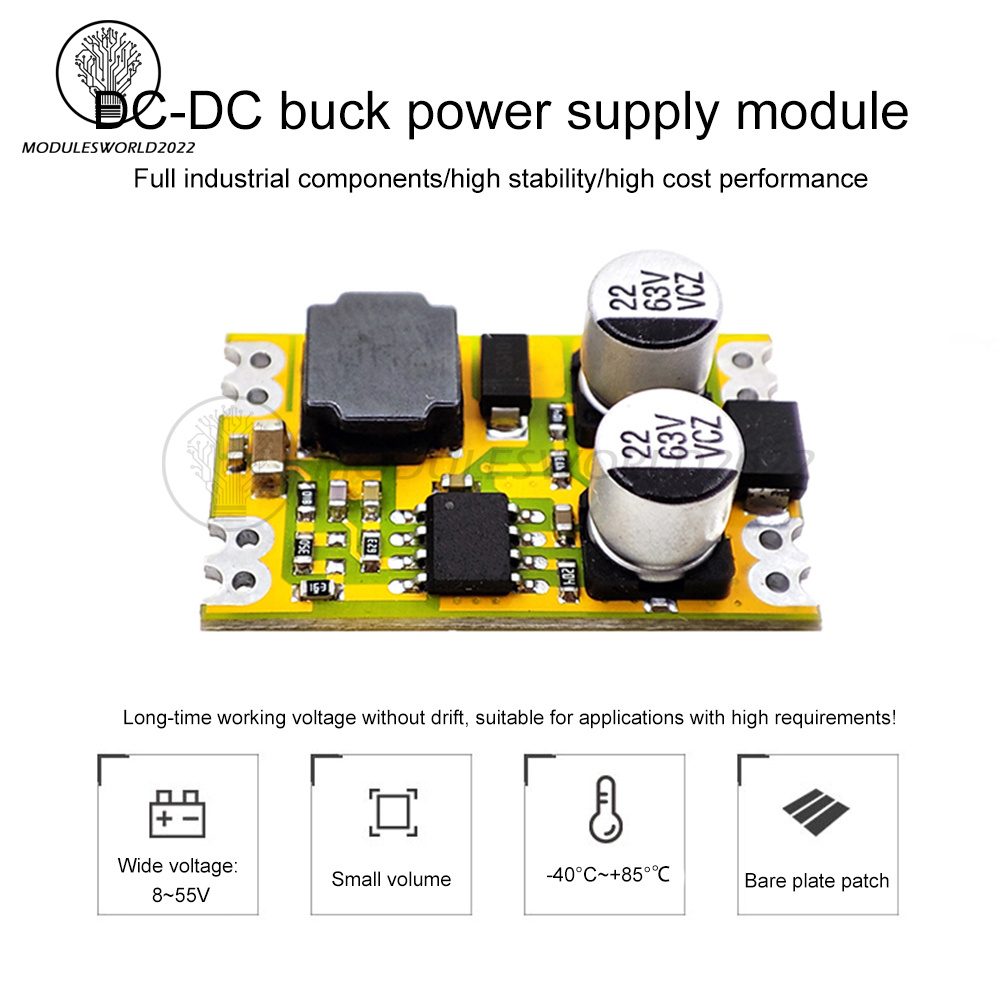

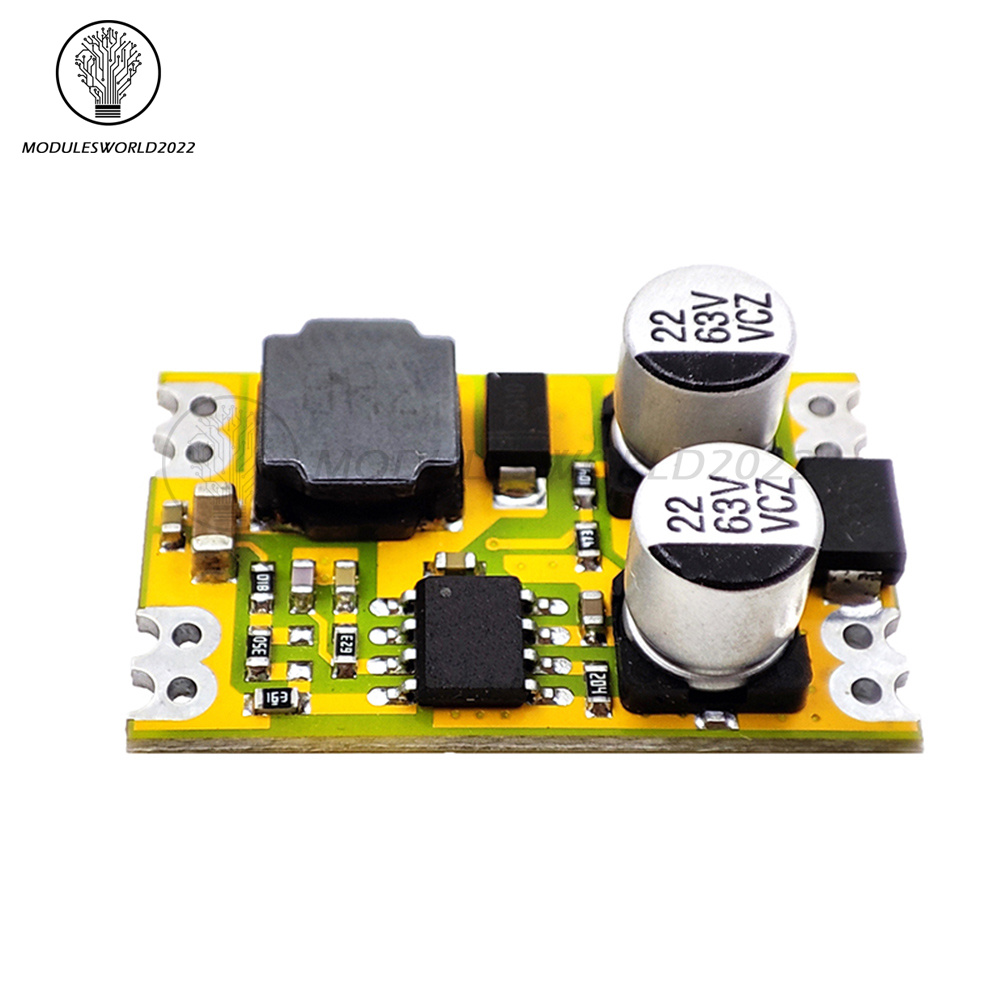

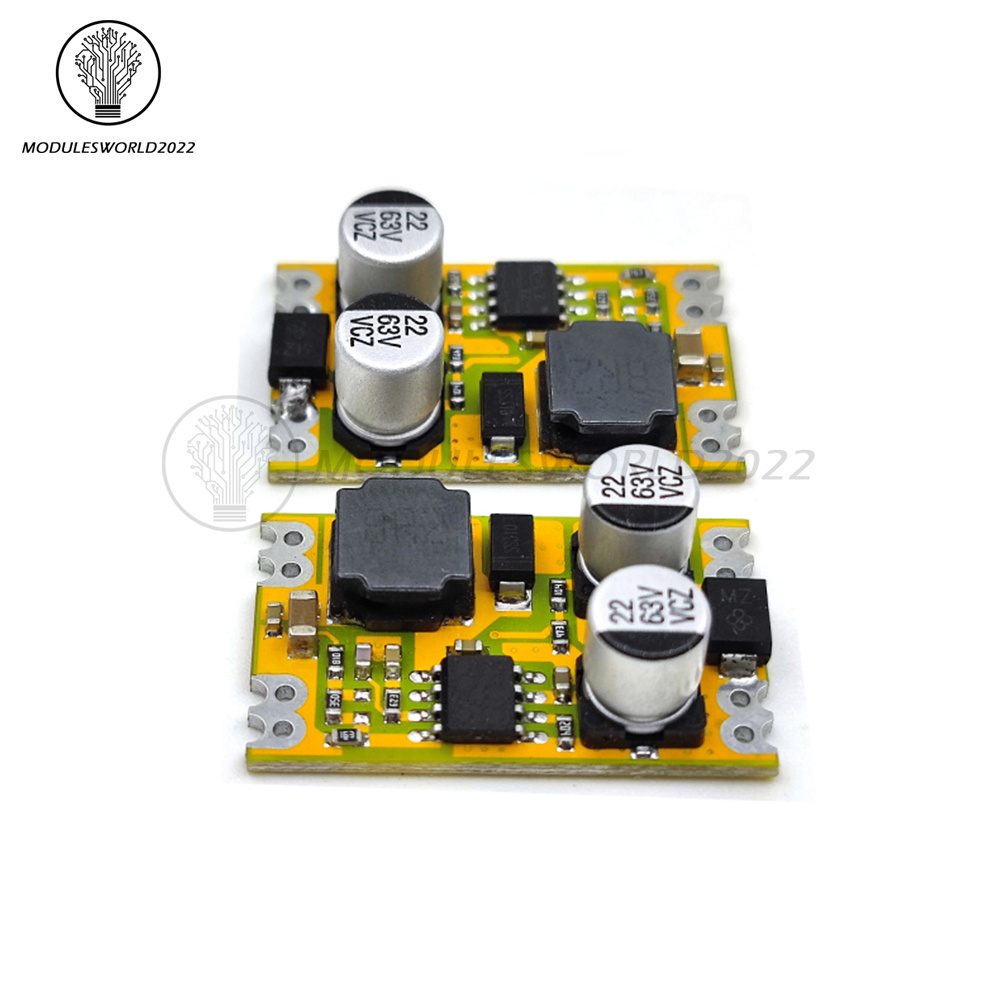

High voltage, low power consumption, high current design, step-down DC-DC power supply module,
Input voltage max 55VDC, fixed output, output current max 2A.
Designed to operate at up to 500KHz.
High stability, high cost performance, long time working voltage without drift, suitable for demanding applications,
Widely used in communication equipment, digital radio, industrial control motherboards, toys, models, microcontroller motherboards, home appliances, vehicle power supply, security monitoring, field collection, street lights, etc.
Interface type: SMD, plug-in
Maximum efficiency: 90%
Chip: original
Input voltage: 8-55V (input voltage needs to be higher than output voltage)
Output voltage: 3.3V
Output current: 2A
Conversion efficiency: 90%
Output ripple: <50mV
Output accuracy: ±0.1V
Relative humidity: 20-90%
PCB thickness: 1.2mm
Number of PCB layers: 2 layers
Off current: without off
Heat dissipation mode: natural cooling
Mounting method: SMD or 2.54 row pin plug-in
Production process: reflow soldering
Whether with isolation: without isolation
Service life: 50,000 hours without failure (not exceeding the rated value)
Fixed switching frequency: 500KHZ

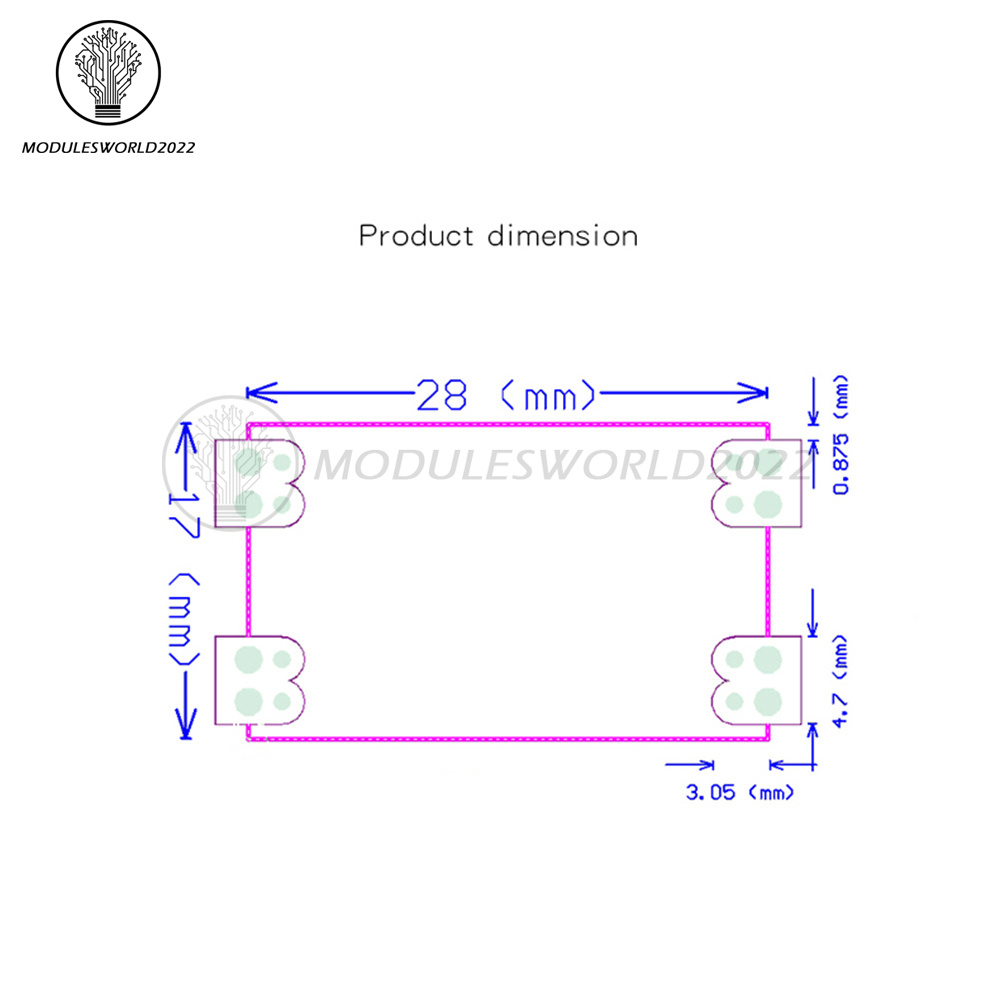

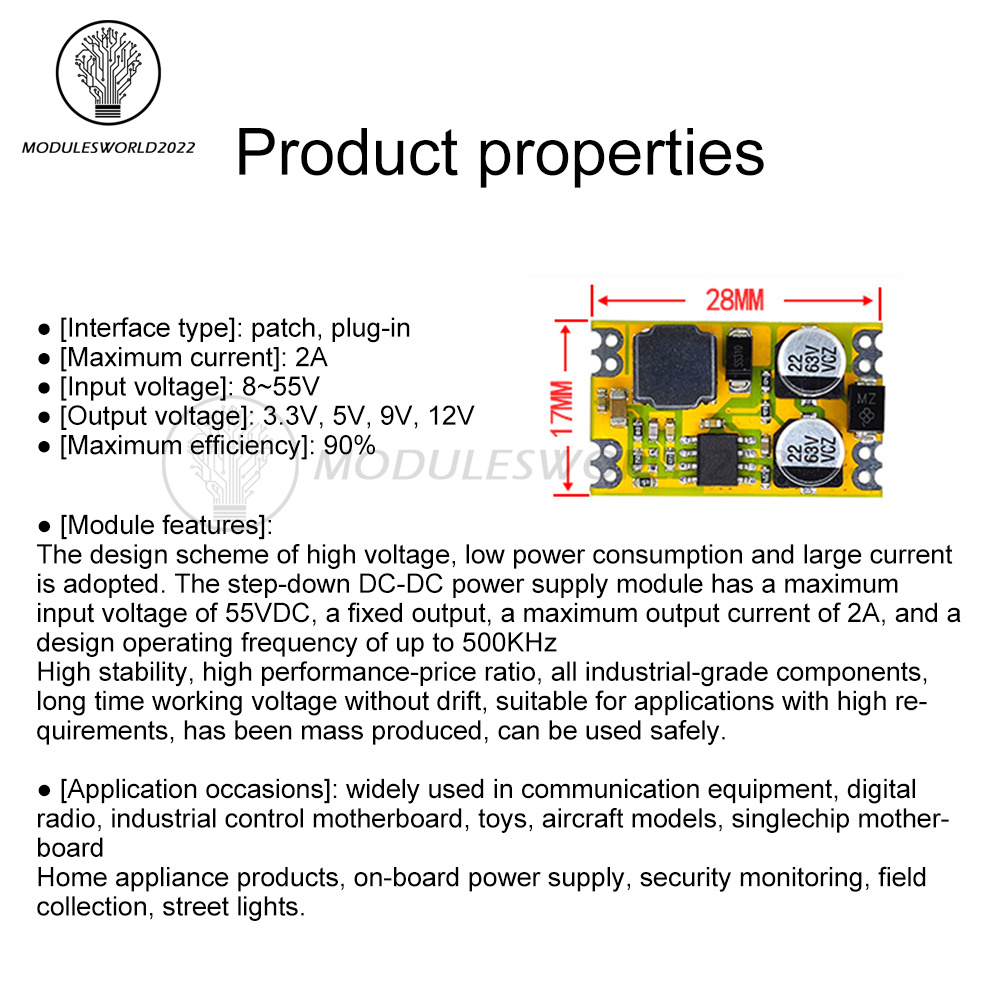

Size: 28*17*9mm(LW)

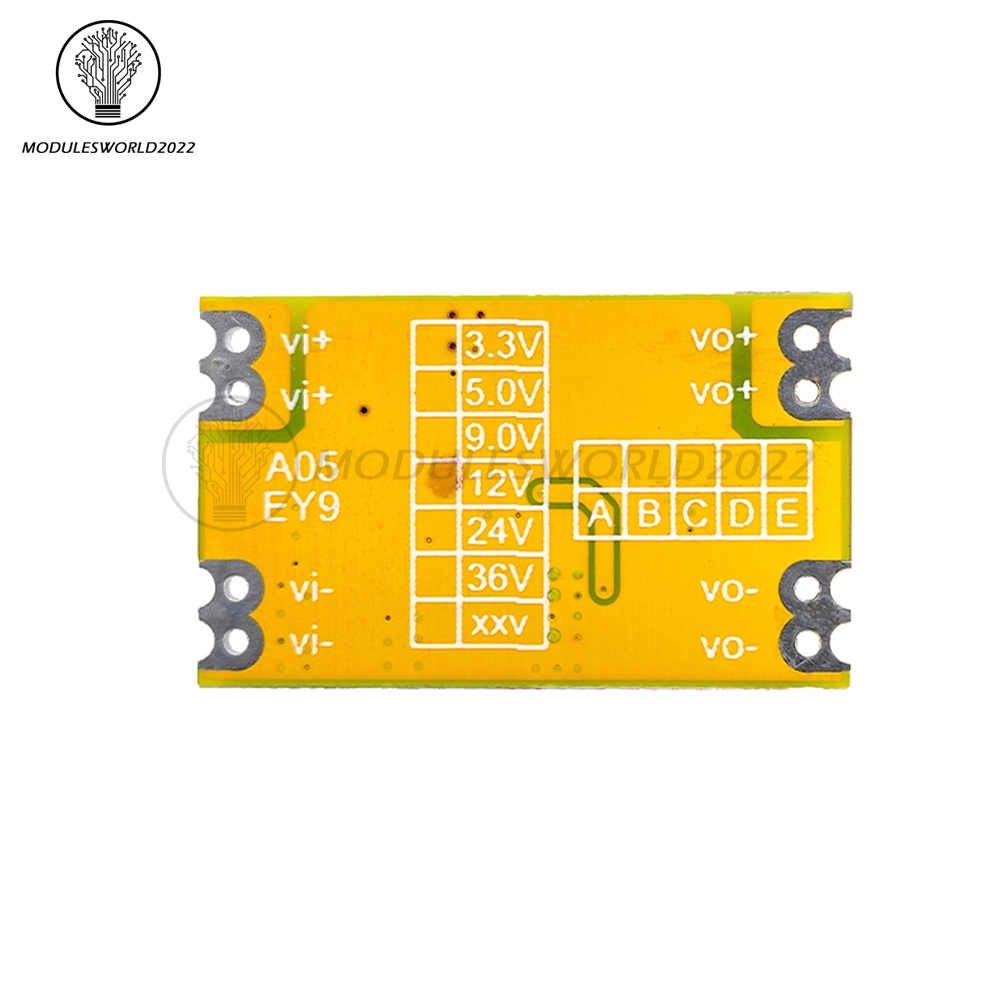

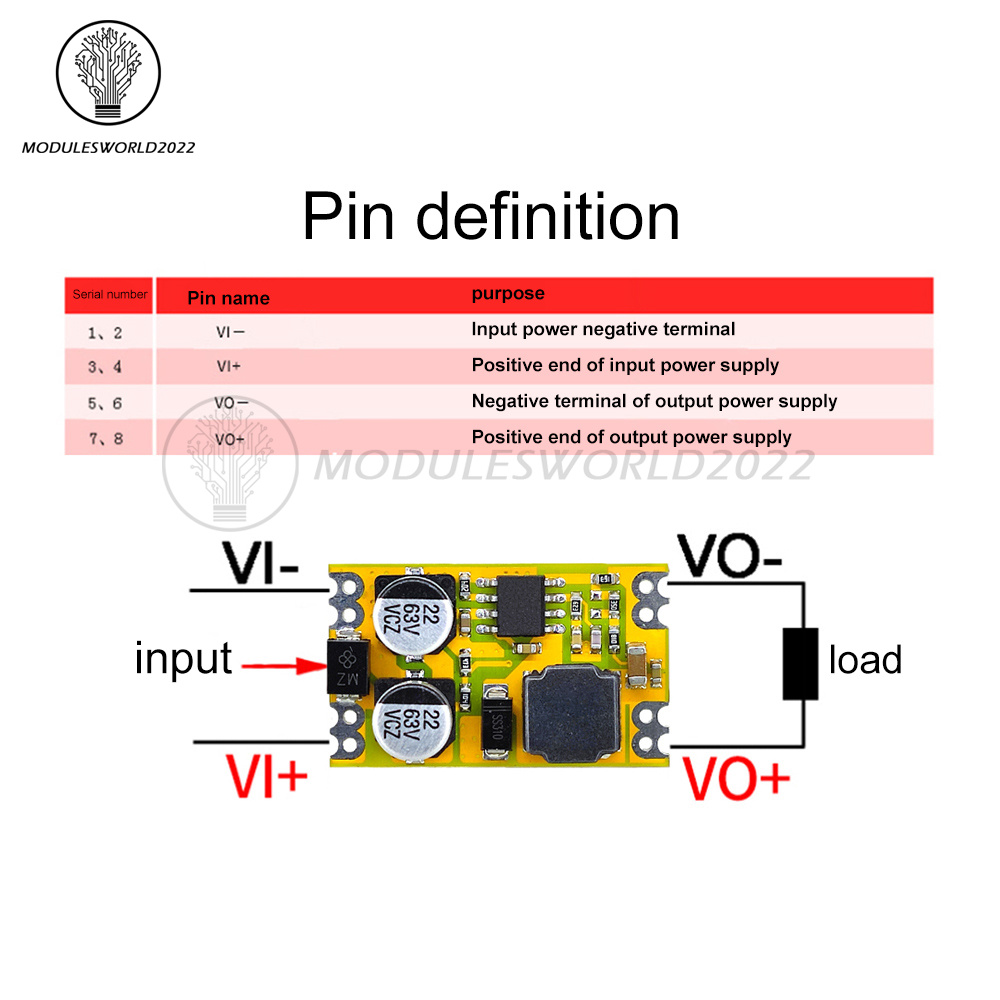

VI I:Input power negative
VI+:Input power positive
VO-:Output power negative
VO+:Output power positive
1X module
