Description

Introduction
MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Applications

For Honda Civic & Si VIII 2-door coupe (FG1/FG2) 2006-2011
For Honda Civic & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
For Honda Civic & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
For Acura CSX 4-door sedan（Canada）2006-2011
Note: Not for the Mugen trim level.
Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

S pecifications

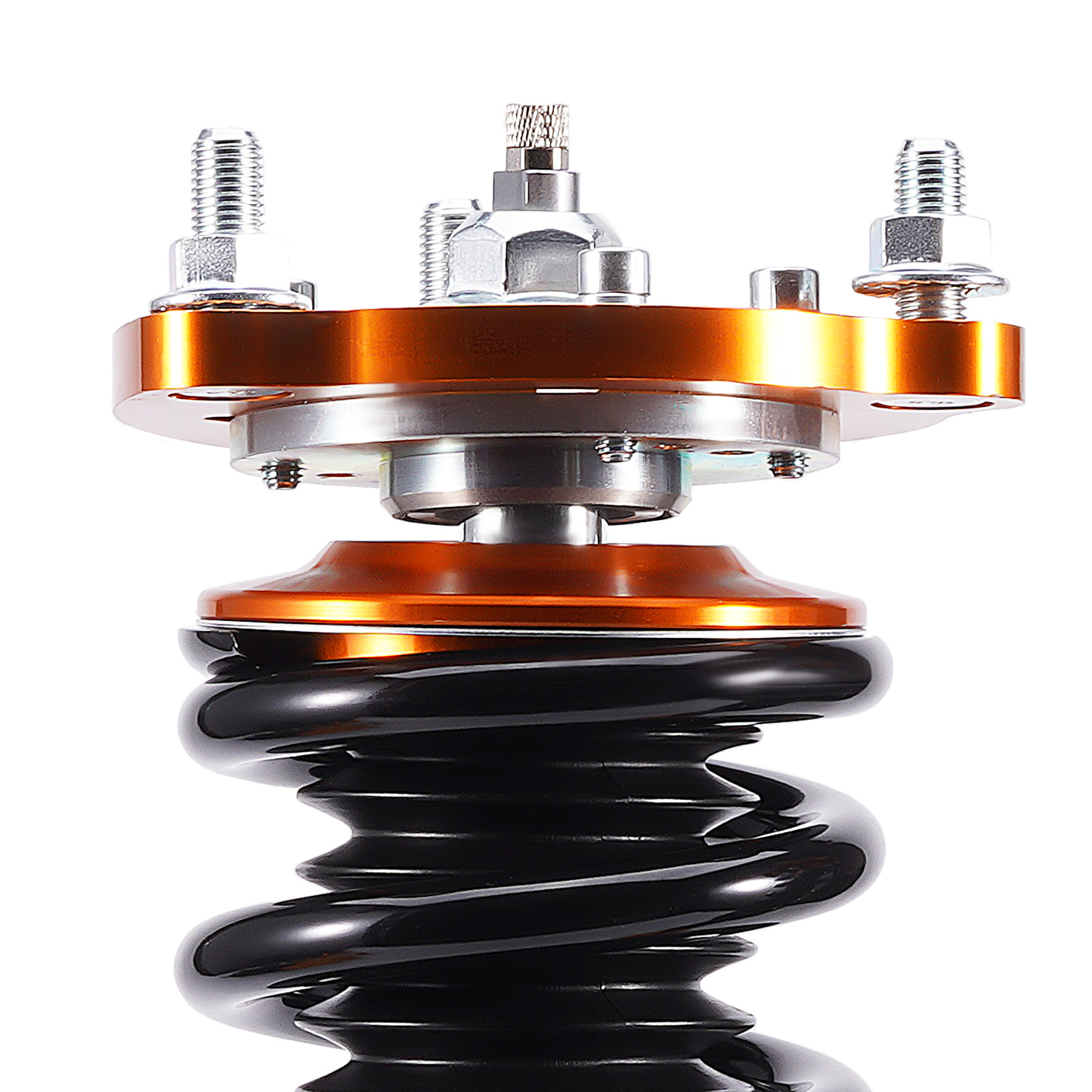

Top mounts: Pillow ball top mount with camber plate front
Damping: 24 levels rebound damping adjustable
Front Spring Rate: 7 kg/mm (392 in/lbs)
Rear Spring Rate: 6 kg/mm (336 in/lbs)
Adjustable Height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Golden

Product included

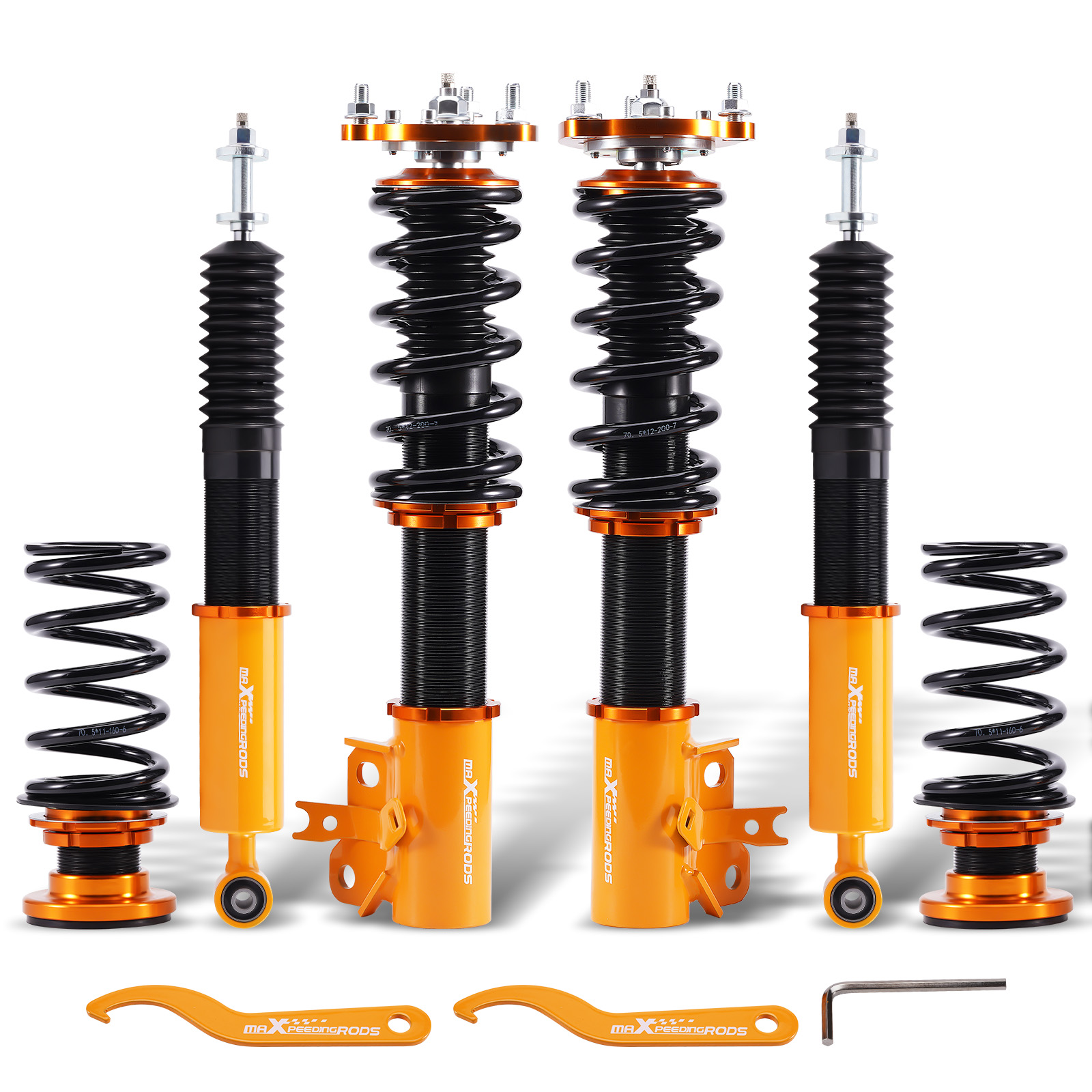

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Dimension

Gross weight: 24920g
Package size: 70*50*20cm

Features

1. Quickly Install: Preload parameter is provided to save your 3-4 hours installation time.
2. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
3. A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
4. Twin-Tube structure allows sufficient stroke within the shock absorber.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9. Height Adjustment tools included.
10. Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)
11. Pillow ball top mount - It improves the steering feel and response.
12. Full rebuildable.

Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Notice
* Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
