Detail
Outstanding Function:

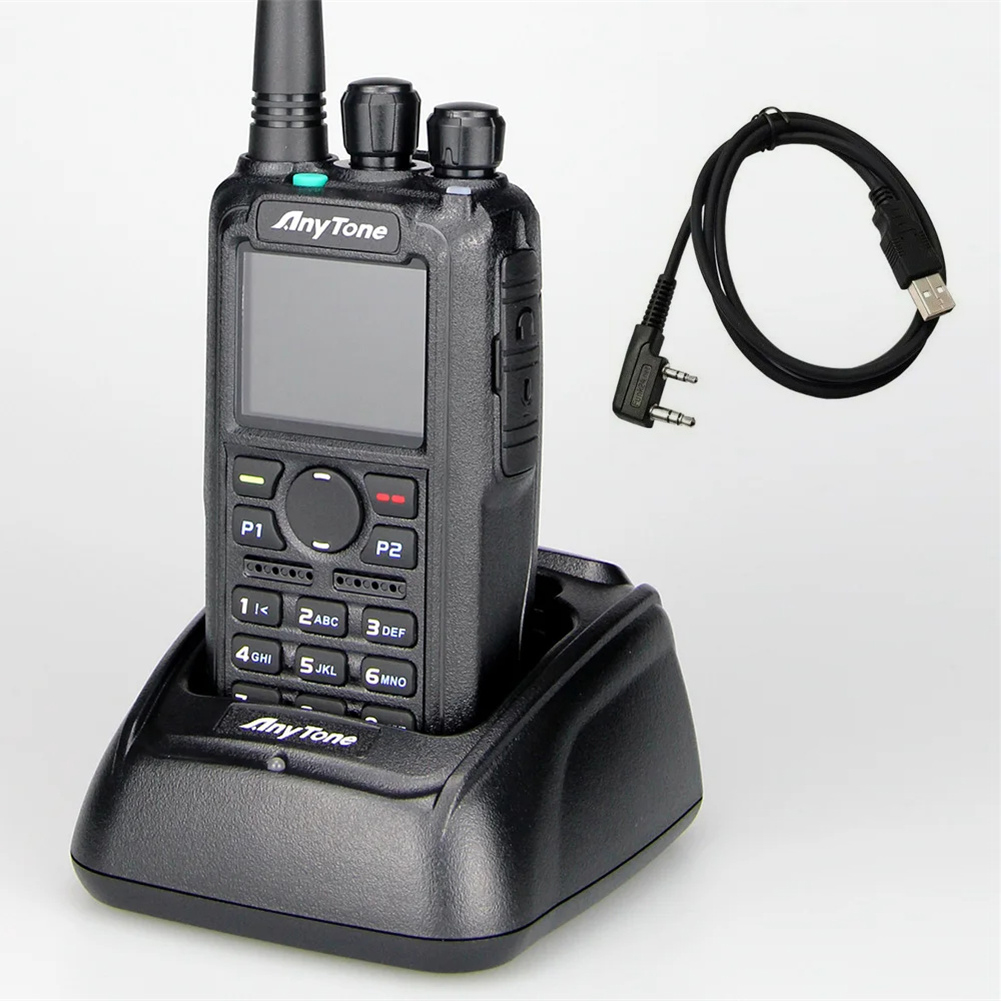

1.AT-D878UVII Plus is the upgrade two way radio of AT-D878UV PLUS. the differences between AT-D878UVII Plus & AT-D878UV Plus are the model of AT-D878UVII Plus comes with 500,000 digital contacts and Analog APRX Receiving.
2.APRS Receive
Turn APRS Receive, if both radio GPS is positioned, the radio will display the other radio’s distance and position when radio is receiving.
The APRS will be displayed on the menu of the radio when the radio GPS function is “ON”.
3. The radio comes with Built-in Bluetoothmodule, it can be connected to any Bluetooth headsets universally by using the Bluetooth PTT to transmit signal to your partner.
Features:
-Dual-mode ( Digital+Analog)
-1.77 inch color TFT Screen
-4000 channels
-10000 Talk Groups with 500000 Digital contacts
-ETSI DMR Tierâ… andâ…ˇCompliant
-Auto-senses digital or analog reception
-Ranging function between radios with GPS
-Roaming function
Specifications:
|
General |
||
|
Frequency Range |
VHF: 136-174MHz UHF: 400-480MHz |
|
|
Memory Channels |
4000 |
|
|
Channel Spacing |
25KHz(Wide Band), 12.5KHz (Narrow Band) |
|
|
Phase-locked Step |
5.0/6.25KHz |
|
|
Frequency Stability |
±2.5ppm |
|
|
Operating Temperature |
-20°c to +55°c |
|
|
Operating Voltage |
7.4V DC±20% |
|
|
Dimensions |
129*61*42mm |
|
|
Weight |
293g(with battery pack, antenna) |
|
|
Receiving Part |
||
|
|
Wide band |
Narrow band |
|
Sensitivity(12dB SINAD |
≤0.25µV |
≤0.35µV |
|
Digital Sensitivity |
0.3uV/-117.4dBm(BER 5%) 0.7uV/-110dBm (BER 1%) |
|
|
Adjacent Channel Selectivity |
≥70db |
≥60dB |
|
Spurious Emission |
≤-57dB |
≤-57dB |
|
Spurious Rejection |
≥70dB |
≥70dB |
|
Blocking |
84dB |
|
|
Hum & Noise |
≥45dB |
≥40dB |
|
Audio Distortion |
≤5% |
|
|
Audio Output power |
1000mW/16 ohm |
|
|
Transmitting Parts |
||
|
|
Wide band |
Narrow band |
|
Output Power |
VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W |
|
|
Modulation Mode |
±5.0KHz 25KHz |
±5.0KHz 12.5KHz |
|
Adjacent Channel Selectivity |
≥70dB |
≥60dB |
|
Hum & Noise |
≥40dB |
≥36dB |
|
Spurious Emission |
≤-36dB |
≤-36dB |
|
4FSK Digital Modulation |
12.5KHz(data) 7K60FXD 12.5KHz(data+voice) 7K60FXE |
|
|
Audio Distortion |
≤5% |
|
Notes: Above Specifications are subject to change without any notice due to technology enhancement

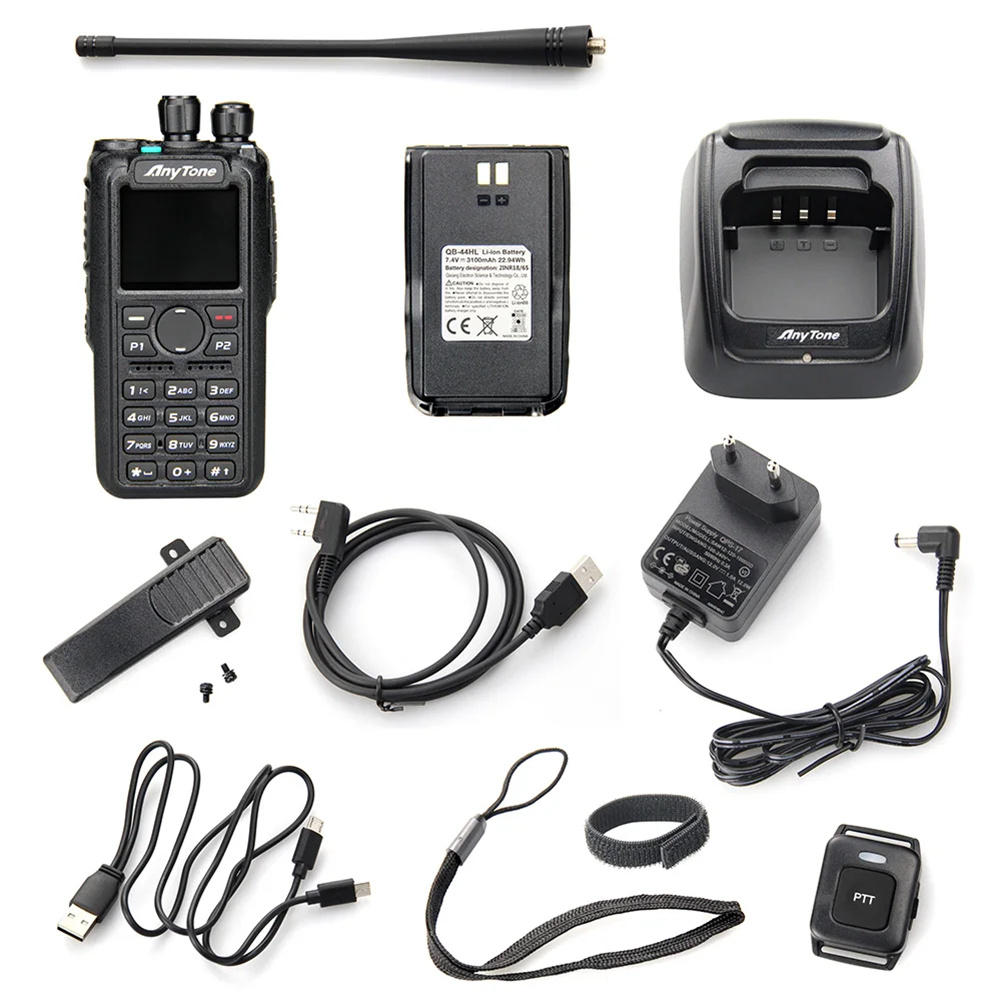

Package Contents:
·1×Anytone AT-D878UVII Plus Radio
·1×7.4V 3100mAh Li-ion Battery Pack
·1×Bluetooth PTT
·1×USB Programming Cable
·1×Antenna
·1×Belt Clip
·1×Desktop Charger with AC adapter
·1×ENG Manual
·1×Hand Strap
