Features：

Model: Upgraded 3 Axis GRBL 1.1f USB Port GRBL Control Board. Input voltage: 24VDC

Support Software: GRBL Contol, Candle(3 axis), UGS(Universal Gcode Sender). Support System: Windows XP/7/8/10, Linux

Applications: The control board can be used with the 1310,1610, 3018, 3018 PRO and 3018 MAX cnc engraving machine

Stepper Motor Drive: A4988. Spindle power: 100W-50W. Input voltage: 24V (12-24V). Maximum current of 2A or less is recommended within 1.5A and additional heat (Any stepper motor Nema17 )

Support XYZ 3-axis control, spindle and laser module. Support 3 pin and 2 pin or 2pin-2pin lasers (the 2 pin lasers: please connect the white interface " + s-")



  • Connection: USB (USB-CH340)

  • Input voltage: 24VDC (only support 24VDC input)

  • Control software: GRBL control (candle), Universal Gcode Sender Master chip atmel 328P (arduino nano)

  • Support Connect Offline 8pin cable

  • Spindle drive chip: ecommendation 24V DC, current : within 10A

  • Spindle PWM speed: Support

  • Support stepper motor: Maximum current of 2A or less, is recommended within 1.5A and additional heat (any nema17 stepper motor)

  • Support system: Windows XP / Win 7 / Win 8 / Win 10 (32/64 can be), Linux

  • Power Interface: 5.5-2.5mm DC interface

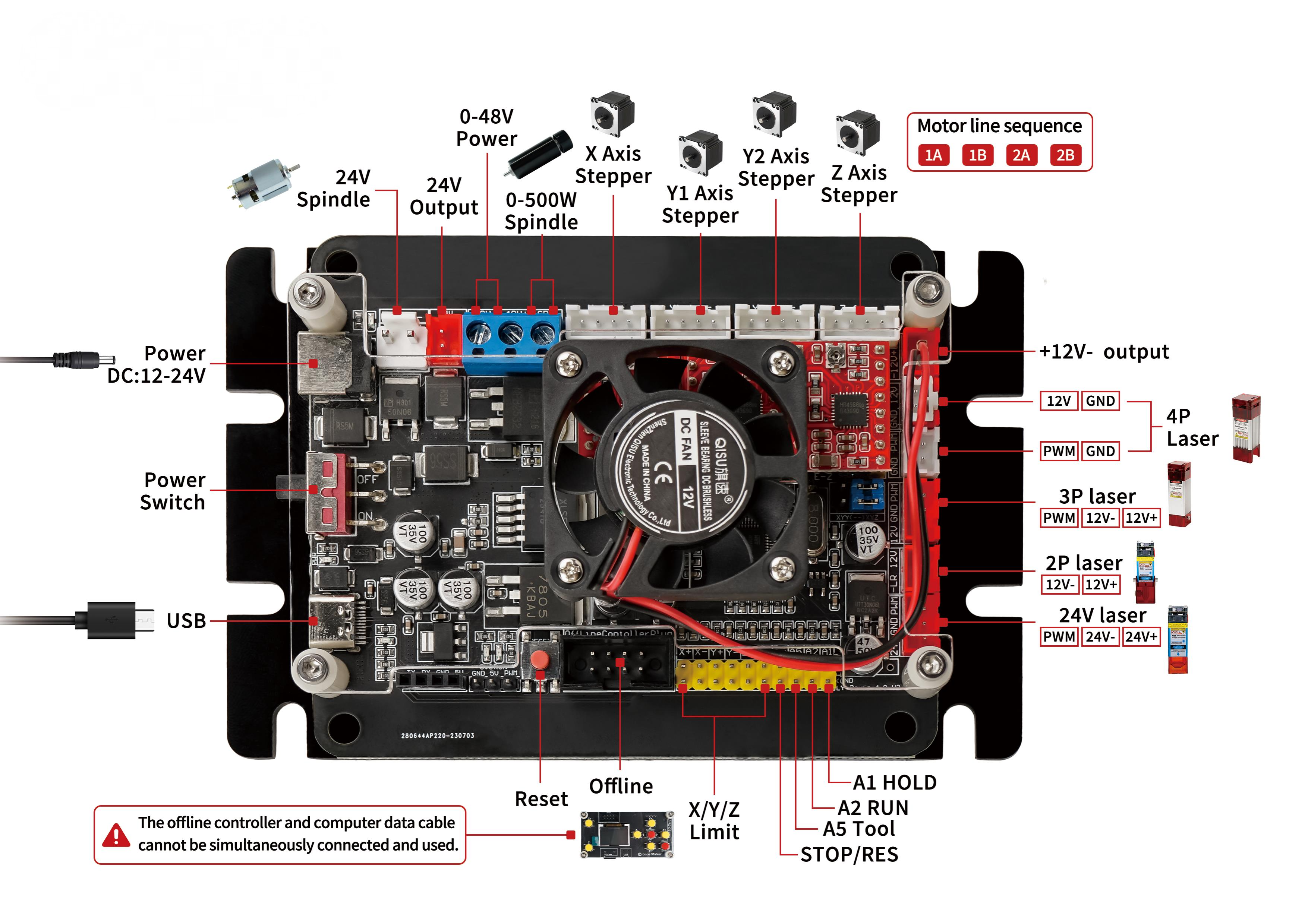

  • Newly added functional ports: Add emergency stop button port, probe port, XYZ limit port and add the power ,reset button switch.

  • Limit switch/Probe/Estop port: 2-pin port

  • Module connection port: 3-pin port

  • Spindle connection port: 2-pin port

A4988 Driver:

  • 1. Suitable for driving stepper motors below 8V~35V 2A;

  • 2. Only simple step and direction control interface;

  • 3. Five different stepping modes: full, half, 1/4, 1/8 and 1/16;

  • 4. The adjustable potentiometer can adjust the maximum current output, so as to obtain a higher step rate;

  • 5. Automatic current decay mode detection/selection;

  • 6. Overheat shutdown circuit, under voltage lockout, cross current protection;

  • 7. Grounding short-circuit protection and loading short-circuit protection

Noties:

  • Nano 3Axis Control Board is a Arduino Nano based 3 Axises Motion control system, can be used for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.

  • Please note the positive and negative poles, make the right connection.



Packing List：

  • 1*Control board

  • 1*USB Data line (Type C)

  • 1*775 Motor Cable
