Product Description

Feature:

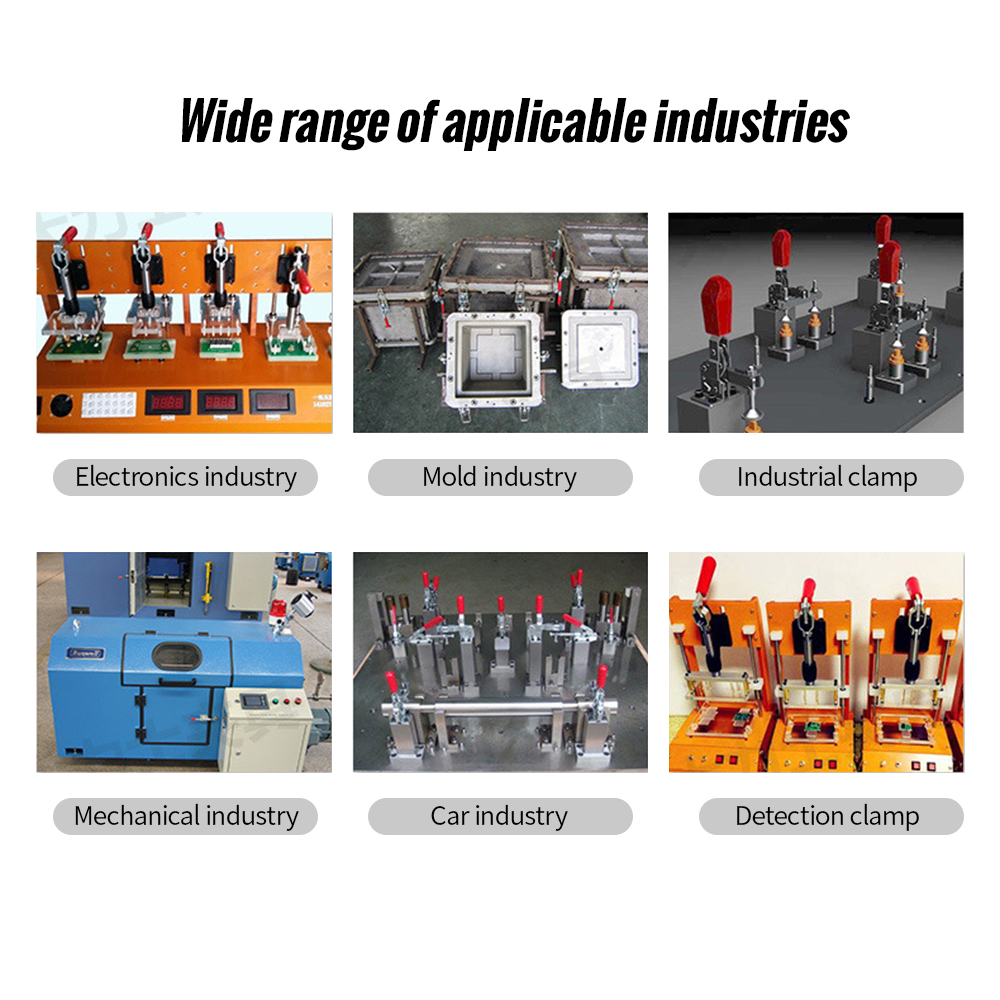

- Widely used in the manufacture or assembly of clamping, flip lock buckle luggage and other industrial, agricultural, testing.

- Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance.

- Unique push/pull action Quick-Release Toggle Clamp, allows you to hold workpiece in a vertical position

- A simple structure, easy installation,and plastic cover handle for easy, safe and comfortable operation.

- Assembly, fixed clamping force is stable, safe, reliable, high efficiency, greatly reduce the various parts processing, assembly, fixed clamping operation time.

Specification:

Type: Push Pull

Material: Hot rolled steel/stainless steel plates+Rubber Cushion

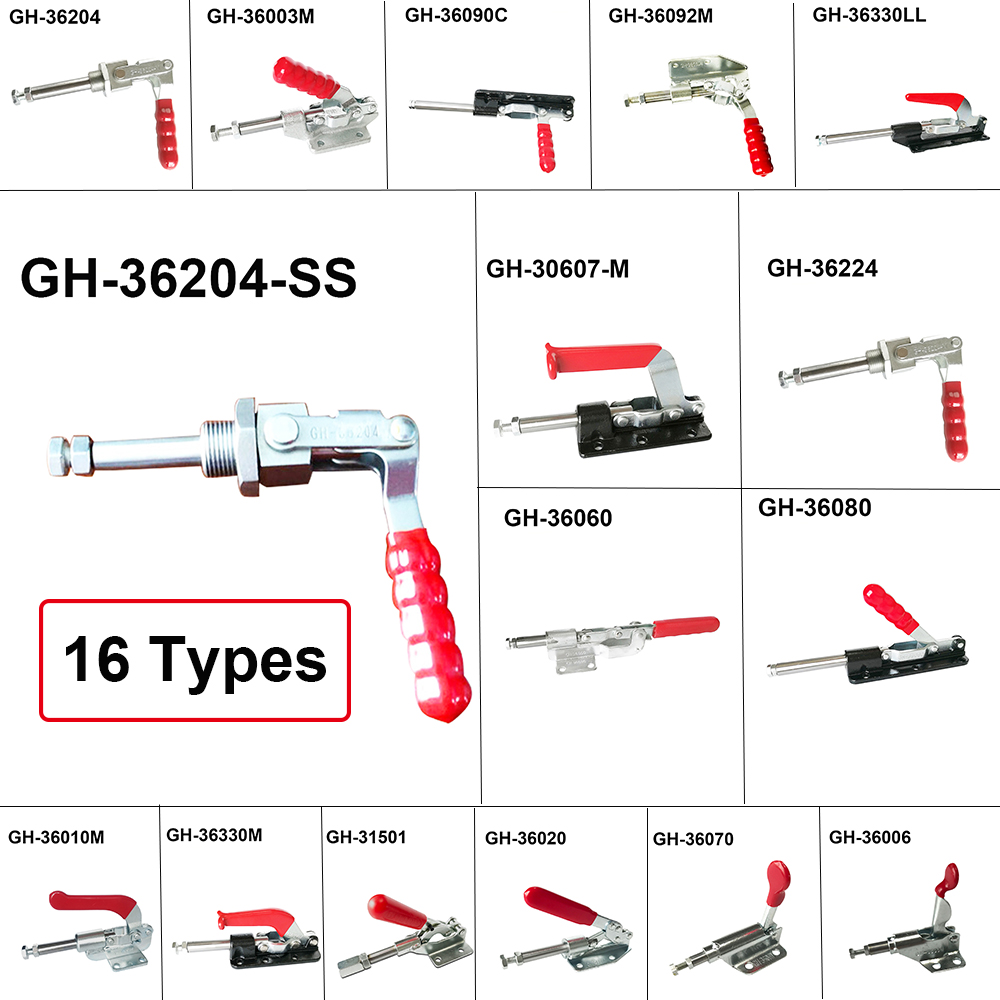

Model list:

Model	Holding Capacity	Material	Stroke	Weight	Hight	Total length	Press Open	Handle Turn

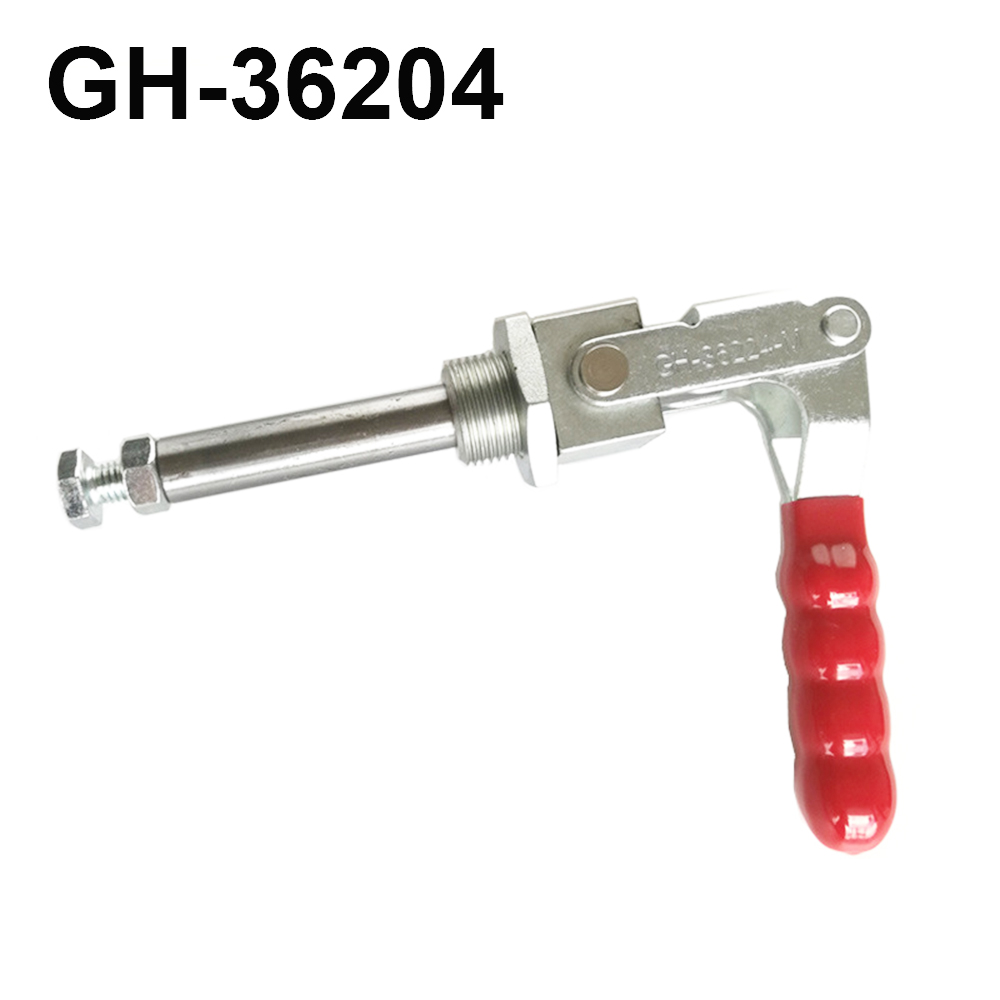

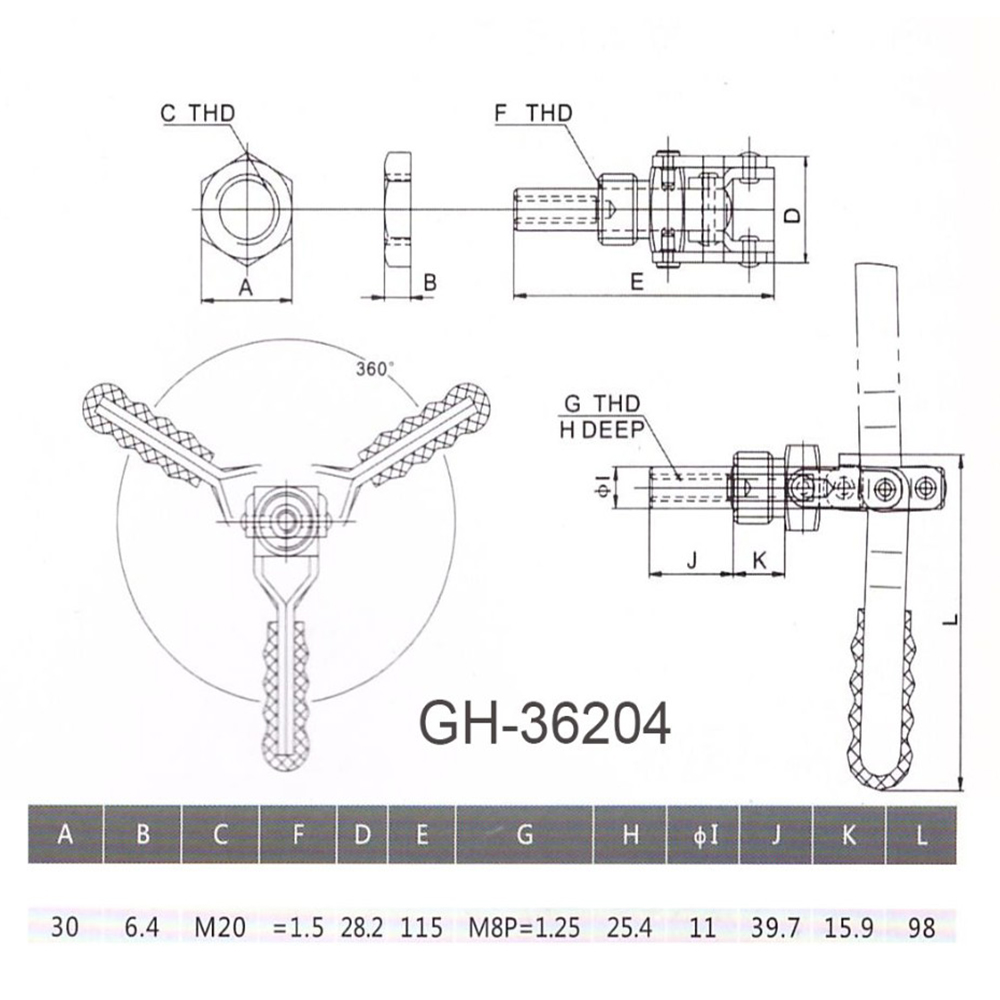

GH-36204	136kg	Iron	39mm	265g	98mm	163mm	84°	85°

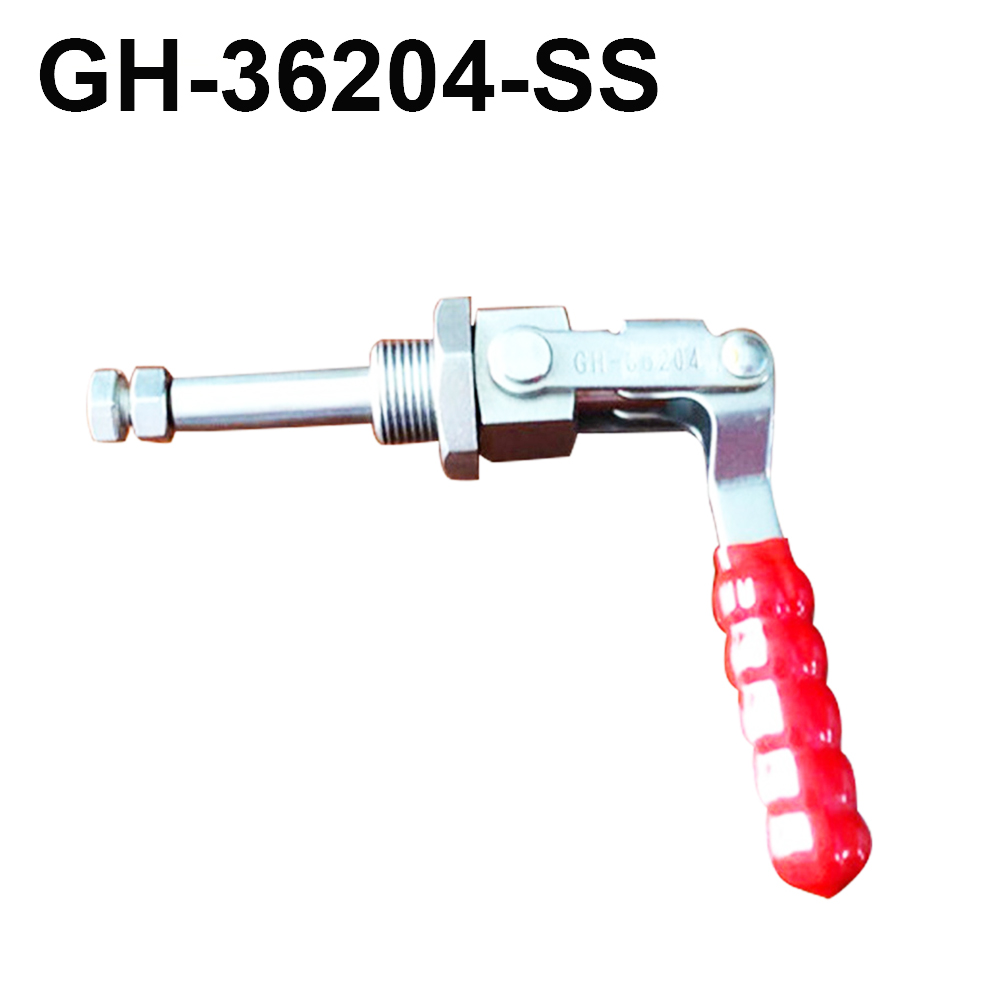

GH-36204-SS	136kg	Stainless Steel	39mm	265g	98mm	163mm	90°	65°

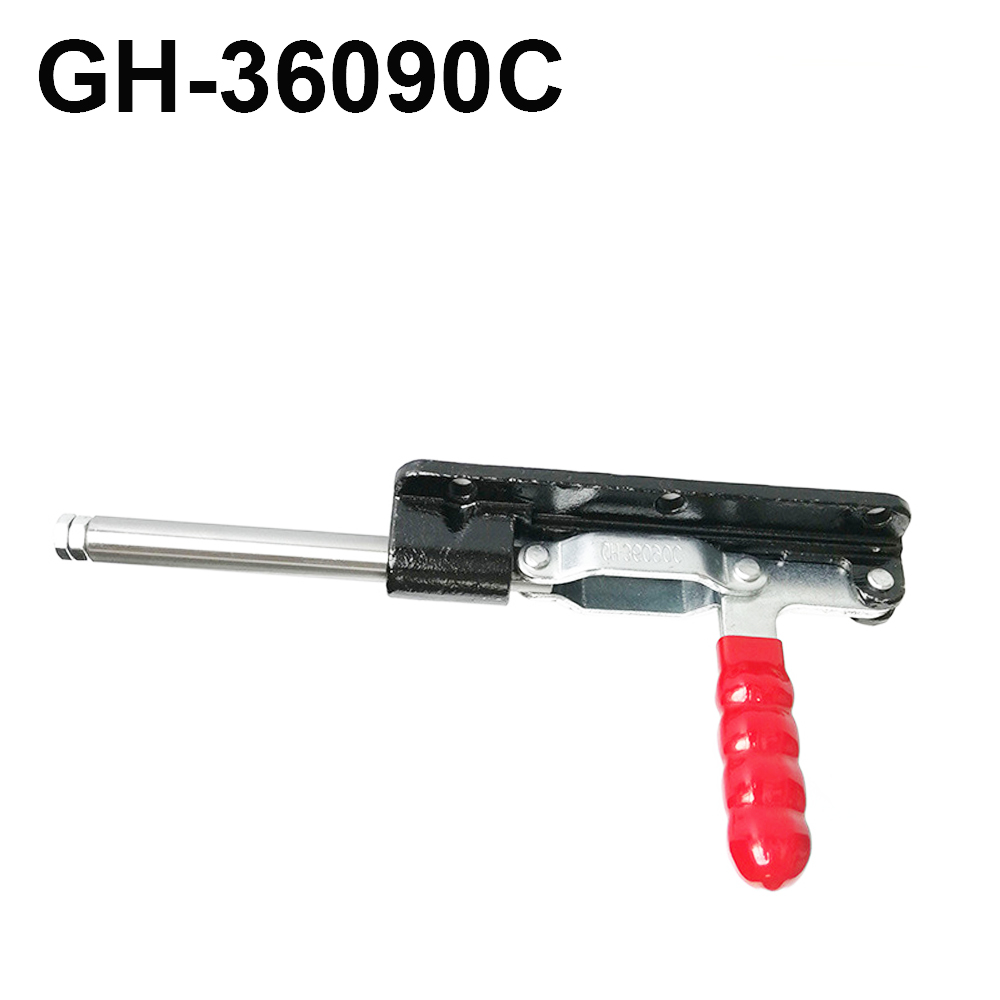

GH-36090C	580kg	Iron - Cast Steel Black Base	90mm	1215g	131mm	275mm	84°	85°

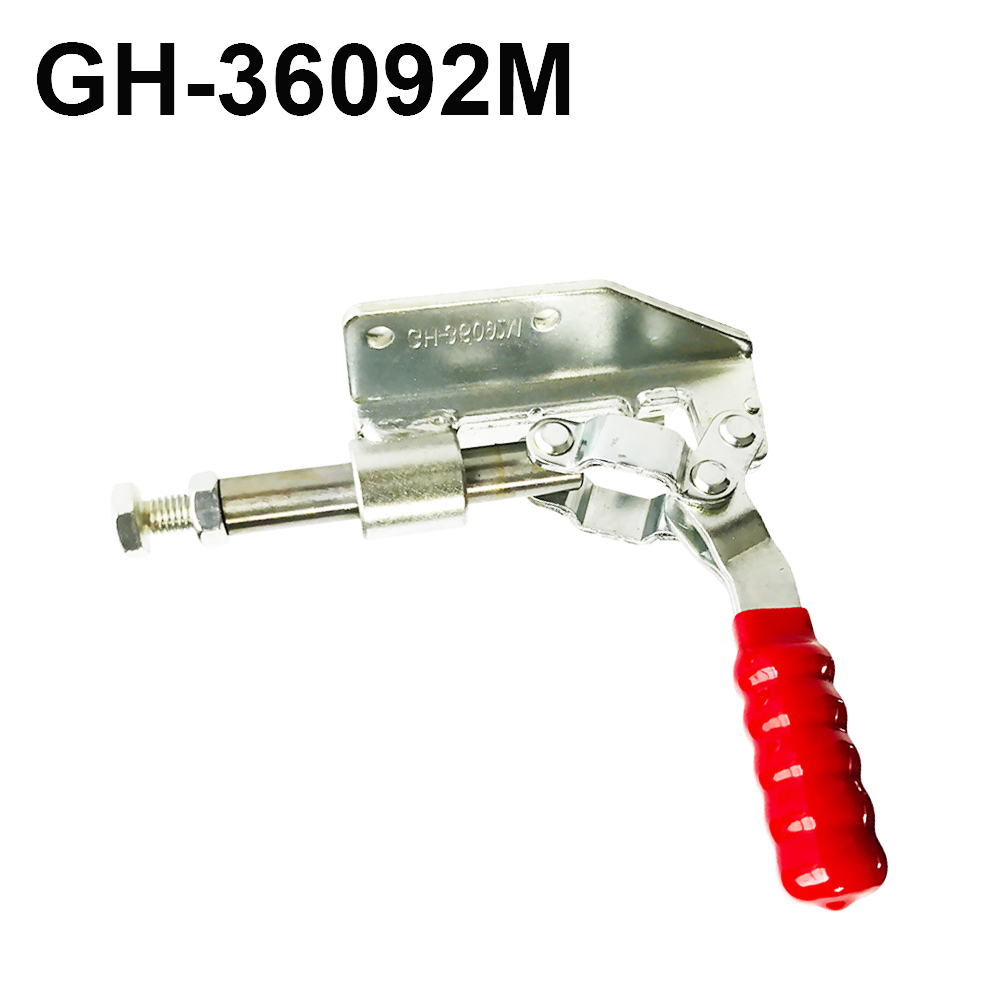

GH-36092M	180kg	Iron	32mm	397g	105mm	164mm	84°	85°
GH-36003M	272kg	Iron	31.8mm	390g	/	159.4mm	/	180°

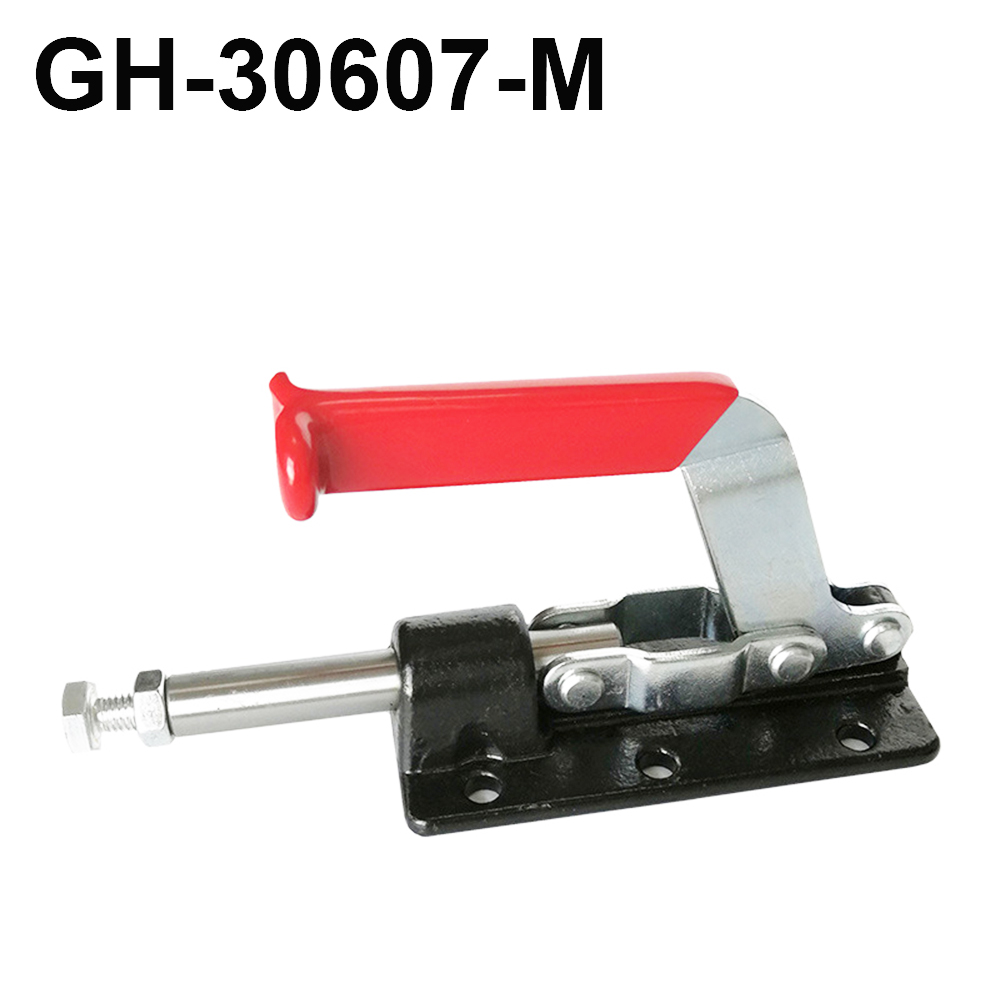

GH-30607-M	318kg	Iron - Cast Steel Black Base	41.5mm	700g	83mm	188mm	/	/

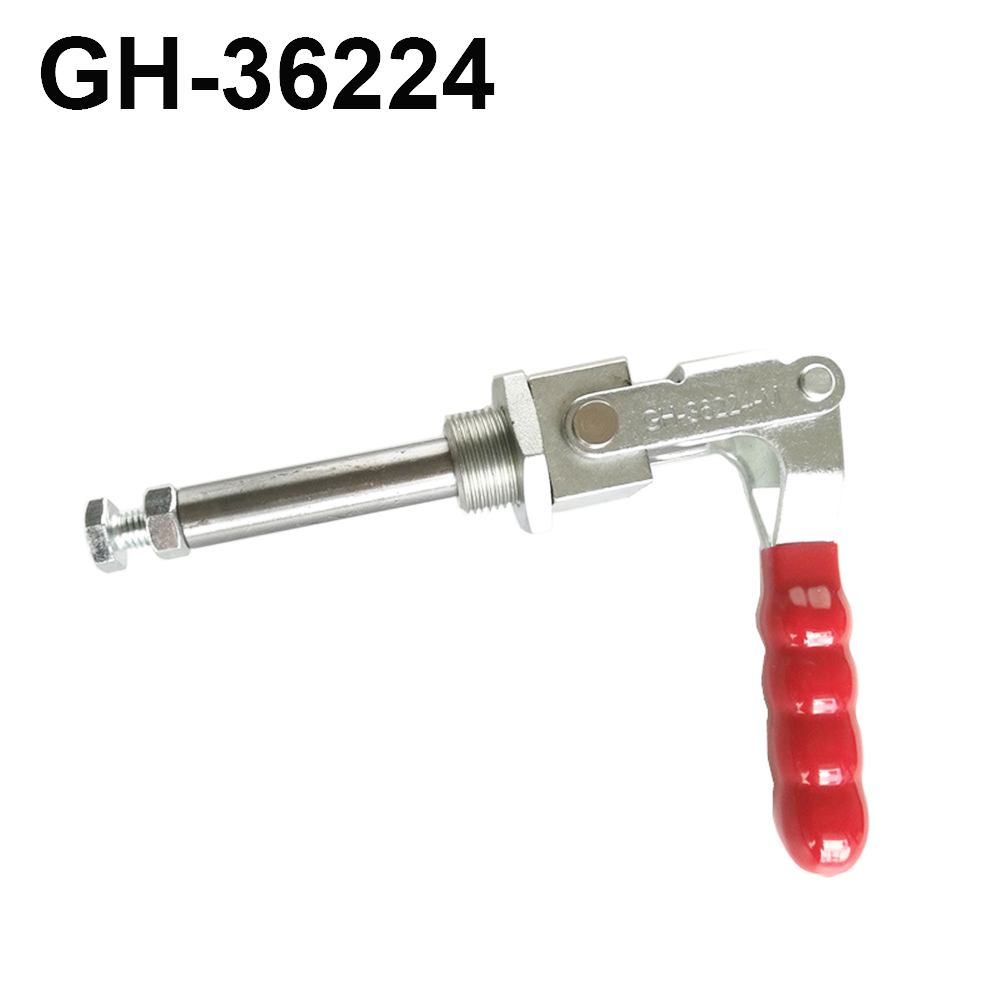

GH-36224	318kg	Iron	65.5mm	755g	137mm	220mm	84°	85°

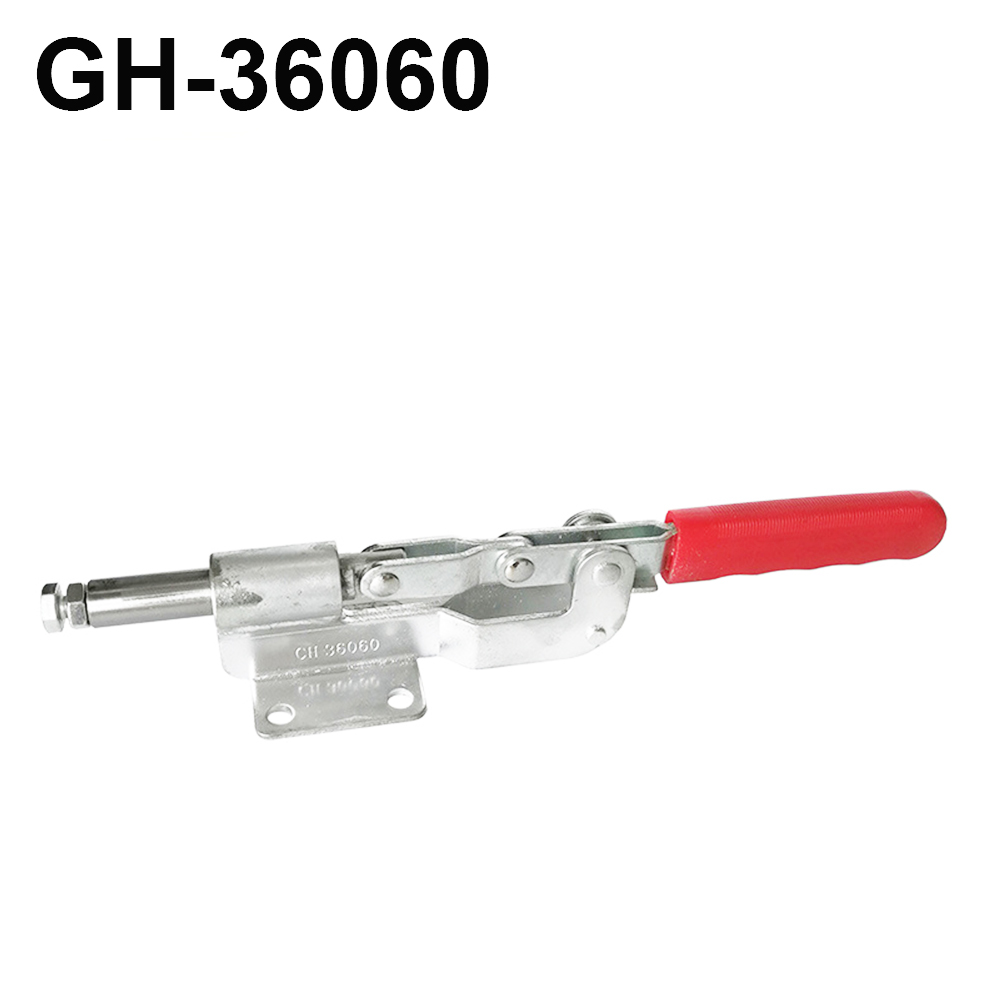

GH-36060	300kg	Iron	28mm	690g	56mm	312mm	/	76°

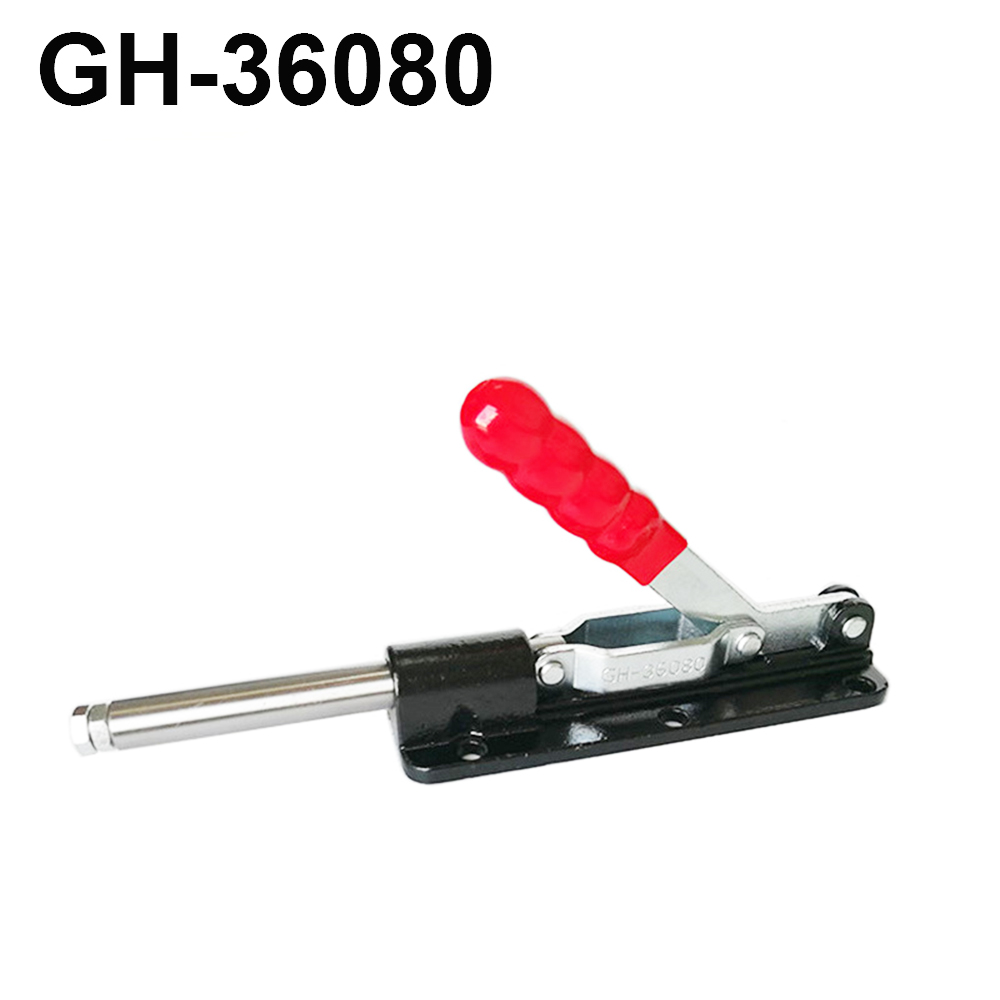

GH-36080	580kg	Iron - Cast Steel Black Base	80mm	1248g	/	269mm	/	180°

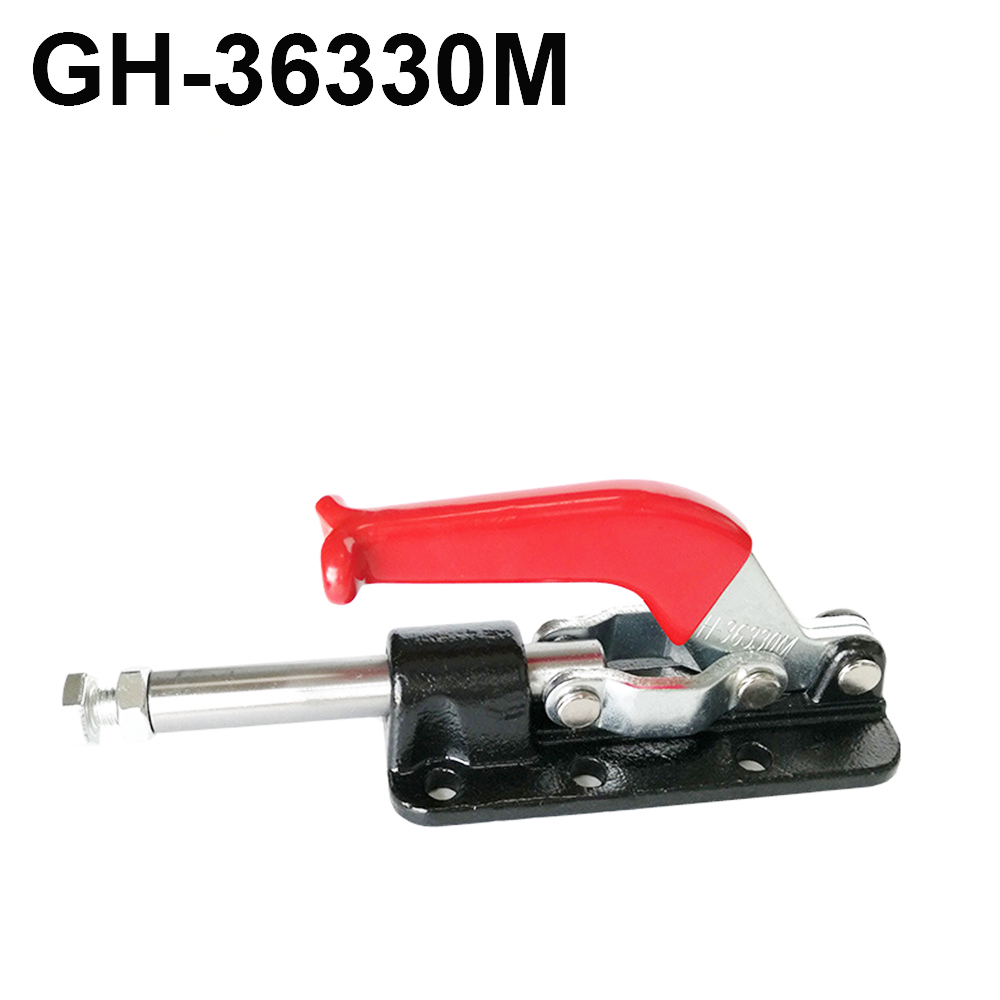

GH-36330M	1136kg	Iron - Cast Steel Black Base	50.8mm	993g	/	216mm	84°	85°

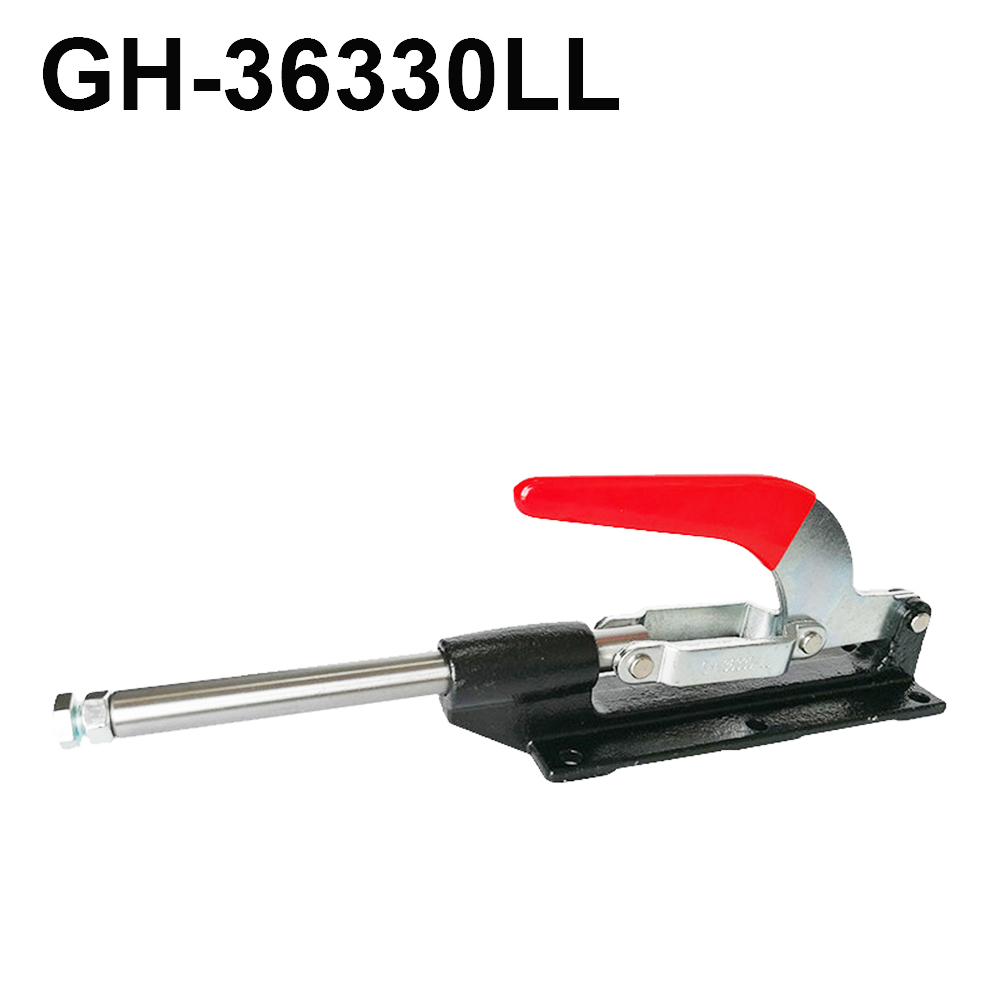

GH-36330LL (Strut lengthening)	680kg	Iron - Cast Steel Black Base	120mm	2744g	/	365mm	84°	85°

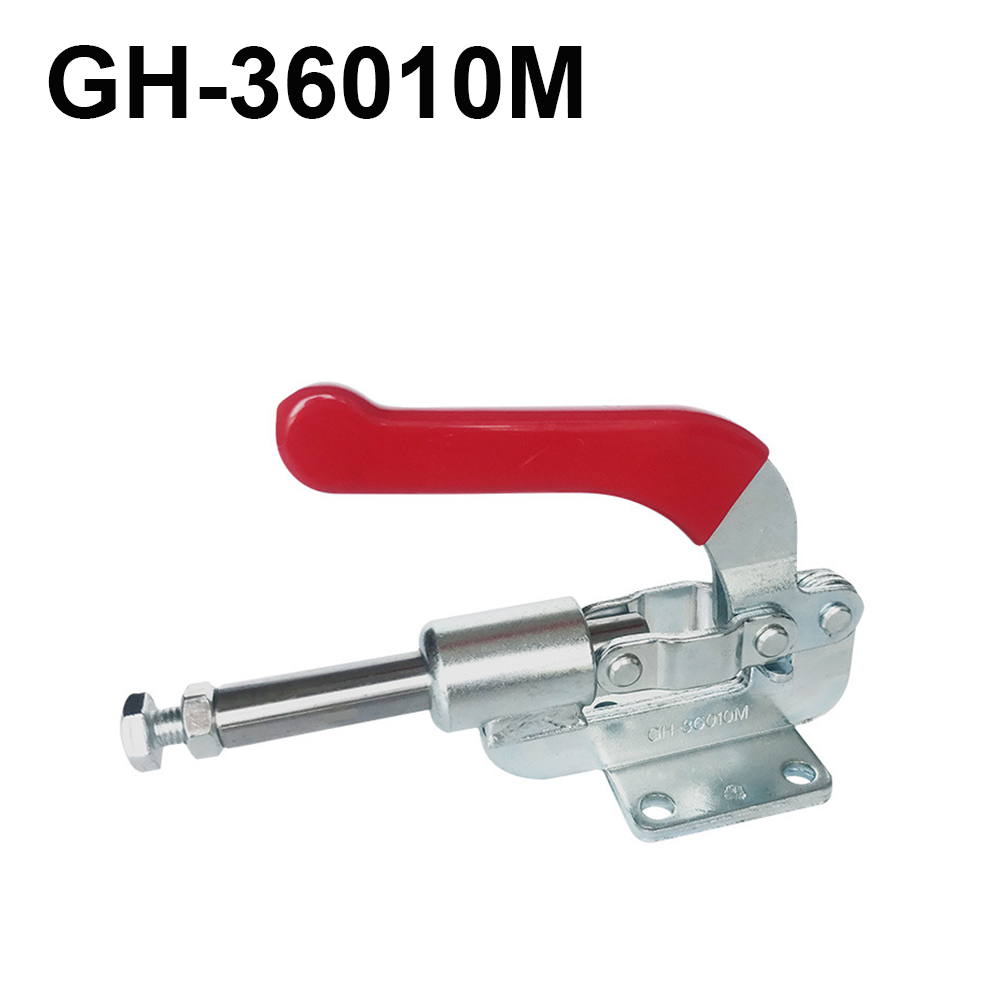

GH-36010M	364kg	Iron	40.9mm	800g	/	207mm	/	180°

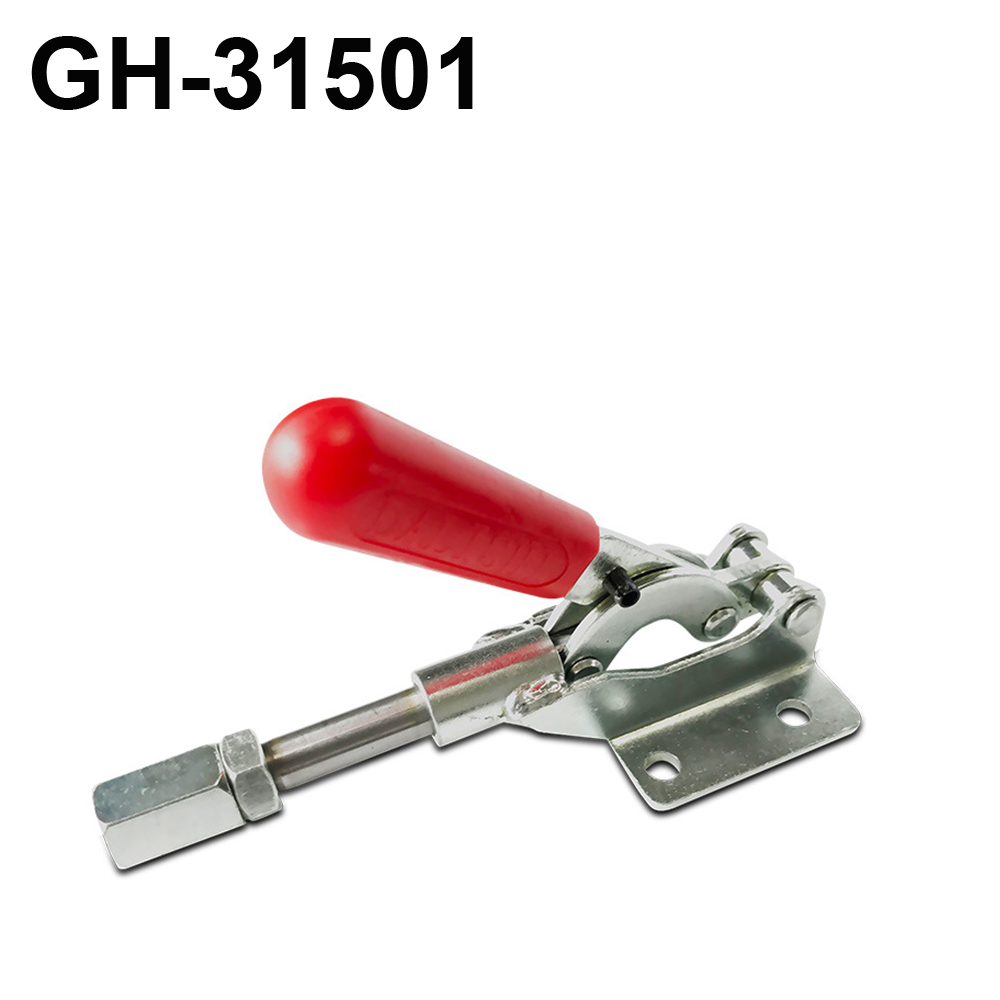

GH-31501	200kg	Iron	30mm	380g	/	151mm	84°	85°

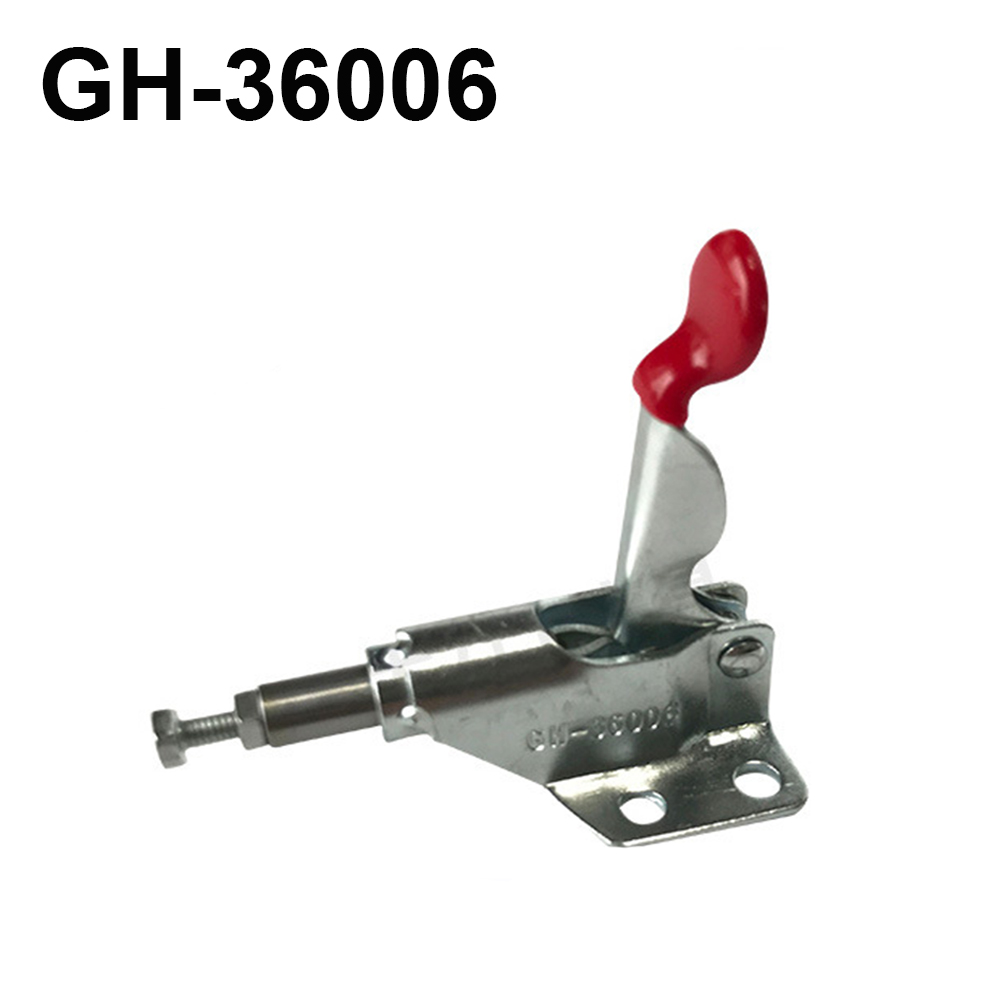

GH-36006	50kg	Iron	13mm	58g	65.8mm	76mm	84°	85°
GH-36020	180kg	Iron	30mm	335g	120mm	131mm	84°	85°

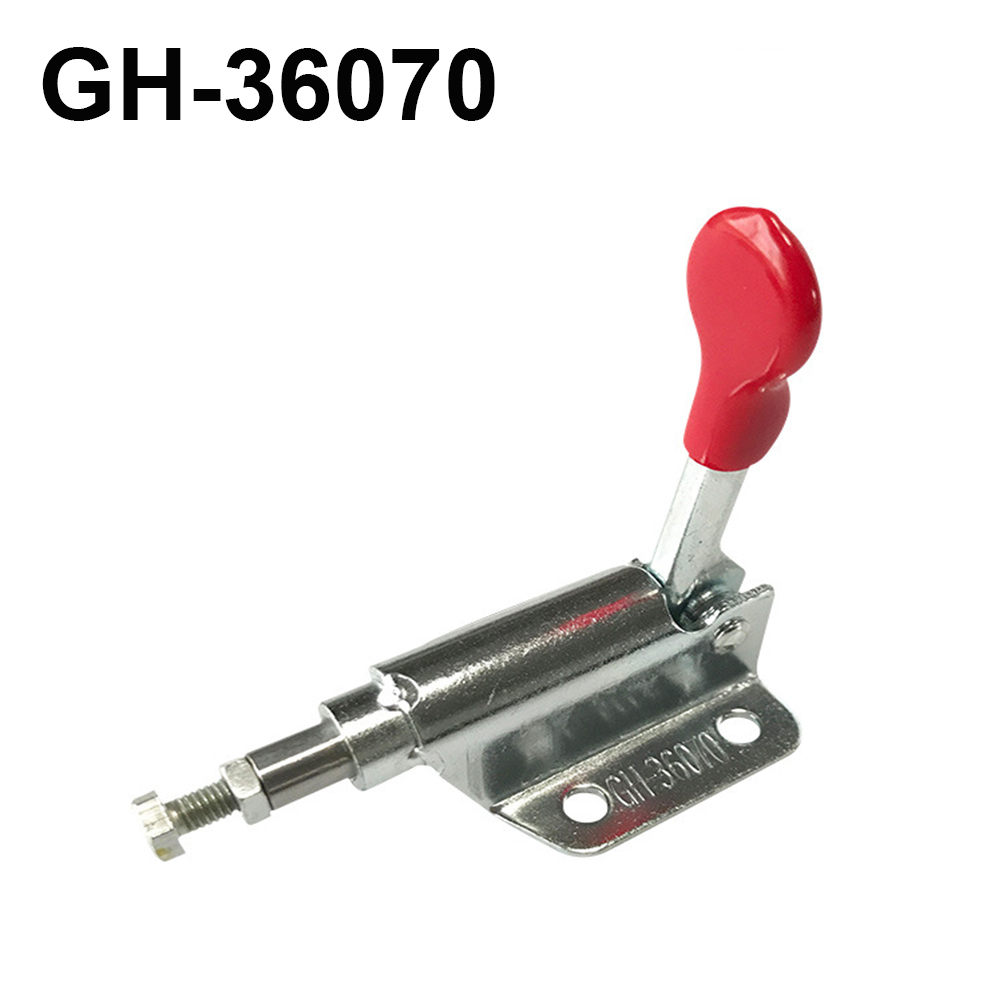

GH-36070	50kg	Iron	10mm	97g	74mm	85mm	84°	85°

Package Content:

1 * Push-pull Quick Clamp
