30W JPT Fiber Laser Engraving Marking Machine Metal Steel Jewelry Gold for Business Card Engraver



Package include:

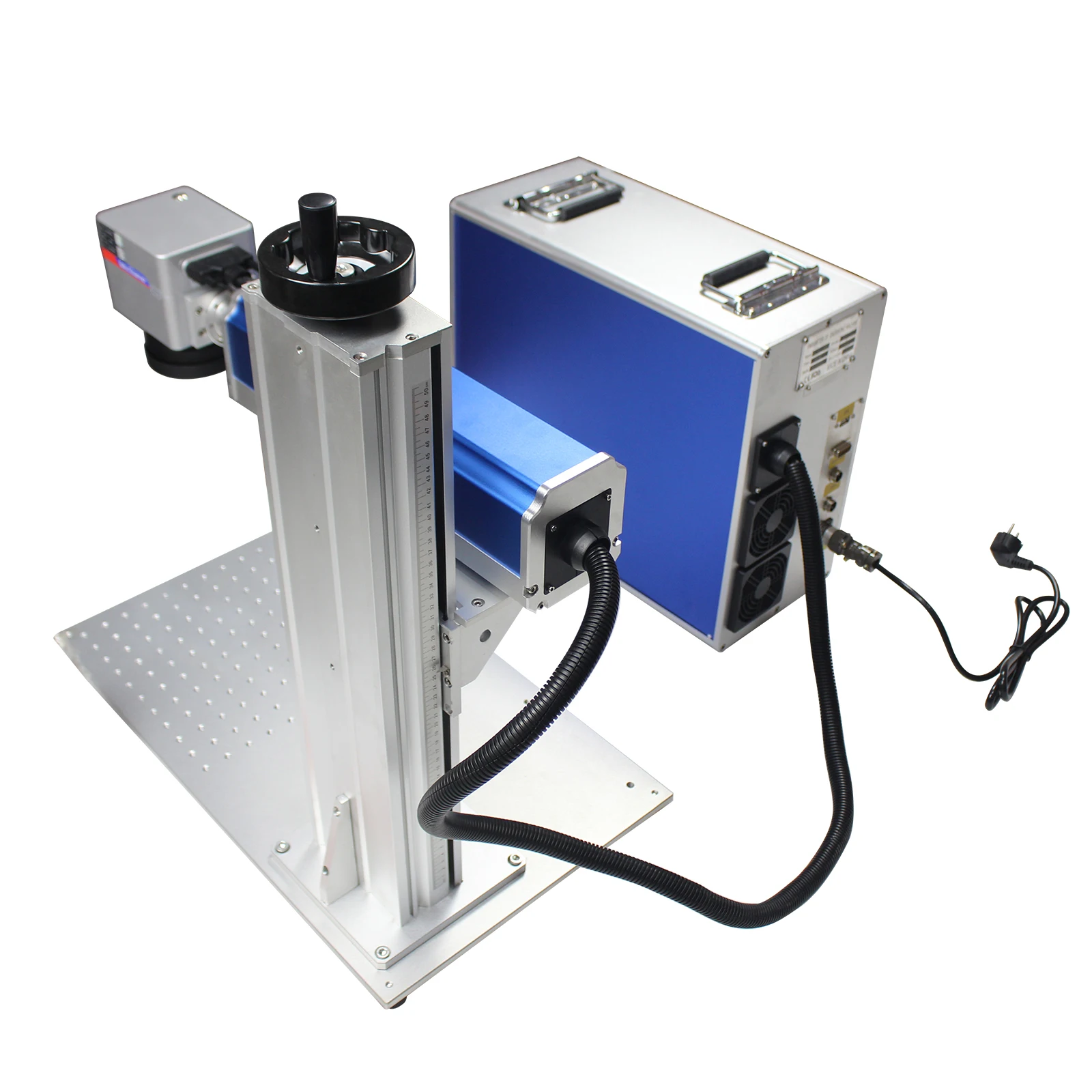

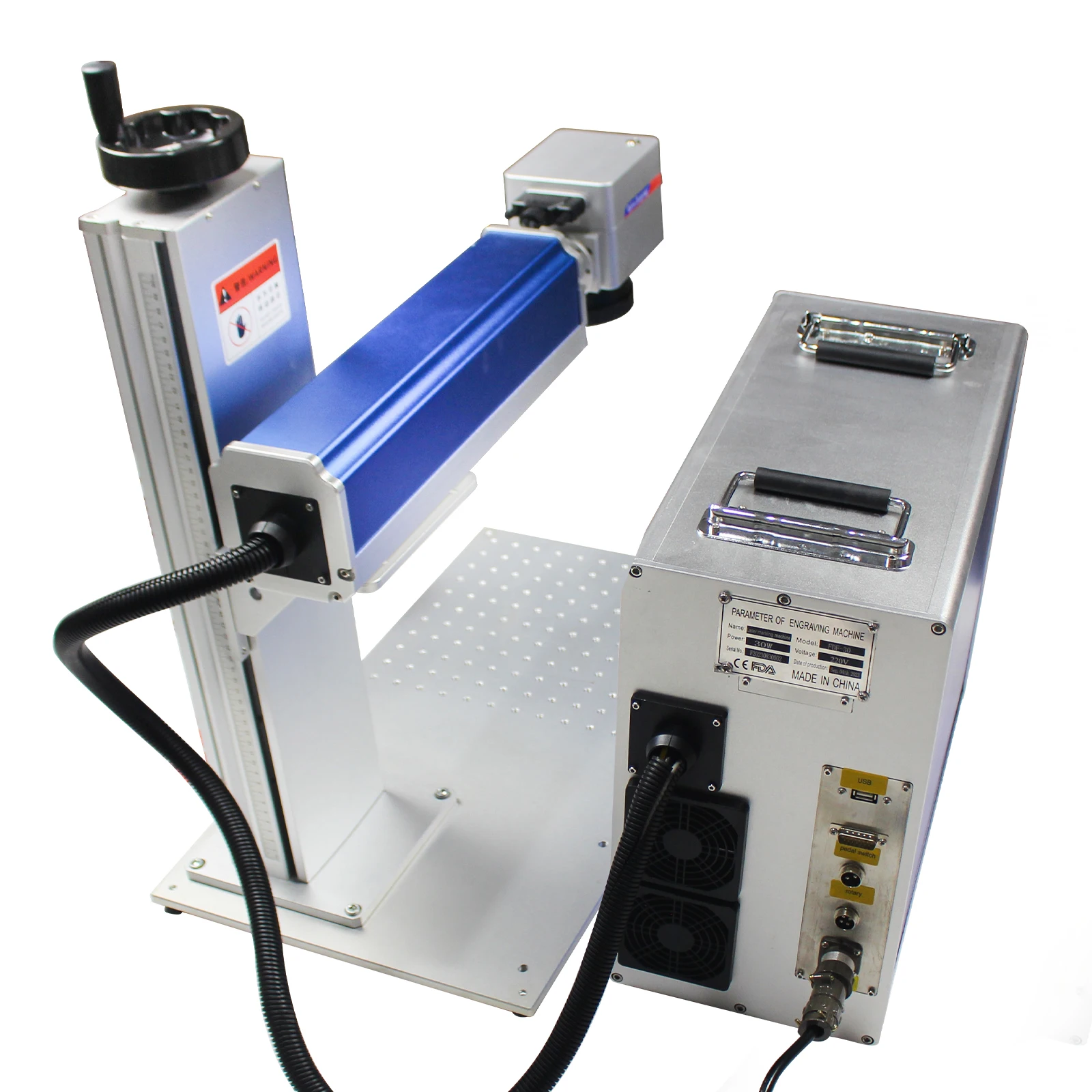

1 Set JPT LP 30W Fiber Laser Marking Machine(Split Type)

1 Set Rotary Axis (Optional)

1 Pieces Filed lens (150*150mm or optioanl)

1 Pcs U Disk (USB)
1 Pcs Data Line
1 Software Ezcad2
1 Set Foot Switch
1 Set Assembly Tools
4 pcs Fixed Sheet Metal
1 Set Power Cable
10 Pcs Metal Card


Tips: If you want to use the rotation, then we suggest you choose the lens not bigger than 200*200mm, or it will cause the focal length is not enough.



How to choose lens

With Same Lens , The Higher Power , more precise marking.
With Same Power, The Smaller Lens, more precise marking.
Bigger Lens Engrave Bigger Area.
Smaller Lens more precise marking.


if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,200mm*200mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200mm*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300mm*300mm

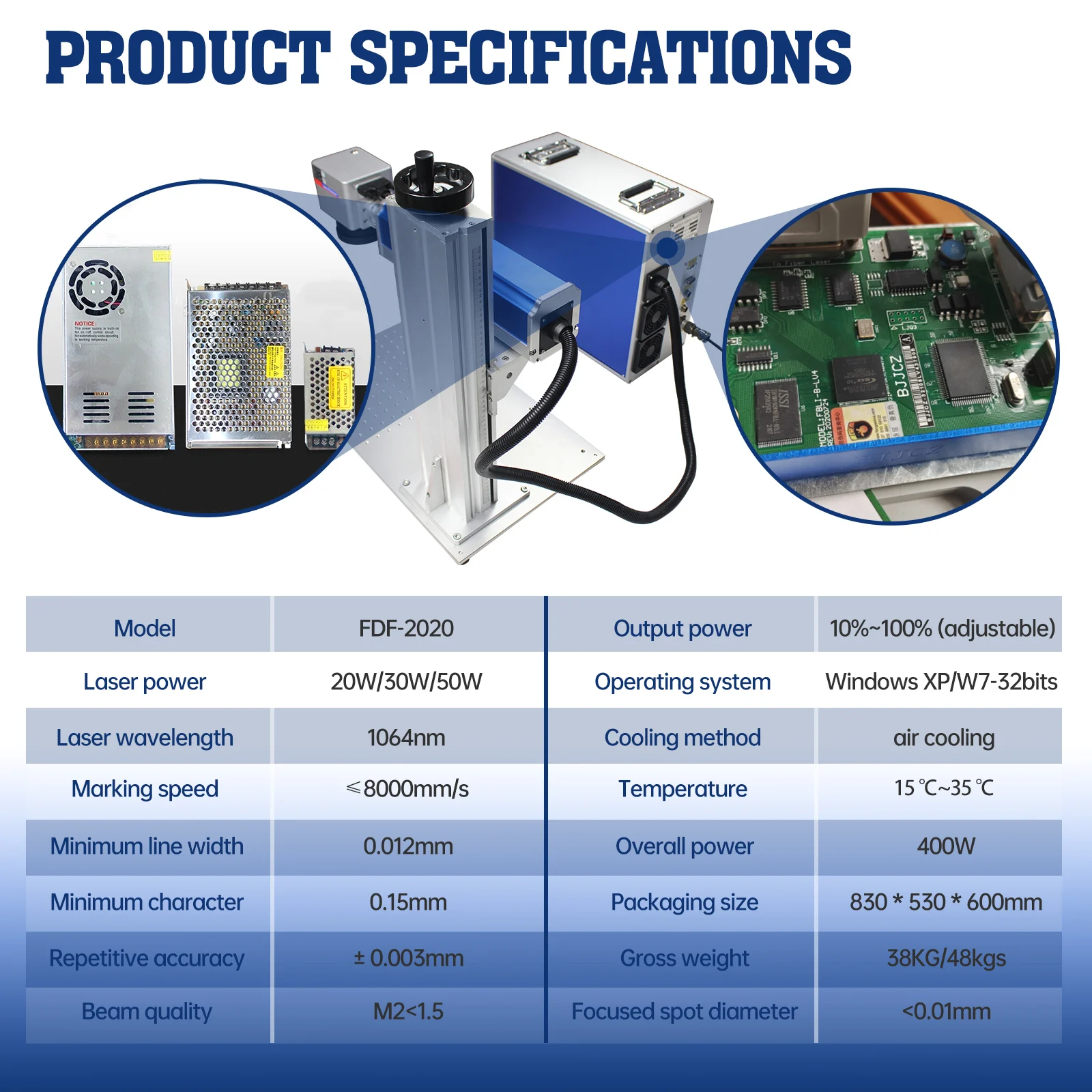

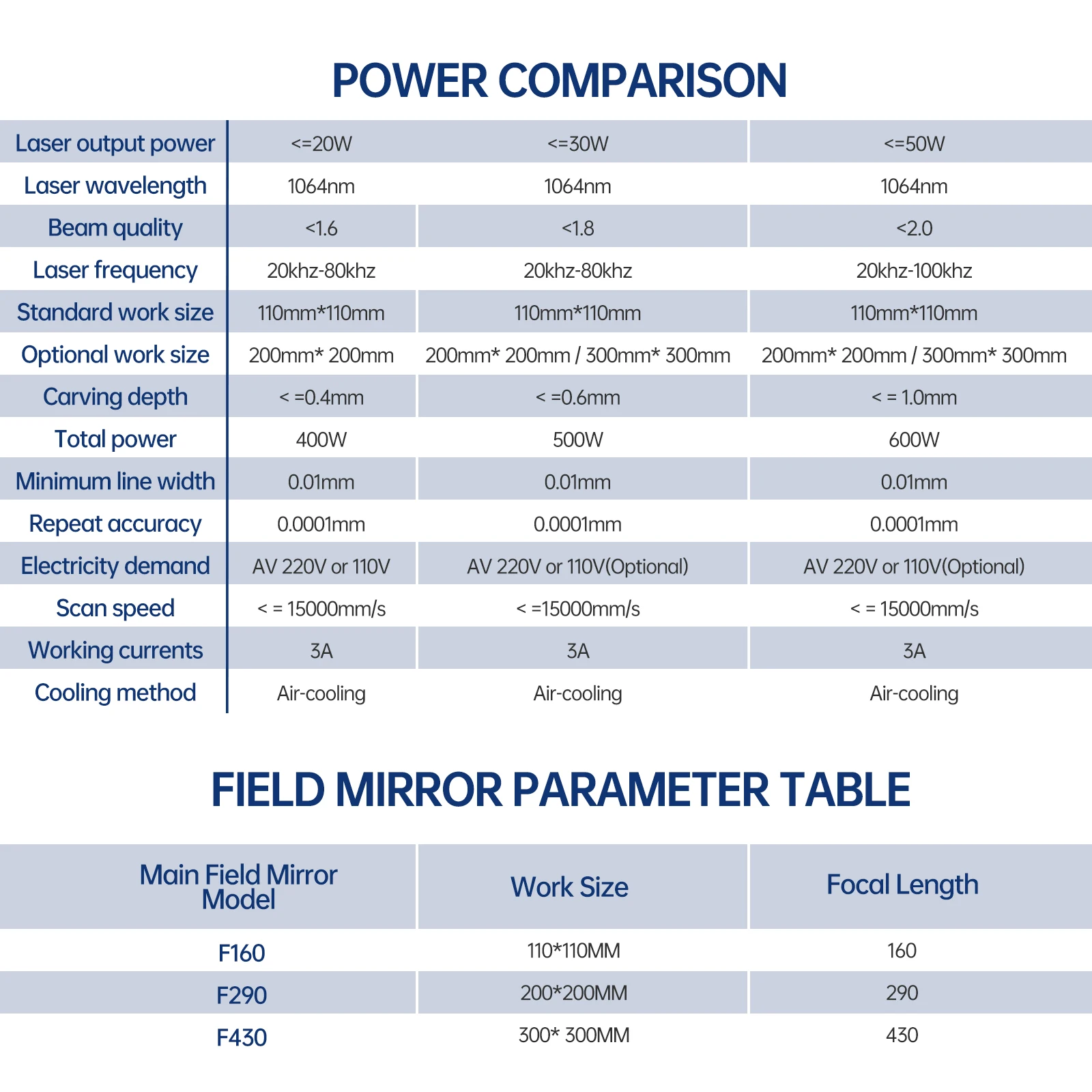

Technical Parameter


Model


Laser power

20W/30W/50W/60W Raycus /MAX/JPT (optional)



Field Mirror(Work Area)

150*150mm( 50*50mm / 70*70mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm
Optional. Support extra purchase.）

Cooling Mode

Air Cooling

Laser Wavelength


RAYCUS/MAX is 10.64 um

JPT is 1064 um

Frequency of pulse

RAYCUS/MAX is 20-100 KHz

JPT LP is 1-600KHZ

JPT M7 is 1-4000KHZ

Marking Depth

≤0.3 mm

Marking Speed


≤4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date, bar code, etc

Operation System

Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

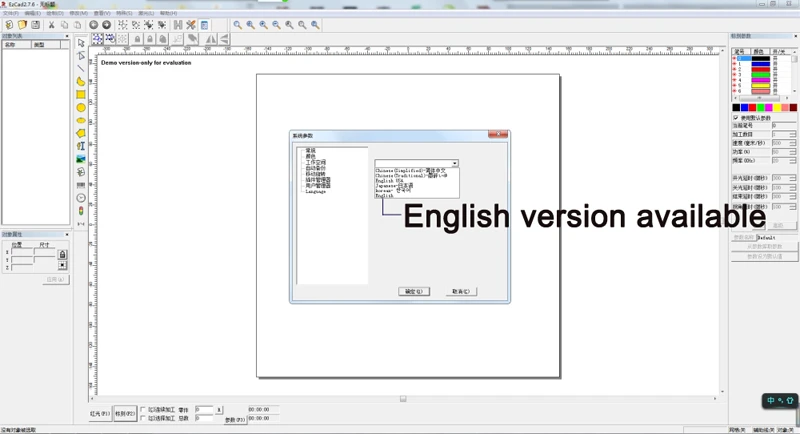

Control Software

EZCAD ENGLISH Control Software

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

≤0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

≤ 90%, no fog

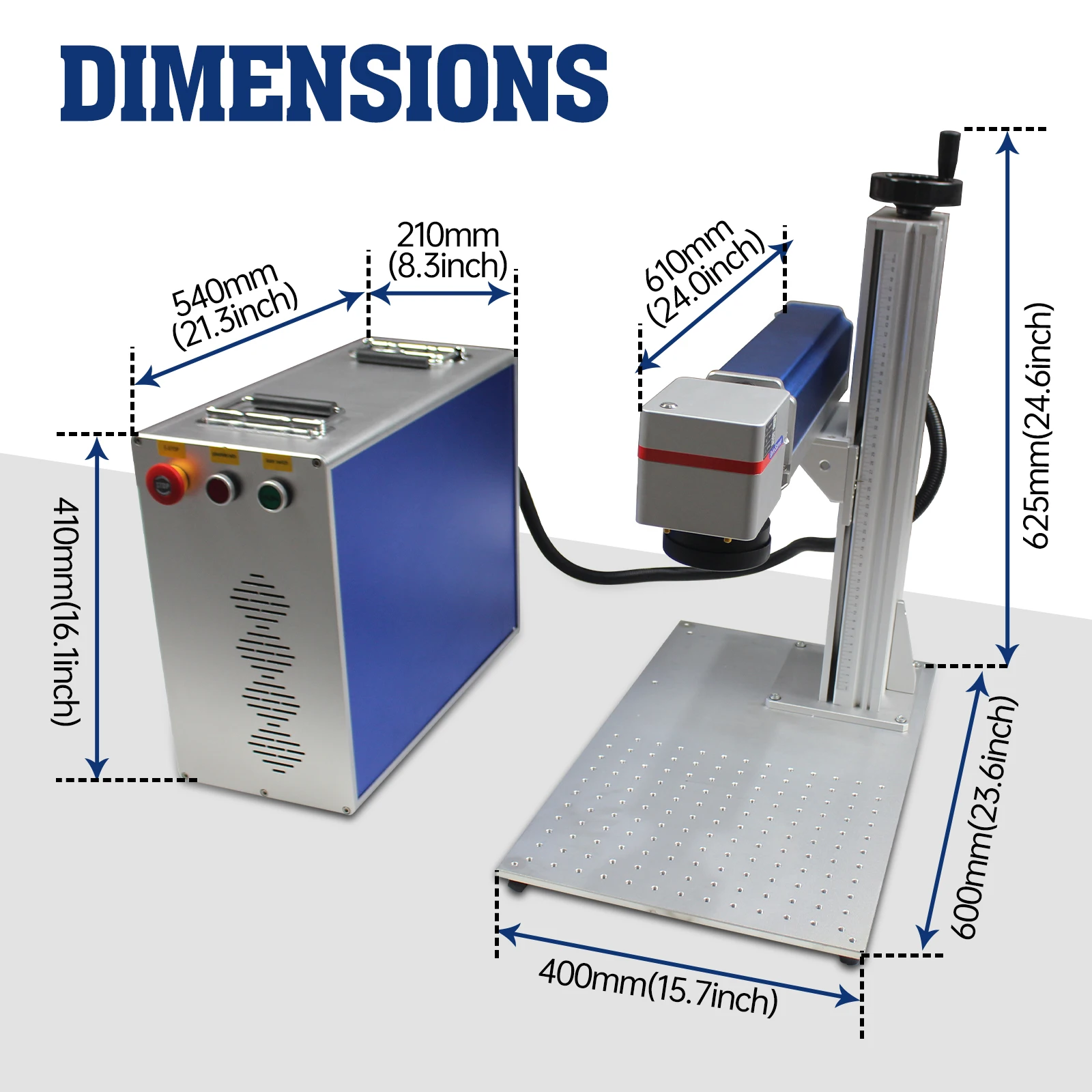

Dimensions(L*W*H)

95 x 78 x 55 cm

Power supply requirements

  220 V or 110V

Weight

  40KG

Warranty

24 months



The motherboard supports win10 and supports 32-bit 64-bit.


1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,


2: Machine configuration:

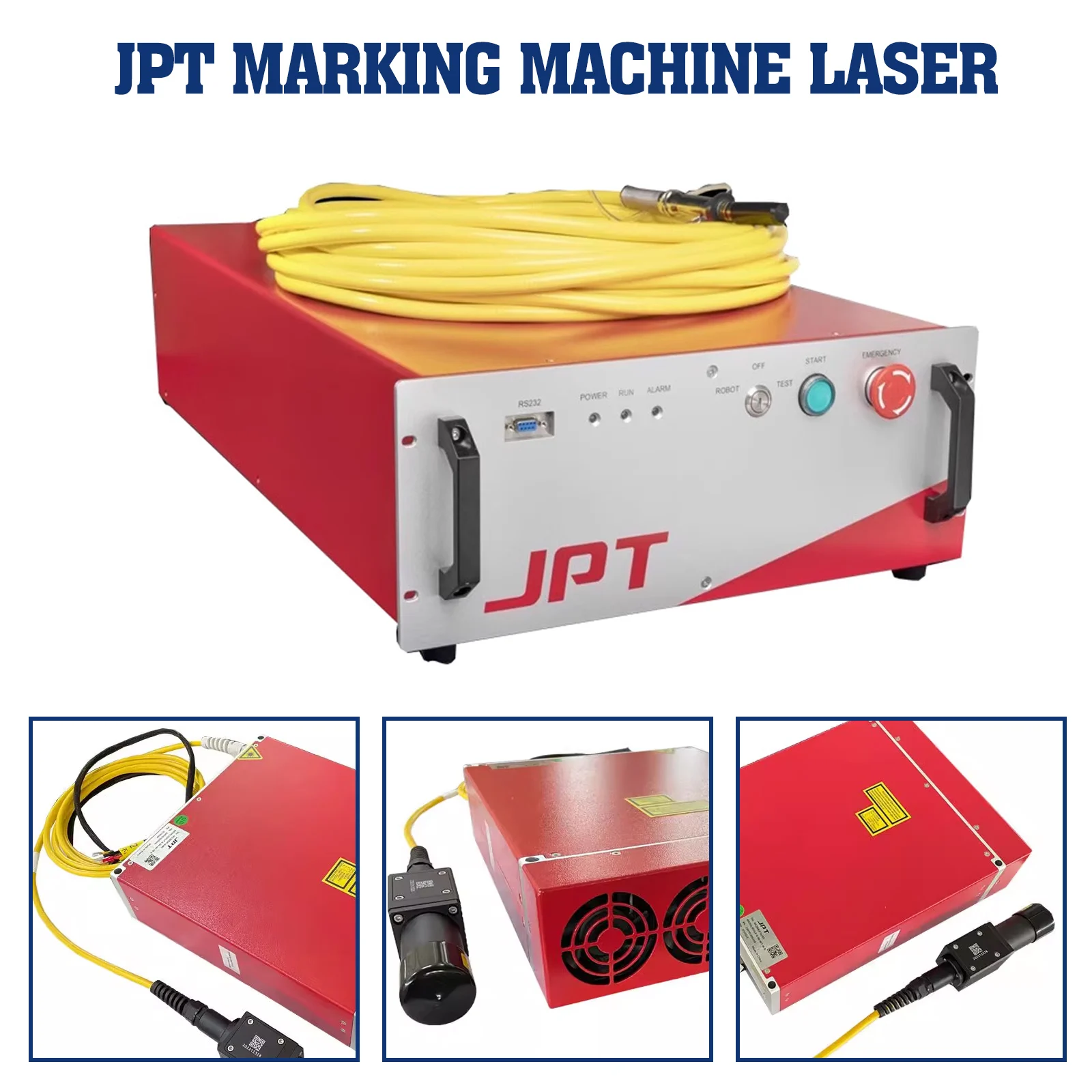

A;Fiber Laser brand: Raycus/MAX/JPT

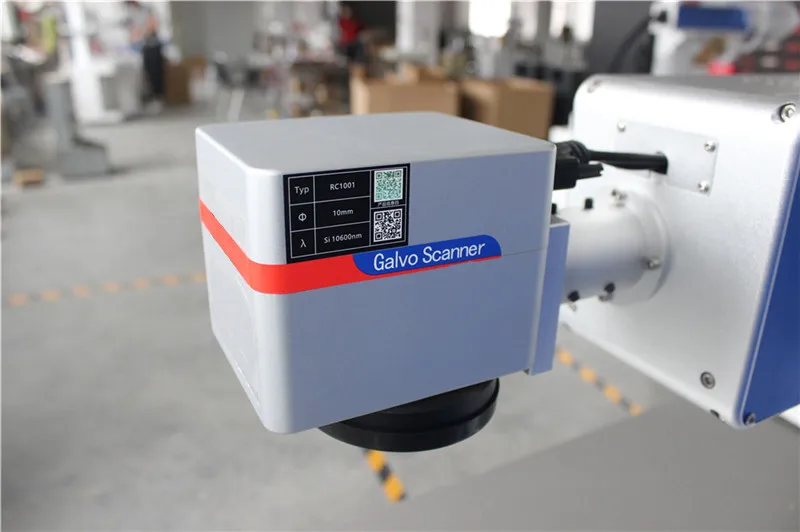

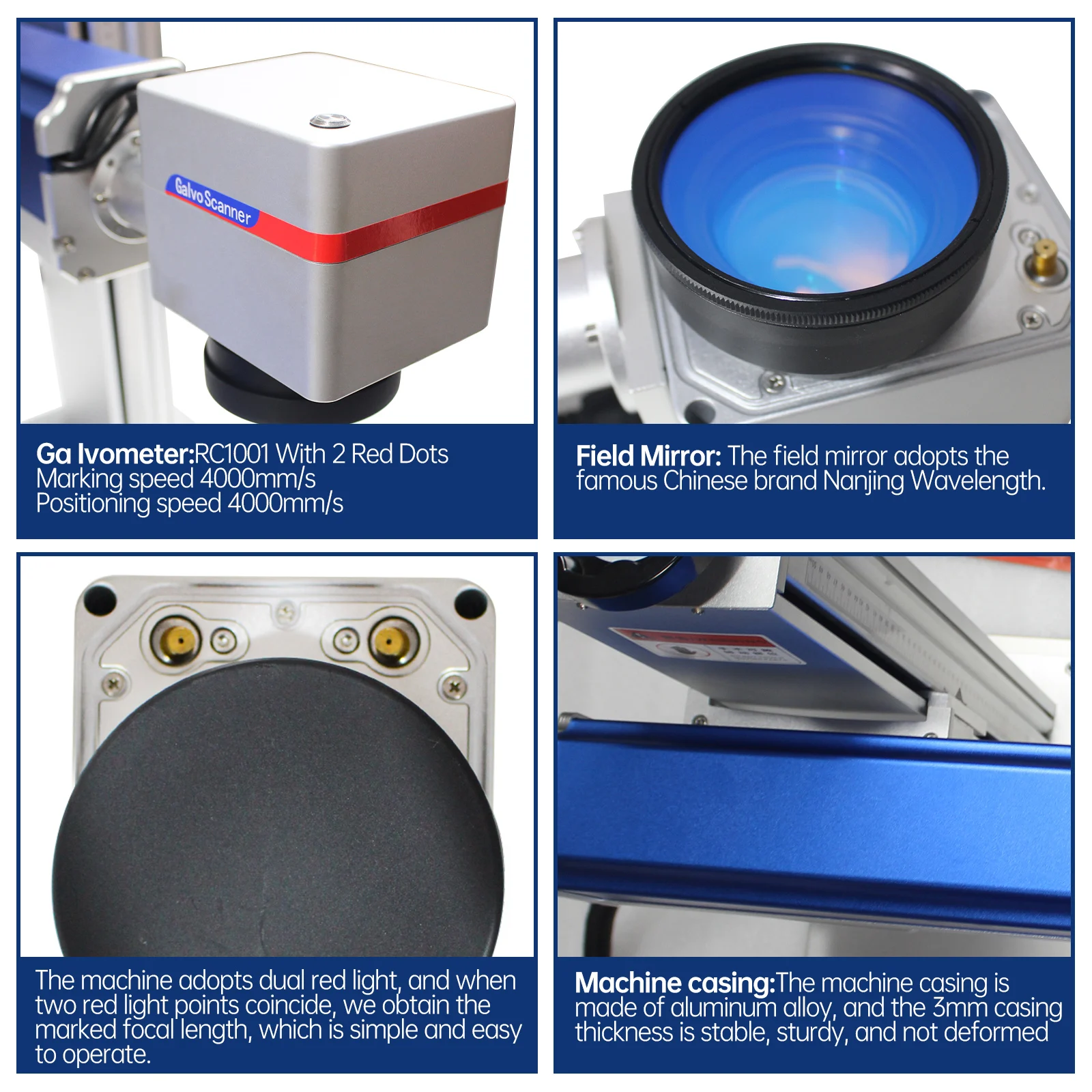

B; SINO-GALVO RC1001 galvanometer with Red dotsassistant focusing align.

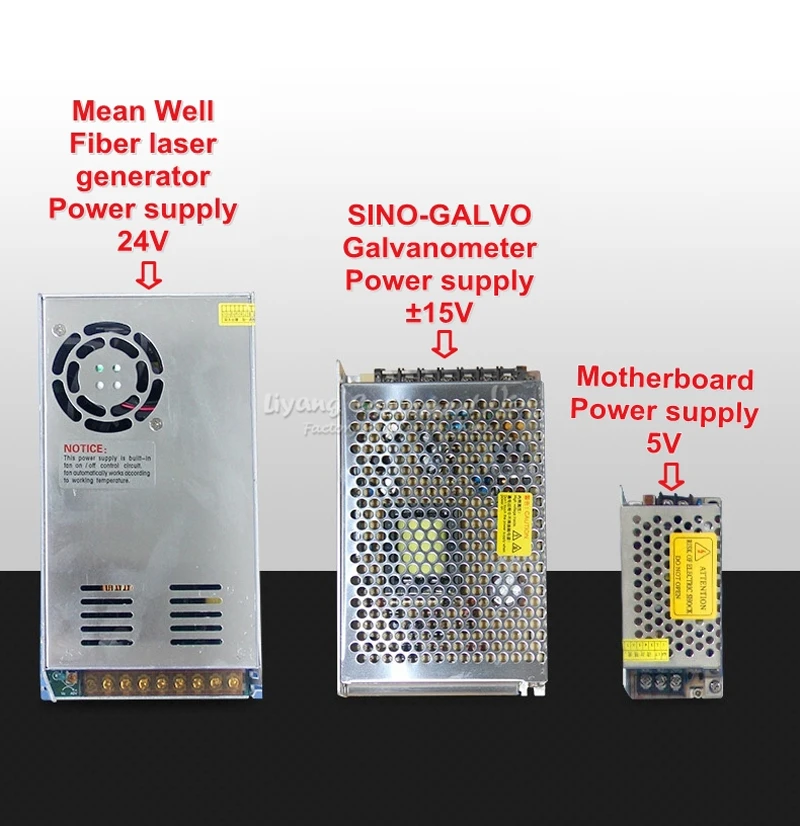

C; Taiwan Meanwell (MW) power supply,

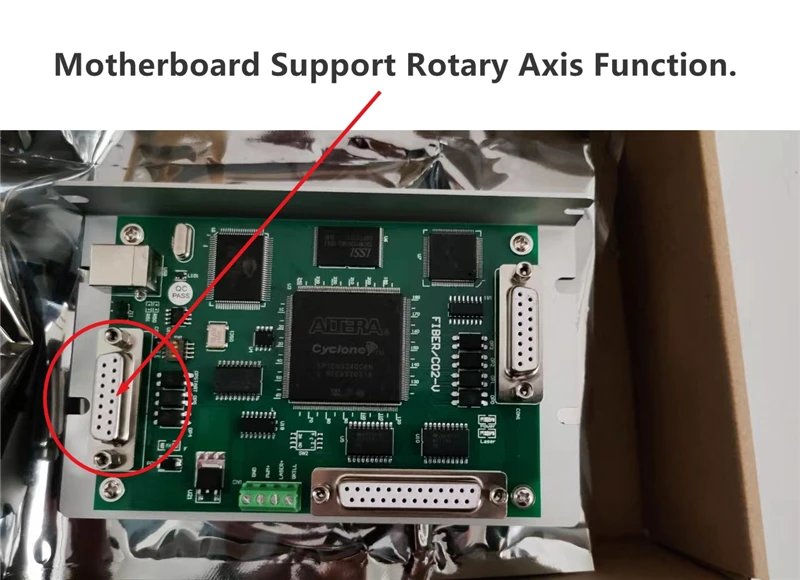

D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

E:Rotary axis (Optional)


3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.

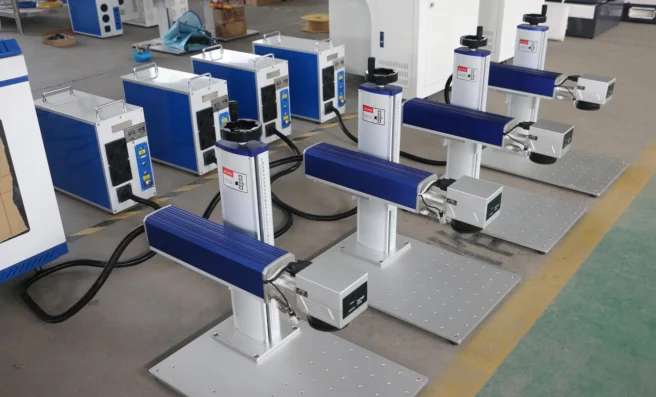

Factory Display:
