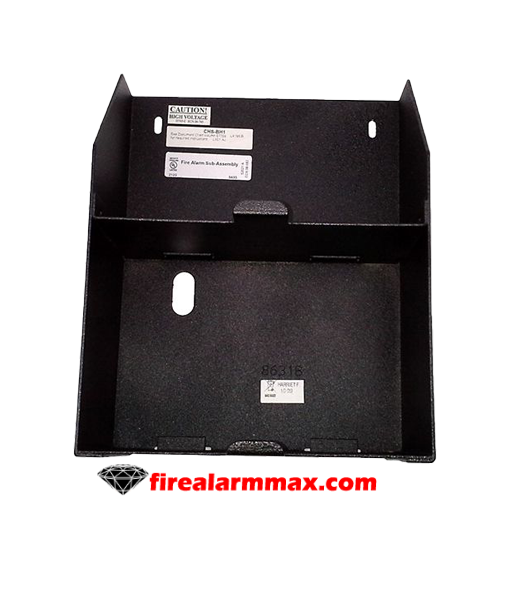

The Notifier CHS-BH1 Battery chassis. Holds two 12.0 AH batteries. For use with DAA2 Series Digital Audio Amplifiers. Mounts on the left side of the DAA2 cabinet.

The DAA2 arrives from the factory already installed on its chassis.
The DAA2 mounts in one row of any EQ or CAB-4 Series cabinet:
The CAB-4 row can b e covered using a DP- 1B dress panel, ordered separately.
One or two fiber option modules will plug directly into a DAA2 for simple installation. A BDA backup amplifier mounts directly onto a DAA2.
Batteries for the DAA2 may b e installed in any of the follo wing configurations:
In a CHS-BH1 optional battery chassis. The CHS-BH1 battery chassis will hold two 12.0 AH batteries. And mounts on the left side of the DAA2 chassis. That the DAA2 and batteries a re contained in a single cabinet tier. (This option is not available in DAA2 amplifiers with a DCADC Class A expander).
In the battery row (bottom) of the CAB-4 Series cabinet, or the bottom row of an EQ Series cabinet.
In a cabinet adjacent to the cabinet that holds the DAA2, with connections in conduit. External battery charging i s supported.
