0.2-2% Water Driven Proportional Fertilizer Dosing Injector Poultry Water Drinking System Automatic Doser Fertilizer Applicator
| Product name | Automatic Liquid Doser Pump |
| Theory | Mixed Flow Pump, Proportional pump |
| Working principle | Axial Flow Pump |
| Proportional range | 0.2-2% |
| Working water pressure | 0.34-6.2bar |
| Flow-rate range | 10-2500L/H |
| Water flow temperature: | 4-35℃ |
| water inlet/ outlet diameter | 32mm/25mm |
| continous working | >100T |
| Application | Irrigation and Agriculture, mixing liquid, Chicken Drinking System doser |
Working Principle of Automatic Liquid Doser Pump :

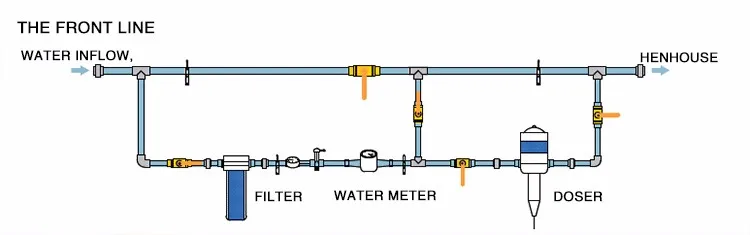

Doser is installed in livestock farms water system. The doser will work when the animal drinks water. When water flows through the doser, the main piston is drived. The injection piston connected with main piston moves up and down following it. Then the drug would be suctioned into mixing chamber. The mixture would be filled directly into the outlet end of the pipe.
Application of Water-driven Automatic Liquid Doser Pump :
Livestock farming: Automatic dispensing by ratio into drinking water
Gardening: No power automatic watering fertilizer
Fertilizer and irrigation: without power, automatic irrigation fertilizer ingredients by Volume
Environmental protection and water treatment: water-powered, automatic chemical dosing and dilution mixing by proportional ratio
Advantages of Water-driven Automatic Liquid Doser Pump
1.Do not rely on electricity but on hydraulic drive, adding a concentrated dose accurately.
2.Dilution variety of liquid and water-soluble materials easy to operate, easy to maintain;
3.Easy to adjust and Carry; separable external regulator; changing ratio.

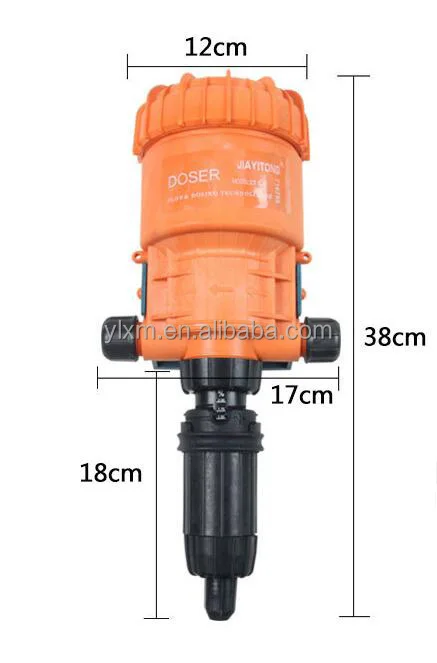

Product Structure of Water-driven Automatic Liquid Doser Pump
0.4-4% doser pump
