Details

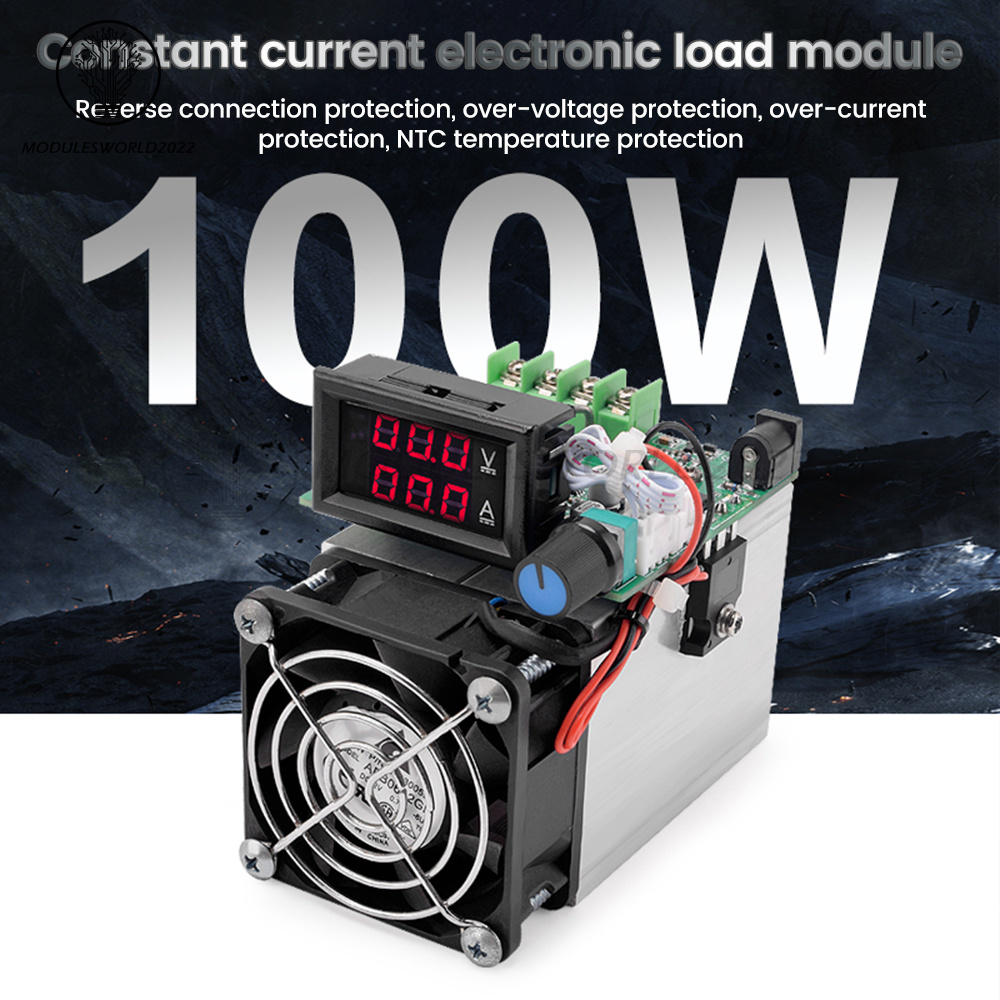

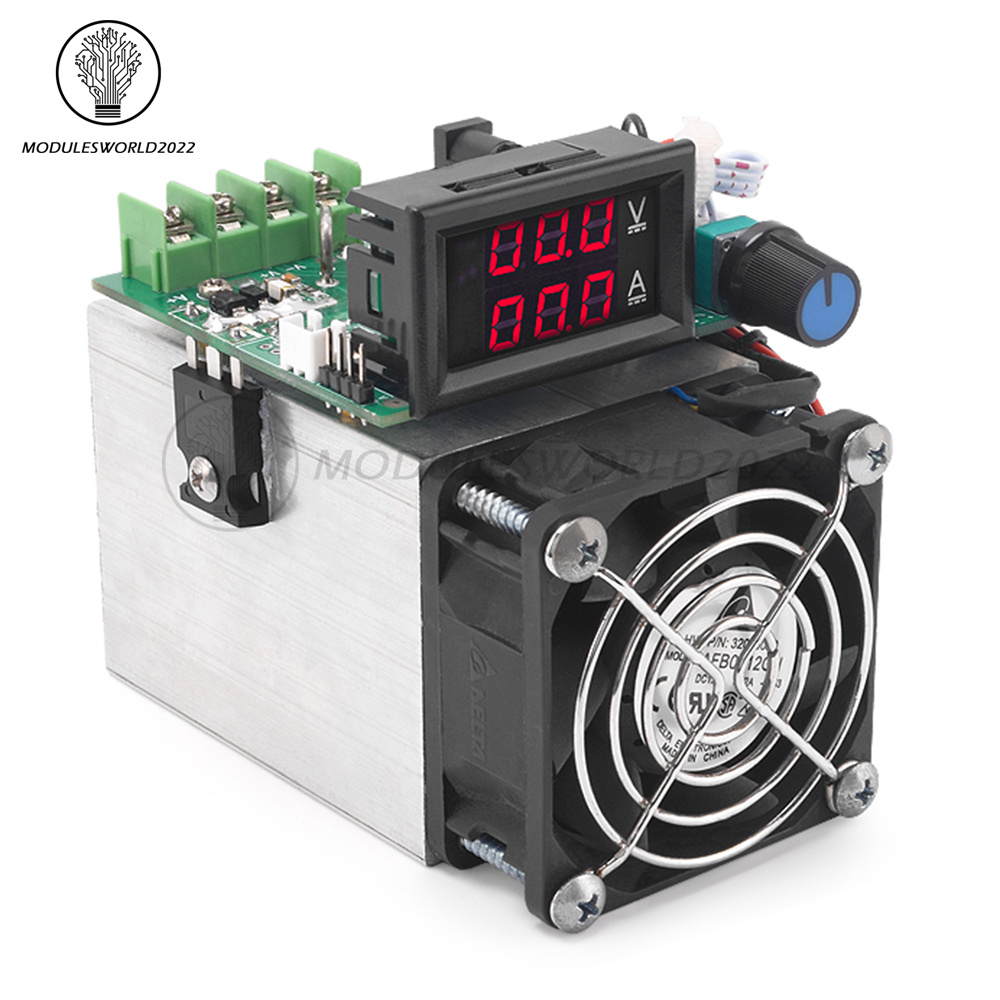

Features:
1. Original IR power tube, classic digital tube display, intuitive and durable (relatively more resistant to high temperature than LCD).

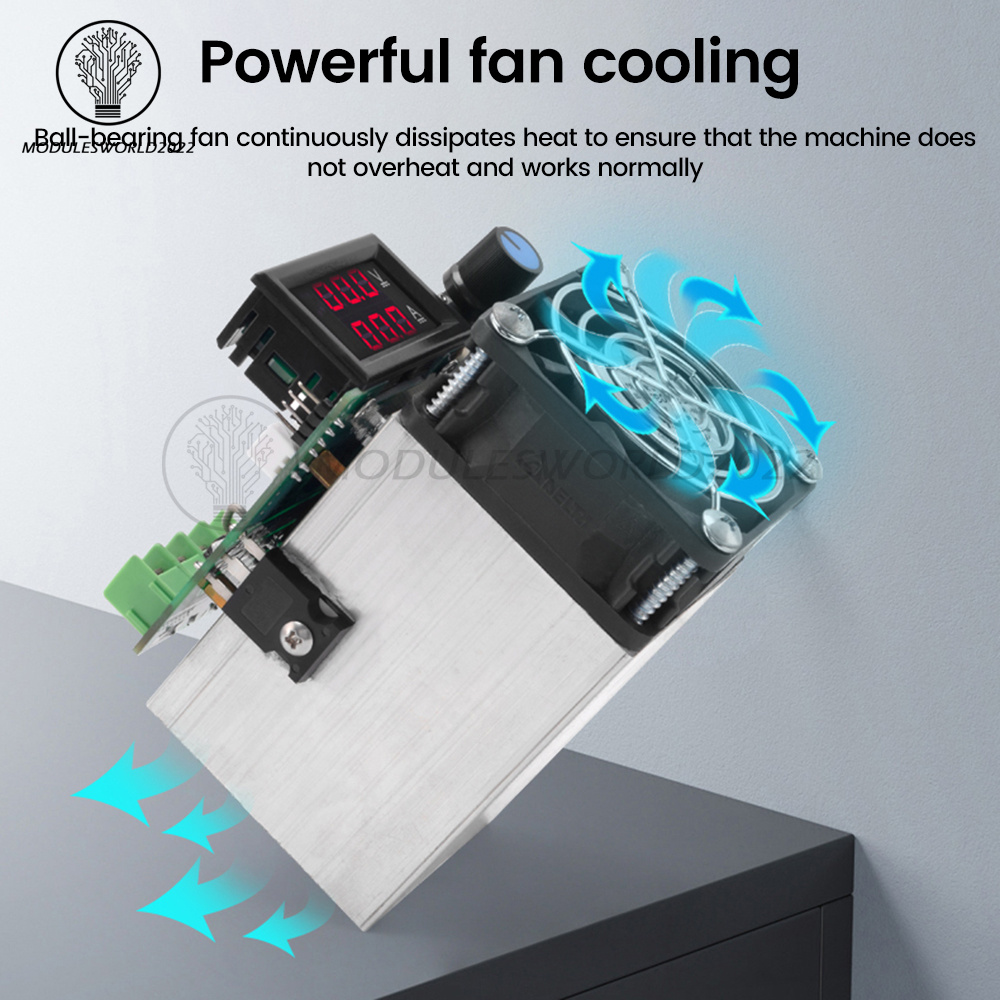

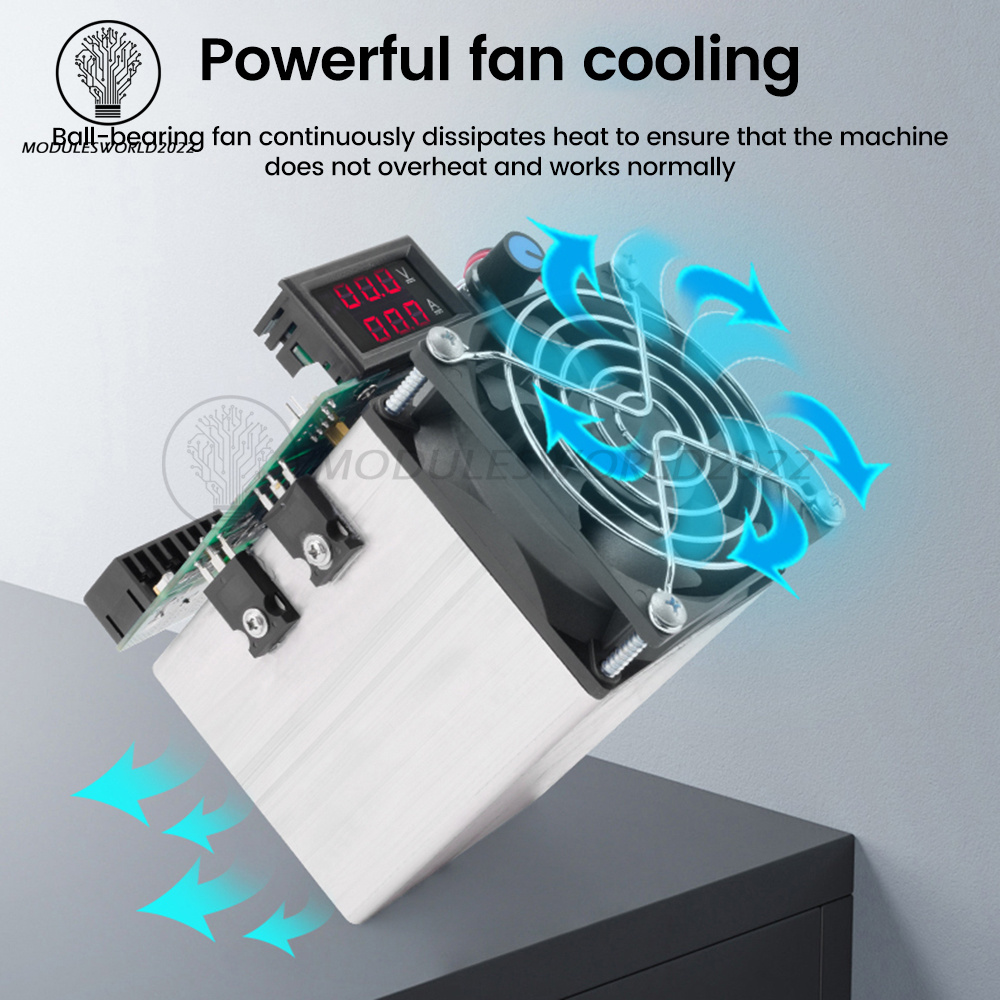

2. Strong fan cooling: double NMB ball bearing fan continuous cooling work, to ensure that the machine does not overheat normal work.
3. Reverse connection protection: with reverse connection protection, even if the wire is connected in reverse will not be damaged.
4. With temperature control infinitely variable speed function, with industrial large tooth radiator, can ensure the long run stability.
5.100% power aging factory, with over-voltage protection, over-current protection, NTC temperature protection and other functions.
6. Wide range of applications: very suitable for assembling power adapter automatic aging cabinet.

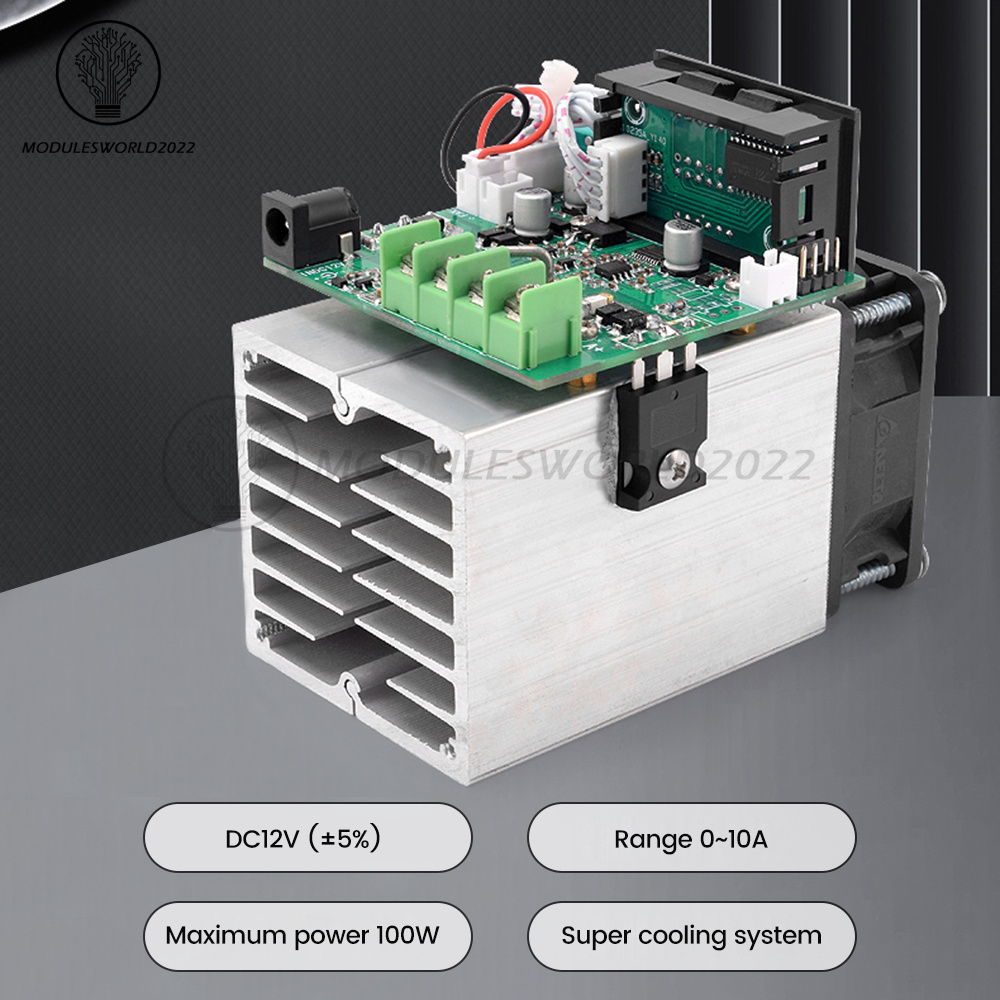

Parameter:
Current range: 0~10A
Supply voltage: DC 12V (±5%)
Maximum voltage: 60V
Maximum power: 100W
Over-temperature protection: 80℃
Overcurrent protection: 10A
Maximum error of discharge current: 2%
Maximum error of capacity test: 0.5A 2.5%, 2A 1.5%, more than 5A 1.2
Operating mode: single mode constant current (CC)

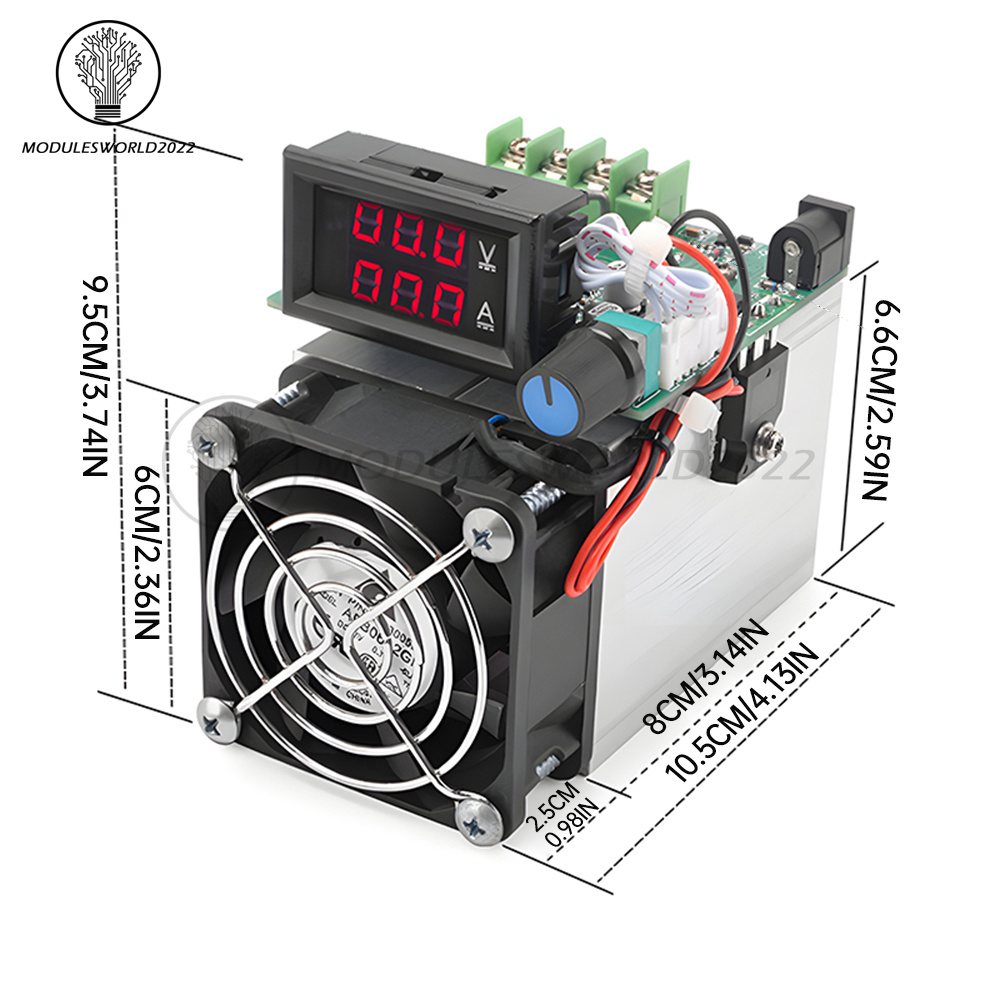

Body size: 10.5*9.5*6.6cm

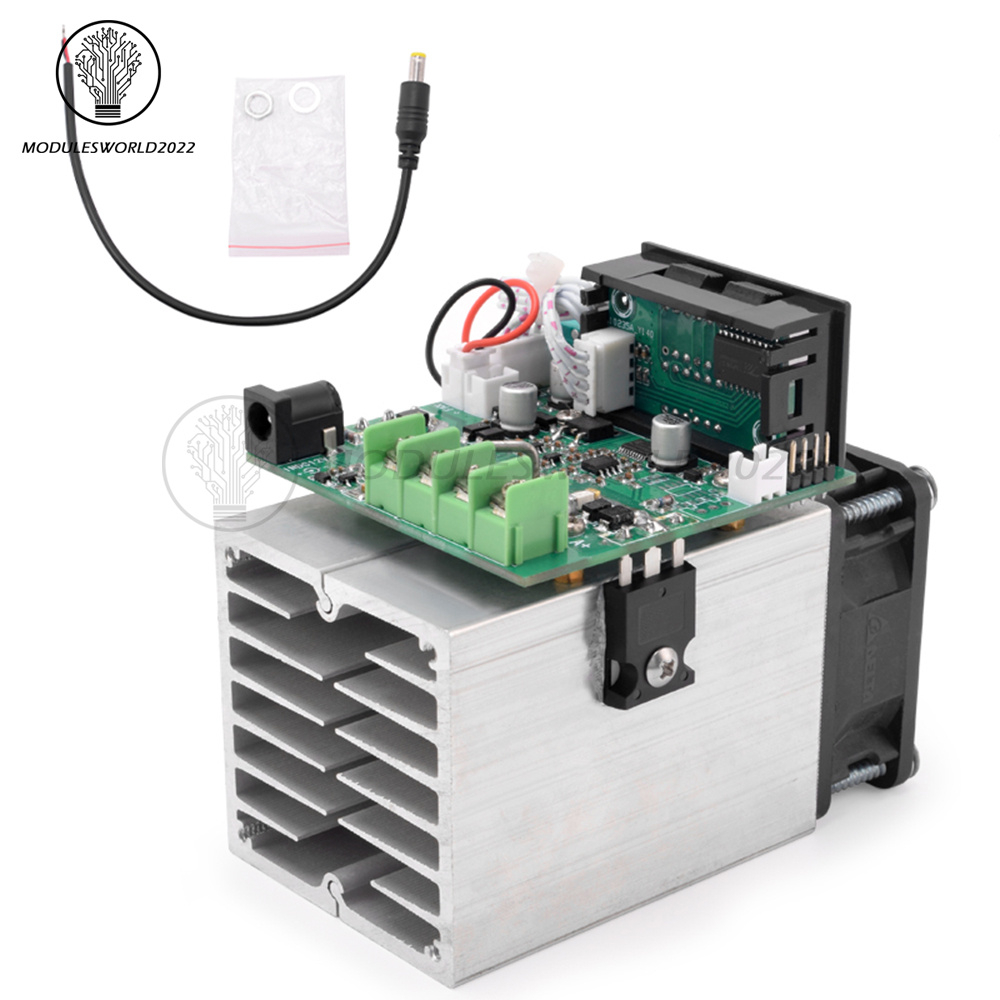

Package include:
Electronic load x1
Power cord x1
Gasket x1

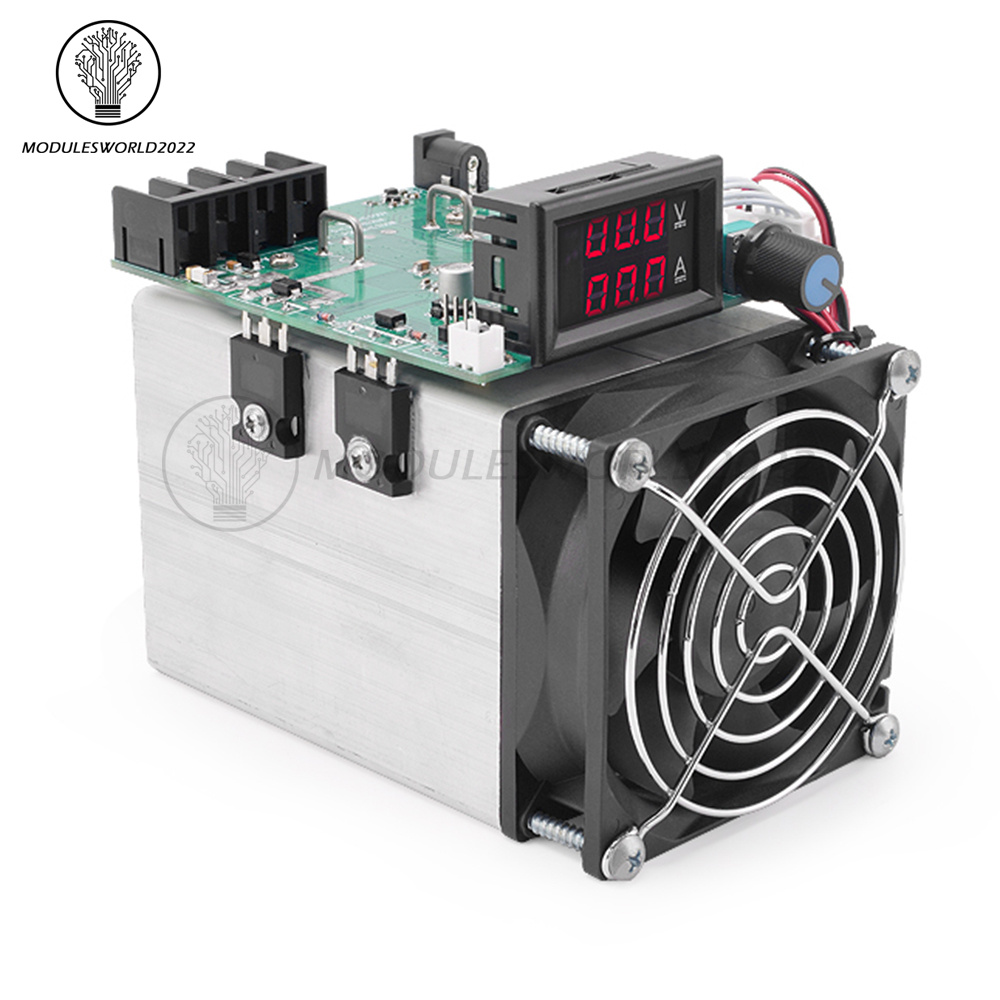

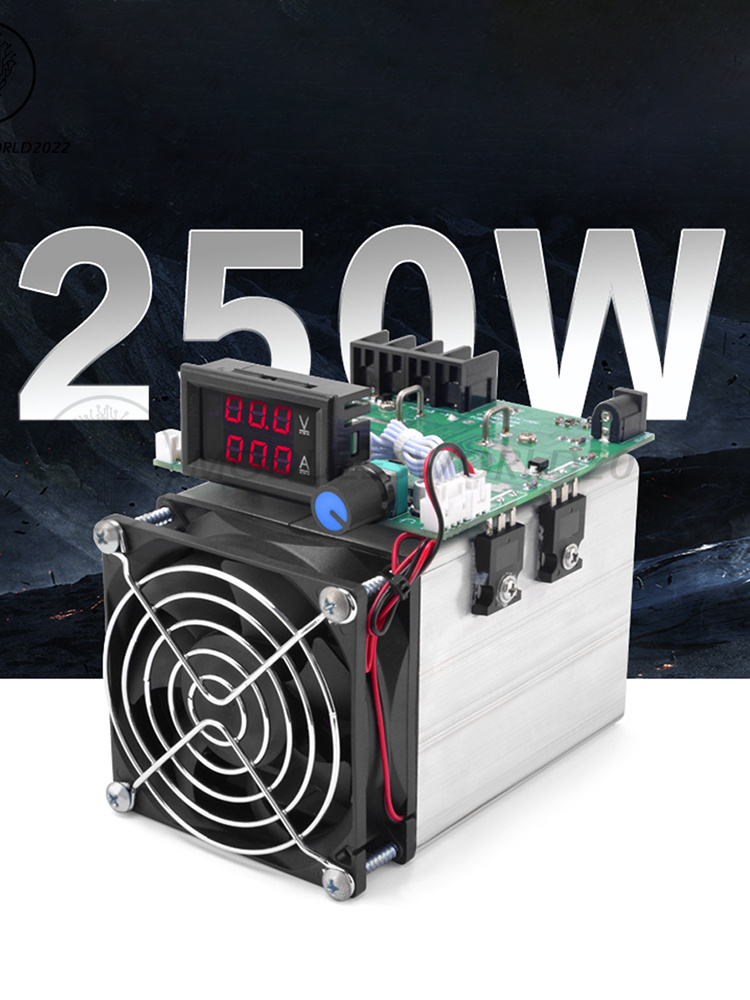

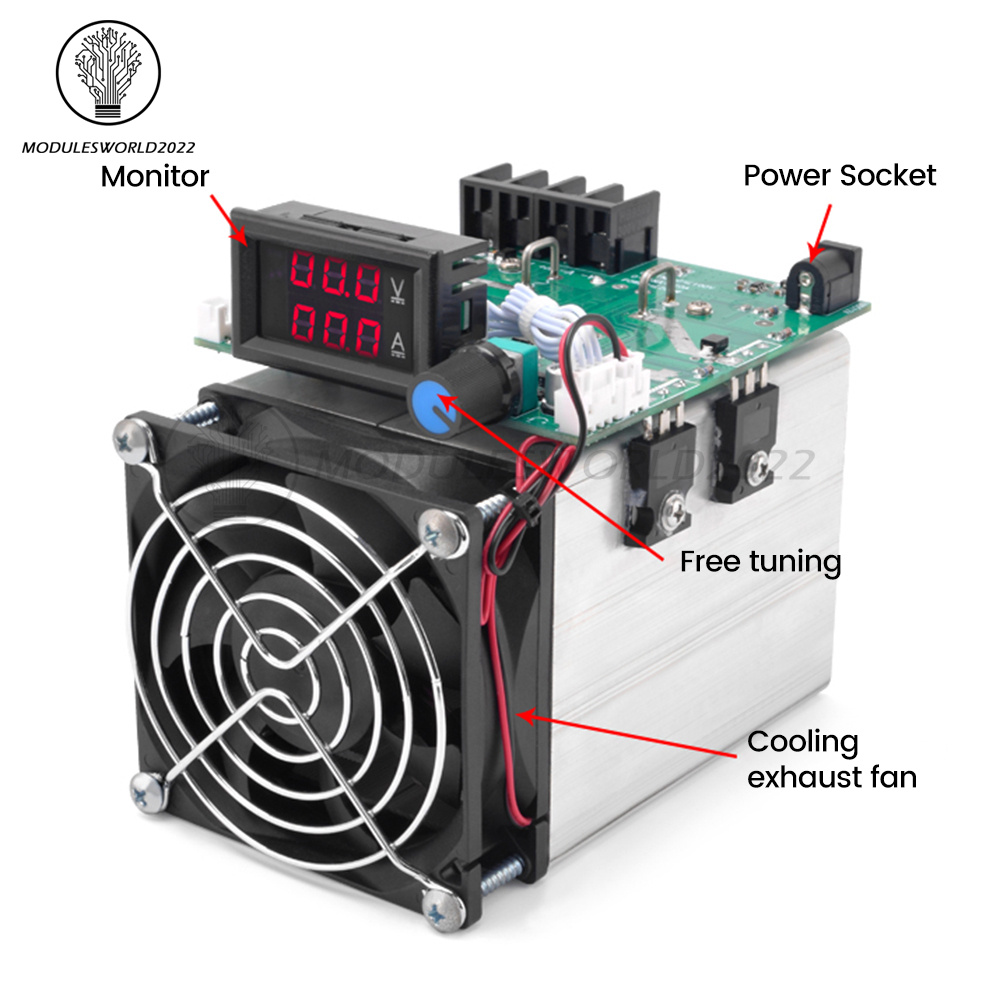

DC12V 250W 20A
Features:
1. Original IR power tube, classic digital tube display, intuitive and durable (relatively more resistant to high temperature than LCD).
2. Strong fan cooling: double NMB ball bearing fan continuous cooling work, to ensure that the machine does not overheat normal work.
3. Reverse connection protection: with reverse connection protection, even if the wire is connected in reverse will not be damaged.
4. With temperature control infinitely variable speed function, with industrial large tooth radiator, can ensure the long run stability.
5.100% power aging factory, with over-voltage protection, over-current protection, NTC temperature protection and other functions.
6. Wide range of applications: very suitable for assembling power adapter automatic aging cabinet.
Parameter:
Current range: 0~20A
Supply voltage: DC 12V (±5%)
Maximum voltage: 100V
Maximum power: 250W
Over temperature protection: 80℃
Overcurrent protection: 20A
Maximum error of discharge current: 2%
Maximum error of capacity test: 0.5A 2.5%, 2A 1.5%, more than 5A 1.2
Operating mode: single mode constant current (CC)
Body size: 12.5*11.5*8cm
Package include:
Electronic load x1
Power cord x1
Gasket x1
