1.Features

SIZE	1.44 inch
Display Mode	a-TFT
Display Format	128RGB*128 dots matrix
Input Data	SPI interface
Drive IC	ST7735S
Dimensional outline	300(W)46.50(H)3.45+/-0.1(T)mm
Resolution	128RGB*128 Dots
LCD Active area	25.50 (W)*26.50 (H)
Pixel size	0.20(W)*0.20(H)mm
Viewing Direction	12 o’clock
Operating Temperature	-20～70°C

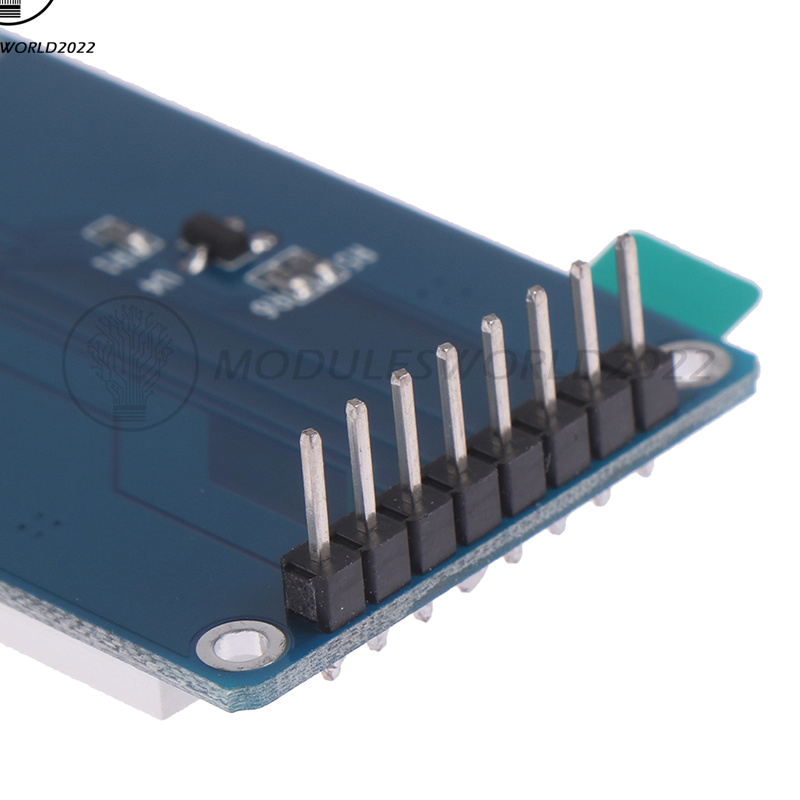

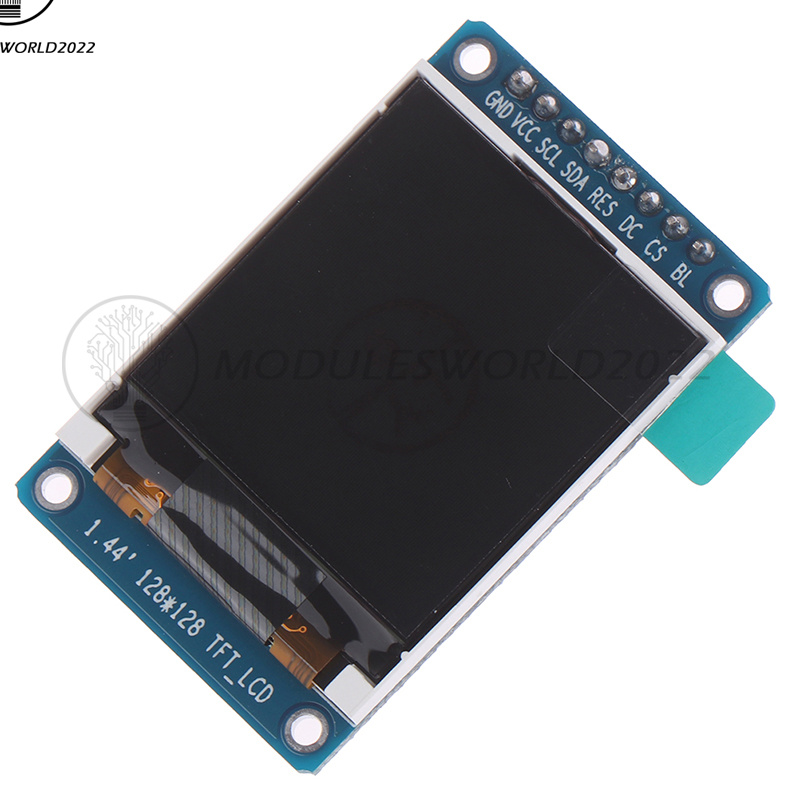

2.Pin Descriptions：

PIN No	Symbol	Description
1	GND	Ground
2	VCC	Power 3.3V
3	SCL	Serial clock pin.
4	SDA	Serial data input
5	RES	LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6	DC	Data/Command Control
7	CS	Chip Select
8	BLK	Backlight control pin

3. Connected to the microcontroller

Package Included:

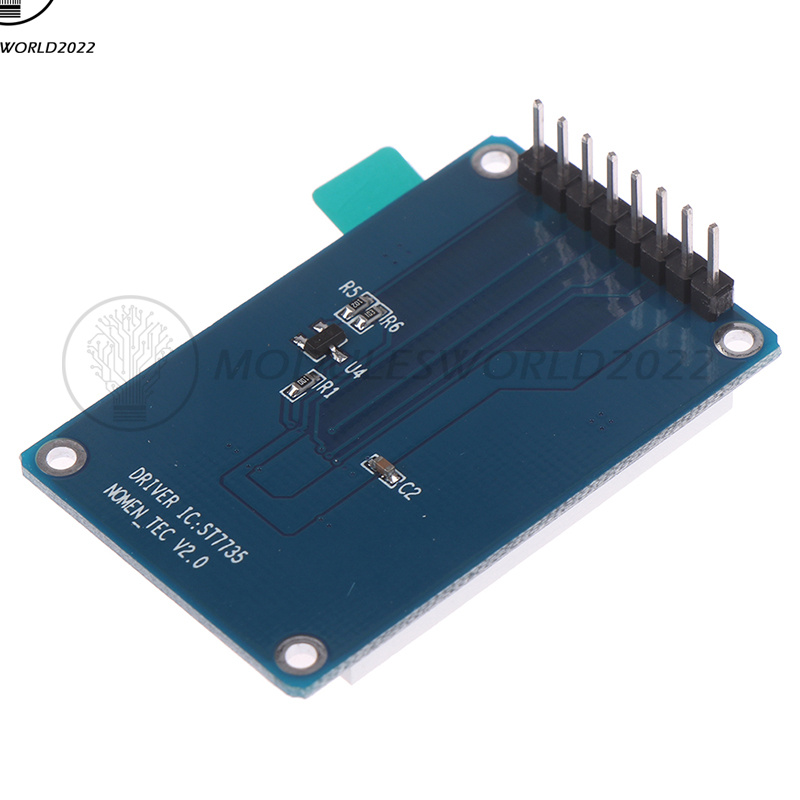

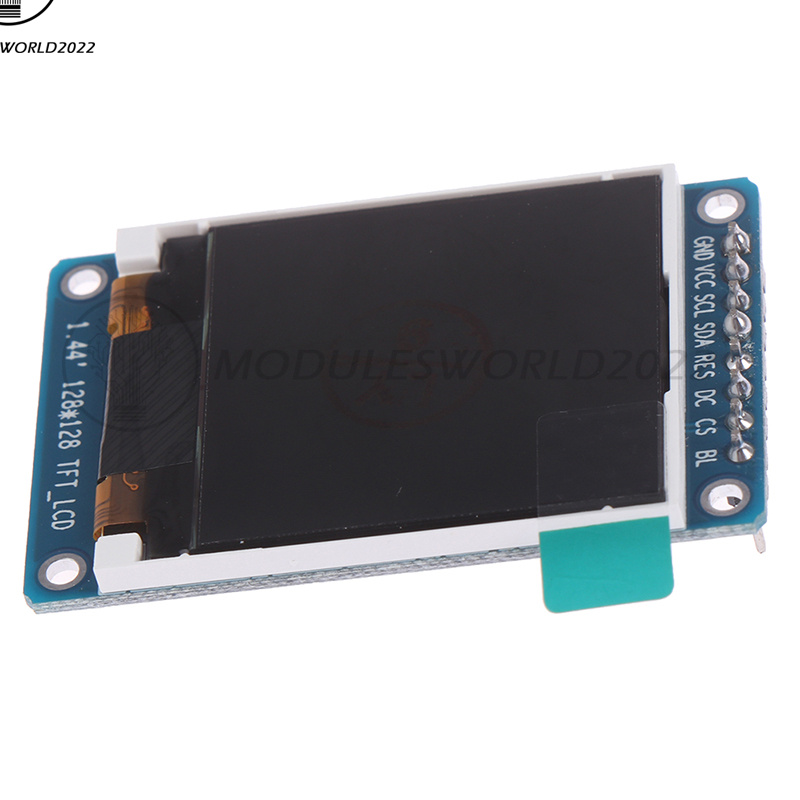

1PC × 1.44 inch Full Color 128x128 SPI TFT LCD Display Module

1.Features

SIZE	1.44 inch
Display Mode	a-TFT
Display Format	128RGB*128 dots matrix
Input Data	SPI interface
Drive IC	ST7735S
Dimensional outline	300(W)46.50(H)3.45+/-0.1(T)mm
Resolution	128RGB*128 Dots
LCD Active area	25.50 (W)*26.50 (H)
Pixel size	0.20(W)*0.20(H)mm
Viewing Direction	12 o’clock
Operating Temperature	-20～70°C

2.Pin Descriptions：

PIN No	Symbol	Description
1	GND	Ground
2	VCC	Power 3.3V
3	SCL	Serial clock pin.
4	SDA	Serial data input
5	RES	LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6	DC	Data/Command Control
7	CS	Chip Select
8	BLK	Backlight control pin

3. Connected to the microcontroller

Package Included:
1PC × 1.44 inch Full Color 128x128 SPI TFT LCD Display Module
