Pure copper Teflon high temperature 8-core wire for electric vehicle motor (high temperature resistance -60-200 degrees), (3 phase wires and 5 Hall signal wires, note: Hall wire 2-2.5 is 0.2 square, 3- 6 ping is 0.3 ping) for 350W to 1500W motors.



The specifications of the high temperature wire are: 2 square / 2.5 square / 3 square / 4 square / 5 square / 6 square, etc.



The extension cable is used to extend the length of the motor cable when the motor cable is not long enough! (Motor distinction: Electric bicycles/electric motorcycles generally use hub motors, and tricycles with rear axles use differential motors)





MARK ON IT, AND SUITABLE MOTOR



We have offer two types motor wire:

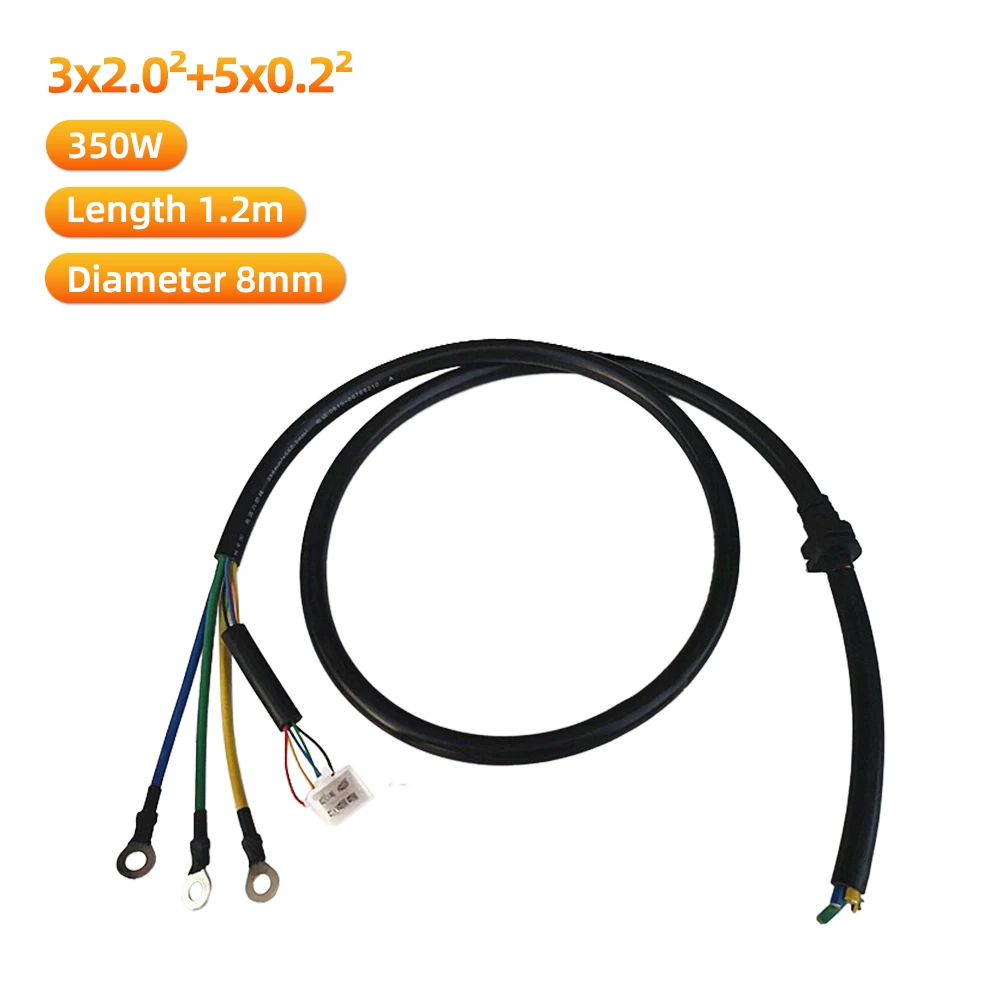

3*2.0mm motor phase+5pcs 0.2mm² hall sensor wires

3*2.5mm² motor phase+5pcs 0.2mm² hall sensor wires

3*3.0mm motor phase+5pcs 0.2mm² hall sensor wires

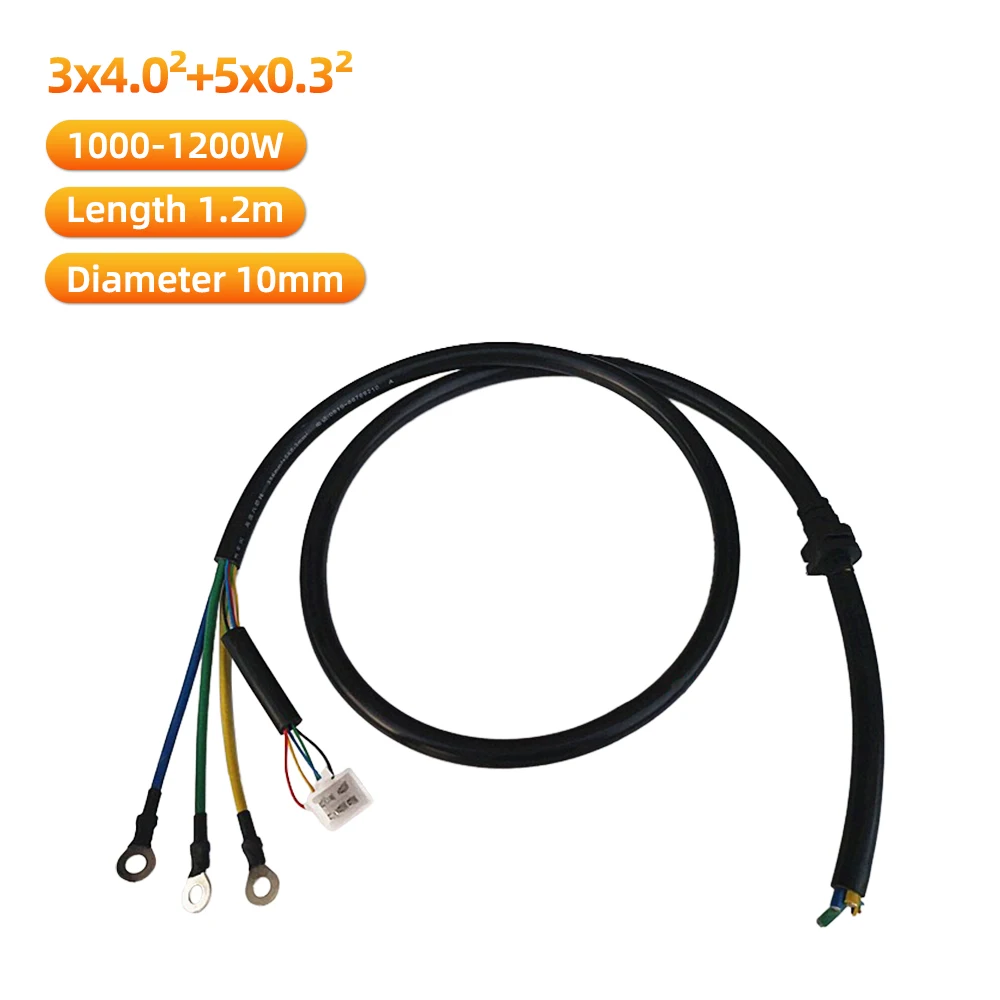

3*4.0mm² motor phase+5pcs 0.2mm² hall sensor wires

3*5.0mm motor phase+5pcs 0.2mm² hall sensor wires

3*6.0mm motor phase+5pcs 0.2mm² hall sensor wires



Total  Length：1.2M

Note:

The calculation formula for the square number of motor wires is S=πr²

For example:

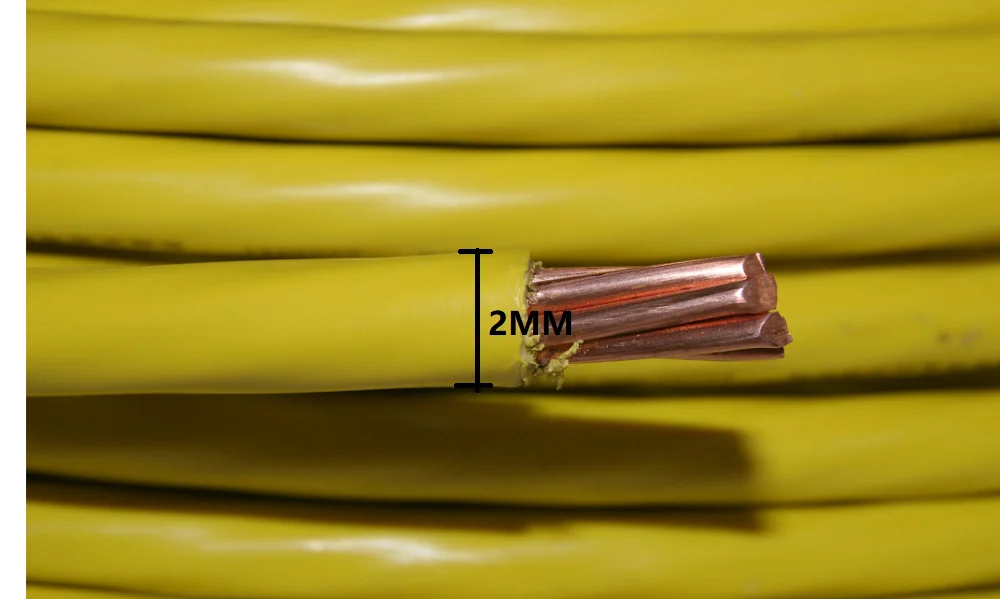

wire diameter 2MM



Squares   S=πr²=3.14X1²=3.14MM²

Because of this measured diameter is contains yellow rubber. And there are gaps between each copper wire, so there will be errors in the calculation. The marked square number shall prevail.
