Interface Parameters: Support Ttl Signal Control Power

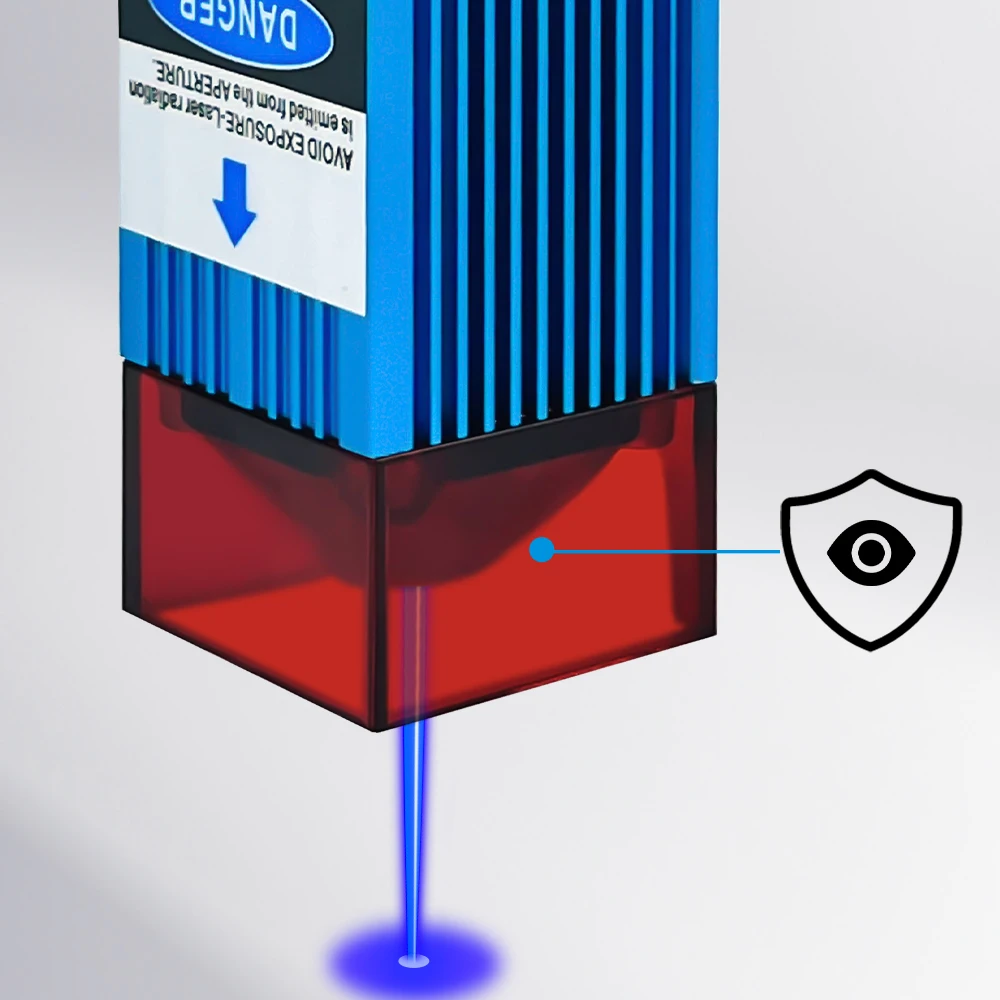

Blue laser module---a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
Easy to assemble---small, compact, convenient and easy to install.
Friendly Reminder:
Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Main performance:
Directly engrave mirror stainless steel: no need painting black;
Super fast engraving speed: 304 stainless steel, up to 300mm/s with 20mm focus length;
Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm focus length.
Original diode with FAC:
Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.
Easy to use:
Wavelength: 450nm,
Input: DC 12V 2.5A ,
Power adjustable: Support 5V PWM modulation,
Input port: XH2.54-3P socket ,
control line installation method: pluggable.
Adjustable laser head, easy to adjust, suitable for DIY engraving machine
Applicable materials:
Ceramics,Bone,MDF,Coated glass,Black acrylic,Mirror stainless steel,Plywood,Brushed stainless steel,Stone,Bamboo,Leather,Rubber,Alumina,Solid wood, etc.
