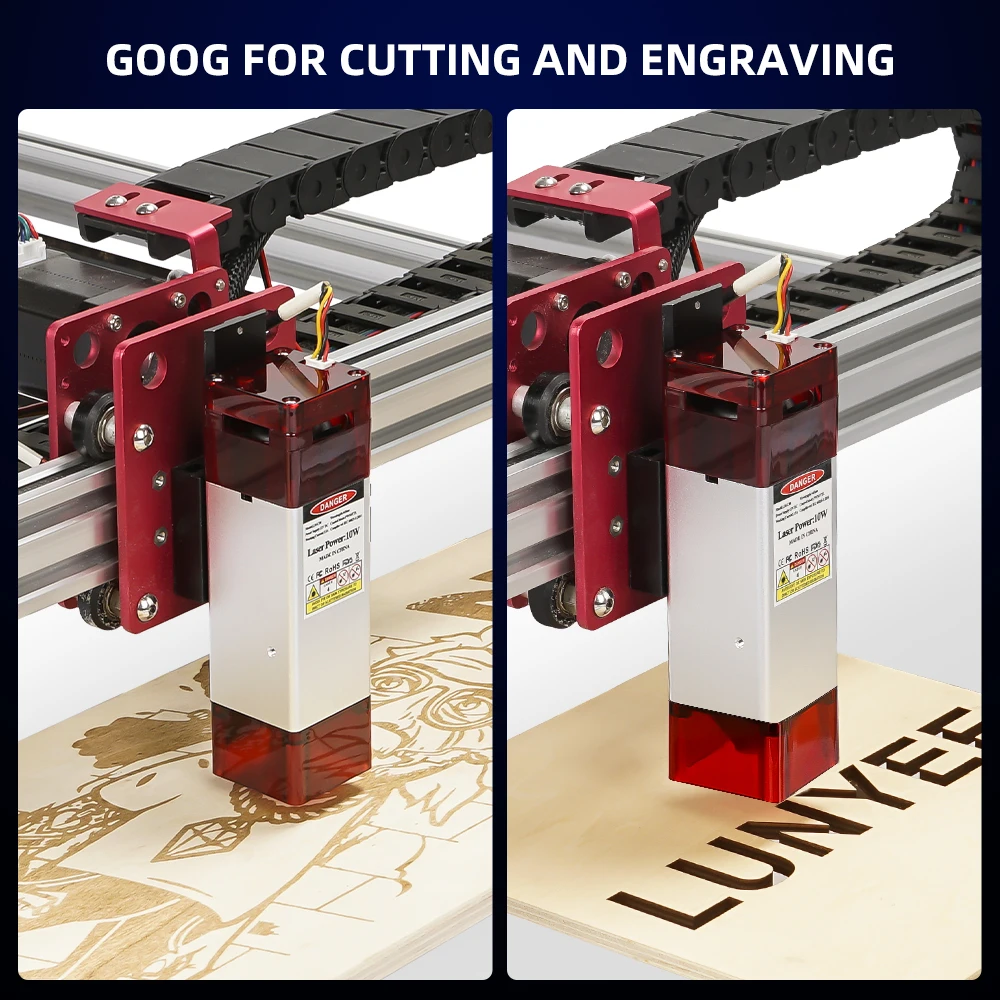

Blue laser module---a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
-
Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
-
Easy to assemble---small, compact, convenient and easy to install.
Advantage 1:
-
Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs.This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself.
-
Recommended Air Tubing: diameterΦ8mm
Advantage 2:

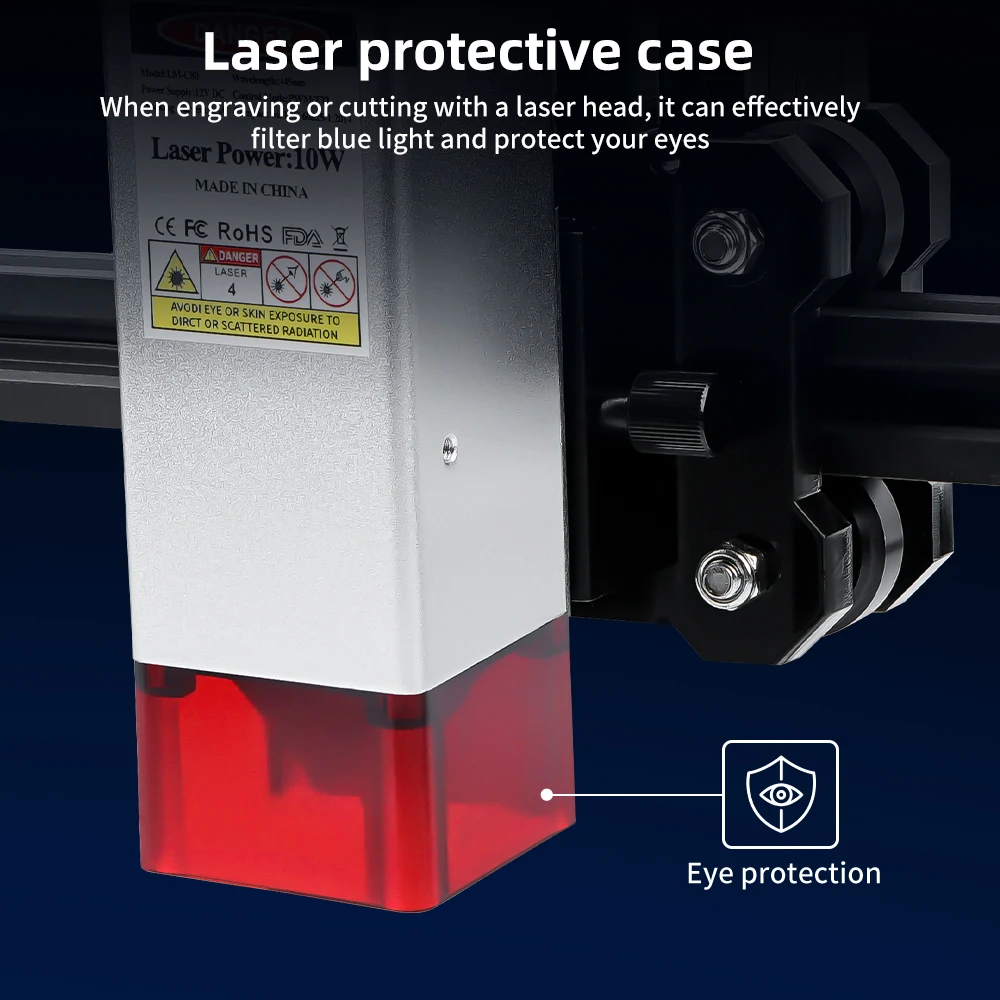

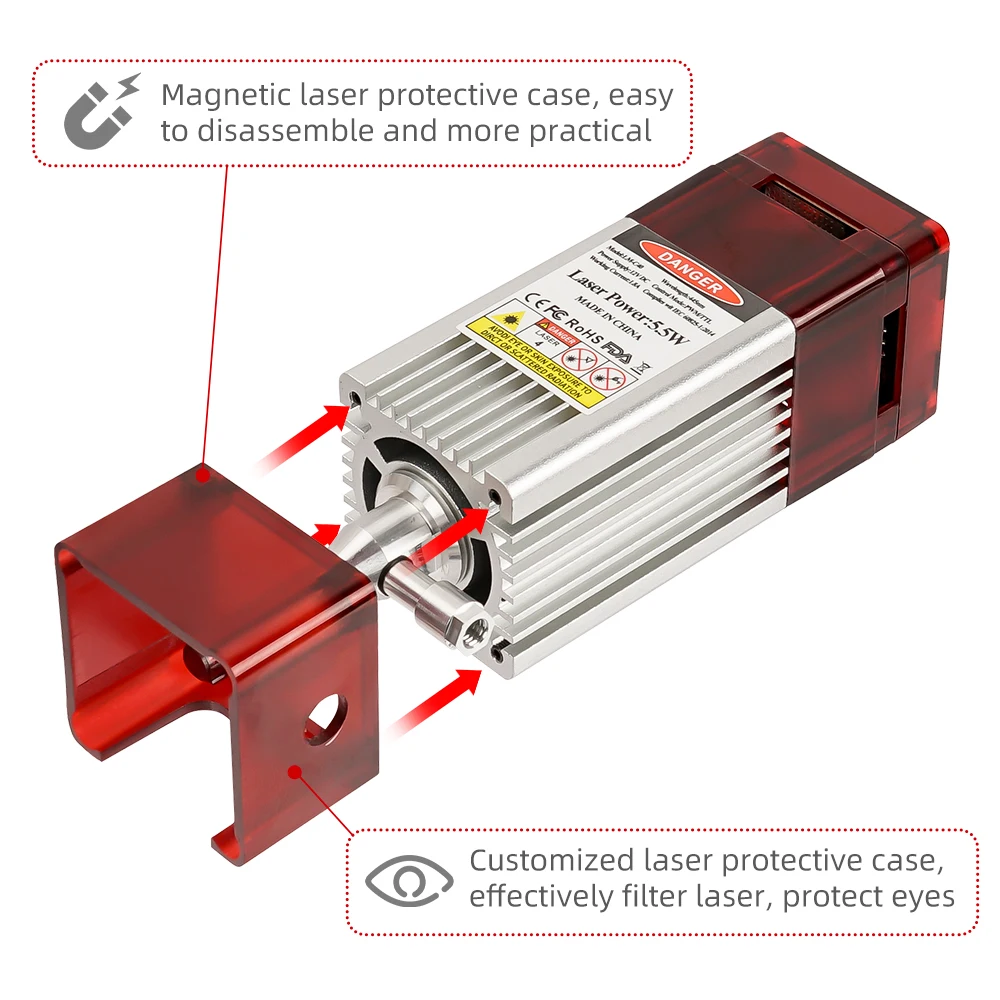

Laser protective cover: It can effectively filter blue light and can work without wearing goggles.
[Main performance]
-
a.Directly engrave mirror stainless steel: no need painting black;
-
b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with focus length;
-
c. Remarkable cutting ability: cutting through 8-10mm thickness plywood
[Original diode]
-
Original diode, high quality,20,000 hours lifetime!
[Easy to use]
-
Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.
[Applicable materials]
-
Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel, Stone, Bamboo, Leather, Rubber,Alumina,Solid wood, etc.
[Precautions]
-
Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
-
Effect Output Power: 80W/40W
-
Optical power：10W/5.5W
-
Wavelenght: 450nm
-
Electric Power:12V3.2A(3A-3.5A)
Engraving Material:
Plywood, Pine board,Black acrylic, Leather,MDF,Ceramics,Bone,Coated glass,Mirror stainless steel,Brushed stainlesssteel, Stone,Bamboo,Rubber,Alumina,Solid wood
Cutting Material:
8-10mm Plywood, 4-5mm Black acrylic, 4-5mm MDF, 8-10mm Pine board, 5-6mm Leather
