1. Connect to the control panel tool interface (slightly different)

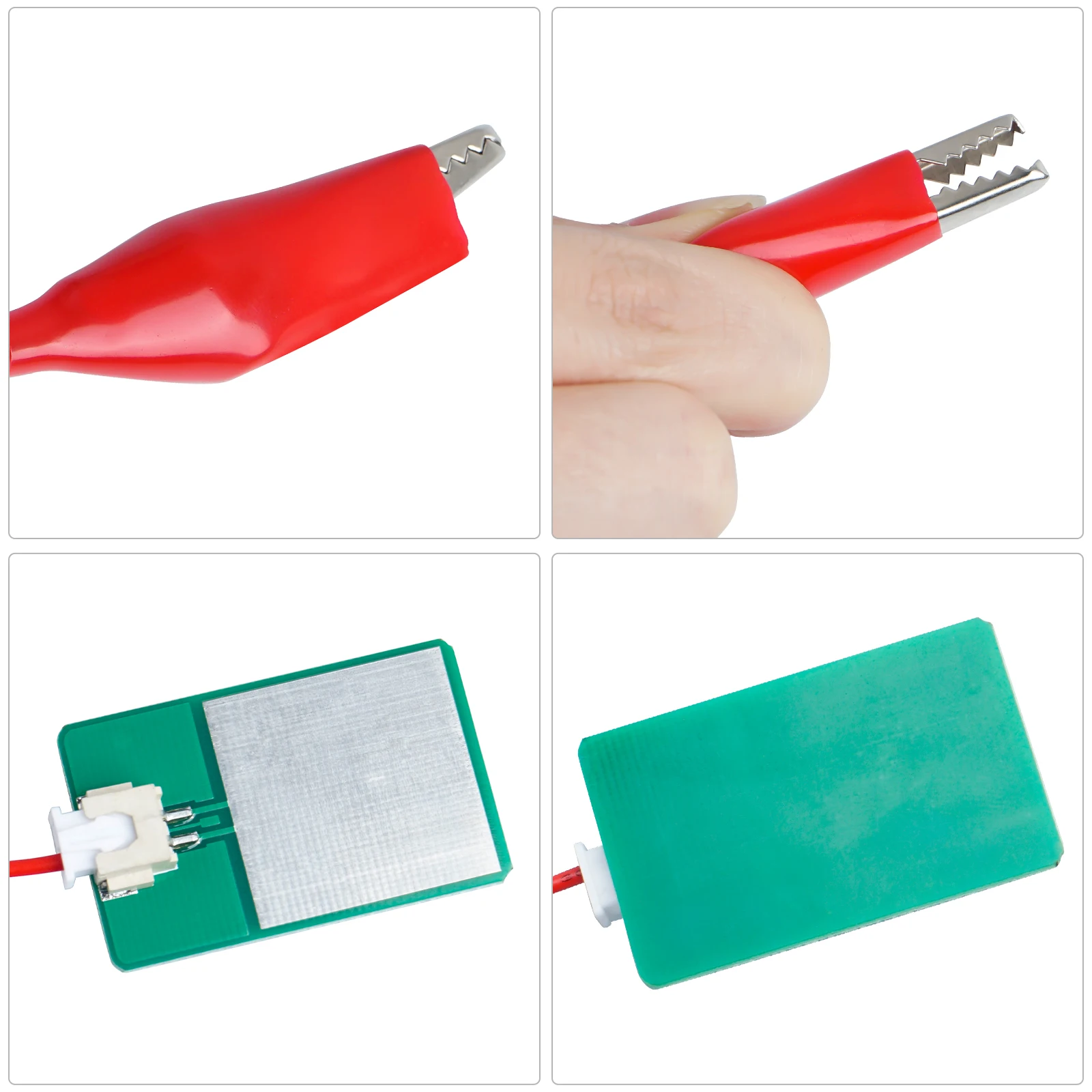

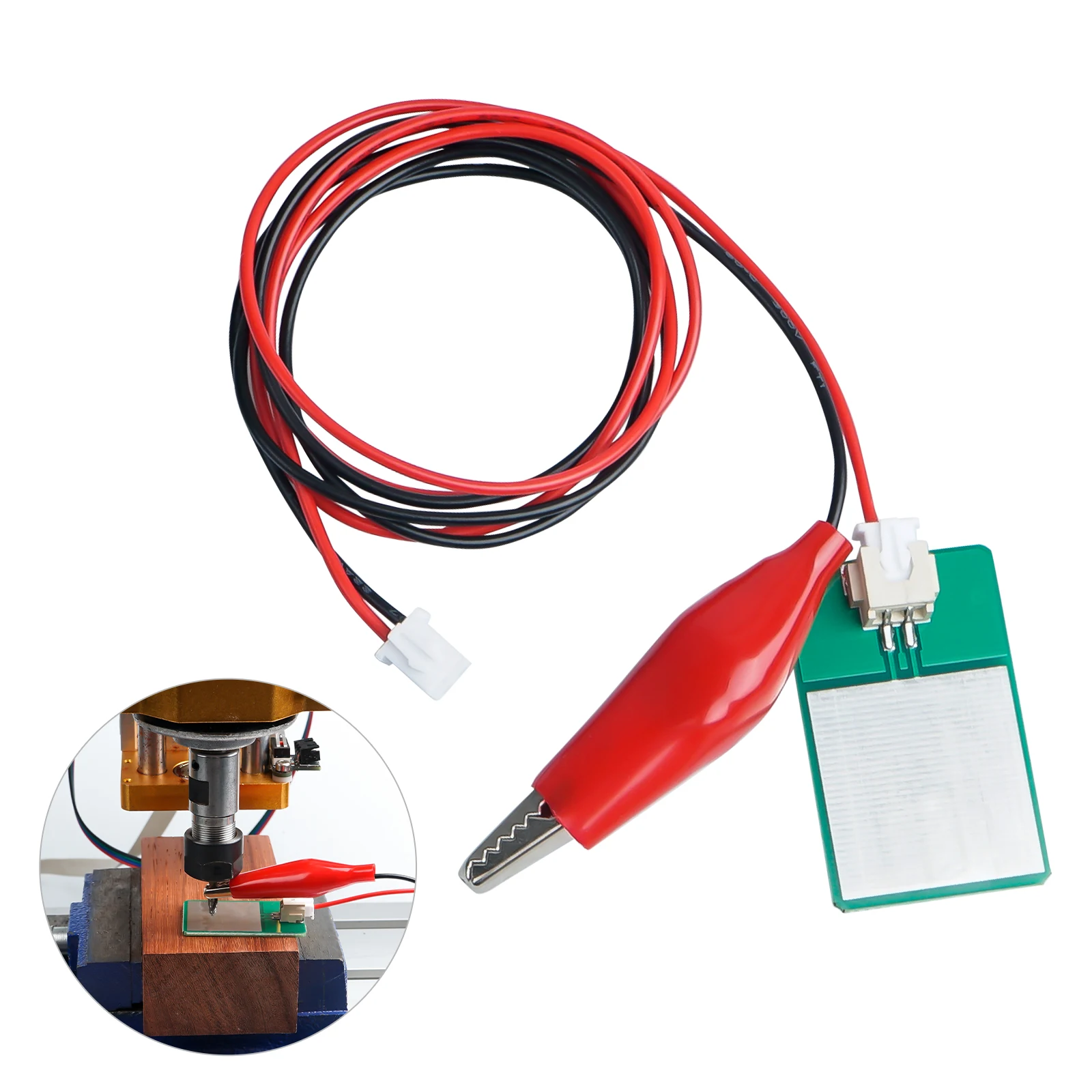

2. Clip on tool, metal plate pad on the table

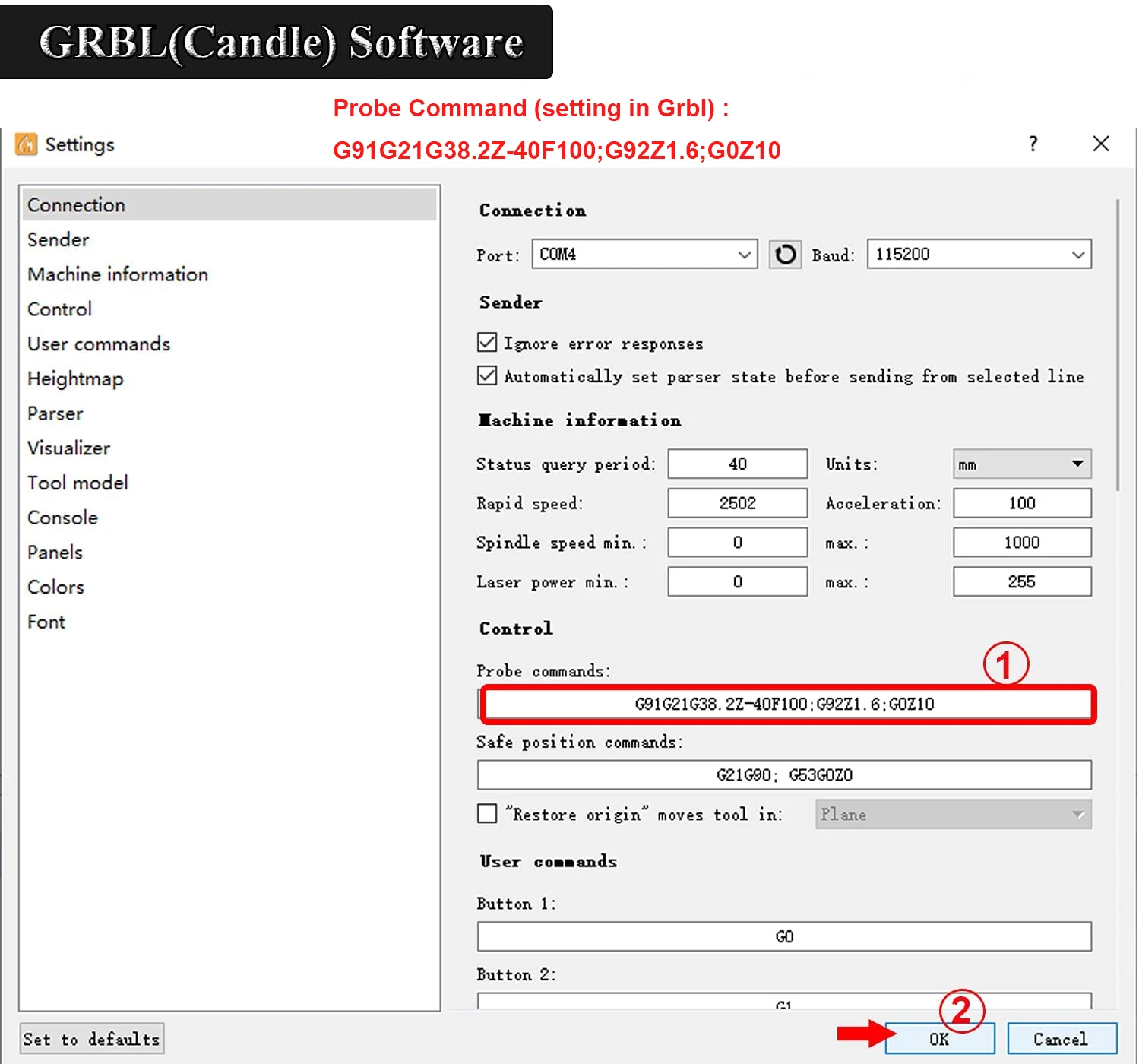

3. Set the tool setting instruction on the software, or directly input the instruction (instruction: G90G21G38.2Z-50F100; G92Z1.6; G0Z20)



(The different software interface is not the same, but the instructions are the same)

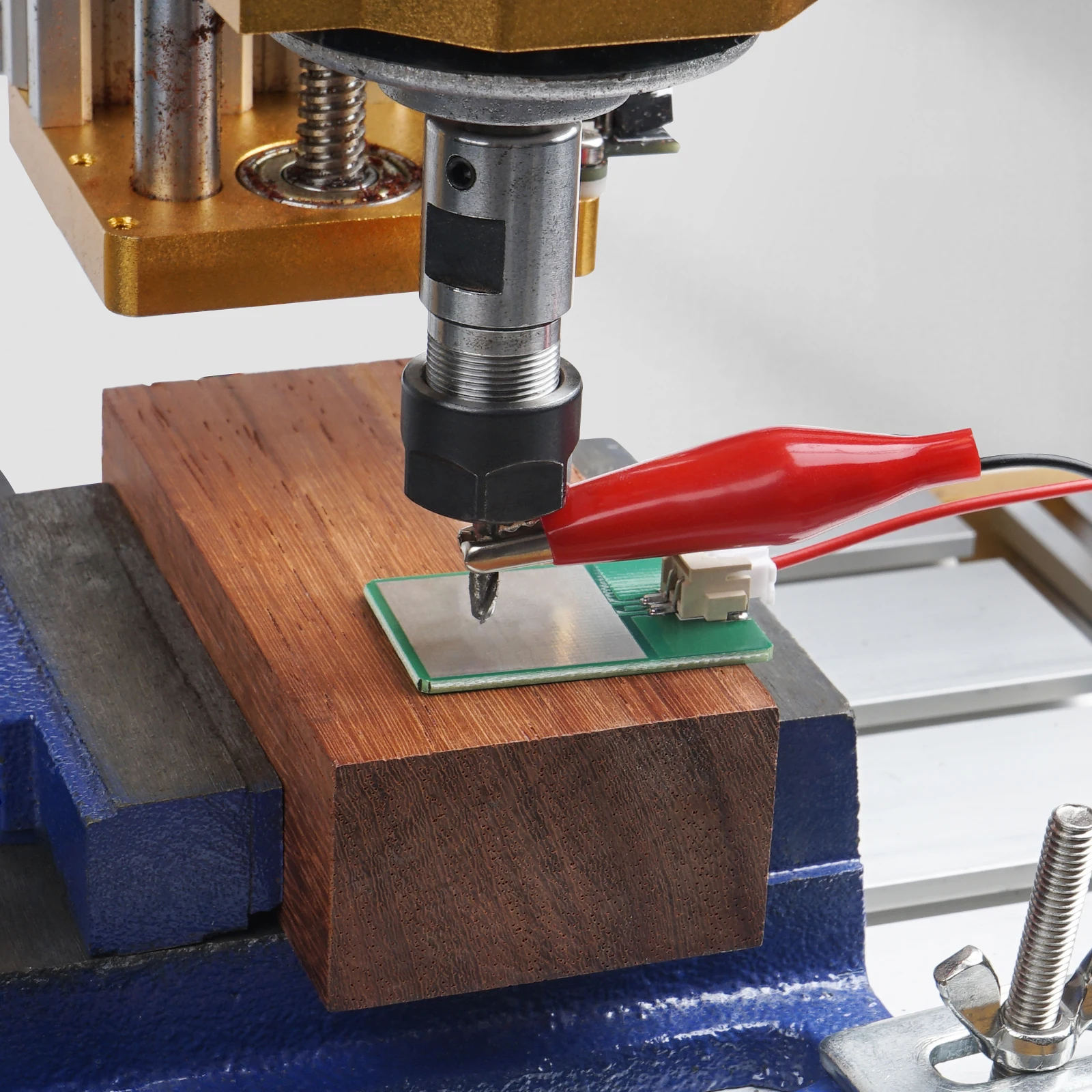

4. When the tool is lowered, contact the cutter, the metal plate stops, and then automatically rises



5. Take the cutter, the tool has been completed, the table should be Z axis coordinates of 0
