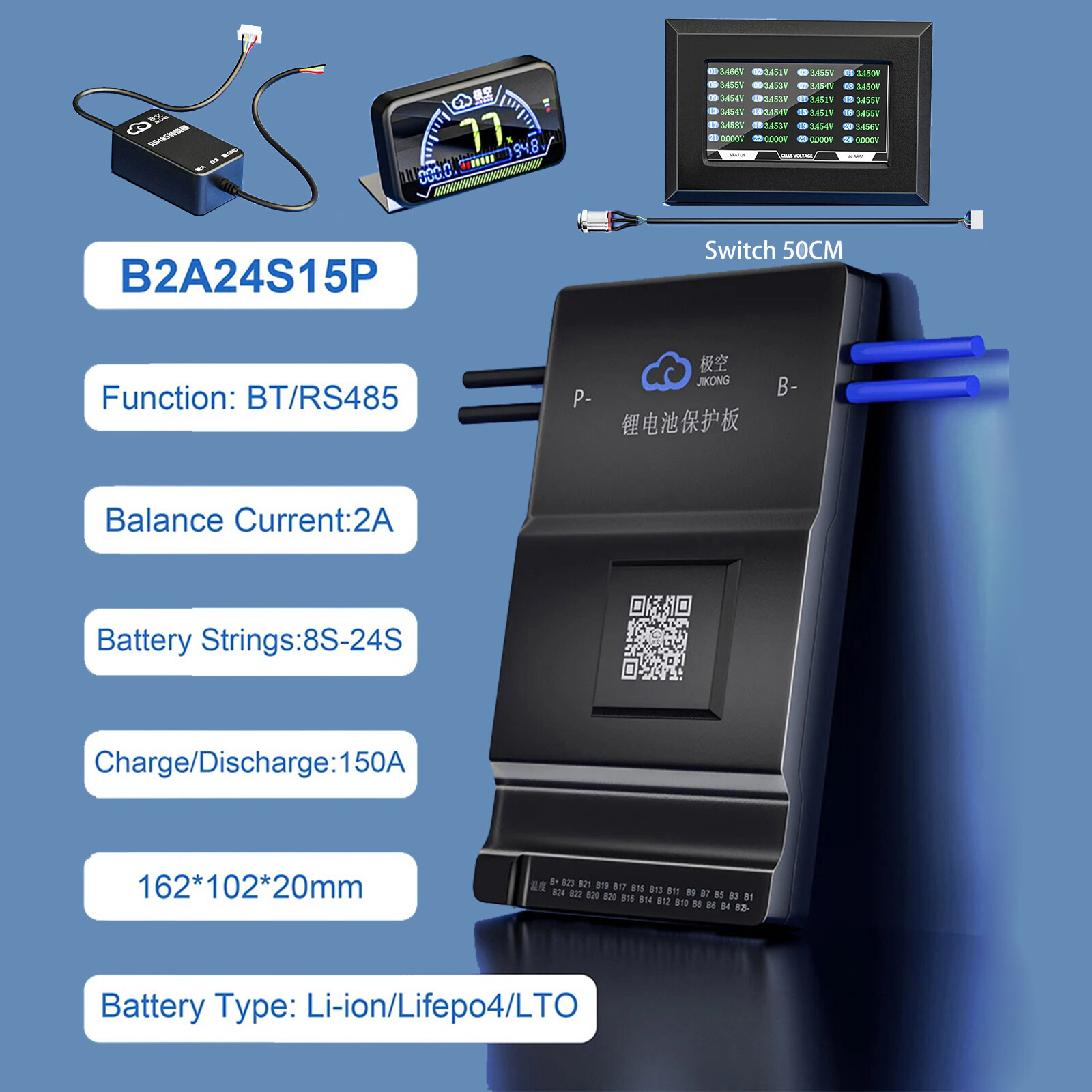

Description:
1. Active balance functionality, lose battery capacity no need to balance
sales voltage difference, increase battery use efficiency for 95%
2. It has the protections of overcharging/overdischarging/overcurrent and short circuit, etc.
3. Single battery series voltage range is 1~5V, accuracy is 5mV
4. With coulomb meter function, the remaining power is very clear
5. BT communication function, battery status can be displayed on APP
6.RS486 and can be customized
Balanced Shape: Active EQ
Active equalization current: 2A
Internal resistance: MΩ
Rated discharge current: A
Maximum discharge current: A
Over Current Protection (adjustable): 10-150A
Wiring method: common port
Monomer voltage range: 1V-5V
Voltage acquisition accuracy: ± 5mV
Battery cell overcharge protection voltage: 1.2V-4.35V (adjustable)
Battery cell overcharge protection recovery voltage: 1.2V-4.35V (adjustable)
: 2-120S (adjustable)
Battery cell over discharge protection voltage: 1.2V-4.35V (adjustable)
Battery cell over-discharge protection recovery voltage: 1.2V-4.35V (adjustable)
Temperature detection quantity: 3 pieces
temperature: -20~70℃
Power requirements: 24V ~ 100V, can be powered by battery or external power supply
Power dissipation: balanced: 10mA and 100V, unbalanced: 6mA and 100V
Package including:
1*JK smart bms (Built-in Bluetooth)
1*Cable
1*Temperature Sensor
1*User Manual
1*Power Switch (optional)
1*RS485 Module (optional)
1*LCD display (optional)
1*4.3inch LCD touch display (optional)
