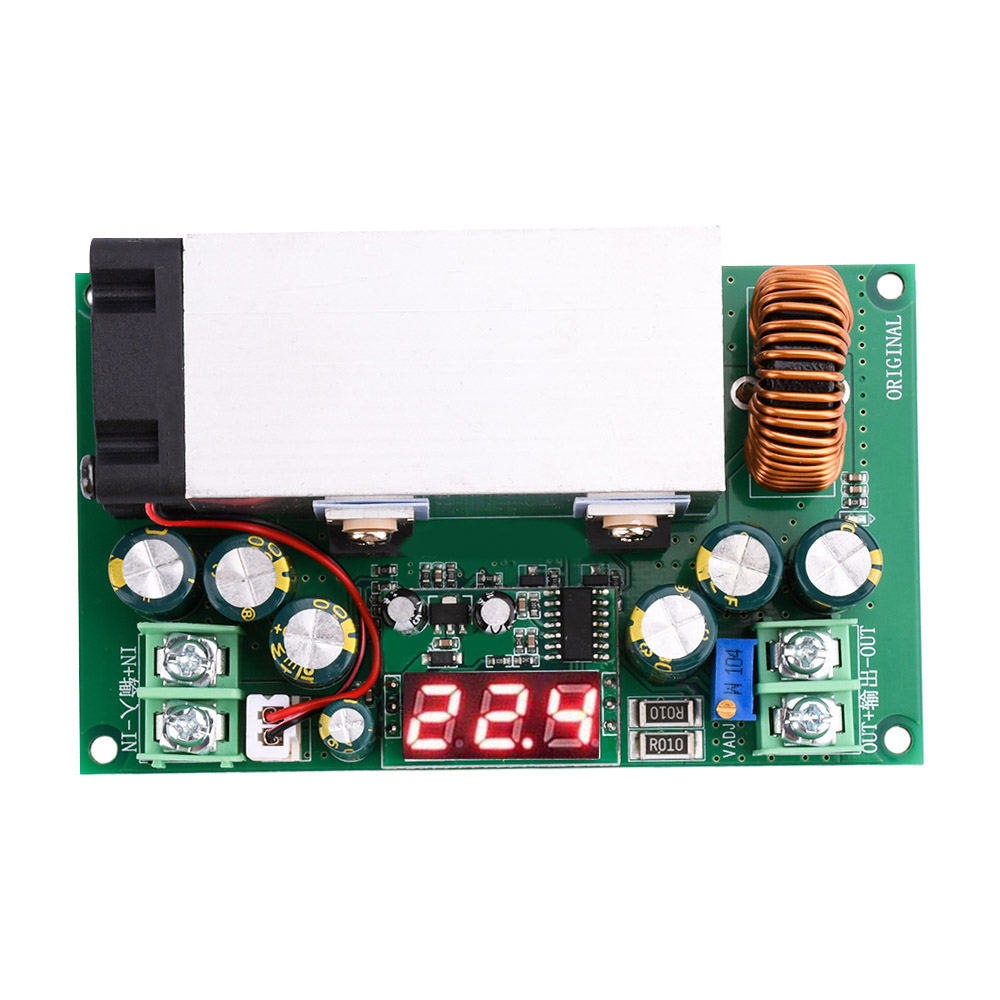

DC-DC 12~80V to 2.5~50V 20A Adjustable Buck Converter Power Stepdown Module 600W

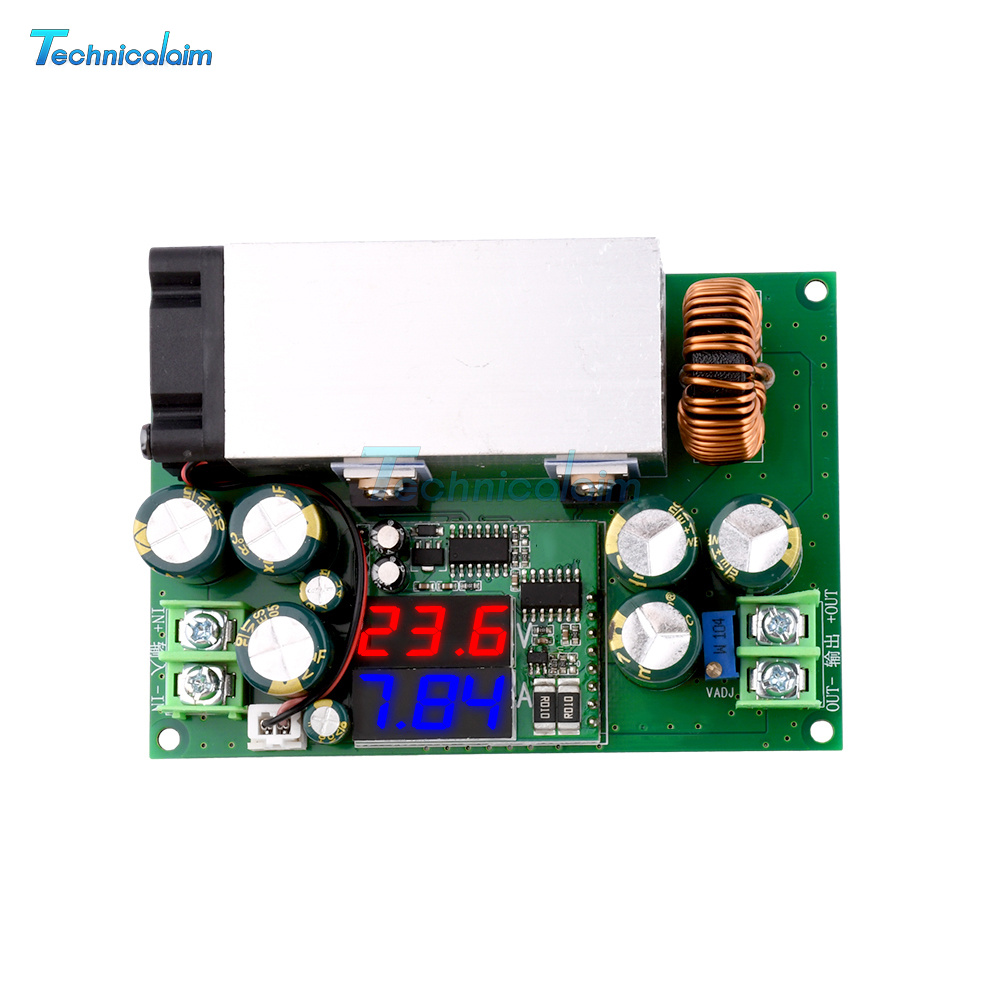

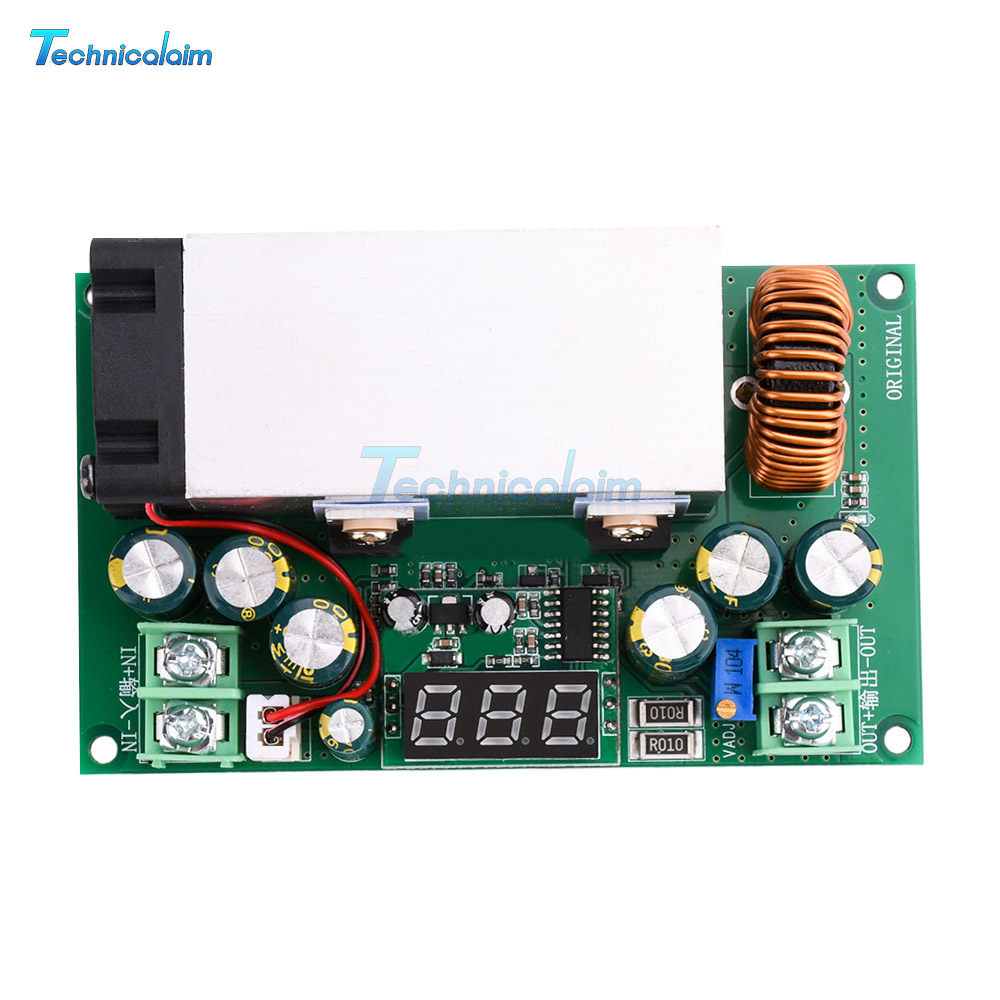

DC12-80V to 2.5V-50V 20A  #A  #B
Product features:
1. High performance, continuously adjustable output voltage and current;
2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Adopting high quality materials, input voltage up to 80V;
5. Very high efficiency, up to 93%.
Product Parameter:
Name:DC-DC Adjustable Buck Module
Input voltage:DC12-80V Cannot be used for 72V battery
Output voltage: 2.5V-50V adjustable (only buck) (max output voltage = input voltage * 0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: overcurrent protection
Size: L100mm*W70mm*H31mm
Operating temperature: -40-85℃
Storage environment: -20℃-+50℃
Relative humidity: 65±20%
Wiring:High power situation, wiring as thick as possible.
Voltage conversion at a glance.
12-80V to 5V
12-80V to 9V
14-80V to 12V
17-80V to 14.8V
19-80V to 16.8V
22-80V to 19V
24-80V to 21V
28-80V to 24V
35-80V to 30V
41-80V to 36V
48-80V to 42V
55-80V to 48V

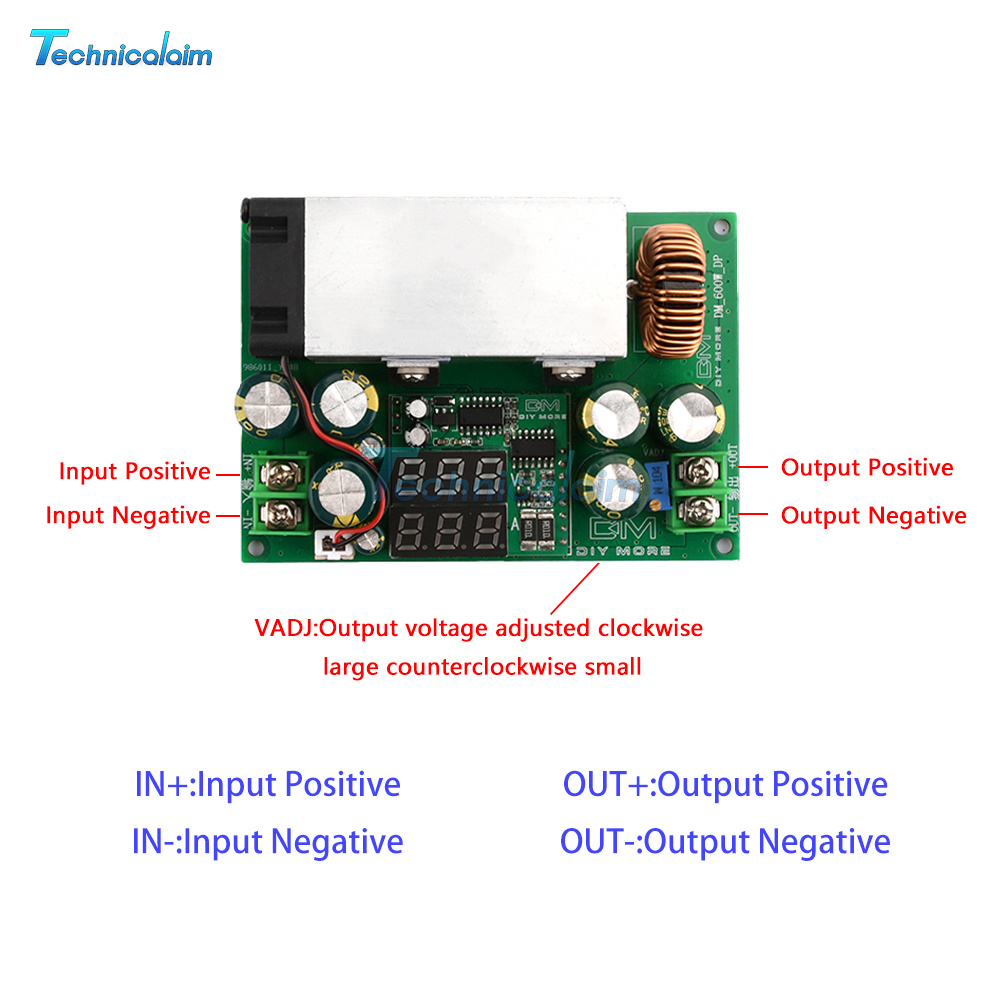

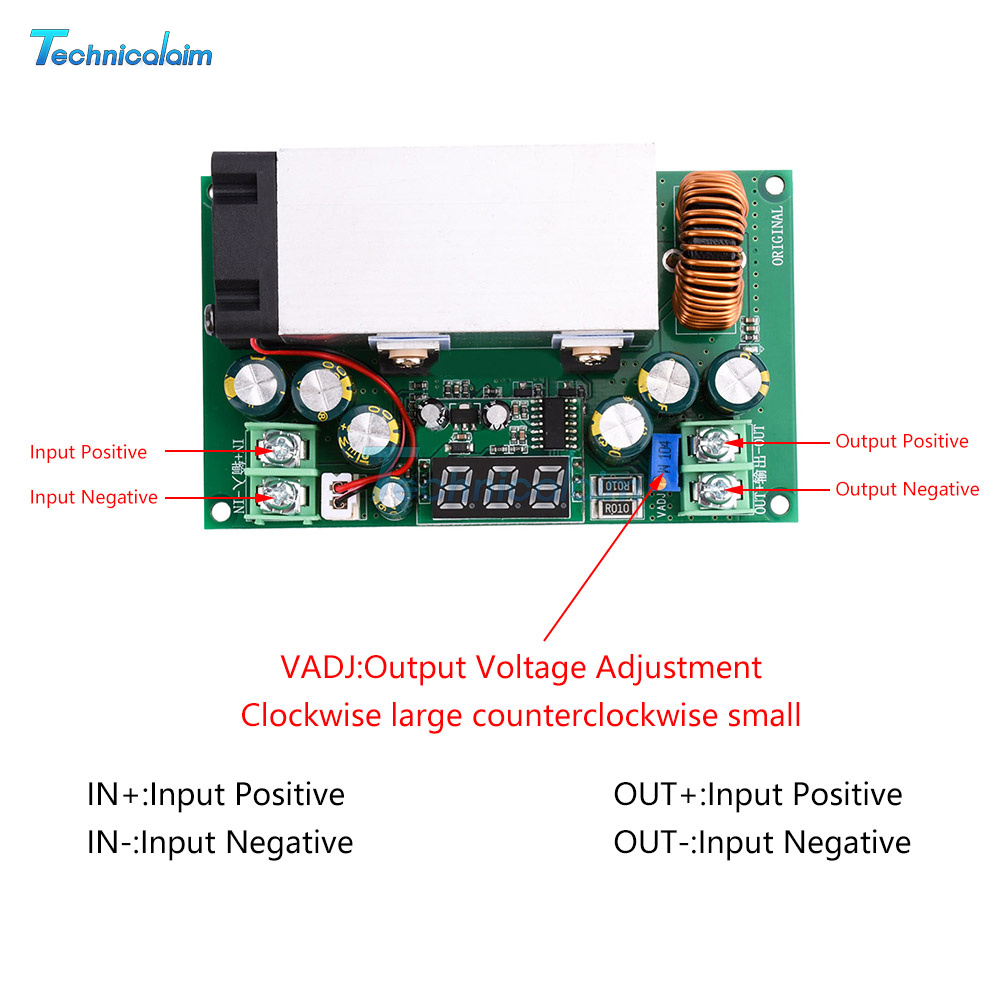

Interface Description:
IN+:Input positive
IN-:Input negative
OUT+:Output positive
OUT-:output negative
VADJ: output voltage adjustment, clockwise large counterclockwise small
Note:For batteries Charge,output, please add your own diode
Product list:
1X module

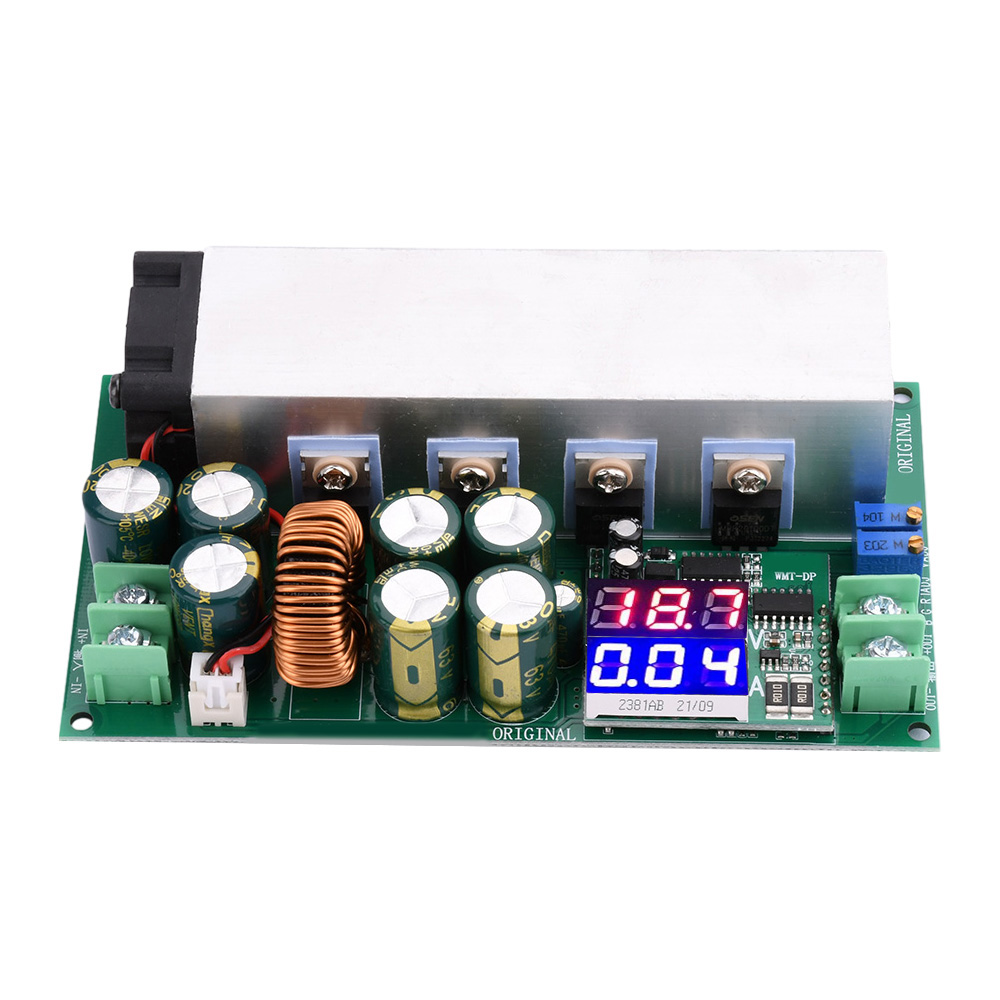

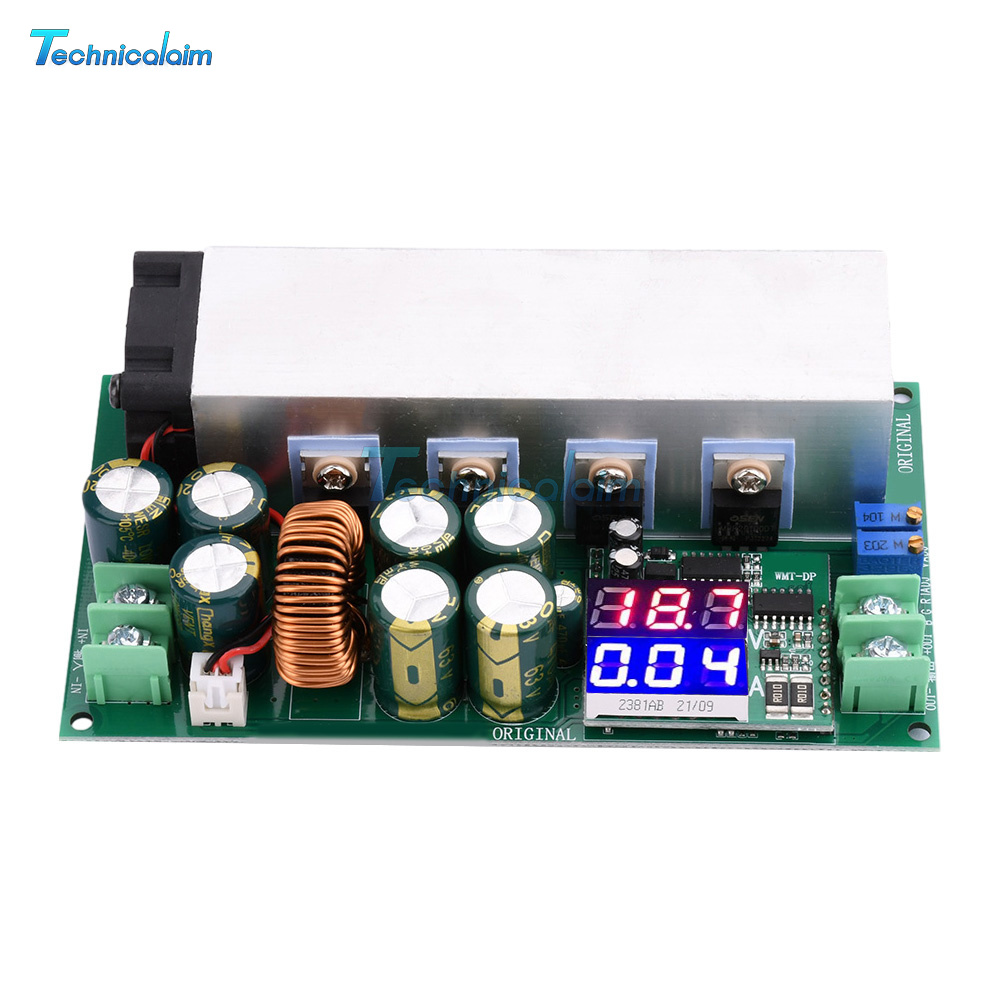

DC12-80V to 2.5V-50V 20A  #C


Features:
1. High performance, the output voltage current can be adjusted continuously;
2. Increase the number of display function, the output voltage can be displayed, it is more convenient to use;
3. Simple operation, use it to be available to use;
4. Using high -quality materials, the input voltage can reach up to 80V;
5. The efficiency is extremely high, up to 93%.

Product parameters:
Input voltage: DC12-80V (72V battery that cannot be used for)
Output voltage: 2.5V-50V adjustable (only downstration) (the maximum output voltage = input voltage*0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: overcurrent protection, anti -anti -irrigation
Size: L125mm*W70mm*H32mm
Work temperature: -40-85 ℃
Storage environment: -20 ℃-+50 ℃
Relators: 65 ± 20%
Wiring: high power situation, thicker wiring as possible.

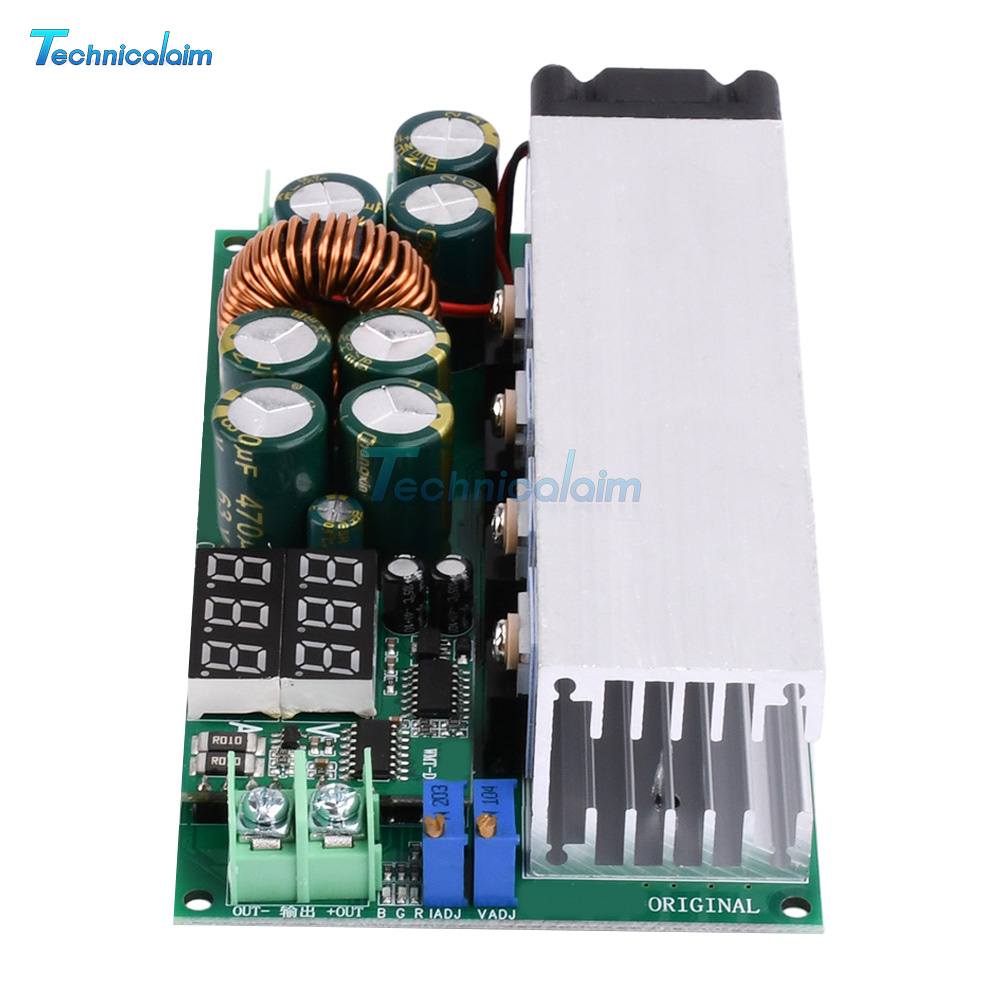

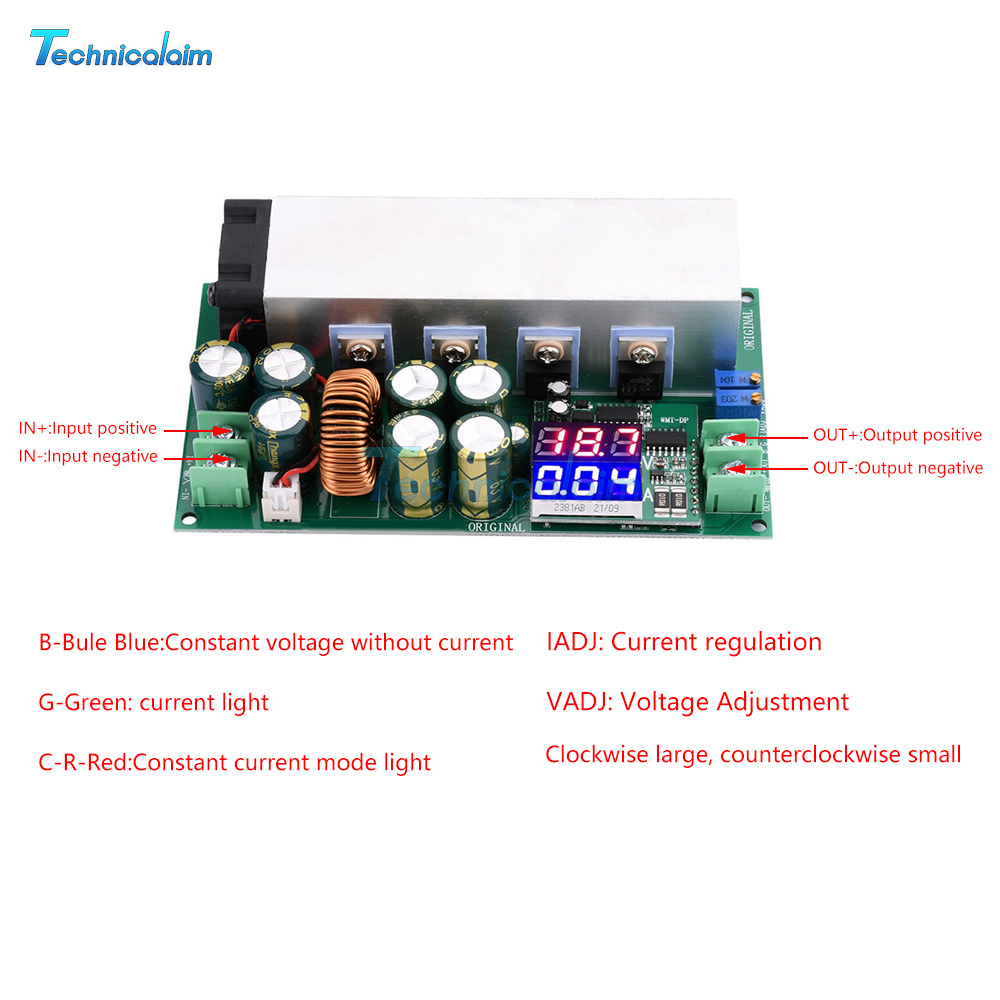

Interface Description:
In+: Enter the positive pole
IN-: Enter negative electrode
Out+: Output positive pole
Out-: output negative electrode
B-BULE blue light: no current in constant pressure
G-Green green light: current light
C-R-Red red light: Hengli mode light
IADJ: current adjustment, big clockwise, small clockwise small
VADJ: voltage adjustment, large clockwise, small clockwise small

Note: Charging batteries and batteries, please add diodes to the output to prevent anti -irrigation!

Product List:
1X module

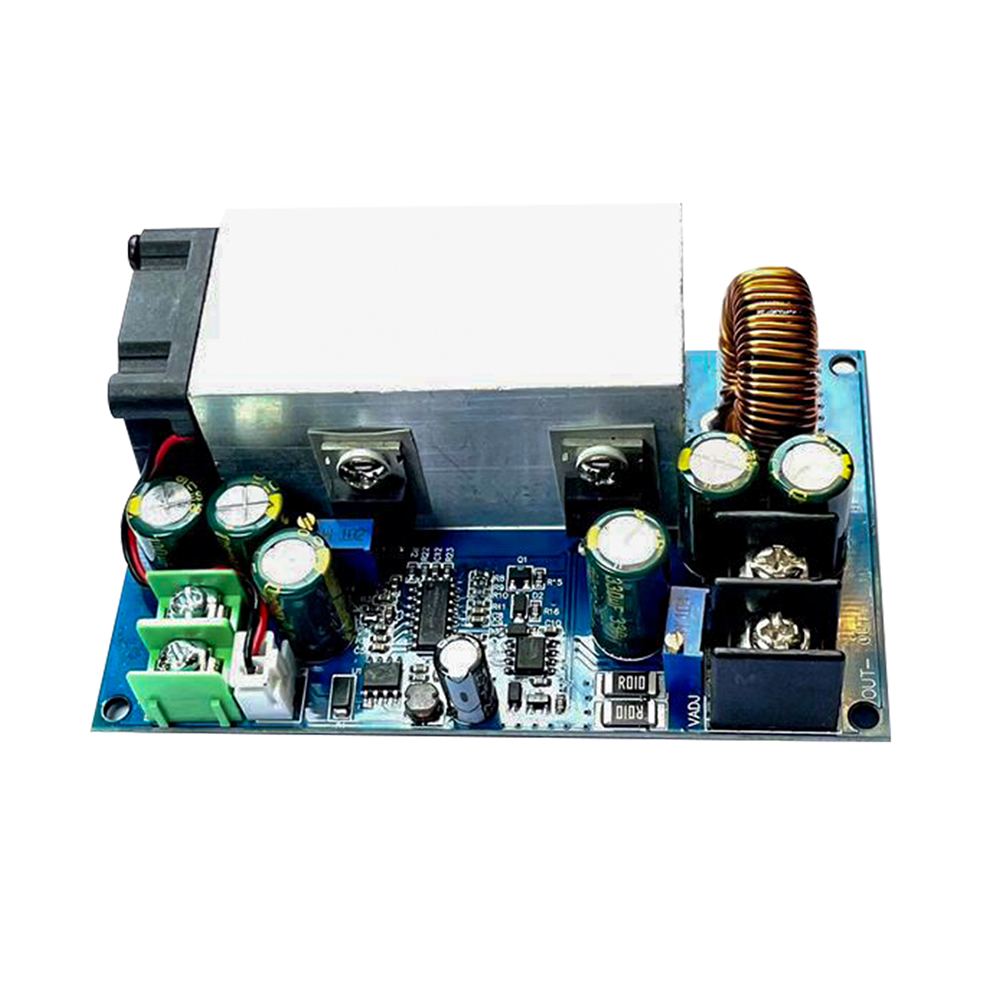

DC12-75V TO DC2.5-50V

Features:
1. Use high quality material, durable
2. Exquisite and compact appearance
3. Easy to use
4. Stable performance
5. Wide range of applications
Specification:
Name: DC-DC adjustable step-down module
Input: 12-75V
Output: 2. 5-50V adjustable
Current: 25A (MAX)
Efficiency: 95% highest (the smaller the pressure difference, the higher the efficiency)
Wiring: In the case of high power, the wiring should be as thick as possible.
Overview of voltage conversion:
12-75V to 5V
12-75V to 9V
14-75V to 12V
17-75V to 14.8V
19-75V to 16.8V
22-75V to 1 9V
24-75V to 21V
28-75V to 24V
35-75V to 30V
41-75V to 36V
48-75V to 42V
55-75V to 48V
IN+: input positive
VADJ: output voltage regulation
0UT+: output positive pole
IN-: input negative polarity clockwise large counterclockwise small
OUT-: output negative pole
Note: To charge the battery and battery, please add a diode to the output to prevent backfilling!
Package list:
Adjustable step-down module

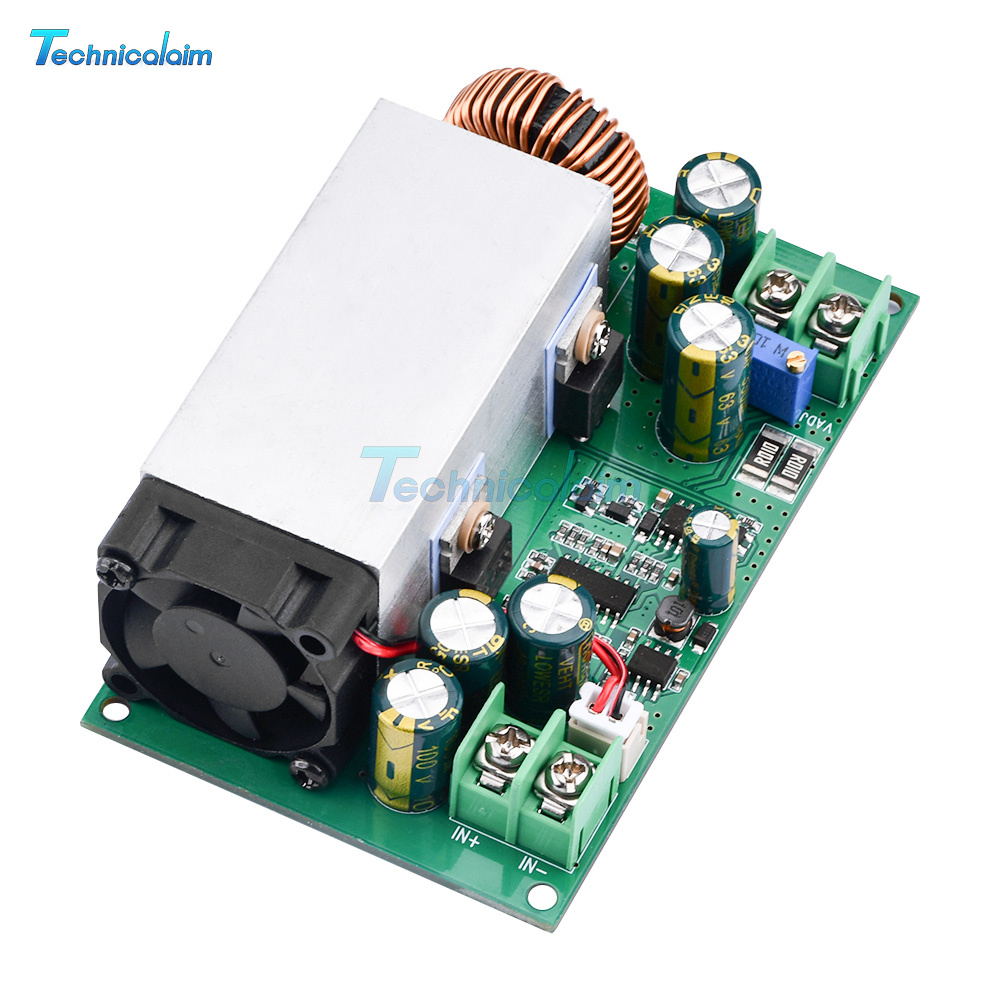

DC12-75V TO DC2.5-60V
Product Features:
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency

Main features of power supply module:
*The module adopts step rectification scheme with high efficiency, the highest efficiency is up to 95%.
*Continuously adjustable output voltage and current
*Input voltage up to 75 volts, output voltage up to 60V (at input 75 volts) maximum current 25A.

Product parameters:
Product Model: SZ-8025CCCV
Module name: 600w buck constant voltage constant current adjustable power supply module
Module nature: non-isolated buck module (BUCK)
Input voltage:12-75V
Output voltage range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8)
Output minimum voltage: 2.5V
Output maximum voltage: approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V.)
Output constant current: 1-25A (continuously adjustable,)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (ventilated environment)
Continuous maximum working current: 25A (under ventilated environment)
Heat dissipation mode: air-cooled heat dissipation
Input undervoltage protection: No
Input over-voltage protection: None (over-voltage prohibited)
Operating temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: no
Output anti-reflow: no (to charge the battery, the output connected to inductive loads, such as connected to the motor must add anti-reflow diode)
Work indicator: Yes (output voltage blue LED)
Wiring method: comes with no welding terminals
Module size: about 100mm long by 60mm wide by 35mm high
Net weight: about 140 grams
Wiring: "IN" for input.
"OUT" for output

Product list:
1X power module
