Features:

【ALUMINUM BODY】- The combustion chamber, the base and the heat-dissipating scale are all sand-blasted aluminum parts. It is integrally formed, featuring with uniform heat dissipation, fast heat.
【ENERGY SAVING】- The optimized frequency conversion ECU accurately controls the injection frequency of the oil pump, and controls the intake air amount with the precise speed to extend the service life of the heater.
【LOW NOISE】- Effectively reduce noise through blower speed control, silent fan, silent oil pump. The silent fan sleeps peacefully, and the metering oil pump adopts an improved low frequency pulse with low vibration.
【COMPLETE ACCESSORY】- With a complete mounting kit - including all mounting screws, which means all installation kit and instruction are included. Making it easy to install and use.

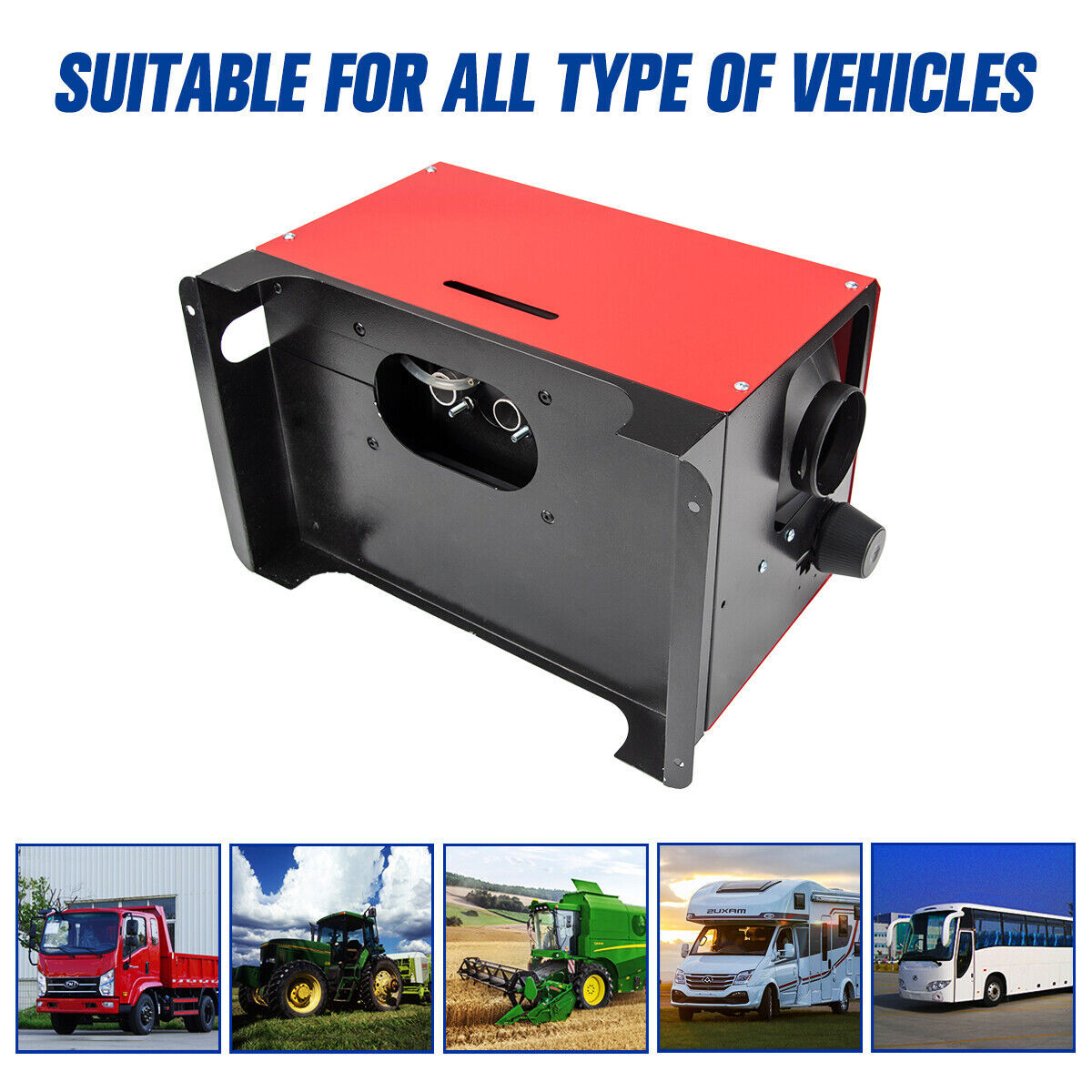

【WIDE APPLICATION】- This diesel air heater can be applied for heating the cab of various diesel mechanical vehicles such as cars, buses, RVs, trucks, engineering vehicles, etc.

Specification:

Heater Power: 5KW
Fuel Gasoline: Diesel
Rated Voltage: 12V
Car Air Conditioning Type: Heating
Switch: LCD
Remote Control Distance: 98 ft/30 m
Adjustable Temp. Range: 46℉-95℉/8℃-35℃
Complete Combustion Rate: 100%
Tank Capacity: 5L/1.3 gal
Fuel Consumption(L/h): 0.1 - 0.24 L / 0.026 - 0.063 Gal
Working Temperature: -104℉~+176℉/-40 °C~+80 °C
Heater Dimension(L x W x H): 15 x 11 x 12.6 in/38  x 28 x 32 cm
Exhaust Pipe Size(L x W): 60 x 2.5 cm/23.6 x 0.98 in
Outlet Pipe Size (L x W): 70 x 7.6 cm/27.6 x 2.99 in
Inlet Pipe Size (L x W): 50 x 2.5 cm/19.7 x 0.98 in

Package including：

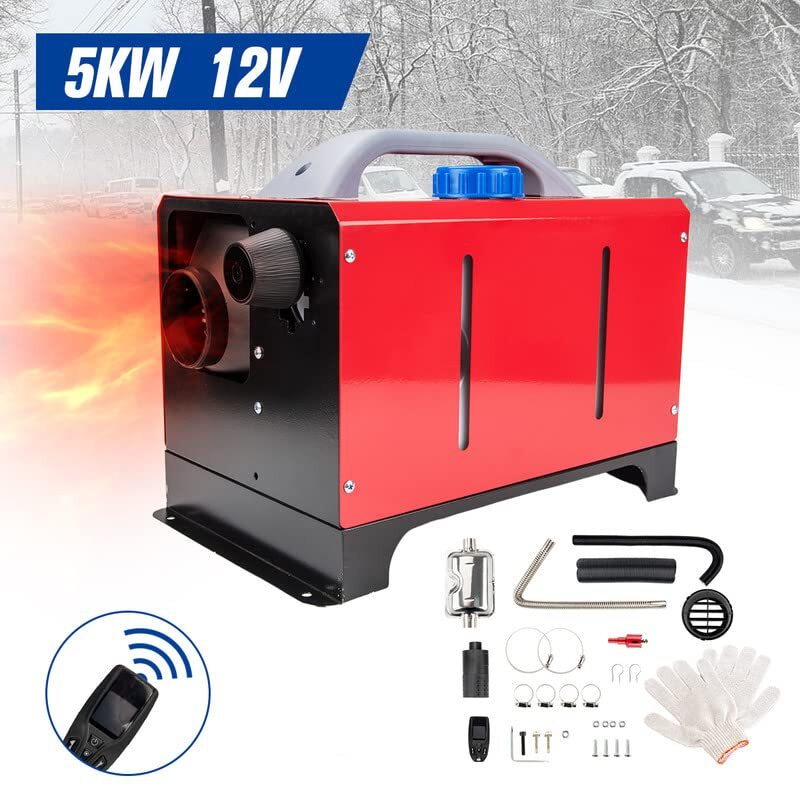

1 x All-in-one Diesel Heater (with LCD)
1 x Remote Control
1 x Silencer
1 x Wiring Harness
1 x Air Filter
1 x Inlet Pipe
1 x Outlet Pipe
1 x Exhaust Pipe
1 x Installation Kit

Note:

12V 5KW Diesel Air Heater

With compact design, the air heater tank is for easy installation for interior or even under the floor. Due to the low fuel and power consumption, it is suitable for longer periods of operation. It heats up fast and helps you get warm quickly when it is cold outside.

 Two-way remote control instructions:
1) Remote pairing operation:-First put the receiving parts that need to be paired into the waiting pairing state..-Then press and hold the key on the remote control and confirm the build at the same time, the remote control appears waiting for pairing interface..-The remote control and switch enter the automatic pairing process. After the code is successfully matched, it will automatically exit the code pairing interface and display normal working parameters..-If the code fails, it will not enter the normal display working parameter state. If the remote control code is not received after timeout, it will automatically exit the code matching state..

2) Temperature control mode switching:When selecting the temperature control method by remote control, you only need to press the up and down keys at the same time to switch to the automatic temperature control and display the temperature. If you press the keys again at the same time, it will switch back to manual mode. If it is in the manual mode, temperature is manually controlled by the frequency of fuel pump which controls the oil quantity..

 Adjustment of working status:The working state of the heater can be adjusted by remote control at any time.
Methods as below:-Up adjustment key: increase the pump oil volume (manual temperature control mode), or increase the set temperature to increase the output temperature of the heater..-Down key: reduce the amount of pump oil (manual temperature control mode), or reduce the set temperature to reduce the output temperature of the heater.

Two-way remote receiver description:

1) ON/OFF Key: Long press on/off:-There is light under the switch key. If it is on, it means that it is on, and if it blinks, it means that there is a fault..-Startup: When the working voltage meets the conditions, press and hold the on / off button..

2) Manual fueling:In the off state, press the on/off key 5 times continuously and quickly to start the manual pump
