Frequency band

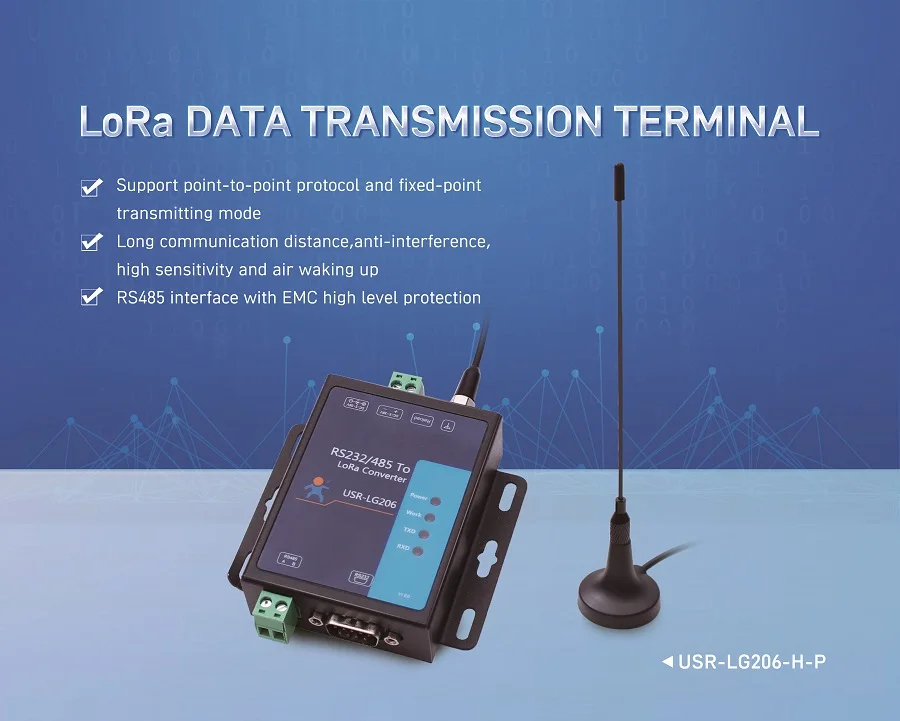

USR-LG206-H-P:803-930MHz

Transmitting power

10dBm~20dBm

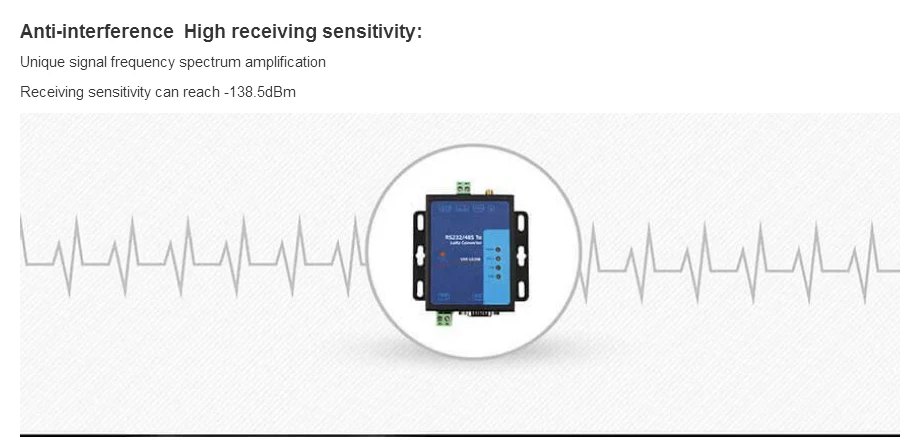

Receiving sensitivity

-138.5dBm 0.268Kbps

Transmission distance

3500 meters. Test condition: Open area, clear weather, 20dBm transmitting power, 5dBi antenna gain, height is greater than 2 meters, 0.268K air rate.

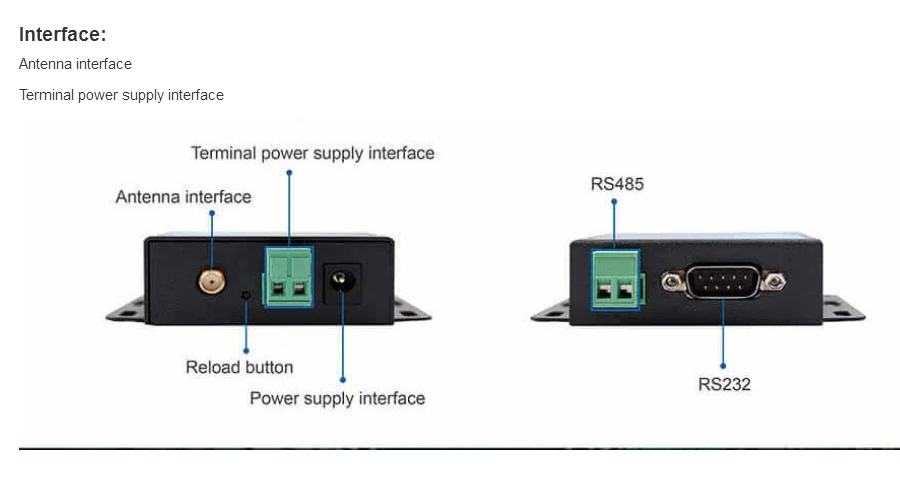

Antenna

SMA

Data interface

Serial port: Support RS232/RS485.

Baud rate: 1200bps~115200bps

Working voltage

5V~36V

Working current

Transmitting current: 45mA 12V.

Standby mode: 12mA 12V.

Working temperature

-30℃~+80℃

Storage temperature

-45℃~+90℃

Working humidity

10~90%RH

Storage humidity

10~90%RH
