Product Overview

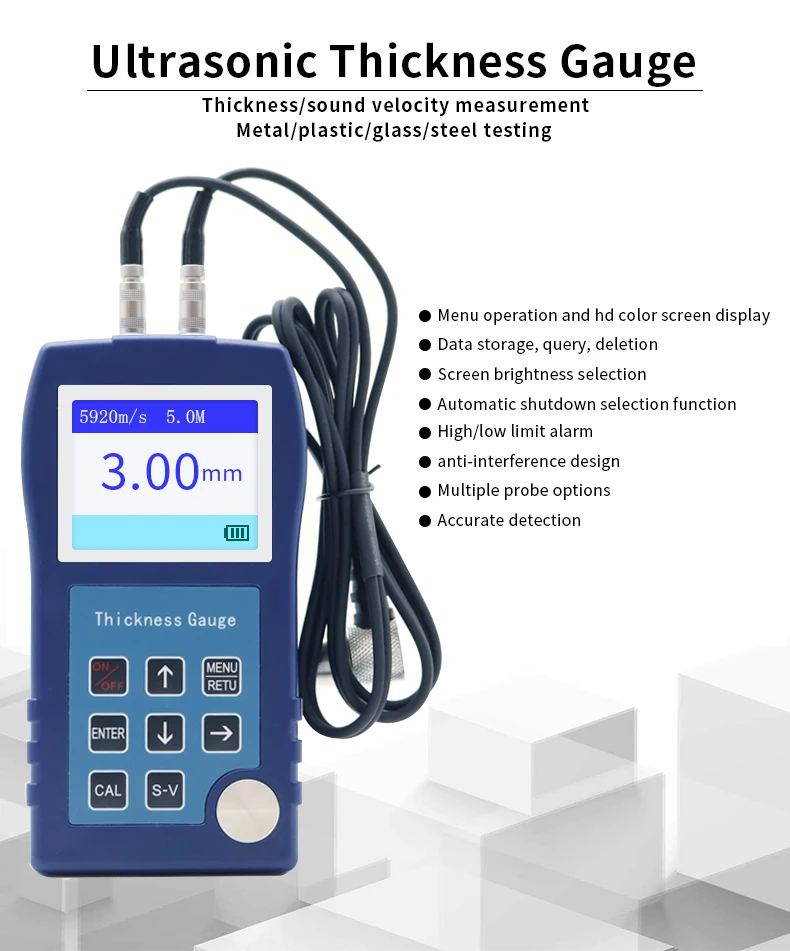

Ultrasonic thickness gauge

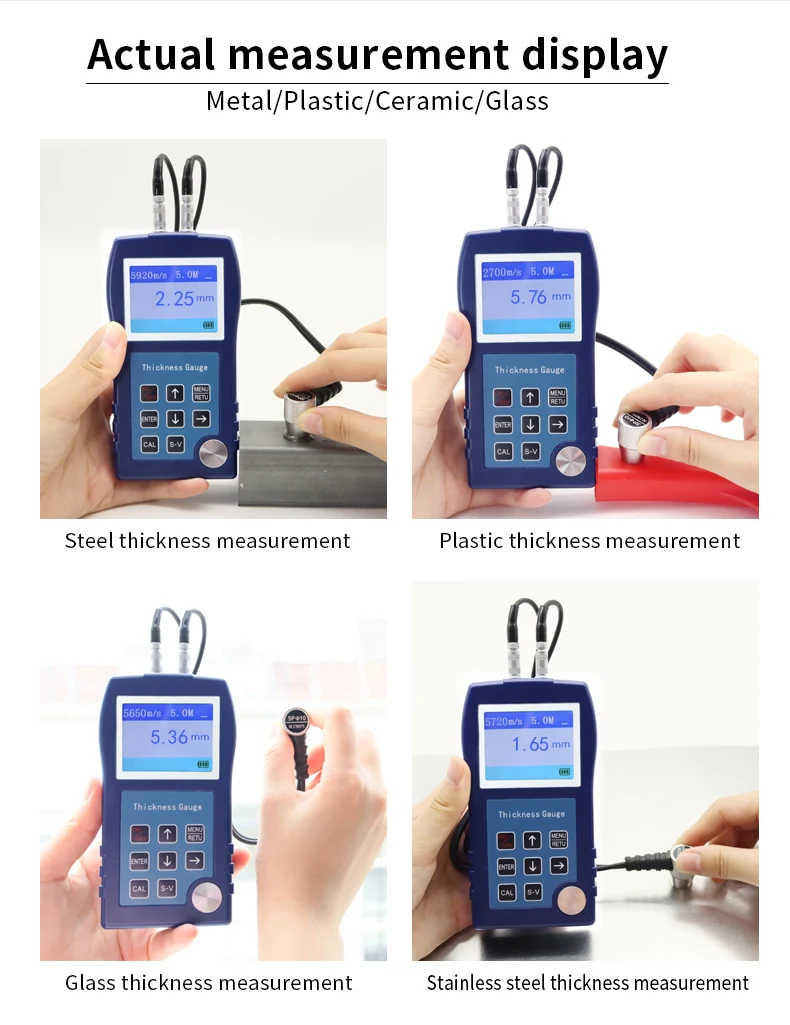

Ultrasonic thickness gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials. It is suitable for measuring the thickness of various materials, such as steel, metal, glass, ABS, plastics, PVC, ductile iron, etc., which can be transmitted by ultrasonic wave at a constant speed in its back.
PRODUCT SPECIFICATIONS
MODEL | DR85S |
Measuring Range(Standard) | 0.75〜400mm |
Display Resolution | 0.01mm |
Measurement Resolution | ±1%H+0.1mm |
Material Velocity | 1000～9999m/s |
Bandwidth | 1MHz～10MHz(-3dB) |
Power Supply | 4.5VDC (three AAA batteries) |
Screen | TFT Color screen 2.3 inch |
Size | 130L×70W×25Hmm |
Weight | 125g (excluding batteries) |
Work Temperature | -10～﹢50℃(with high temperature probe, up to 300℃) |
Work Humidity | 20%～90%RH |

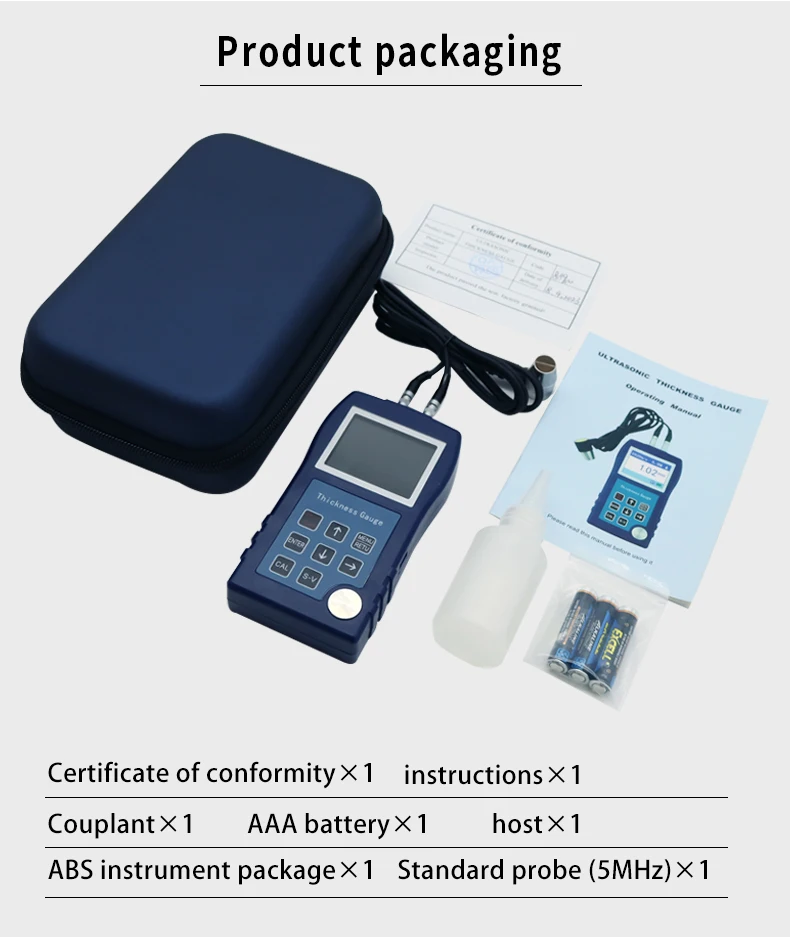

Product packaging
