Product Details

Features

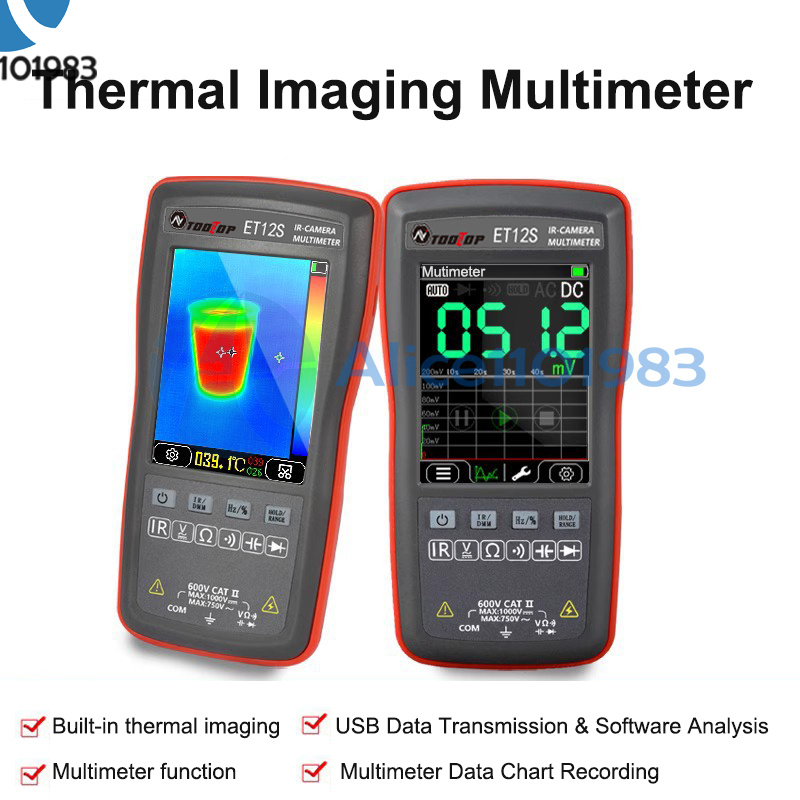

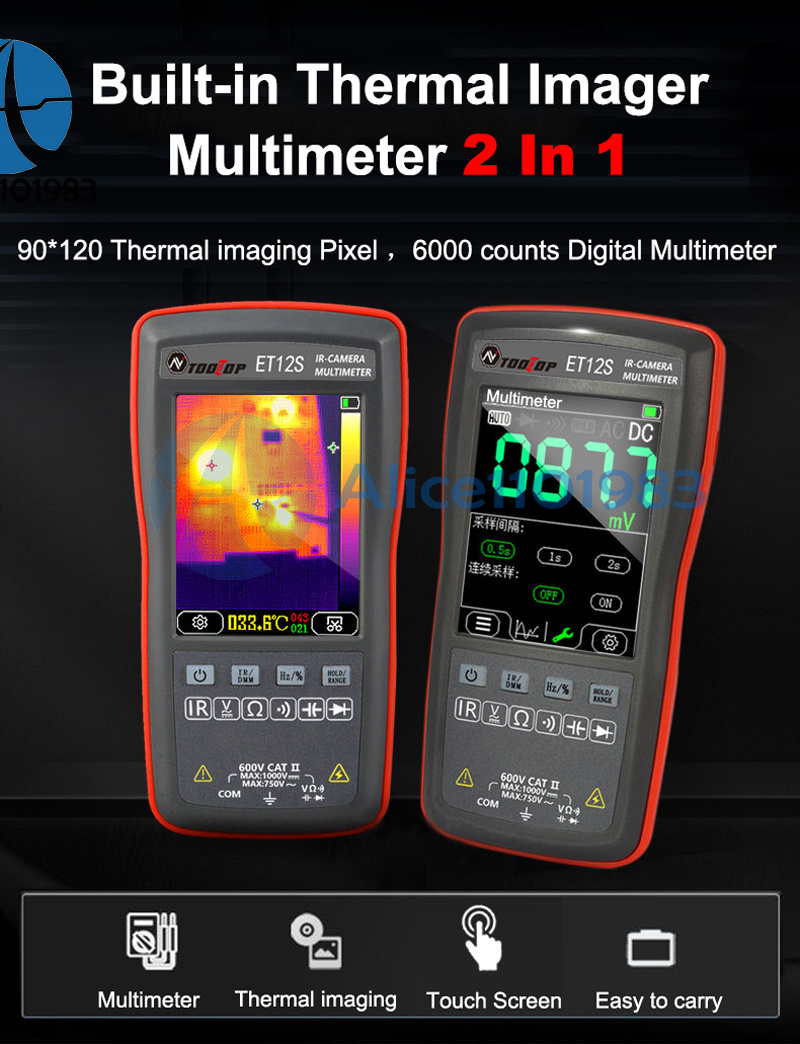

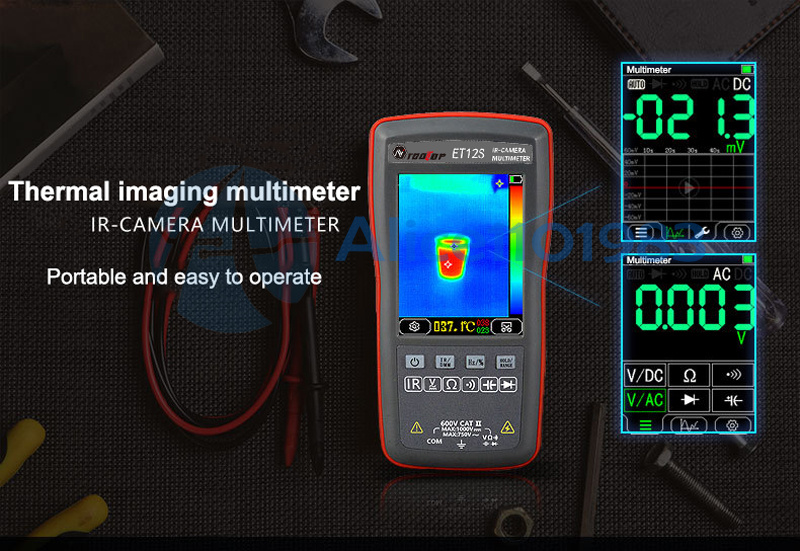

1.2-In-1 Function: Thermal imager + Multimeter 2-In-1 ,One click switching between two functions,with compact and small size, light weight and easy to carry.
2.Touch screen: 2.8 inches Resistive touch screen operation,320*480 resolution,with one click function.
3.Data transmission & PC software analysis:Under USB mode, it is possible to transfer locally saved thermal imaging images and the multimeter mensurement result recording by data chart .And displayed on the computer through PC software.

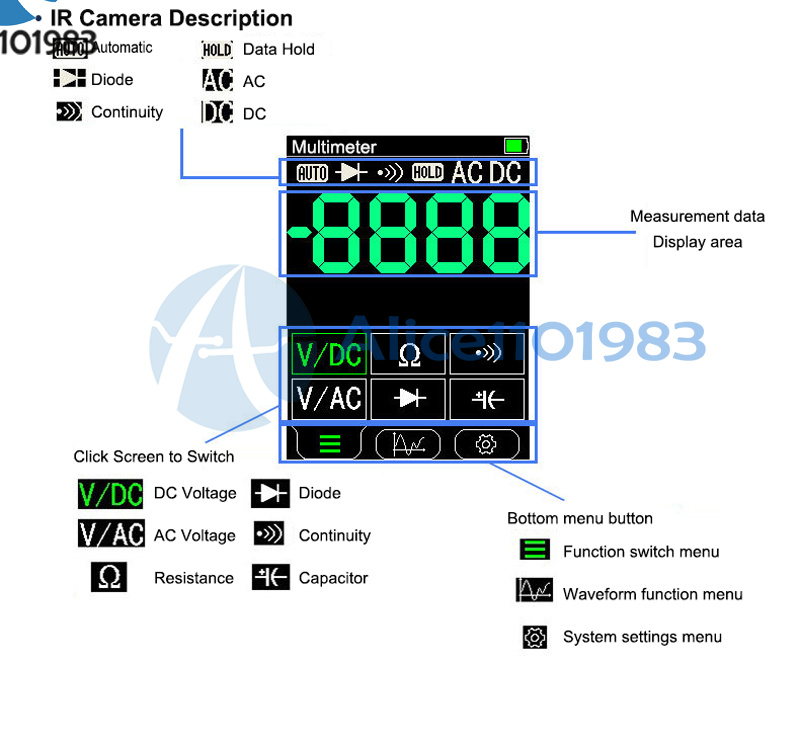

4.Multifunctional: The multimeter can measure DC voltage, AC voltage, resistance, diode, on/off, capacitance, etc.
5.Language: Both Chinese and English can be set.
6.Battery management: built-in lithium battery (supporting USB charging), with automatic screen turn off and automatic power off functions.
7.Widely applications: can be used for circuit board inspection and maintenance, power supply maintenance, electronic equipment maintenance, Home appliance overhaul, is an ideal choice for electronics and maintenance technicians

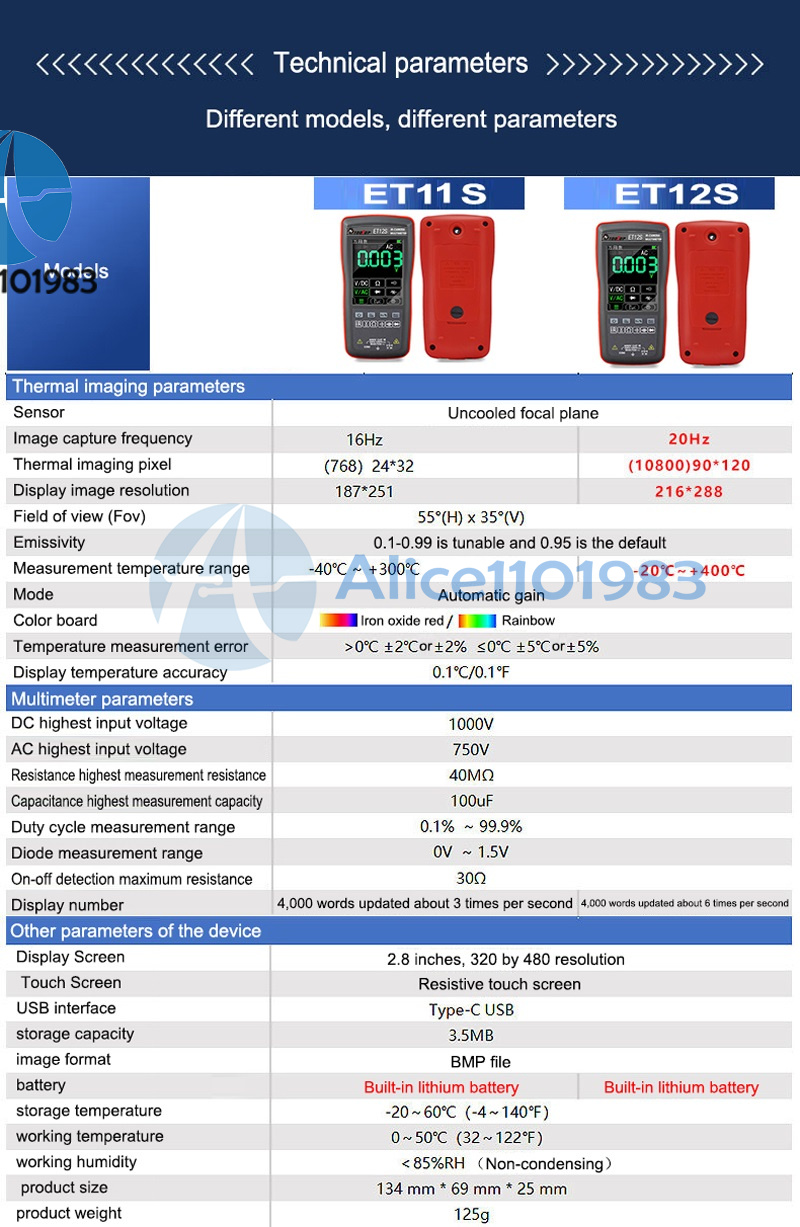

Specifications

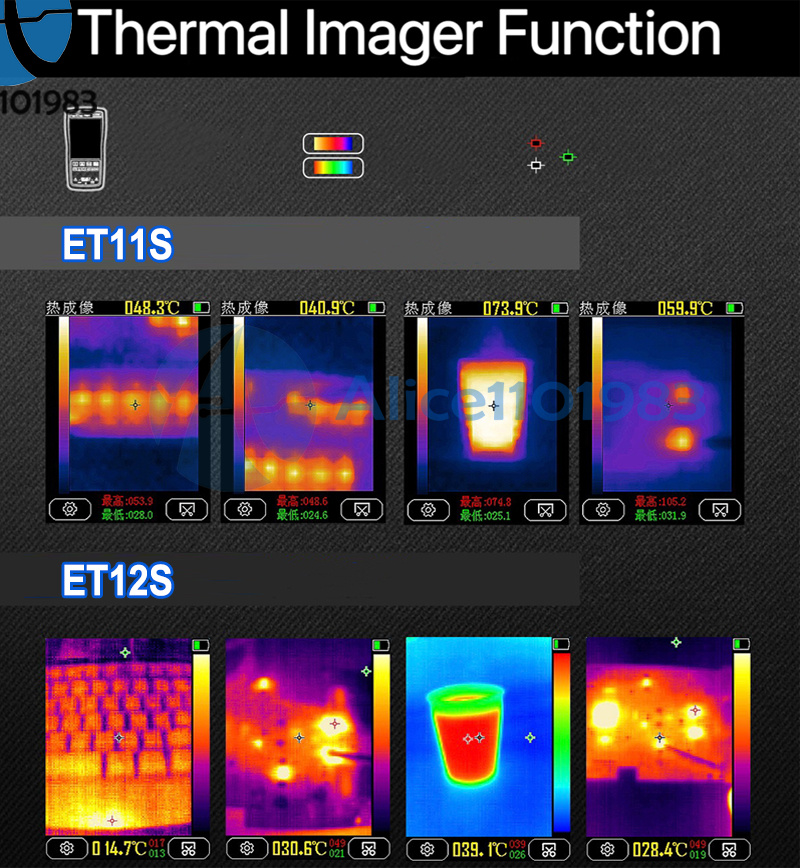

Thermal imager parameters
Sensor: Uncooled focal plane
lmage capture frequency:16Hz(ET11S) ; 20Hz(ET12S)
Thermal imaging pixel: 24*32(ET11S) ; 90*120(ET12S)
pixel: ET11S(32*24 pixel) ET12S(90*120 pixel)
FOV:55°(H)*35°(V)
Emissivity: 0.1-0.99 adjustable
Measuring range:-40~ +300℃(ET11S); -20~ +400℃(ET12S)
Mode:automatic gain
Color palette:Iron Red/Rainbow
Temperature measurement error:>0℃:±2℃/±2%; ≤0℃ ±5℃/±5%
Display temperature accuracy:0.1°C/0.1°F

Multimeter parameters
Maximum DC input voltage:1000V
Maximum AC input voltage:750V
Maximum measured resistance:40MΩ
Maximum measuring resistance of capacitance:100uF
Duty cycle measurement range:0.1%-99.9%
Diode measuring range:0V-1.5V
Maximum resistance of on-off detection:30Ω
Counts:
4000 counts,Refreshes:3 times per second (ET11S)
4000counts,Refreshes:6 times per second (ET12S)

Other parameters
Display screen: 2.8 inches 320*480
touch screen: Resistive touch screen
USB interface: TYPE-C
Storage Capacity: 3.5MB
Image Format: BMP
Battery: Built-in Lithium battery
Storage temperature: -20~60℃(-4~140℉)
Working temperature: 0-50℃(32-122℉)
Working humidity: <85%RH(non condensing)

Package List:
1 x Thermal imager Multimeter
1 x Cable
1 x User Manual
1 x Box
