ProGear Product Line

The Next Generation of Full HD PTZ Cameras

Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.

BG-ADAMO-JRDA

The BG-ADAMO-JR is a brand-new Full HD PTZ camera with 3 types of lenses available: 12X optical zoom with 70.3 FOV, 20X optical zoom with 60.04 FOV, and 30X optical zoom with 58.1 FOV. It features smooth PTZ functions, advanced image processing features and flexible connection options. The BG-ADAMO-JR also provides support for NDI|HX3 with the BG-ADAMO-JRND model and Dante AV-H with the BG-ADAMO-JRDA model.

Advanced Visual Performance: With the high quality 1/2.8-inch SONY CMOS image sensor, the resolution of this camera can get up to 1080@60fps. Additionally, the low noise 1/2.8-inch SONY CMOS guarantees high SNR and the advanced 3D noise reduction technology further reduces the noise while ensuring pristine image clarity. The advanced ISP processing technology and algorithms also allow the camera to deliver true-to-life image quality for the most natural and accurate viewing experiences.

U.S.-Based Company
BZBGEAR Control Software
5-Year Warranty
ProGear Product Line
Smooth Video and Audio Processing The BG-ADAMO-JR offers a smooth and impressively clear viewing experience. It uses advanced video and audio compression techniques to ensure the best quality content. Additionally, advanced auto focus technology allows the camera to autofocus stably, swiftly, and precisely.
Optical Zoom The BG-ADAMO-JR offers three different optical zoom lenses that users can choose from: 12X optical zoom with 70.3 viewing angle, 20X optical zoom with 60.04 viewing angle and 30X optical zoom with 58.1 viewing angle.
Flexible Connections The BG-ADAMO-JR supports HDMI, SDI, USB 2.0, USB 3.0 and LAN connections. It also supports IP streaming, offering flexible workflow options for users.
U.S.-Based Company
BZBGEAR Control Software
5-Year Warranty
ProGear Product Line

Auto-Tracking Capabilities

The auto-tracking technology uses the latest human detection AI algorithms to exhibit unparalleled tracking speed and accuracy. This monocular tracking method uses only one camera and one lens to easily detect and capture human forms and moving objects in seconds.

The auto tracking is presented in two modes: Presenter Tracking and Zone Tracking. Presenter Tracking tracks its target everywhere without the need to wear any receiving devices. It has strong locking and anti-interference capabilities giving presenters the flexibility to leave the stage and interact with the audience while continuously being tracked. Zone Tracking can be set to track a specific area providing a clear, smooth representation of what’s being shown behind the presenter such as a whiteboard.

U.S.-Based Company
BZBGEAR Control Software
5-Year Warranty
ProGear Product Line

Extensive Control Options

RS Communication Protocols: The BG-ADAMO-JR supports RS422 (compatible with RS485) output and RS232 input/output. RS232 supports cascading, making it easy for engineers to operate.

Control Protocols: Support for multiple control protocols include VISCA, PELCO-D, PELCO-P, and auto identification protocol.

Network Protocols: Support for multiple network protocols include ONVIF, GB/T28181, RTSP, RTMP protocols, and supports push mode in RTMP to easily link with streaming media servers. Plus, it supports RTP multicast mode and network full command VISCA control protocols.

Additionally, this full HD PTZ camera will enable users to set up to 255 presets (10 can be set via remote control). BZBGEAR Camera Control Software: BZBGEAR offers a free control software available for Windows, Mac and iOS.

The BG-CONTROL app provides precise manipulation of pan, tilt, zoom, and focus for BZBGEAR PTZ cameras. It features full-screen image previews on iOS devices, image parameter adjustments, and easy preset management for up to 8 cameras. The app also includes customizable camera names, adjustable PTZ speed, and efficient multi-camera preset storage.
U.S.-Based Company
BZBGEAR Control Software
5-Year Warranty
ProGear Product Line

Dante AV-H and Innovative Design

What is Dante AV-H?


Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. Dante AV-H uses H.26x compression to compress the bandwidth of a camera’s video feed to allow it to stream over a local area network with near zero latency. The H.26x compression standard also provides a high image quality up to YUV 4:4:4. For protection of the users content, Dante AV-H is HDCP compliant.

With Dante AV-H, users will also be able transmit and receive audio and video over their network. Furthermore, with the Dante controller, control for both audio and video will be unified. Users will then be able to control all sources from one screen.

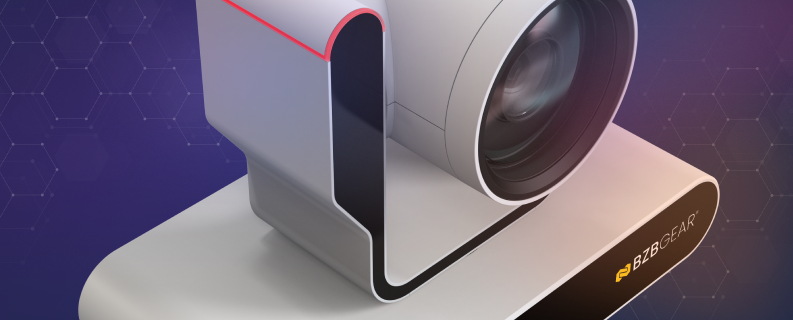

Innovative Design


Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering full HD resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.
U.S.-Based Company
BZBGEAR Control Software
5-Year Warranty

Video

Features

  • 1080P
    Output up to 1080p@60Hz resolution
  • TALLY LIGHTS
    Integrated red/green LED tally lights
  • MICROSD
    Record and store up to 1 TB
  • MULTIPLE VIDEO OUTPUTS
    Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
  • PoE
    Data, power, and control over a single category cable (PoE+ Recommended)
  • Zoom
    30x Optical Zoom

Specification

Camera/Lens
Optical zoom 12X 20X 30X
Focus Range f=4.1 mm ~ 49.2 mm ±5% f=5.05 mm ~ 91.49 mm ±5% f=5.2 mm ~ 148.4 mm ±5%
FOV Horizontal (H): 6.57°(tele) ~ 70.28°(wide)
Vertical (V): 3.76°(tele) ~ 42.06°(wide)		 Horizontal (H): 3.45°(tele) ~ 60.04°(wide)
Vertical (V): 1.97°(tele) ~ 35.31°(wide) 		Horizontal (H): 2.14°(tele) ~ 58.1°(wide)
Vertical (V): 1.2°(tele) ~ 33.8°(wide)
Iris Value F1.8 ~ F2.68±5% F1.8 ~ F2.9±5% F1.3 ~ F4.8±5%
Image Sensor 1/2.8 inch SONY CMOS sensor 1/2.8 inch SONY CMOS sensor 1/2.8 inch SONY CMOS sensor
Effective Pixels 2.07 Megapixels 16:9
Video Signal HDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB 2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB 3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 3D
White Balance Auto / Manual / One-Push / Specified Color Temperature
Focus Mode Auto / Manual / One-Push
Exposure Mode Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
Iris Value F1.8 ~ F11, CLOSE
Shutter Speed 1/25 ~ 1/10000
BLC On/Off
Dynamic Range Off / Dynamic Level Adjustment
Video Adjustment Brightness, Hue, Saturation, Contrast, Sharpness, W/B Mode
SNR ≥50dB
Interface Parameters
Interface HDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
Video Compression Format LAN: H.264, H.265
USB 2.0: MJPG, H264, H265, YUY2, NV12
USB 3.0: YUY2
Audio Input Dual channel 3.5mm line input
Audio Output HDMI, SDI, LAN
Audio Compression Format AAC
Network Jack 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
Network Protocols RTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Control Jack RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial Port Communication VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400
USB Communication Protocol UVC (Video Communication Protocols)
Power Supply HEC3800 Power Outlet (DC12V)
Power Adapter Input: AC110V-AC220V; Output: DC12V/1.5A
Input Voltage DC12V±10%
Input Current <1.5A
Power Consumption <12W
PTZ Parameters
Pan -170° ~ +170°
Tilt -30° ~ +90°
Pan Speed 1.4°/s ~ 100°/s
Tilt Speed 2.9°/s ~ 30°/s
Preset Speed Pan (H): 78.8°/s, Tilt (V): 31.7°/s
Preset Quantity 255 Presets (10 can be set via remote control)
Other Parameters
Stored Temperature14°F ~ 140°F / -10°C ~ +60°C
Storage Humidity20% ~ 95%
Working Temperature14°F ~ 122°F / -10°C ~ +50°C
Working Humidity20% ~ 80%
Dimension (L x W x H)7.88" x 6.13" x 5.2" [200.2mm x 155.7mm x 132.1mm]
Weight3.5 lbs [1.59kg]
Working EnvironmentIndoor Only

Awards

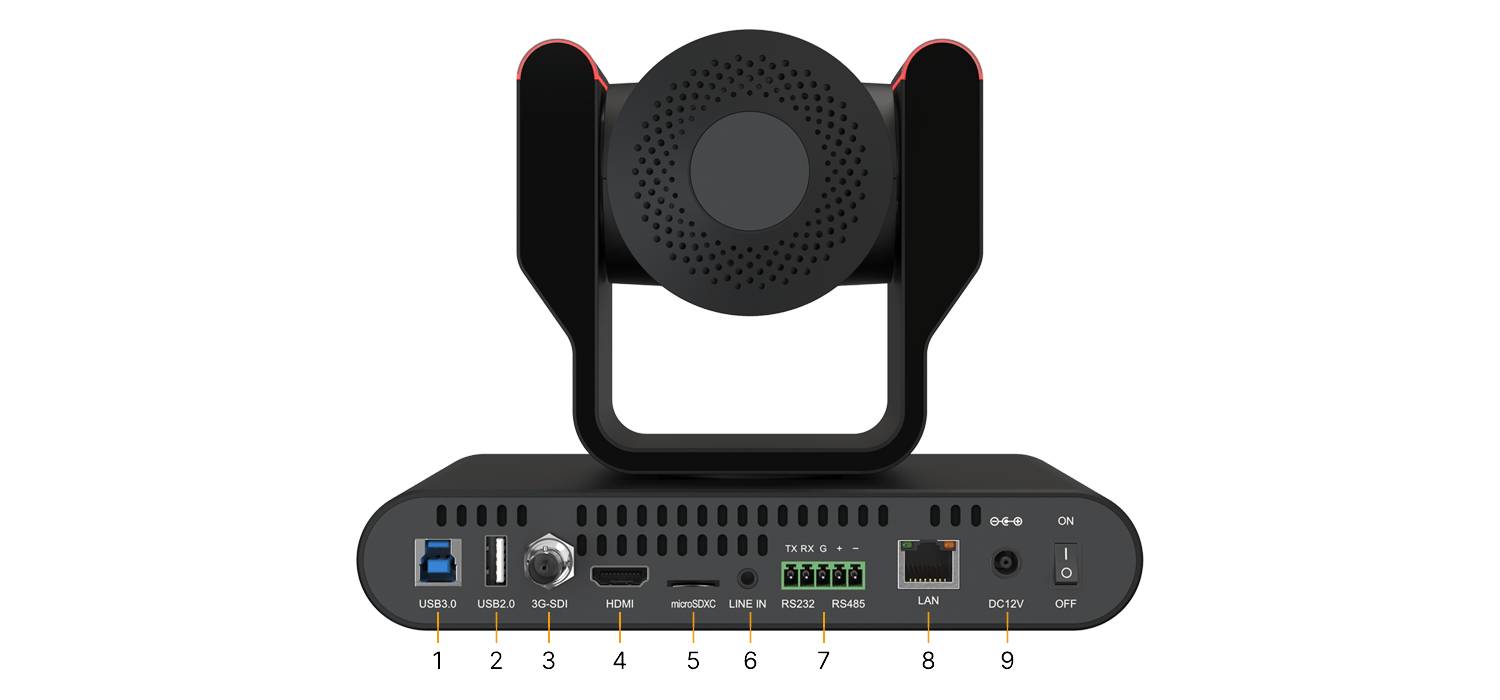

Interfaces

1. USB 3.0:
Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
2. USB 2.0:
Connect USB 2.0 type A cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@60Hz.
3. 3G-SDI:
Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 1080p@60Hz over SDI cabling.
4. HDMI:
Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
5. MicroSD:
Record up to 1 TB.
6. Audio In:
Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
7. RS-232, RS-485:
Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
8. LAN:
Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream (Can facilitate Dante AV-H or NDI|HX3 connectivity).
9. Power:
Connect supplied 12V power adapter.

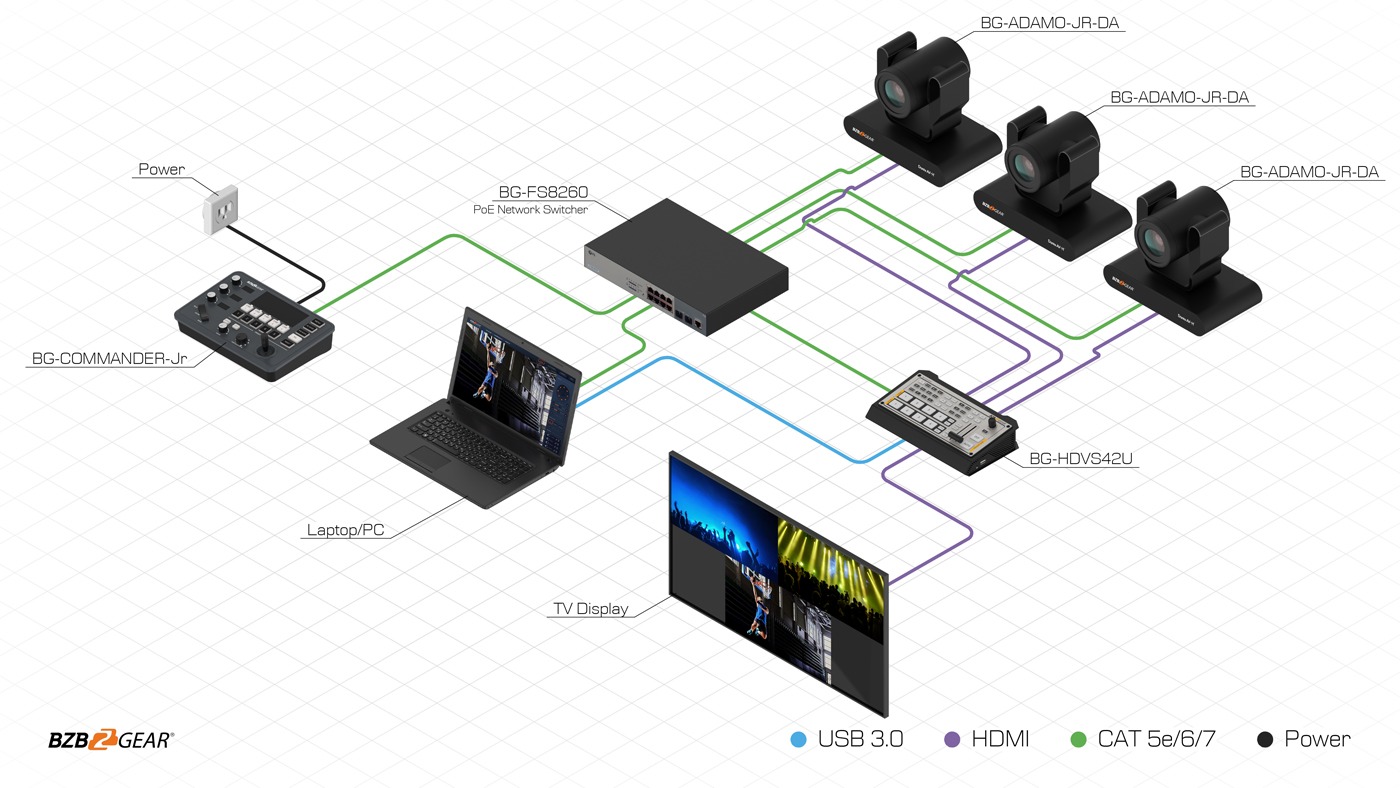

Connection Diagram

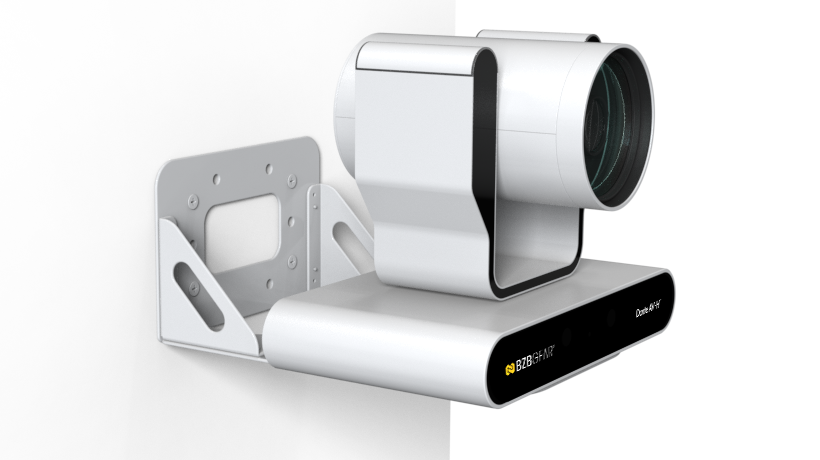

Mounting Ideas

Package Contents

  • 1 x BG-ADAMO-JRDA Camera
  • 1 x Power Adapter
  • 1 x RS232 Control Cable
  • 1 x USB 2.0 Cable
  • 1 x USB 3.0 Cable
  • 1 x Remote Control
  • 1 x Manual
