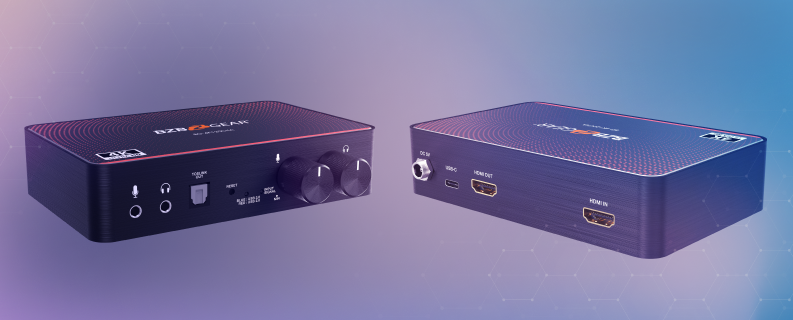

The BG-4K120CHA is a cutting-edge USB-C 4K120 video capture device with a scaler, HDMI 2.1 loopout, audio, and HDR10 to SDR conversion, designed for professional HDMI video signal capturing. It utilizes a USB 3.1 Type-C Gen 1 (USB 3.0) interface for high-speed transmission. Additionally, the HDMI input and loopout can support up to 4K2K 120Hz, enabling users to connect to a 4K2K 120Hz source and capture Ultra HD (4K2K@30) video. The BG-4K120CHA also captures and displays original uncompressed HDMI video, resulting in more realistic color rendition.

Moreover, the BG-4K120CHA incorporates large volume image buffer technology to effectively avoid video tearing, and the high sampling rate and accuracy ensure images with high sharpness, rich details, and fewer color edges. Furthermore, with HDR10 to SDR conversion, PS5/Xbox Players can enjoy 4K2K@120 HDR games on a 4K TV while recording real-time 4K2K@30/1080P@120 video streams with SDR quality through USB 3.0 simultaneously.

With its advanced features and high-end capabilities, the BG-4K120CHA is an ideal choice for demanding HDMI video capture applications, offering professional-grade performance and versatility.

* PS5 & Xbox Series X also support 1080P120.

U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty
ProGear Product Line
U.S.-Based Company
5-Year Warranty

Video

Features

  • 4K@120Hz
    HDMI input & output up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0
  • Volume control
    Use the volume control knobs to adjust the MIC/Headphone volume
  • Plug and Play
    Auto-detection of video format
  • Software Compatibility
    Compatible with most 3rd party software such as OBS Studio and AMCap
  • Mic-in-mix
    Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the HDMI connection
  • Low Latency
    3~4ms at 1080P

Specification

Model NameBG-4K120CHA
Technical
Role of usageVideo Capture Device
Input Video bandwidthUp to FRL 5 (40G)
Output bandwidth (USB-C)Up to 5 Gbps (USB-C)
Output bandwidth (HDMI)Up to FRL 5 (40G)
Video support (USB-C)Up to 4K2K @ 30/1080P@120
Video support (HDMI)Up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0
Audio InputHDMI Embedded Audio & Stereo audio Input
Audio SupportHDMI output up to 7.1ch, TOSLINK up to 5.1ch, Stereo audio up to 2ch
Recording ModeSoftware Compression
Recording Video FormatRGB/YUY2/NV12/P010 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0)
ESD protectionHuman body model - +/-15kV [air-gap discharge] & +/-8kV [contact discharge]
PCB stack-up4-layer board [impedance control - differential 100Ohm; single 50Ohm]
Firmware updateFeasible via USB-C Port
Input1x HDMI + 1x 3.5mm
Output1x USB-C + 1x HDMI + 1x 3.5mm + 1x TOSLINK
HDMI connectorType A [19-pin female]
USB connectorUSB 3.1 Type-C (SuperSpeed USB)
Software compatibility
(not complete list)		OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows), VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS SupportWindows 7 /8.1 /10/11, Mac and Linux OS
Mechanical
HousingMetal enclosure
Dimensions
[L x W x H]		Model7" x 3.2" x 0.9" [177 x 81 x 22mm]
Package7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
WeightModel5.8 oz [165g]
Package1 lbs [445g]
Power supplyVia USB-C
Power consumption4.5 Watts [max]
Operation temperature32~104°F / 0~40°C
Storage temperature-4~140°F / -20~60°C
Relative humidity20~90% RH [no condensation]

Interfaces

1. STEREO AUDIO IN:
Audio extracts from HDMI input.
2. STEREO AUDIO OUT:
Connect to an analog stereo audio source.
3. S/PDIF OUT:
Audio extracts from HDMI input.
4. RESET BUTTON:
Reset the device.
5. LED INDICATOR:
USB-C indicator LED
[Red] The device is connected to the USB 2.0 port on the host
[Blue] The device is connected to the USB 3.0 port on the host.
6. LED INDICATOR:
Power & input signal indicator LED
[Blue] Device powered on (no input signal)
[Green] Input detects HDMI signal
[Red] Input source is HDCP protected.
7. STEREO AUDIO IN VOLUME KNOB:
To adjust the stereo audio in sound level.
8. STEREO AUDIO OUT VOLUME KNOB:
To adjust the stereo audio out sound level.
9. POWER JACK:
Connect to the +5V DC power supply unit.
10. USB-C OUT:
Connect to a USB host (PC, NB, MAC…).
11. HDMI OUT:
Connect to a HDMI display.
12. HDMI IN:
Connect to a HDMI source.

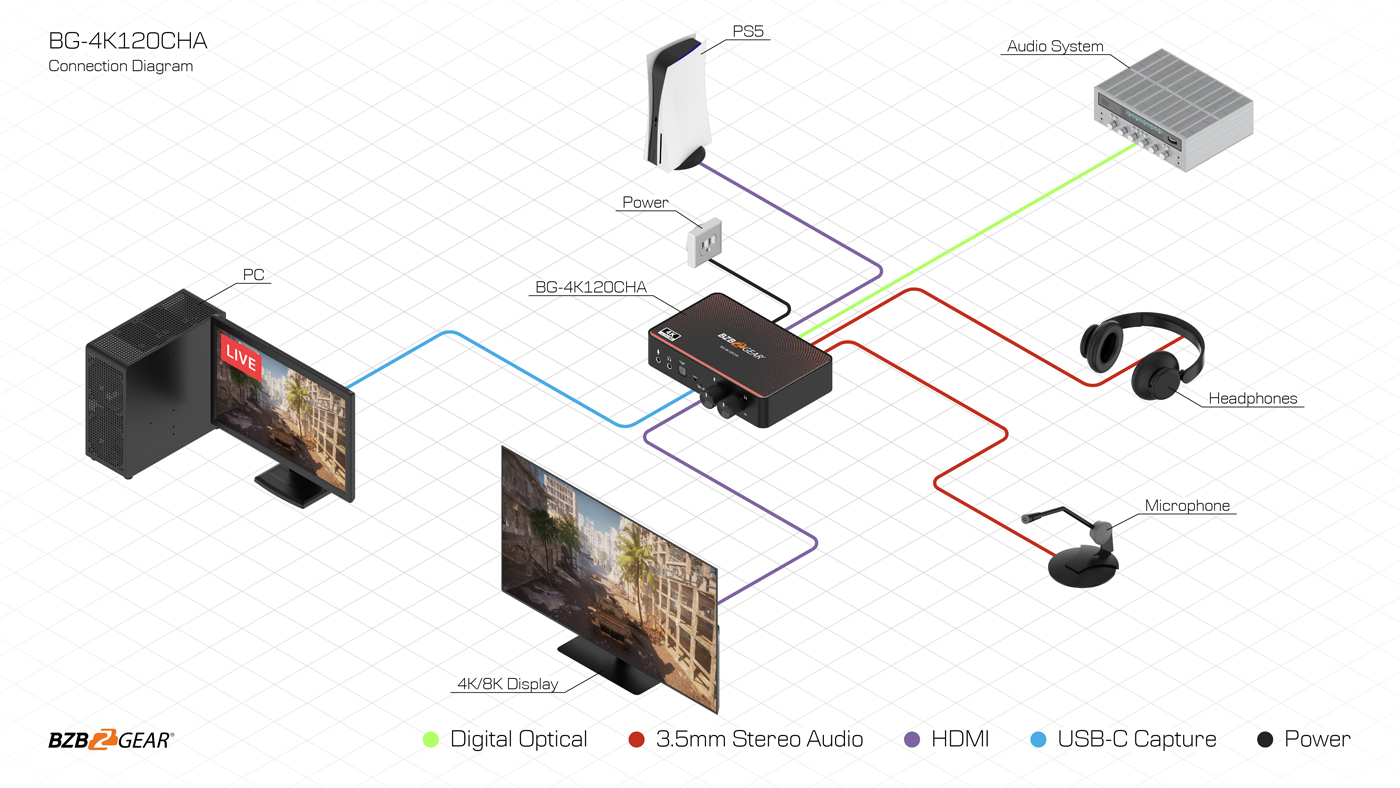

Connection Diagram

Package Contents

  • 1x BG-4K120CHA
  • 1x 5V power adapter
  • 1x USB 3.0 A to C Cable (host to device)
  • 1x User Manual
