Overview
Overview
The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.
Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.
Video
Features
-
Volume controlUse the volume control knobs to adjust the MIC/Headphone volume -
Plug and PlayAuto-detection of video format -
Software CompatibilityCompatible with most 3rd party software such as OBS Studio and AMCap -
Low Latency3~4ms at 1080P -
Mic-in-mixAllows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the SDI connection -
Auto-DetectionAuto 12G/6G/3G/HD-SDI detection
Specification
| Model Name | BG-12GCSA | |
| Technical | ||
| Role of usage | Video Capture Device | |
| Input/loopout Video bandwidth | [SDI] 11.88 Gbps, 11.88/1.001 Gbps | |
| Output bandwidth | Up to 5 Gbps (USB-C) | |
| Video support (USB-C) | Up to 4K2K @ 30 / 1080P @ 120 | |
| Video support (Loopout) | Up to 4K2K @ 60 | |
| Input Video Support | [12G-SDI] 4K2K @ 50/59.94/60Hz [6G-SDI] 4K2K @ 23.98/24, 25, 29.97, 30Hz [3G-SDI] 1080p50/59.94/60Hz [HD-SDI] 720p @ 50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 1080p @ 23.98/24/25/29.97/30Hz | |
| Audio Input | SDI Embedded Audio & Stereo audio Input | |
| Audio Support | HDMI output/ SDI loopout up to 7.1ch, Toslink up to 5.1ch, Stereo audio up to 2ch | |
| Recording Video Format | RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0) | |
| ESD protection | Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge] | |
| PCB stack-up | 4-layer board [impedance control - differential 100Ohm; single 50Ohm] | |
| Cable equalization | [12G-SDI] Input up to 30m; Loopout up to 70m [6G-SDI] Input up to 70m; Loopout up to 120m [3G-SDI] Input up to 200m; Loopout up to 200m | |
| Firmware update | USB-C Port | |
| Input | 1x BNC(SDI) + 1x 3.5mm | |
| Output | 1x USB-C + 1x HDMI + 1x BNC(SDI) + 1x 3.5mm + 1x Toslink | |
| HDMI connector | Type A [19-pin female] | |
| USB connector | USB 3.1 Type C (SuperSpeed USB) | |
| Software compatibility (not a complete list) | OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows), VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows) | |
| OS Support | Windows 7 /8.1 /10/11, Mac and Linux OS | |
| Mechanical | ||
| Housing | Metal enclosure | |
| Dimensions [L x W x H] | Model | 5.4" x 3.2" x 1.2" [137 x 81 x 30mm] |
| Package | 7.8" x 5.4" x 2.9" [198 x 137 x 74mm] | |
| Weight | Model | 7.3 oz [207g] |
| Package | 1 lbs [492g] | |
| Power supply | 5V DC | |
| Power consumption | 8 Watts [max] | |
| Operation temperature | 32~104°F / 0~40°C | |
| Storage temperature | -4~140°F / -20~60°C | |
| Relative humidity | 20~90% RH [no condensation] | |

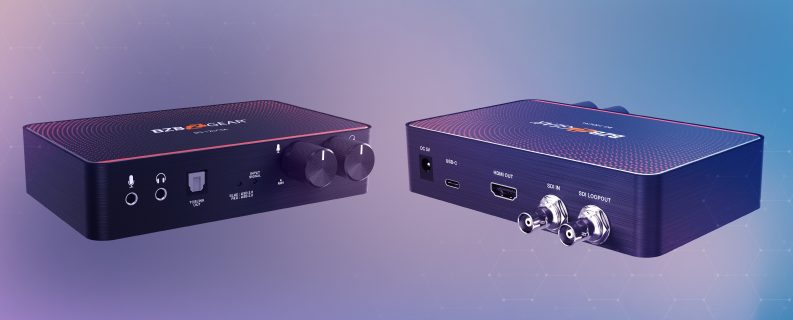

Interfaces
[Red] The device is connected to the USB 2.0 port on the host
[Blue] The device is connected to the USB 3.0 port on the host.

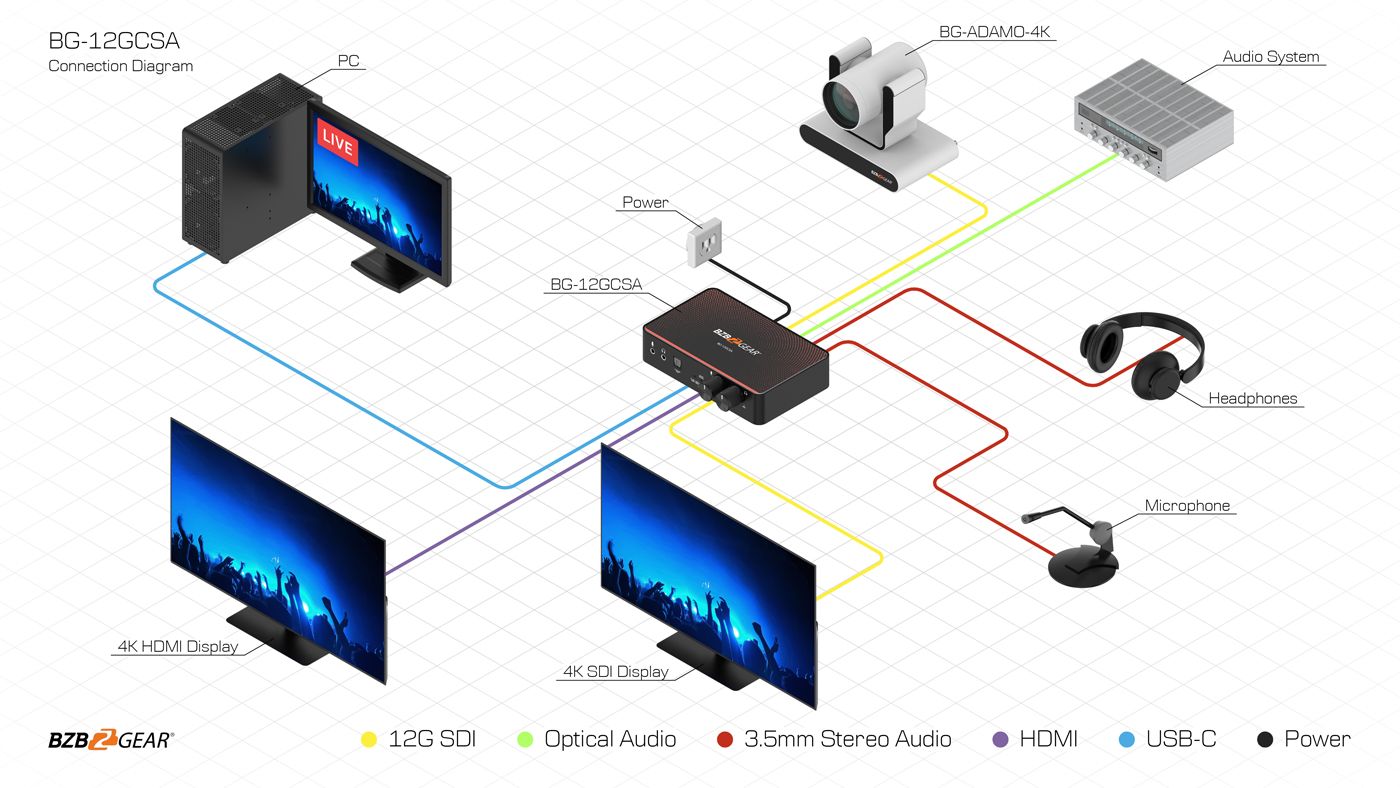

Connection Diagram
Package Contents
- 1x BG-12GCSA
- 1x USB 3.0 A to C Cable (host to device)
- 1x User Manual
