Feature:

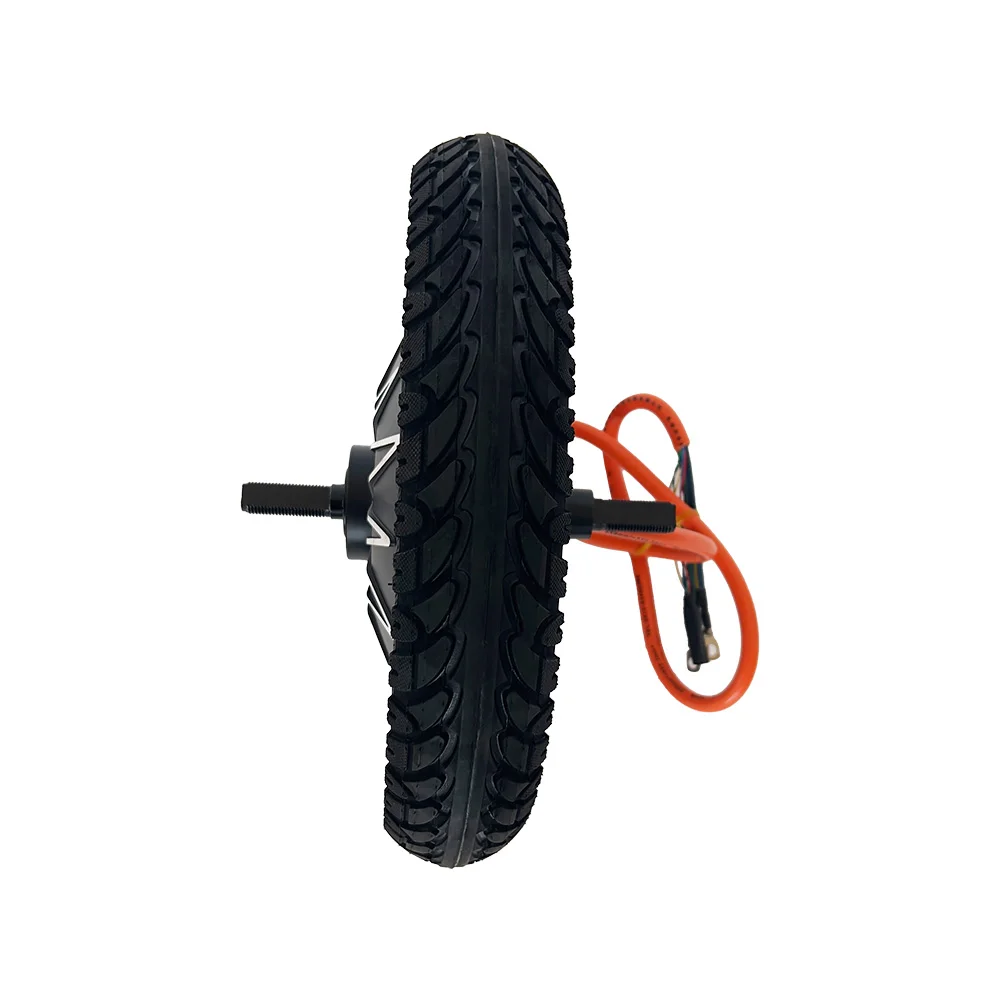

Motor: 12 inch

Voltage:48V60V72V

Power :1500W 2000W 2500W 3000W3500W

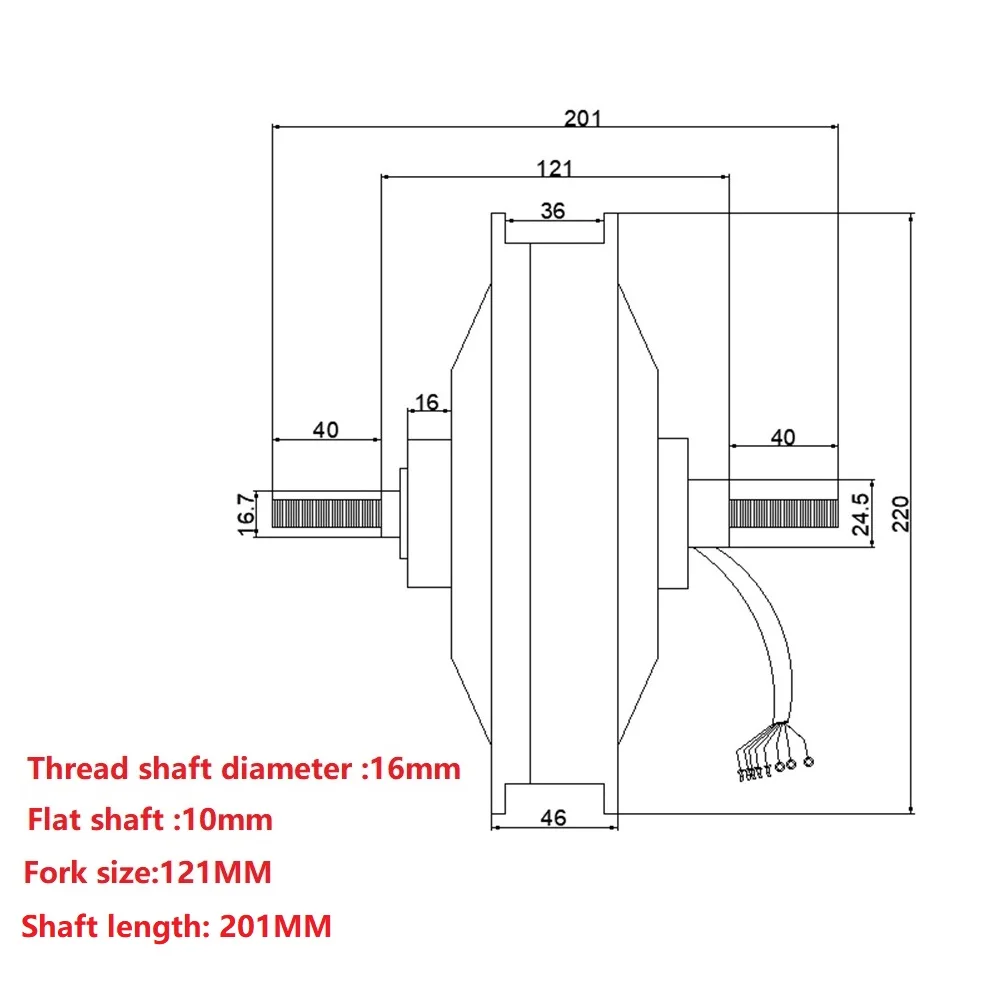

Fork size:121mm

Shaft design: Double

Shaft length:201mm

Shaft diameter: M16

Magnet steel height:30H

Pole pairs: 20 ( magnet pcs 40)

Max Moment Torque: 33 N.m

Speed design: 55-65 km/h(8v 1500w) 60-95km/h (60v 72v3500w)

100-125km/h(60v 72v 5000w)

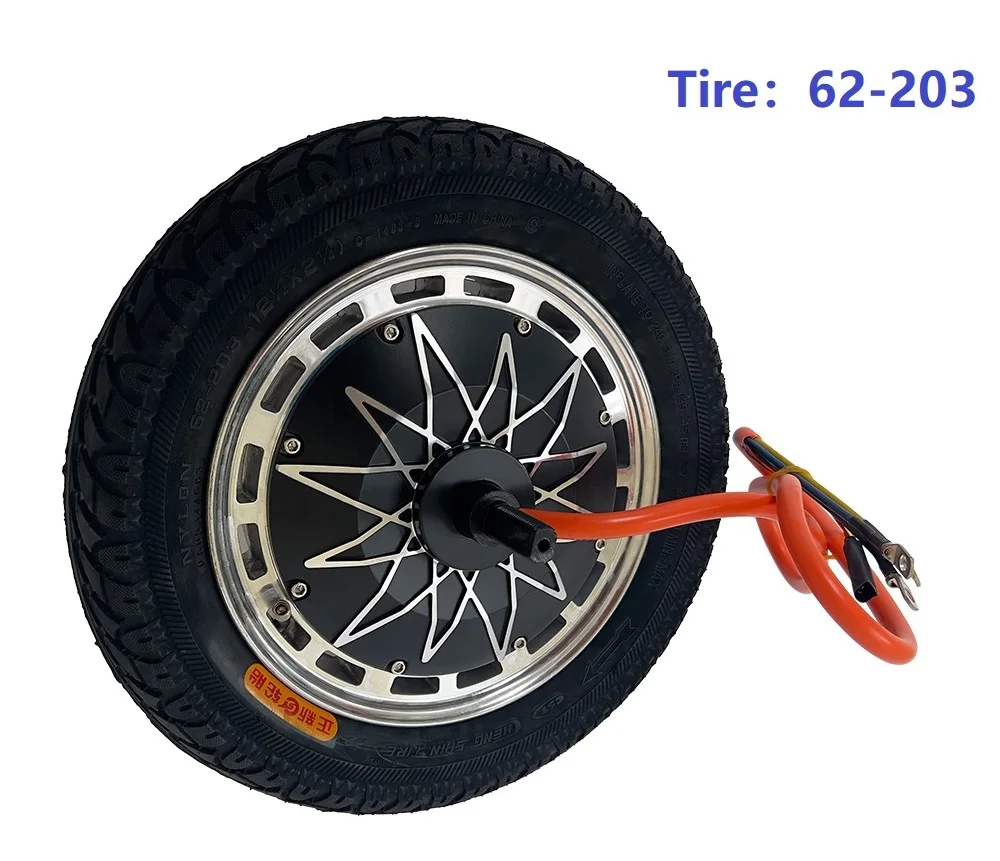

Tyre model: inflatable inner/out tyre 12*2.125





Attention:



What does the choice of 48V60V72V mean?





This means the motor is wide voltage designed, it can accept 48V or 60V,60V or 72V battery.






The controller is also a wide voltage design in selection. It can run on 60V or 72V batteries, with 60V72V options.

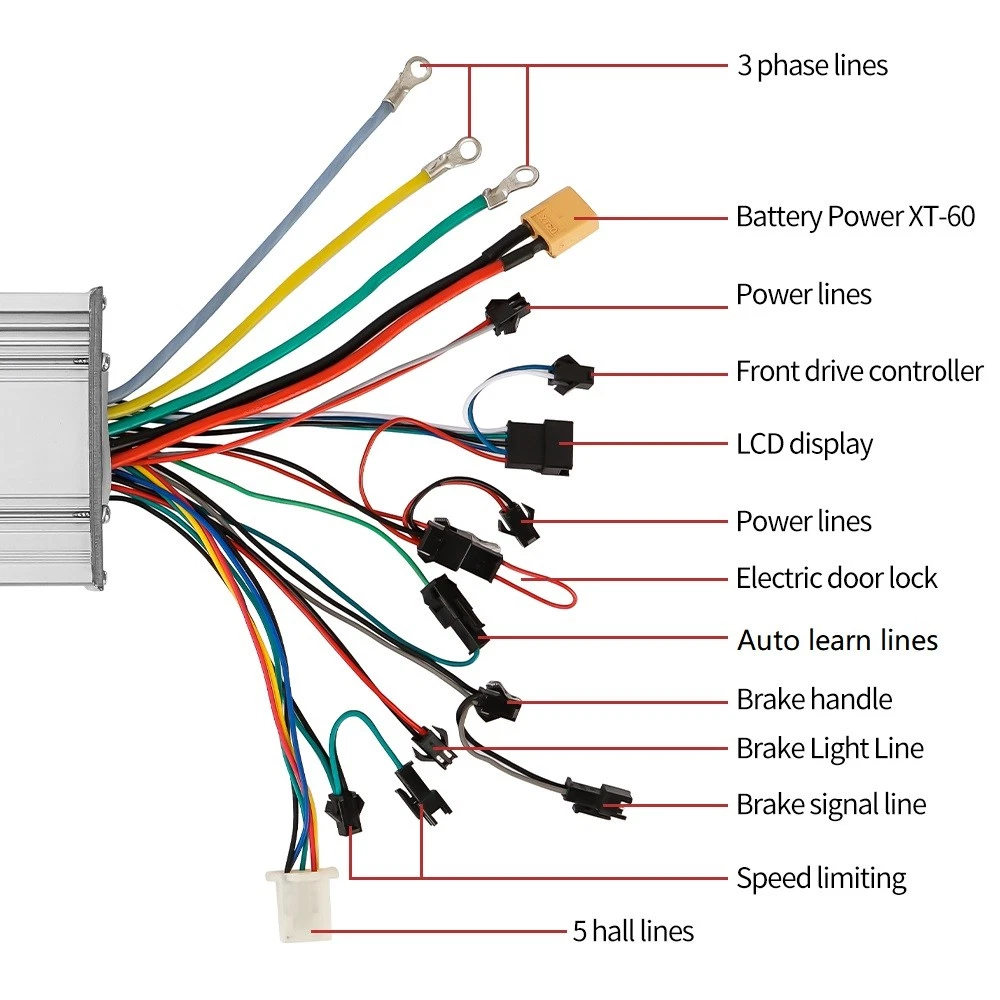

CONTROLLER

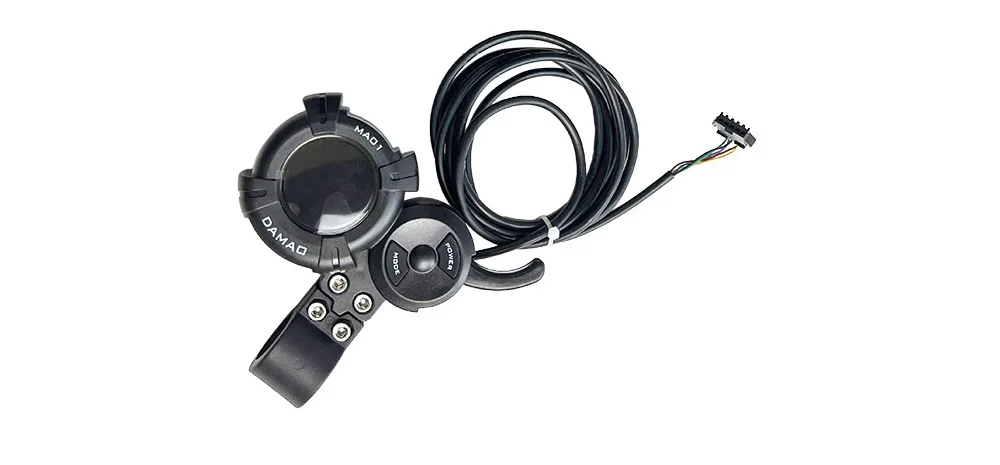

LCD display







LCD display:





Parameter settings:



Press Power botton and Function botton together
