1. High performance, continuously adjustable output voltage and current;

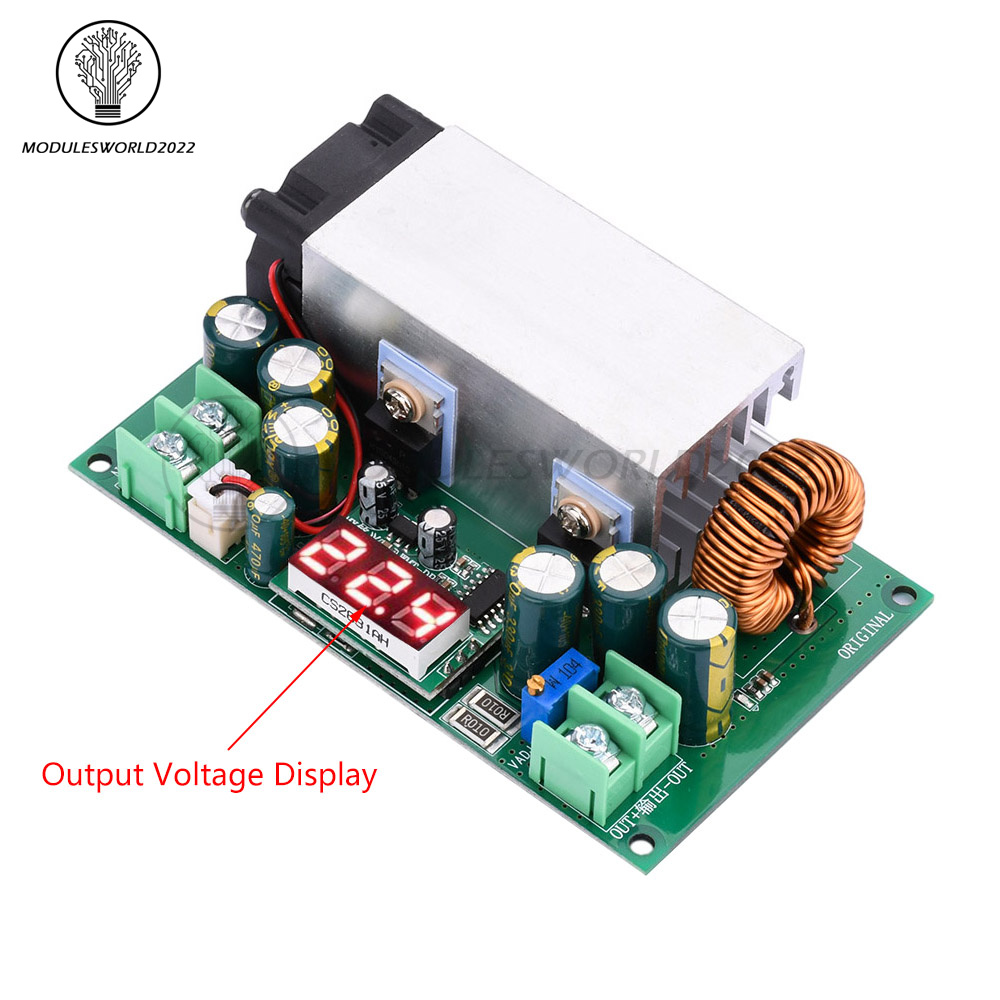

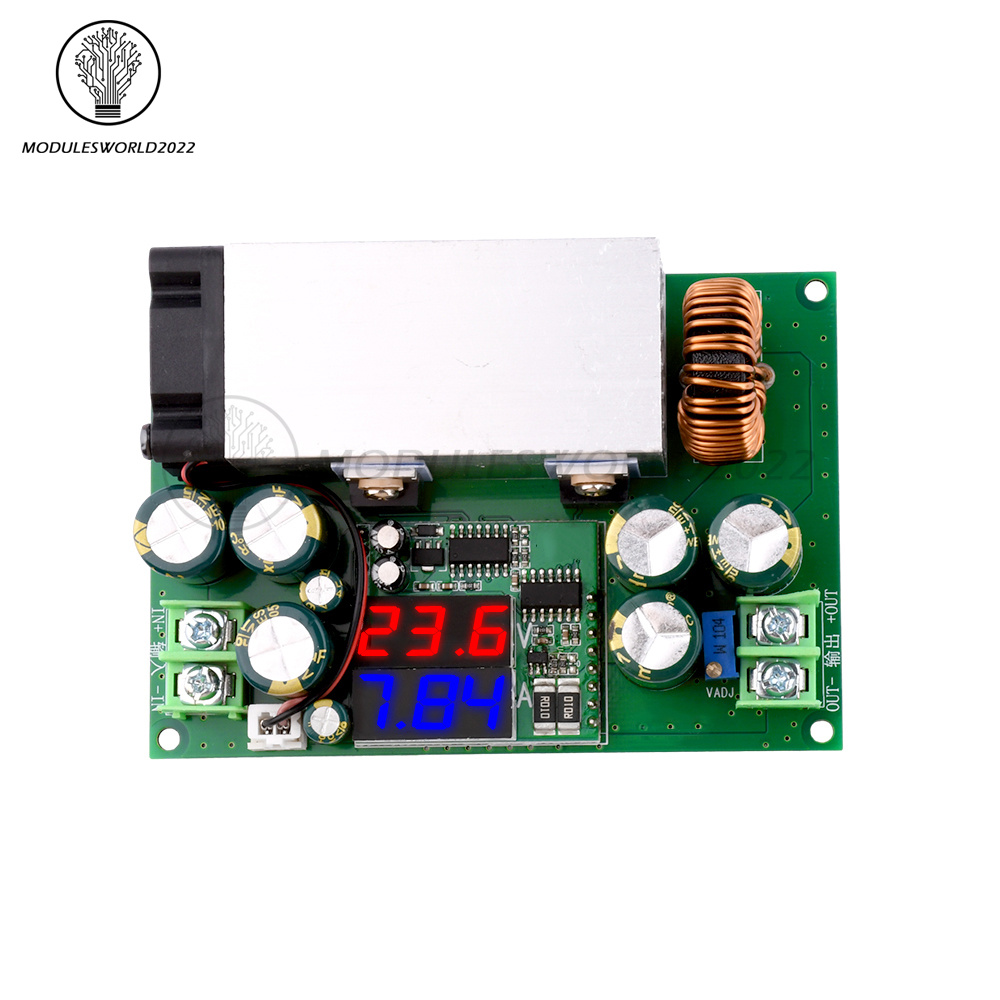

2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Adopting high quality materials, input voltage up to 80V;
5. Very high efficiency, up to 93%.
Product Parameter:

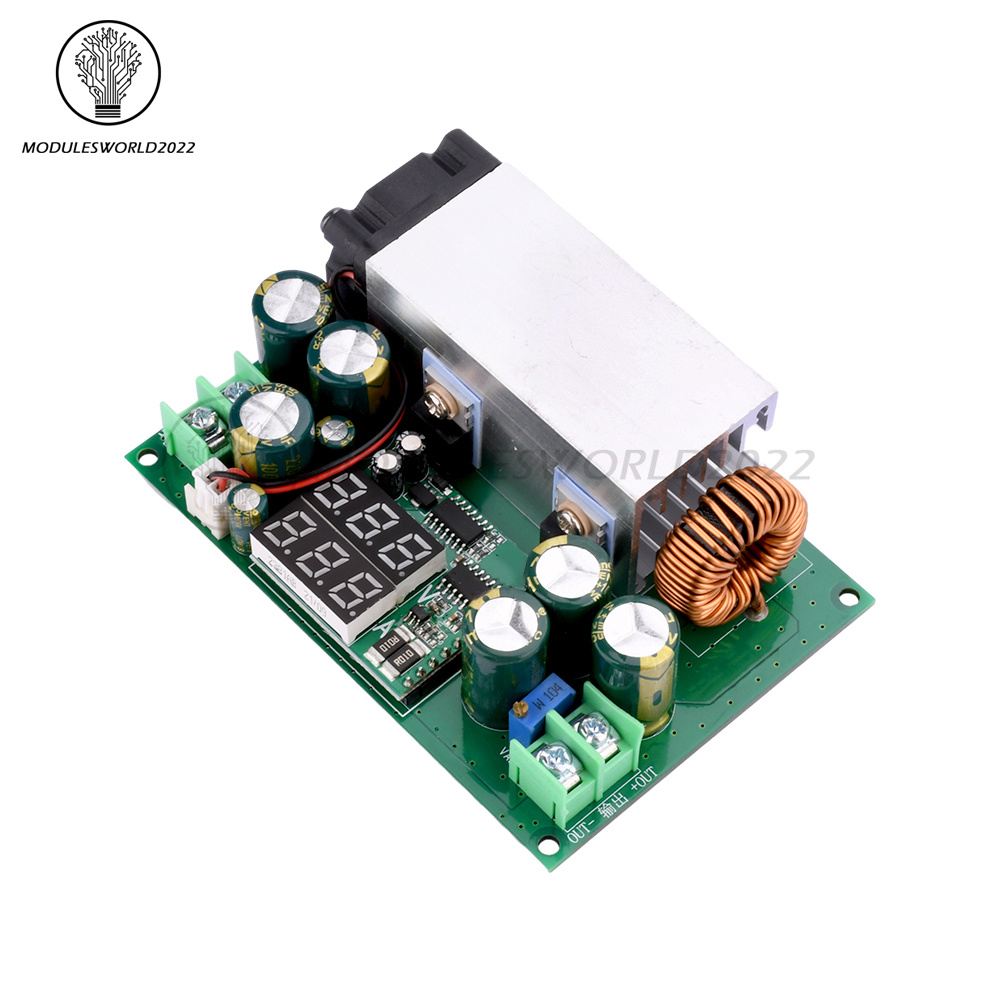

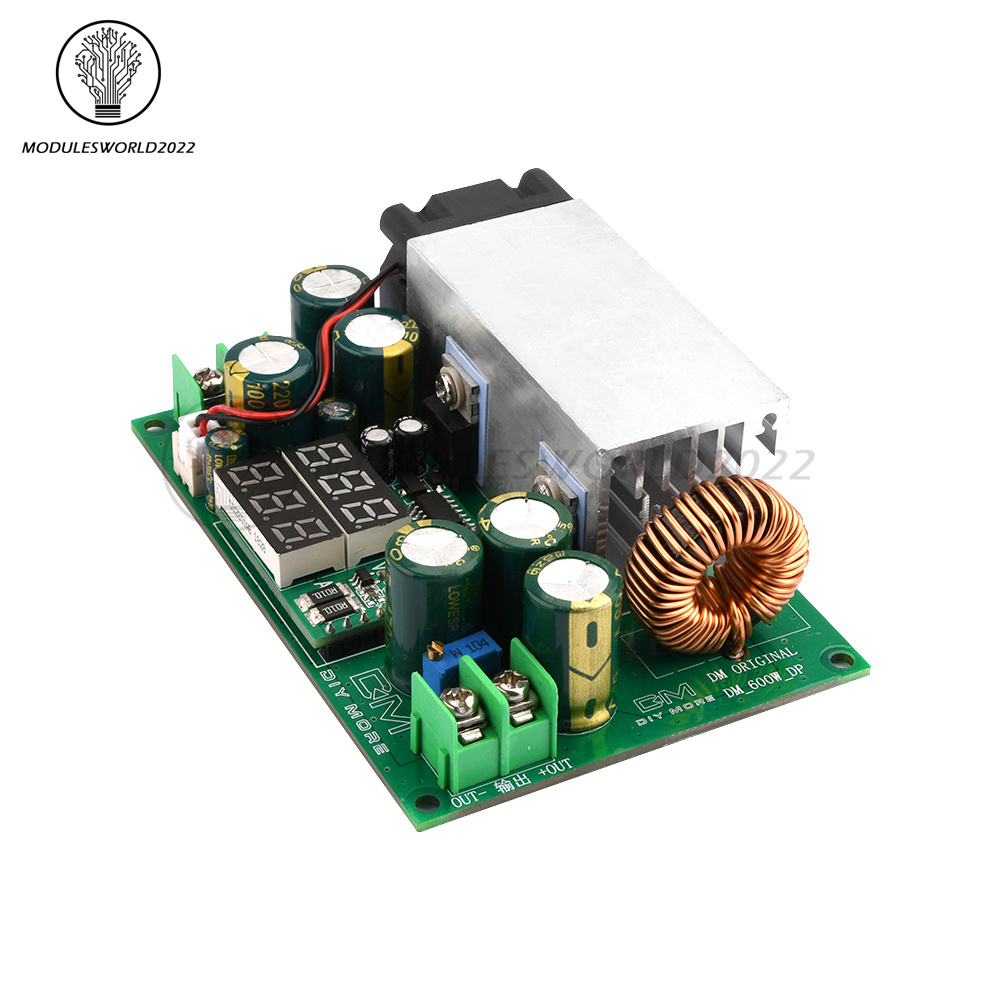

Name:DC-DC Adjustable Buck Module
Input voltage:DC12-80V Cannot be used for 72V battery
Output voltage: 2.5V-50V adjustable (only buck) (max output voltage = input voltage * 0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: overcurrent protection
Size: L100mm*W70mm*H31mm
Operating temperature: -40-85℃
Storage environment: -20℃-+50℃
Relative humidity: 65±20%
Wiring:High power situation, wiring as thick as possible.
Voltage conversion at a glance.
12-80V to 5V
12-80V to 9V
14-80V to 12V
17-80V to 14.8V
19-80V to 16.8V
22-80V to 19V
24-80V to 21V
28-80V to 24V
35-80V to 30V
41-80V to 36V
48-80V to 42V
55-80V to 48V

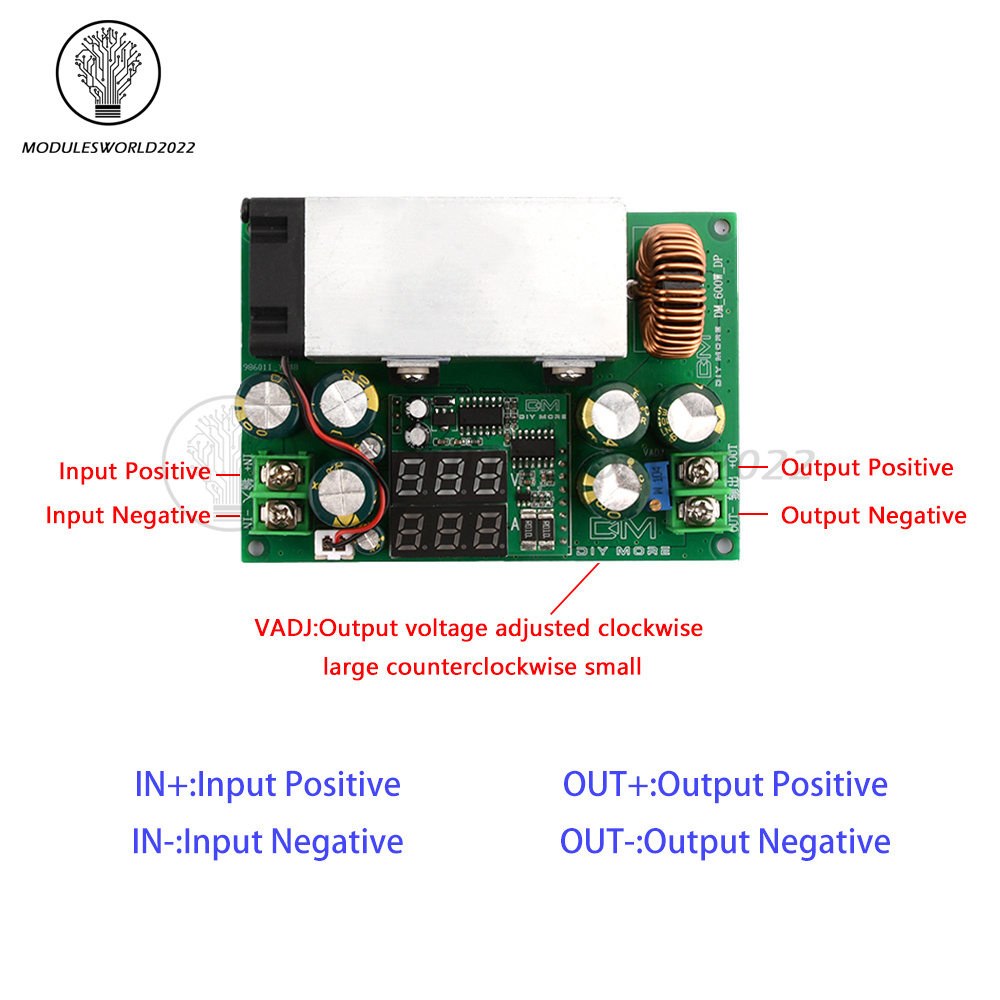

Interface Description:
IN+:Input positive
IN-:Input negative
OUT+:Output positive
OUT-:output negative
VADJ: output voltage adjustment, clockwise large counterclockwise small
Note:For batteries Charge,output, please add your own diode
Product list:
1X module
Copyright©2018 datacaciques
Store Categories
Product View
Details
1. High performance, continuously adjustable output voltage and current;
2. Increase the digital display function, more convenient to use;
3. Simple operation, connected to the line can be used;
4. Adopting high quality materials, input voltage up to 80V;
5. Very high efficiency, up to 93%.
Product Parameter:
Name:DC-DC Adjustable Buck Module
Input voltage:DC12-80V Cannot be used for 72V battery
Output voltage: 2.5V-50V adjustable (only buck) (max output voltage = input voltage * 0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: overcurrent protection
Size: L100mm*W70mm*H31mm
Operating temperature: -40-85℃
Storage environment: -20℃-+50℃
Relative humidity: 65±20%
Wiring:High power situation, wiring as thick as possible.
Voltage conversion at a glance.
12-80V to 5V
12-80V to 9V
14-80V to 12V
17-80V to 14.8V
19-80V to 16.8V
22-80V to 19V
24-80V to 21V
28-80V to 24V
35-80V to 30V
41-80V to 36V
48-80V to 42V
55-80V to 48V
Interface Description:
IN+:Input positive
IN-:Input negative
OUT+:Output positive
OUT-:output negative
VADJ: output voltage adjustment, clockwise large counterclockwise small
Note:For batteries Charge,output, please add your own diode
Product list:
1X module
